- Powerful and compact 1U server.
- Intel Core i3-14100 processor (expandable).
- 16Gb of RAM memory, expandable up to 64Gb.
- 500Gb NVMe PCIe 4.0 M.2 Fast Boot Disk (Expandable).
- Supports 2 2.5" SSD drives and 2 internal 3.5" HDD drives.
- Raid 0, 1, 5, 10 controller integrated on board.
- Includes Realtek 2.5GbE LAN.
- 400W power supply (expandable).

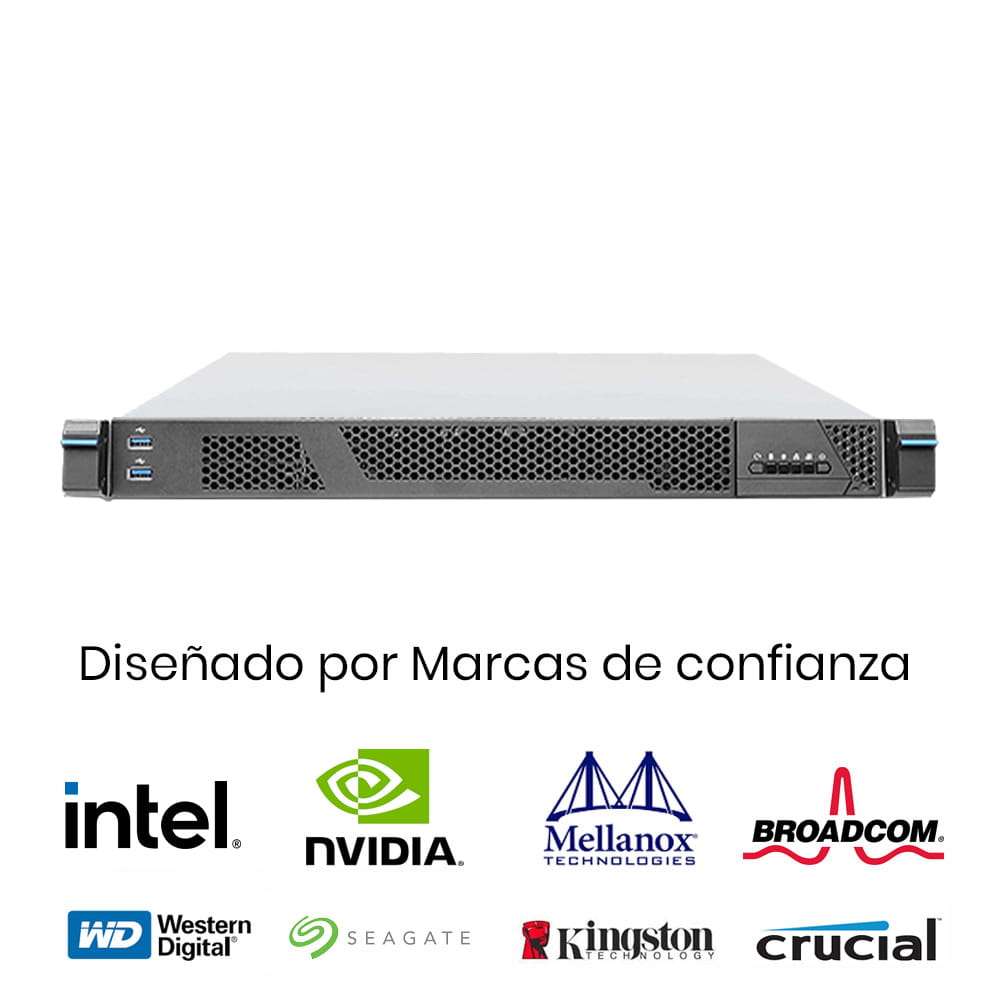

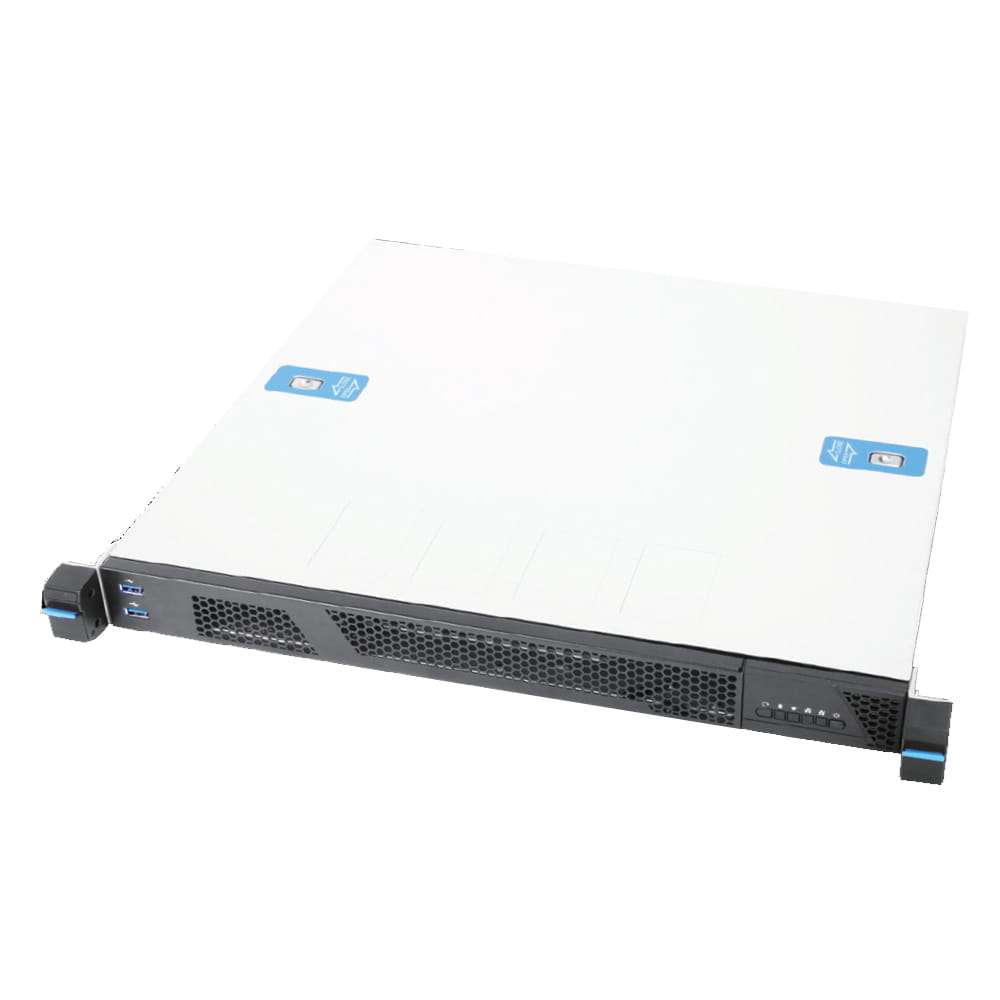

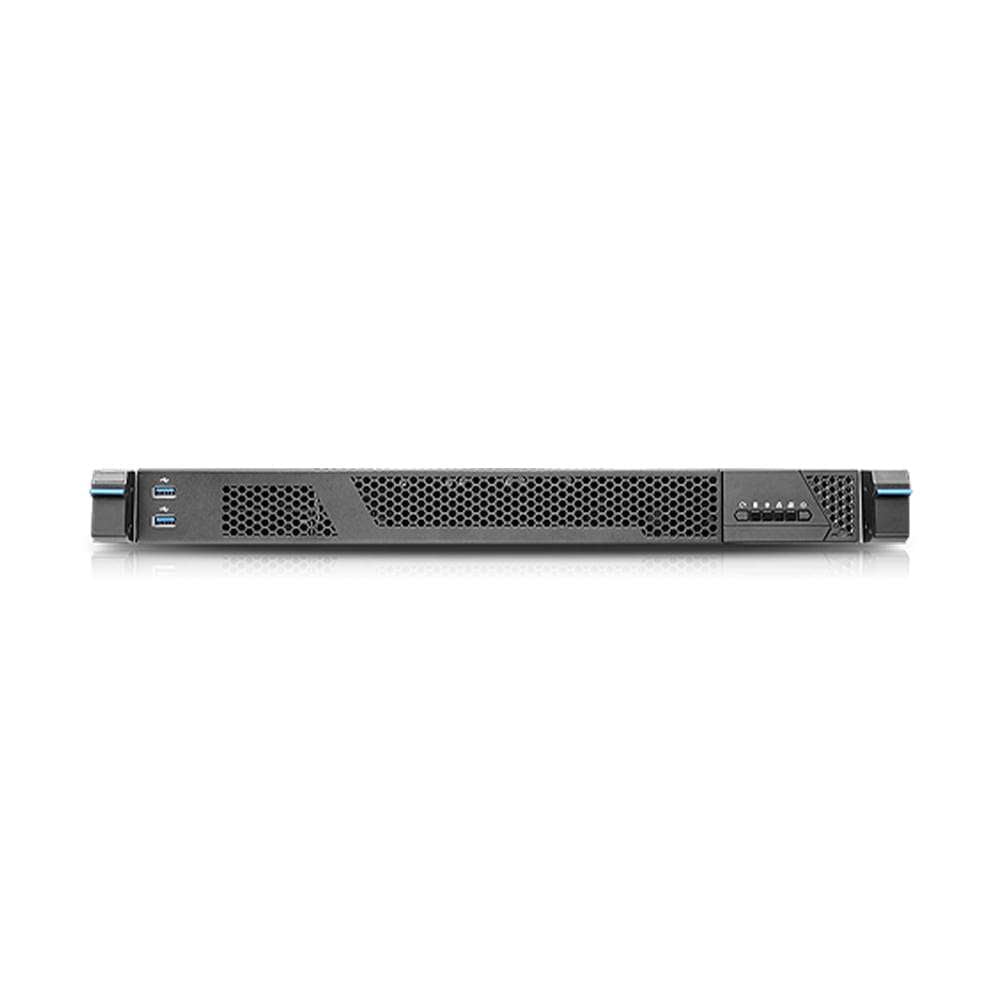

The ProServe IB14-1004 server is a powerful and compact solution in 1U rack format, designed to meet the performance needs of your business in a small space. This server is powered by an Intel Core i3-14100 processor, which provides an excellent balance between performance and energy efficiency, and its expandability allows you to adapt it to your future requirements.
With 16 GB of RAM, expandable up to 64 GB, the ProServe IB14-1004 server ensures seamless performance and efficient workload management. Plus, enjoy exceptional fast boot and storage speeds with its 500GB NVMe PCIe 4.0 M.2 drive, which can be expanded to meet your ever-growing storage needs.
This server offers space for 2 2.5" SSDs and 2 internal 3.5" HDDs, giving you the flexibility to configure your storage infrastructure according to your specific preferences and requirements.
The security of your data is essential, and the ProServe IB14-1004 server is equipped with an on-board Raid 0, 1, 5, 10 controller, allowing you to implement a robust data protection strategy.
Additionally, the inclusion of Realtek 2.5GbE LAN ensures high-speed, reliable network connectivity to keep your business operations running efficiently. The 400W power supply, expandable according to your needs, guarantees stable and efficient performance at all times.
In short, the ProServe IB14-1004 server is a compact and versatile solution that offers a perfect balance of performance, expandability and data security, all in a space-saving 1U rack design in your data center. Boost your business efficiency with this high-performance server in a compact format!
Main features...
* Powerful and compact 1U server.
* Intel Core i3-14100 processor (expandable).
* 16Gb of RAM memory, expandable up to 64Gb.
* 500Gb NVMe PCIe 4.0 M.2 Fast Boot Disk (expandable).
* Supports 2 2.5" SSD drives and 2 internal 3.5" HDD drives.
* Raid 0, 1, 5, 10 controller integrated on board.
*Includes Realtek 2.5GbE LAN.
* 400W power supply (expandable).
Technical specifications
| Formato | 1U |
| Dimensiones (An x Al x Fo) | 438.5 x 43.2 x 409 mm |
| Procesador | Intel Core i3-14100 3.5Ghz. (Ampliable) |
| Chipset | Intel B760 |
| Memoria | 16Gb DDR4 3200Mhz hasta 64Gb |
| Bahias de discos | 1x 500Gb M.2 NVMe PCIe 4.0 (Ampliable) 2x SSD SATA 2.5' 2x HDD SATA 2.5' |
| RAID | 0, 1, 5, 10 |
| LAN | 1x Realtek 2.5Gb |
| Ranuras de expansión | 1x PCIe 4.0 x16 slot 2x PCIe 4.0 x1 slots |
| Vídeo | Intel HD |
| I/O Frontal | 2x USB 3.0 |
| I/O Trasero | 4x USB 3.2 Gen 1 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 1x VGA port 1x HDMI® port 1x Realtek 2.5Gb Ethernet port 3x Audio jacks 1x PS/2 Keyboard/Mouse combo port |
| Fuente Alimentación | 400W 80+ Gold (Ampliable) |
| S.O. Compatible | Windows 10 / Windows 11 |
