SilverStone SST-RM21-308
- Backplane support for 8-port SAS / SATA and Mini-SAS SFF-8087 12 Gb / s drives.
- Supports eight 2.5 "/ 3.5" SAS / SATA hard drives / SSDs.
- Includes three 80 x 15mm PWM fans.
- Standalone drive status LED.
- Supports Micro ATX motherboards.
- Supports four low-profile PCI / PCIe slots.
- Self-locking handle to easily secure the 2U rack mount in the cabinet.
of guarantee
shipping
Secure pay
Silverstone SST-RM201B - 2U Rack Mount Server Enclosure with 5 x 3.5 Hot Swap Hard Drive.

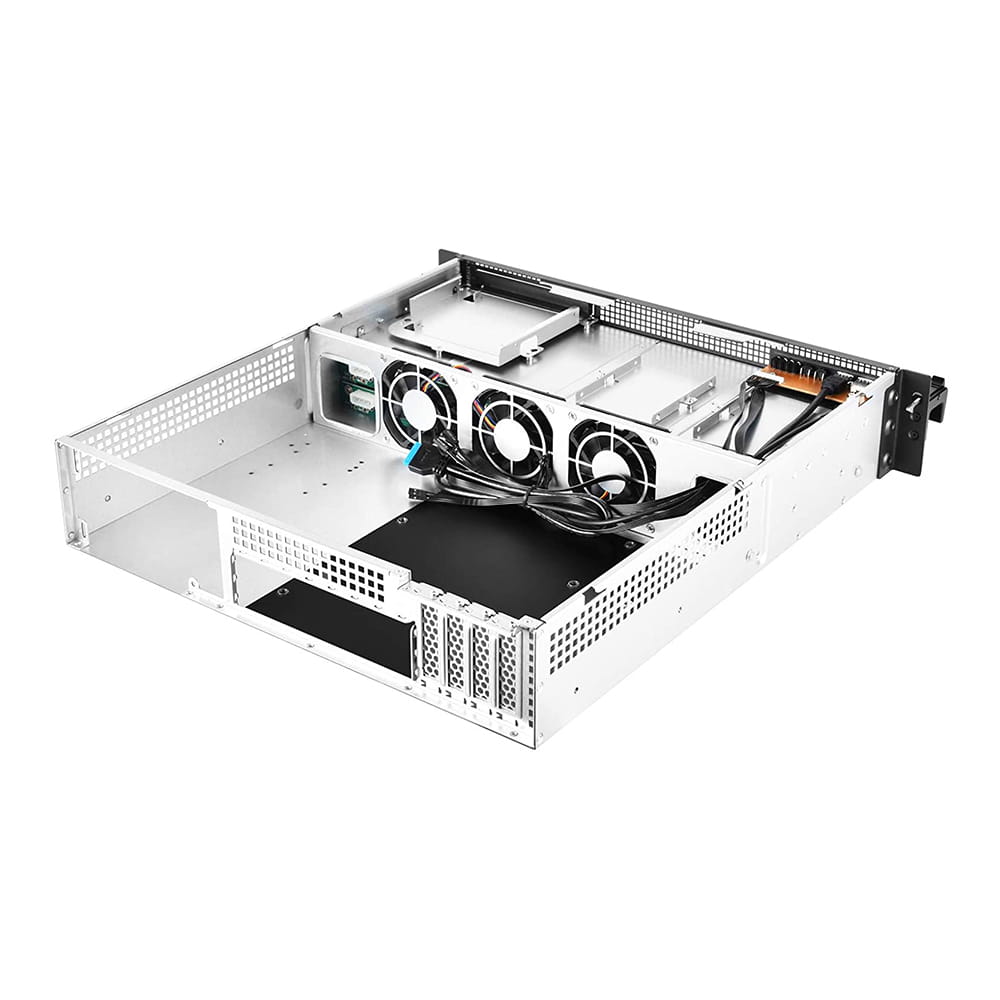

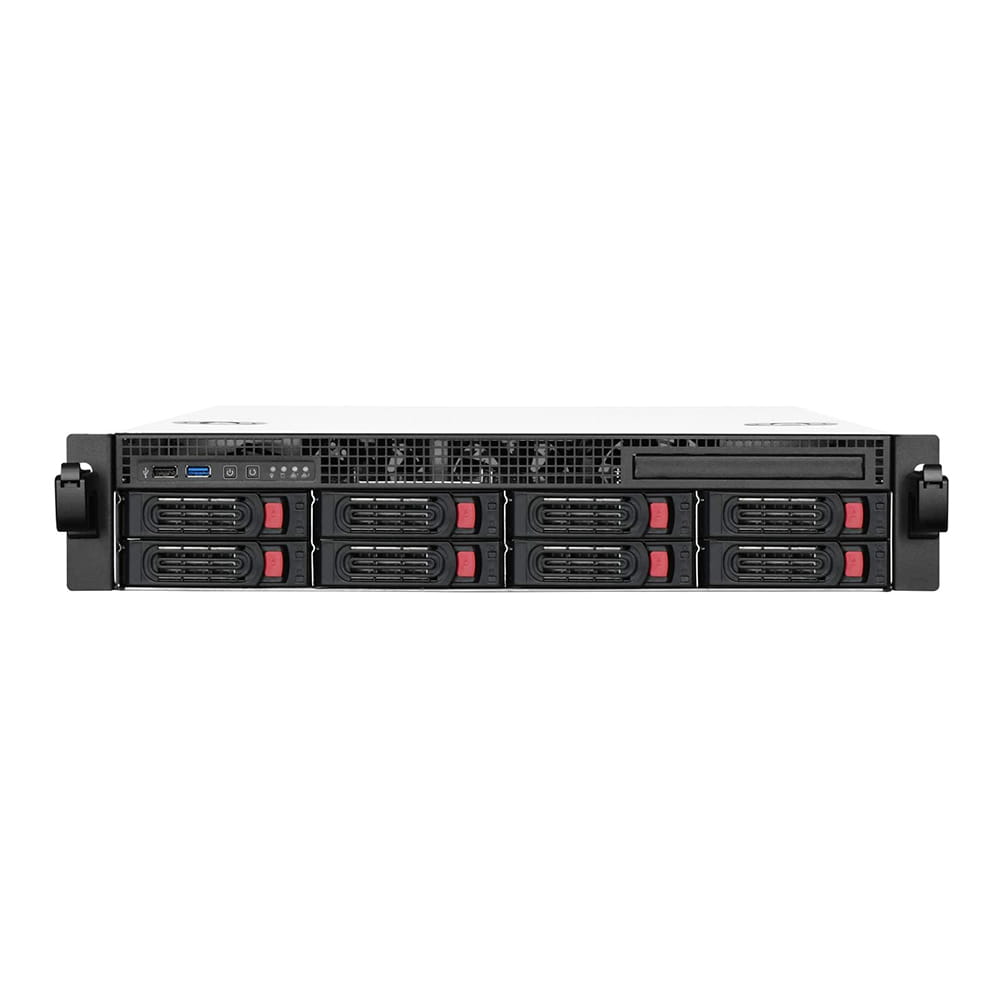

The SilverStone RM21-308 is a high performance storage server chassis designed for the professional storage environment. It is equipped with hard drive trays compatible with 2.5 "or 3.5" drives and has a fan assembly with motherboard support for up to a Micro ATX form factor.

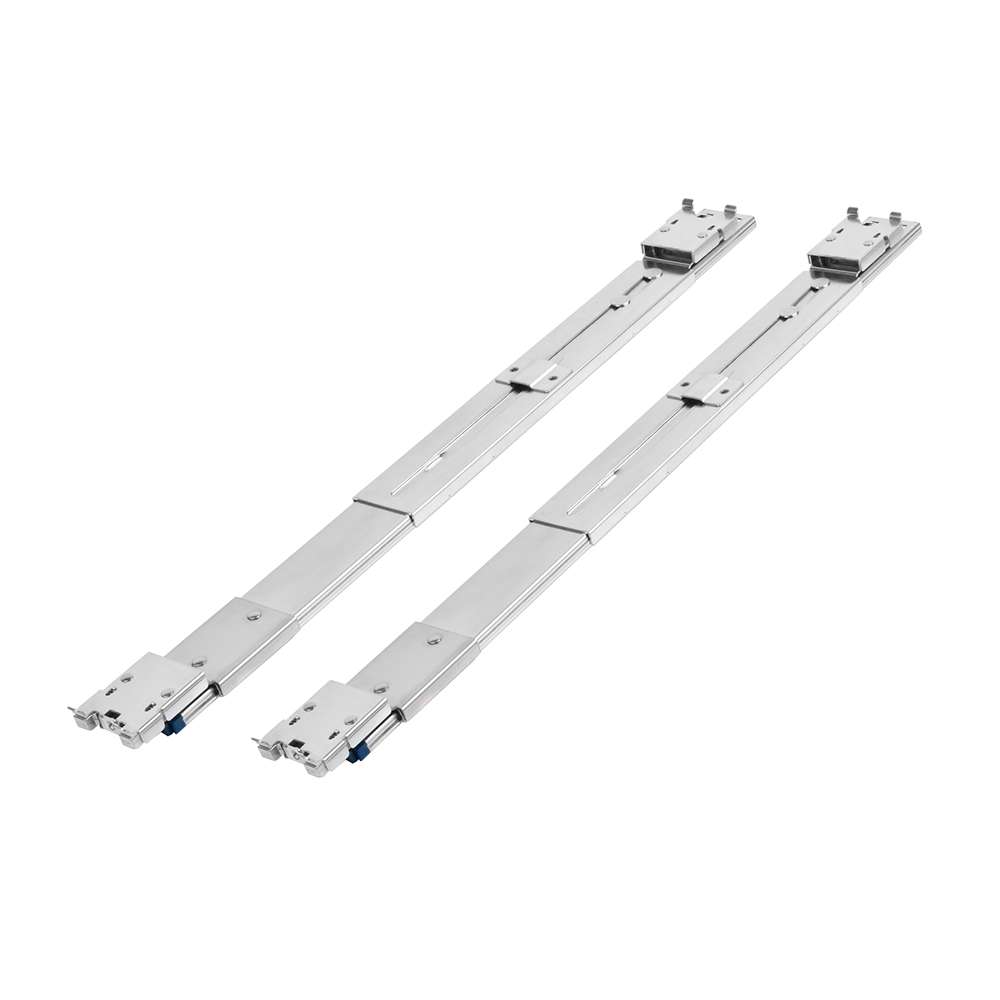

Flexible brackets are also available to accommodate most single 2U / 2U redundant, PS2 (ATX) server power supplies. The RM21-308 also features ergonomic tool-less * rail designs for easy rack-mount integration. With an overall package designed to maximize efficiency, flexibility, and durability, the RM21-308 is an excellent choice for data center professionals or engineers looking to build a storage server.
Highlights....
* Backplane support for 8-port SAS / SATA and Mini-SAS SFF-8087 12 Gb / s drives.
* Supports eight 2.5 "/ 3.5" SAS / SATA HDD / SSD.
* Includes three 80 x 15mm PWM fans.
* Supports Micro ATX motherboards.
* Self-locking handle to easily fix the 2U rack mount in the cabinet.
| N º de Modelo. | SST-RM21-308 | |
| Factor de forma del chasis | 2U | |
| tarjeta madre | Micro ATX (9,6 "x 9,6"), Mini-ITX (6,7 "x 6,7") | |

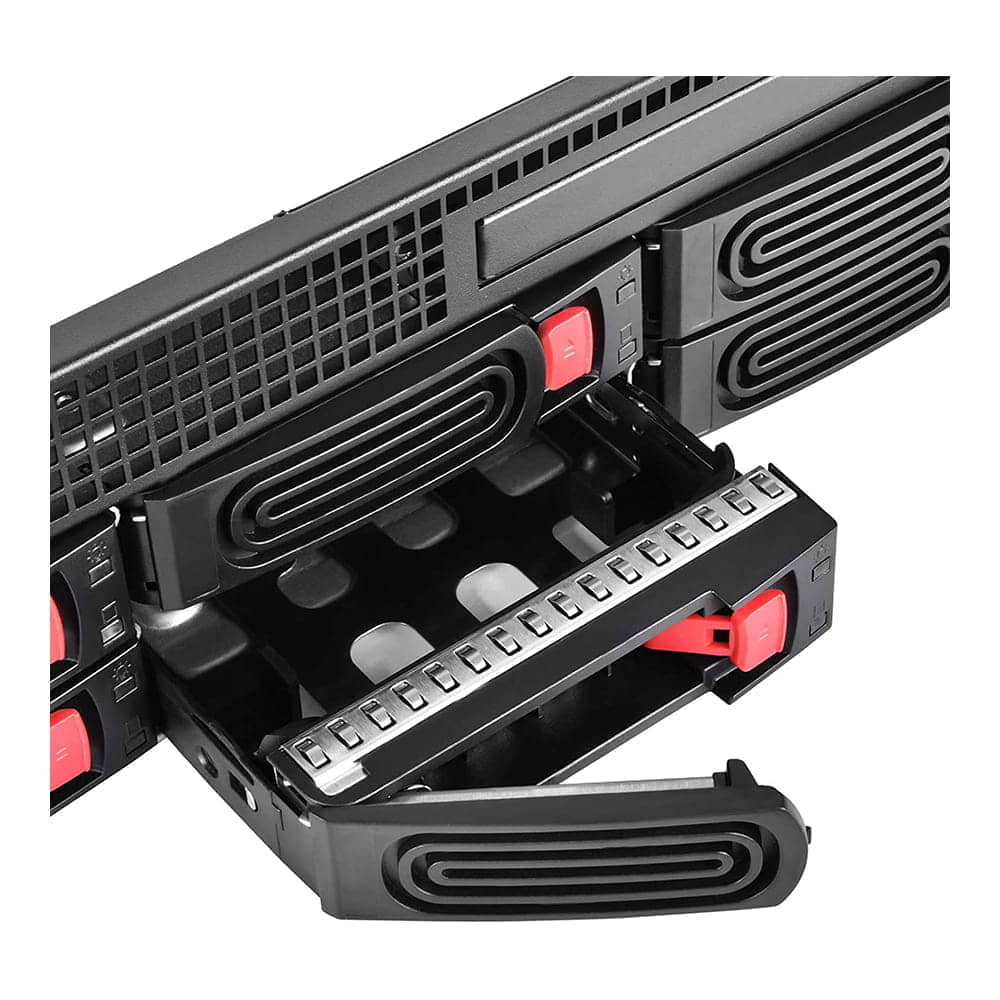

| Drive Bay | Externo | HDD / SSD de 3,5 "o 2,5" de intercambio en caliente x 8 |
| Interno | 2,5 "x 2 (hasta 15 mm), óptico delgado x 1 (hasta 12,7 mm) | |
| Sistema de refrigeración | Ventilador con rodamiento de bolas de 80 x 15 mm x 3, 4000 ± 10% RPM | |
| Fuente de alimentación | 2U simple o 2U redundante / PS2 (ATX) hasta 160 mm de profundidad y 86,3 mm de altura (no incluido) | |
| Limitación del enfriador de CPU | 68 mm | |
| Conector de alimentación en la placa posterior de HDD | Periférico de 4 pines x 2 | |
| Ranura de expansión | PCI / PCIe x 4 de perfil bajo | |
| Puerto de E / S frontal | USB 2.0 x 1, USB 3.1 Gen 1 Tipo A x 1 ** | |
| Botones frontales | Encendido / apagado, reinicio del sistema | |
| Indicadores | Chasis: LED de encendido x 1: Acceso a HDD azul x 1: LED LAN verde x 2: Bandeja de HDD verde : LED de alimentación de HDD x 8: Acceso a HDD amarillo x 8: Verde intermitente |
|
| Plano posterior de HDD | 8 puertos SAS / SATA a Mini-SAS SFF-8087 x 2 | |
| Interfaz HDD | SAS-1 / SAS-2 / SAS-3 SATA-1 / SATA-2 / SATA-3 |
|
| Espesor del metal principal | 1 mm | |
| Peso neto | 7,3 kilogramos | |
| Dimensión | 430 mm (ancho) x 88,5 mm (alto) x 480 mm (profundidad) 18,3 litros 16,93 "(ancho) x 3,48" (alto) x 18,9 "(profundidad) 18,3 litros |
|
