Español F.A. FSP TWINS 500W Miniredundante IPC ATX 80 Plus Gold
F.A. FSP TWINS 500W Miniredundante IPC ATX 80 Plus Gold
- 500W mini-redundant power supply.
- 80+ Gold certification.
- 2 Fans 50mm.
- OTP, OVP, OCP and SCP circuit protection support.
- Connectors: 2x 4-Pin, 4x SATA, 1x Floppy.
of guarantee
shipping
Secure pay

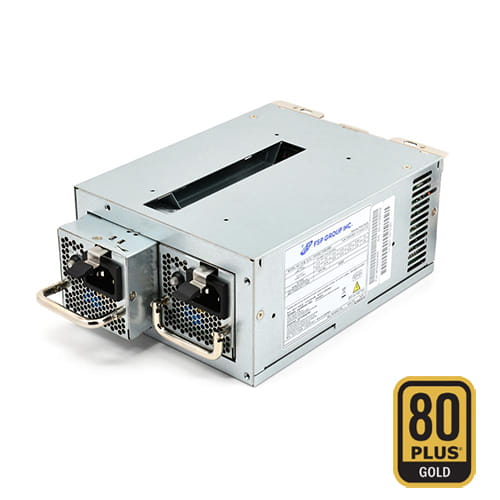

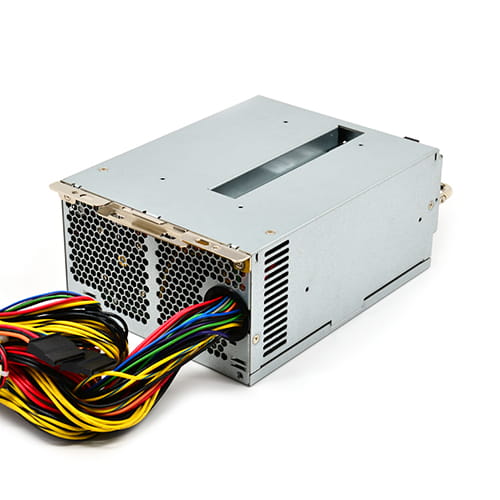

The FSP TWINS 500W, is an industrial level mini-redundant power supply. With a total power of up to 500W, with Active PFC and with the 80+ Gold certification.
This 2-module source is composed of 1 source per module in the same equipment and acting at the same time. Thus, in the event that one fails, the other continues to function so that the equipment does not stop if there is a problem with the power supply.
To achieve proper cooling, it has two 50mm fans.
Thanks to its full range of connectors, this font is the best choice for servers, workstations, or other similar applications.
Highlights...
* Mini-redundant 500W power supply.
* 80+ Gold certification.
* 3 12V rails.
* Support OTP, OVP, OCP and SCP circuit protection.
| Datos técnicos | ||||
| Potencia | 500W | |||
| Modelo | FSP500-50RAB | |||
| Voltaje/Frecuencia | 100 ~ 240V | |||
| Normativa | ||||
| Ventiladores | 2 x 50mm (uno por fuente) | |||
| Nivel Ruido, dB(A) | ||||
| 12V Raíles | 3 | |||
| Protecciones | OTP, OVP, OCP, SCP | |||
| Certificaciones | 80 Plus Gold / Soporta PMBus 1.2 | |||
| Durabilidad | >100.000 horas | |||

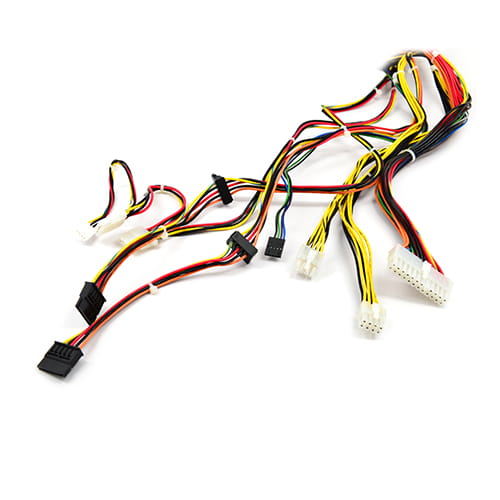

| Cableado | ||||
| A Placa Base | 1 x ATX 24-Pines / 2 x P8 conector | |||
| A Dispositivos | 2 x 4-Pin / 4 x SATA / 1 x Floppy | |||
| A VGA | ||||
| Extras | ||||
|
Datos salida/entrada corriente |
||||||||
|
AC Input |
100 ~ 240 VAC 50-60Hz 8-4A |
|||||||
|
DC Output |
3,3V |
5V |
12V1 |
12V2 |
12V3 |
|
-12V |
5VSB |
|
max. current |
20A |
20A |
16A |
16A |
16A |
|
0.5A |
3A |
|
|
||||||||
|
max. Combined power |
130W |
|
|
|||||
|
500W |
||||||||
| Dimensiones | |
| Ancho | 150mm |
| Alto | 86mm |
| Fondo | 190mm |
| Peso | 2.89 Kg |
