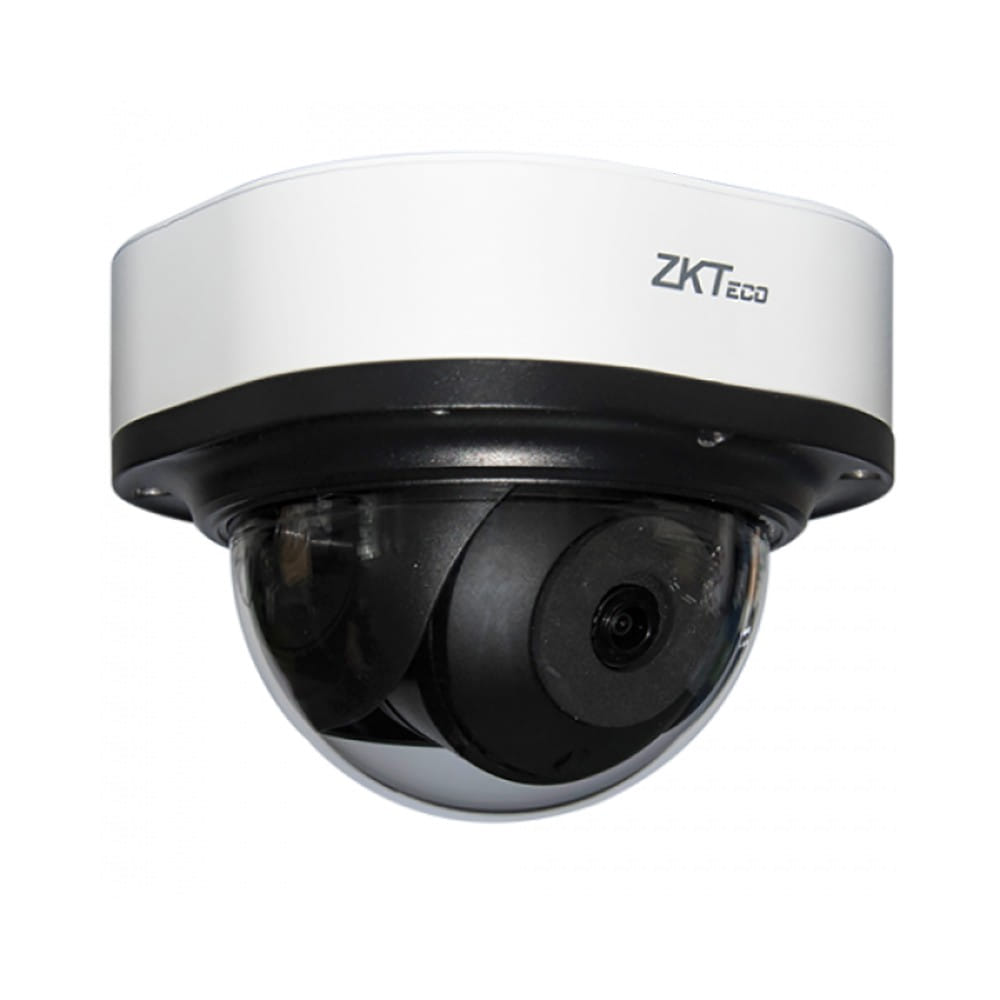

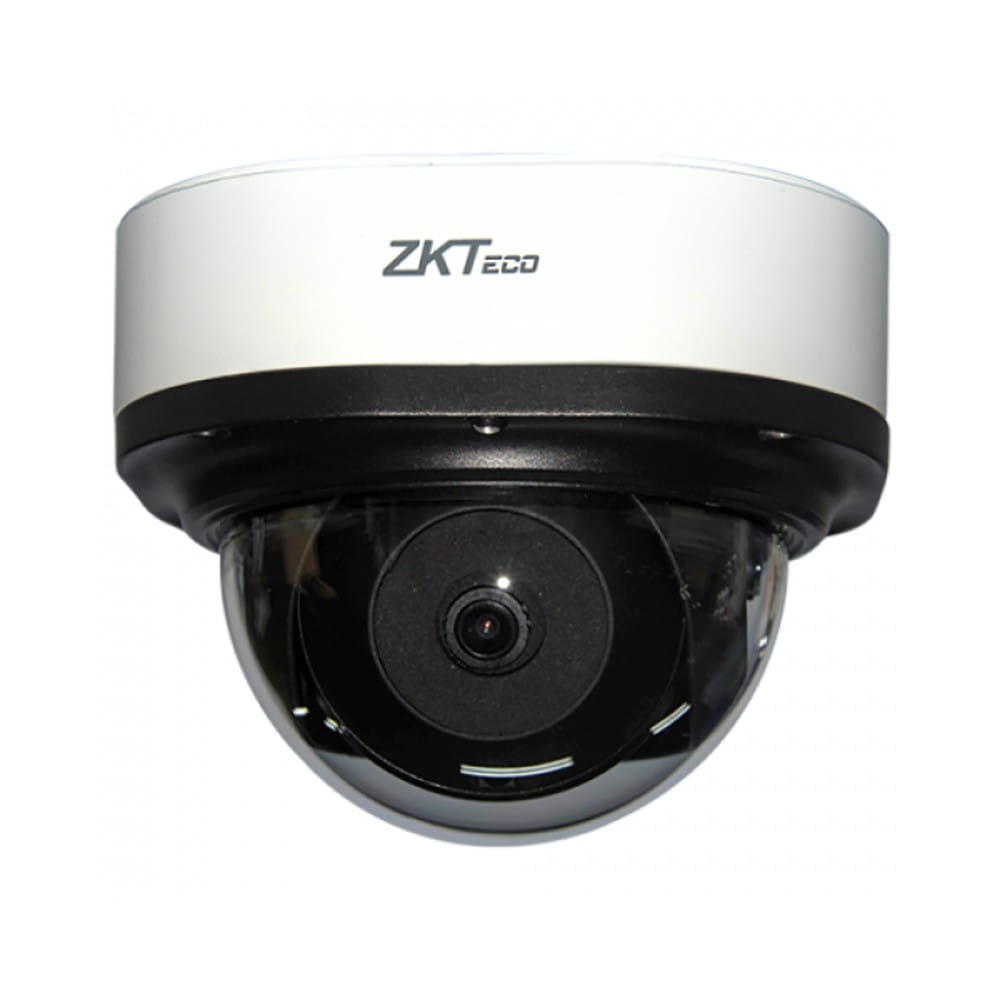

ZKTeco DL-858M21B

ZKTeco DL-858M21B

ZKTeco
  • 8.0MP H.265 + real-time compression.
  • 3D DNR, WDR.
  • Day and Night with IR filter.
  • IP67 protection.
  • PoE power.
  • Light protection up to 6KV.
  • Compatible with iOS / Android, remote monitoring.

P/N: DL-858M21B

Alisa
281,54 € Without VAT
340,66 € With VAT
In stock in secondary storage
Approximate delivery between 14 diciembre and 14 diciembre
2 years
of guarantee
sending
shipping
100%
Secure pay

The W series 8MP IP cameras work with starlight, WDR, smart H.265 + and advanced next generation Sony Sensor for video monitoring.

The cloud function is built-in for each device, making it more convenient and flexible for remote and real-time viewing.

H.265 +: Delivers high-quality video with up to 70% less bandwidth. H.265 + is the optimized evolution of H.265 and traditional H.264.

The Smart H.265 + includes a series of coding strategies such as Dynamic ROI, intelligent 2D and 3D noise reduction, etc. to save up to 70% bandwidth and storage.

VAT (Smart Video Analysis): Allows detection of multiple object behaviors, such as Tripwire, Intrusion, Object Detection, Target Counting, etc.

IP67: With a rugged mechanical and rugged housing design, it is water and dust resistant with an IP67 industrial rating. Supports ± 30% input voltage tolerance, it could work safely under extremely unstable power condition.

With a working temperature range of -30 ° C to +60 ° C, it works well in a variety of harsh outdoor environments.

Highlights ...

* 8.0MP H.265 + real-time compression.
* 3D DNR, WDR.
* Day and Night with IR filter.
* IP67 protection.
* PoE power.
* Light protection up to 6KV.
* Compatible with iOS / Android, remote monitoring.

Cámara
Modelo BL-858M21B
Sensor 1/1.8” 8MP
Iluminación mínima 0.06Lux/F1.5 (color)
0 Lux with IR on
Píxeles efectivos 3840(H)* 2160(V)
Flash/DDR 128Mb/256Mb
S/N Ratio Más de 52dB
Distancia IR 20~30m
Nº LED IR 2
Lente
Longitud Focal 2.8mm
Apertura F1.5
FOV 46.6°~112.5°
Vídeo
Compresión H.265+/H.265/H.264
Resolución 8MP(3840x2160)/5MP(2592x1944)3MP(2048x1536)1080P(1920x1080)/1.3M (1280x960)/720P(1280x720)/D1(730x576)/VGA(620x480)/CIF(352x288)
Bit Rate Control CBR/VBR
Bit Rate 16Kbps-32Mbps
Streaming Dual stream
Frame Rate Main stream:3840x2160@15fps
Sub stream:720x576(1~25/30fps)
Zoom Digital 12x
Compresión de audio G.711u
WDR 120dB
Día/Noche Auto(ICR)/Color/B/W
Balance de blancos Soportado
Defog Soportado
Reducción de ruido 3D DNR
Espejo Soportado
Flip Soportado
BLC Soportado
ROI Support 4 fixed region for main stream and sub stream separately
Anti-flicker Soportado
Máscara de privacidad 4 áreas
Alarma y Audio
Detección de video Motion Detection, Video Shelter
Audio 1 channel audio input; 1 channel audio output optional
IVA Face Detection/Tripwire/Intrusion/Object Left/Missing/Target Counting/Sound Detection/Fire Detection/Scene Change/VQD
Red
Ethernet 1 RJ-45 port(10/100Mbps)
Protocolos TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, SMTP, SNMP
Onvif Onvif Profile S
Usuarios max. online 5
Navegadores web IE/Firefox/Chrome/Safari
VMS AntarVis 2.0
Aplicación móvil AntarView Pro
Plataforma Mac OS/ Windows/IOS/Android
General
Temperatura de funcionamiento -30℃~+60℃
Humedad en funcionamiento 10~90%
Alimentación PoE, IEEE802.3af
DC12V±10%
Consumo <3W
Protección de acceso IP67
Dimensiones Φ 102 x 93.2 mm
Peso 0.5 Kg
Peso Bruto 0.7 Kg

The W series 8MP IP cameras work with starlight, WDR, smart H.265 + and advanced next generation Sony Sensor for video monitoring.

The cloud function is built-in for each device, making it more convenient and flexible for remote and real-time viewing.

H.265 +: Delivers high-quality video with up to 70% less bandwidth. H.265 + is the optimized evolution of H.265 and traditional H.264.

The Smart H.265 + includes a series of coding strategies such as Dynamic ROI, intelligent 2D and 3D noise reduction, etc. to save up to 70% bandwidth and storage.

VAT (Smart Video Analysis): Allows detection of multiple object behaviors, such as Tripwire, Intrusion, Object Detection, Target Counting, etc.

IP67: With a rugged mechanical and rugged housing design, it is water and dust resistant with an IP67 industrial rating. Supports ± 30% input voltage tolerance, it could work safely under extremely unstable power condition.

With a working temperature range of -30 ° C to +60 ° C, it works well in a variety of harsh outdoor environments.

Highlights ...

* 8.0MP H.265 + real-time compression.
* 3D DNR, WDR.
* Day and Night with IR filter.
* IP67 protection.
* PoE power.
* Light protection up to 6KV.
* Compatible with iOS / Android, remote monitoring.

Cámara
Modelo BL-858M21B
Sensor 1/1.8” 8MP
Iluminación mínima 0.06Lux/F1.5 (color)
0 Lux with IR on
Píxeles efectivos 3840(H)* 2160(V)
Flash/DDR 128Mb/256Mb
S/N Ratio Más de 52dB
Distancia IR 20~30m
Nº LED IR 2
Lente
Longitud Focal 2.8mm
Apertura F1.5
FOV 46.6°~112.5°
Vídeo
Compresión H.265+/H.265/H.264
Resolución 8MP(3840x2160)/5MP(2592x1944)3MP(2048x1536)1080P(1920x1080)/1.3M (1280x960)/720P(1280x720)/D1(730x576)/VGA(620x480)/CIF(352x288)
Bit Rate Control CBR/VBR
Bit Rate 16Kbps-32Mbps
Streaming Dual stream
Frame Rate Main stream:3840x2160@15fps
Sub stream:720x576(1~25/30fps)
Zoom Digital 12x
Compresión de audio G.711u
WDR 120dB
Día/Noche Auto(ICR)/Color/B/W
Balance de blancos Soportado
Defog Soportado
Reducción de ruido 3D DNR
Espejo Soportado
Flip Soportado
BLC Soportado
ROI Support 4 fixed region for main stream and sub stream separately
Anti-flicker Soportado
Máscara de privacidad 4 áreas
Alarma y Audio
Detección de video Motion Detection, Video Shelter
Audio 1 channel audio input; 1 channel audio output optional
IVA Face Detection/Tripwire/Intrusion/Object Left/Missing/Target Counting/Sound Detection/Fire Detection/Scene Change/VQD
Red
Ethernet 1 RJ-45 port(10/100Mbps)
Protocolos TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, SMTP, SNMP
Onvif Onvif Profile S
Usuarios max. online 5
Navegadores web IE/Firefox/Chrome/Safari
VMS AntarVis 2.0
Aplicación móvil AntarView Pro
Plataforma Mac OS/ Windows/IOS/Android
General
Temperatura de funcionamiento -30℃~+60℃
Humedad en funcionamiento 10~90%
Alimentación PoE, IEEE802.3af
DC12V±10%
Consumo <3W
Protección de acceso IP67
Dimensiones Φ 102 x 93.2 mm
Peso 0.5 Kg
Peso Bruto 0.7 Kg
