Español ZKTeco BL-858M28L

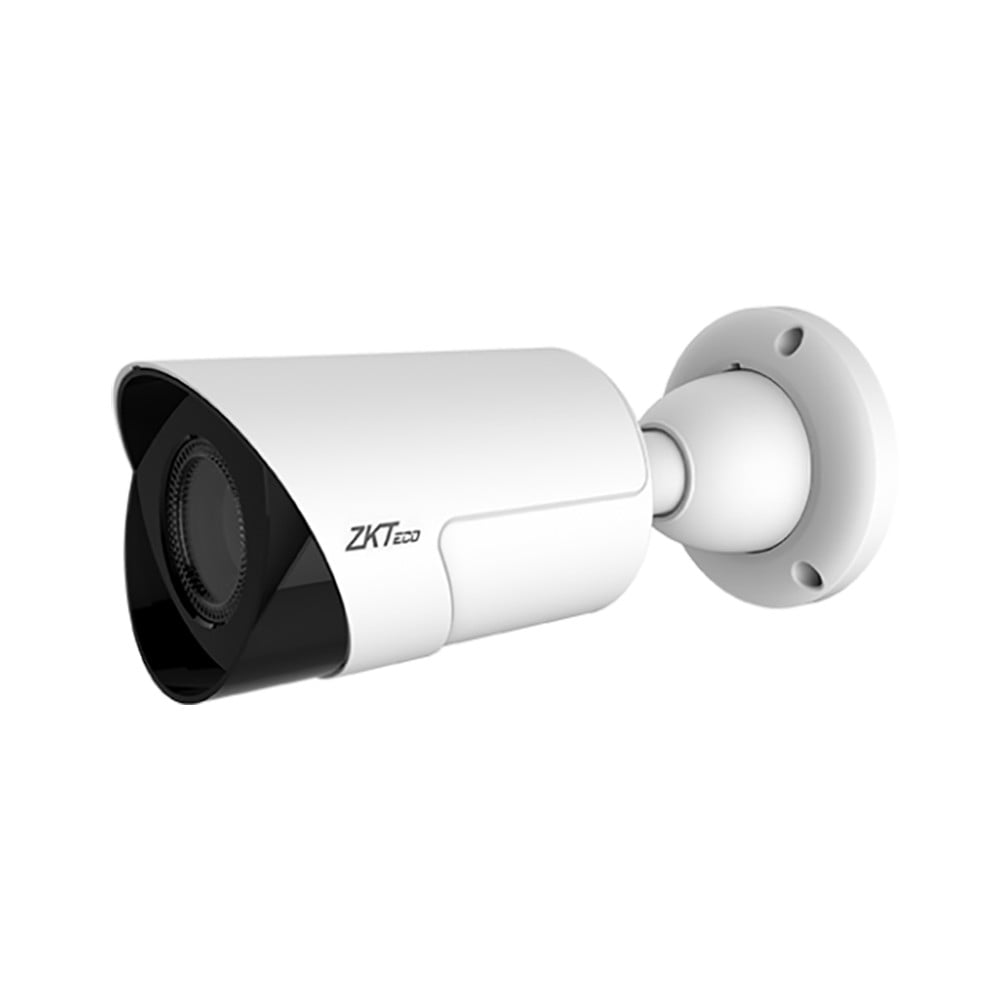

ZKTeco BL-858M28L
- Sony Starvis 1 / 1.8 "8MP sensor.
- H.265 + dual stream encoding.
- IR effective range 20 ~ 30m.
- High quality 3.6 ~ 11mm motorized lens.
- VAT (smart function) supported.
- Compatible multiple web browser, IE / Safari / Chrome / Firefox.
- P2P cloud function by mobile application (AntarView Pro).
- Lightning protection up to 6KV.
- IP67 input protection.
- Built-in PoE.
of guarantee
Insured
Secure pay
| Tipo de cámara | |
| Tipo de cámara | |
| Resolution | |
| Optics | |
| Optics | |
| Characteristics |
The W Series 8MP IP Cameras are a high-end project solution that works with Starlight, the true WDR smart H.265 + and the advanced Sony cutting-edge sensor for video monitoring.
It delivers sharp images and is compatible with the industry leading VAT smart event alarm.
The cloud function is integrated for each device, making it more convenient and flexible for remote and real-time viewing.
Deliver high-quality video with up to 70% less bandwidth. H.265 + is the optimized evolution of H.265 and traditional H.264.
The Smart H.265 + includes a series of coding strategies such as Dynamic ROI, intelligent 2D and 3D noise reduction.
VAT (Smart Video Analysis). It allows to detect behaviors of multiple objects, such as Face Detection, Tripwire, Intrusion, Object Detection, Target Counting, etc.
Protection. With a rugged mechanical and rugged housing design, it is water and dust resistant with an IP67 industrial rating.
Supports ± 30% input voltage tolerance, it could work safely in extremely unstable power condition.
With a working temperature range of -30 ° C to +60 ° C, it works well in a variety of harsh outdoor environments
Highlights ...
* Sony Starvis 1 / 1.8 "8MP sensor.
* H.265 + dual stream encoding.
* IR effective range 20 ~ 30m.
* High quality 3.6 ~ 11mm motorized lens.
* VAT (smart function) supported.
* Compatible multiple web browser, IE / Safari / Chrome / Firefox.
* P2P cloud function by mobile application (AntarView Pro).
* Lightning protection up to 6KV.
* IP67 input protection.
* Built-in PoE.
| Cámara | |
| Modelo | BL-858M28L |
| Sensor | 1/1.8” 8MP Sony Starvis Sensor |
| Iluminación mínima | 0.06Lux/F1.5 (color) 0 Lux with IR on |
| Píxeles efectivos | 3840(H)* 2160(V) |
| Flash/DDR | 128Mb/256Mb |
| S/N Ratio | Más de 52dB |
| Distancia IR | 20~30m |
| Nº LED IR | 2 |
| Lente | |
| Longitud Focal | Motorizado 3.6~11mm |
| Apertura | F1.6 |
| FOV | 46.6°~112.5° |
| Vídeo | |
| Compresión | H.265+/H.265/H.264 |
| Resolución | 8MP(3840x2160)/5MP(2592x1944)3MP(2048x1536)1080P(1920x1080)/1.3M (1280x960)/720P(1280x720)/D1(730x576)/VGA(620x480)/CIF(352x288) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | 16Kbps-20Mbps |
| Streaming | Dual stream |
| Frame Rate | Main stream：3840x2160@15fps Sub stream：720x576(1~25/30fps) |
| Zoom Digital | 12x |
| Compresión de audio | G.711u |
| WDR | 120dB |
| Día/Noche | Auto(ICR)/Color/B/W |
| Balance de blancos | Soportado |
| Defog | Soportado |
| Reducción de ruido | 3D DNR |
| Espejo | Soportado |
| Flip | Soportado |
| BLC | Soportado |
| ROI | Support 4 fixed region for main stream and sub stream separately |
| Anti-flicker | Soportado |
| Máscara de privacidad | 4 áreas |
| Alarma y Audio | |
| Detección de video | Motion Detection, Video Shelter |
| Audio | 1 channel audio input; 1 channel audio output optional |
| IVA | Face Detection/Tripwire/Intrusion/Object Left/Missing/Target Counting/Sound Detection/Fire Detection/Scene Change/VQD |
| Red | |
| Ethernet | 1 RJ-45 port(10/100Mbps) |
| Protocolos | TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, SMTP, SNMP |
| Onvif | Onvif Profile S |
| Usuarios max. online | 5 |
| Navegadores web | IE/Firefox/Chrome/Safari |
| VMS | AntarVis 2.0 |
| Aplicación móvil | AntarView Pro |
| Plataforma | Mac OS/ Windows/IOS/Android |
| General | |
| Temperatura de funcionamiento | -30℃~+60℃ |
| Humedad en funcionamiento | 10~90% |
| Alimentación | PoE, IEEE802.3af DC12V±10% |
| Consumo | ＜3W |
| Protección de acceso | IP67 |
| Dimensiones | 186.5 (L)*71.7 (W)*84 (H)mm |
| Peso | 0.5 Kg |
| Peso Bruto | 0.64 Kg |
