Español Vivolink Matrix Switcher HDMI 2.0 4x4

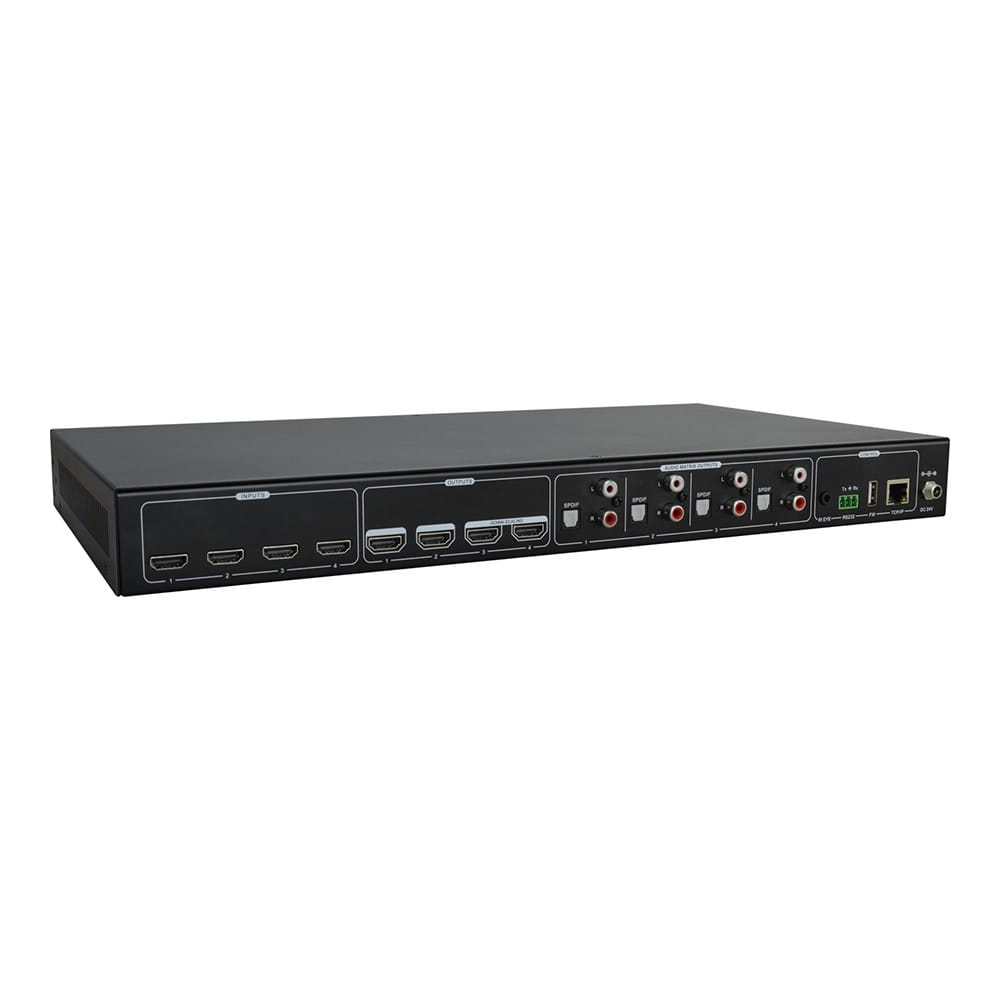

Vivolink Matrix Switcher HDMI 2.0 4x4
- HDMI 2.0 HDCP 2.2 matrix.
- Supports 18Gbps bandwidth for 4K at 60Hz 4: 4: 4 8bit.
- Deep color formats and HDR capability.
- HD audio support up to DTS: X and Dolby Atmos.
- Integrated graphical user interface for matrix configuration and control via LAN.
- Smart EDID management, automatically adopts the resolution of the first screen detected from port 1 or 2.
- Intuitive indicator for connection status and inbound HDCP compliance.
of guarantee
shipping
Secure pay
Professional signal distribution with selectable inputs and outputs.
Highlights...
* HDMI switch with 4 HDMI inputs and one HDMI output.
* Supports video resolution up to 4Kx2K @ 60Hz 4: 4: 4 HDR.
* 18 Gbps bandwidth.
* Fully compliant with HDMI 2.0 and HDCP2.2 specifications.
* Supports Audio Return Channel (ARC).
* Advanced EDID management: multiple default and user-defined values allowed.
* Controllable through RS232 and IR.
* Supports CEC.
| Puertos entrada | 4x HDMI |
| Puertos salida | 1x HDMI |
| estandar HDMI | 2.0 |
| Control de señal | 1x IR, 1x TCP/IP, 1x RS232 |
| Conector de control | 3.5mm minijack, rj45, bloque de 3 pines para terminal. |
| Señal de video | HDMI 2.0 y HDCP 2.2 |
| Rango de resolucion | 640x480 @60Hz, 1080P 3D |
| Fuente de alimentación | 24VDC, 1,25 A |
| Dimensiones | 437mm x 44mm x 236.5mm |
| Peso | 1.75 Kg |
| Rango de temperatura | -10 - 55 |
| Rango de humedad | 10%-90% |
| Dimensiones | 194mm x 12mm x 81mm |
| Peso | 180g |
Professional signal distribution with selectable inputs and outputs.
Highlights...
* HDMI switch with 4 HDMI inputs and one HDMI output.
* Supports video resolution up to 4Kx2K @ 60Hz 4: 4: 4 HDR.
* 18 Gbps bandwidth.
* Fully compliant with HDMI 2.0 and HDCP2.2 specifications.
* Supports Audio Return Channel (ARC).
* Advanced EDID management: multiple default and user-defined values allowed.
* Controllable through RS232 and IR.
* Supports CEC.
| Puertos entrada | 4x HDMI |
| Puertos salida | 1x HDMI |
| estandar HDMI | 2.0 |
| Control de señal | 1x IR, 1x TCP/IP, 1x RS232 |
| Conector de control | 3.5mm minijack, rj45, bloque de 3 pines para terminal. |
| Señal de video | HDMI 2.0 y HDCP 2.2 |
| Rango de resolucion | 640x480 @60Hz, 1080P 3D |
| Fuente de alimentación | 24VDC, 1,25 A |
| Dimensiones | 437mm x 44mm x 236.5mm |
| Peso | 1.75 Kg |
| Rango de temperatura | -10 - 55 |
| Rango de humedad | 10%-90% |
| Dimensiones | 194mm x 12mm x 81mm |
| Peso | 180g |
