Vivolink HDMI Over IP. Transmisor 120m

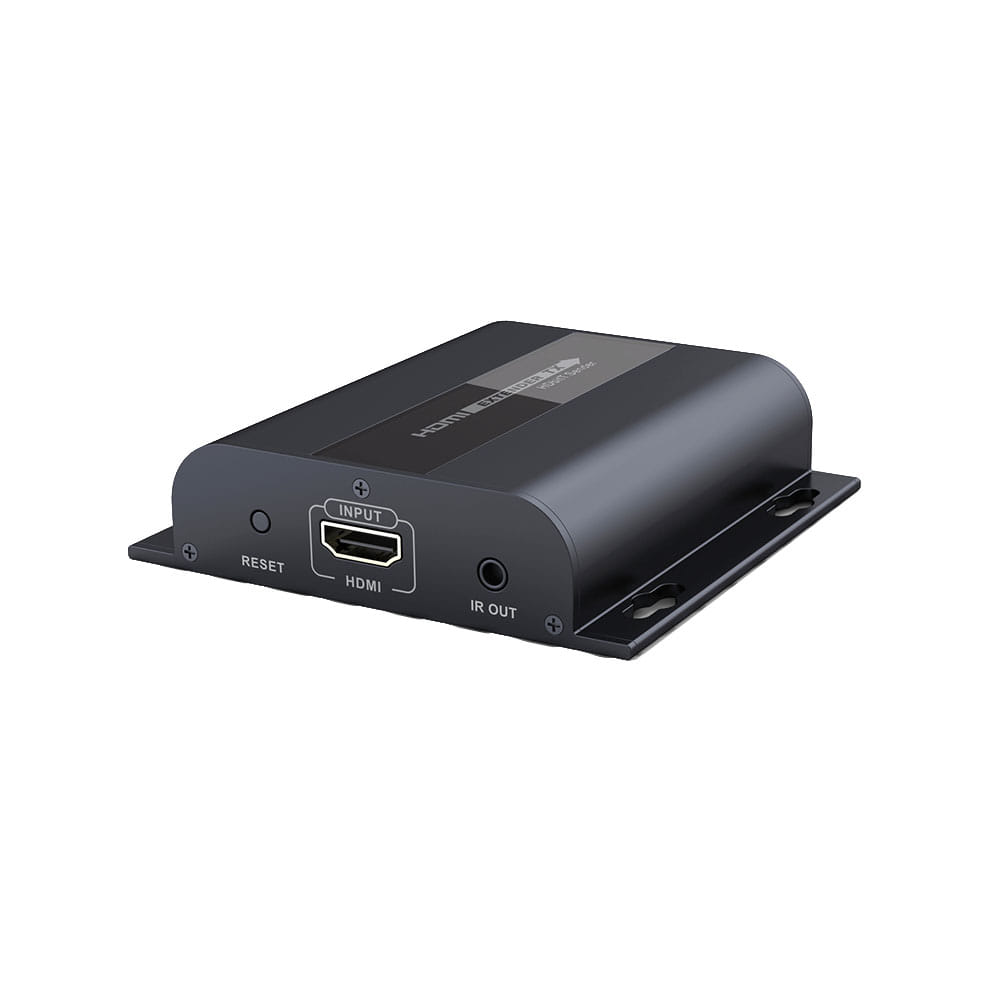

VLHDMIEXT1-T is a transmitter for VLHDMIEXT1-R It can extend video / audio / IR with a resolution of 1080P at 60 Hz up to 120 meters through a single network cable (Cat 5e / 6).
Up to 253 receivers can be connected to one transmitter using the Gbit switch. A receiver will occupy 18 Mbits of bandwidth.
Highlights ...
* Resolution up to 1080P @ 60Hz.
* With 18Gbps for each receiver.
* Supports up to 253 devices through Switch.
* Low consumption.
Salida | 1HDM (Hembra) |
Señal salida de Video | HDMI |
Protocolo | HDBitT RJ45 |
Resoluciones soportadas | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
Cable de red | UTP/STP Cat 5/5e/6 |
Distancia de transmisión | Hasta 120 metros @1080P con cable Cat.6 |
Ancho de banda | 18Mbps |
Nº receptores soportados | 253 |
Modo reset | A traves de botón |
Fuente de alimentación | DC 5V/1 Amp |
Consumo | 3.5W |
Peso | 145g |
Dimensiones | 96.8 x 29.7 x 94 (mm) |
