Español Vivolink HDMI Over IP. Receptor 120m.

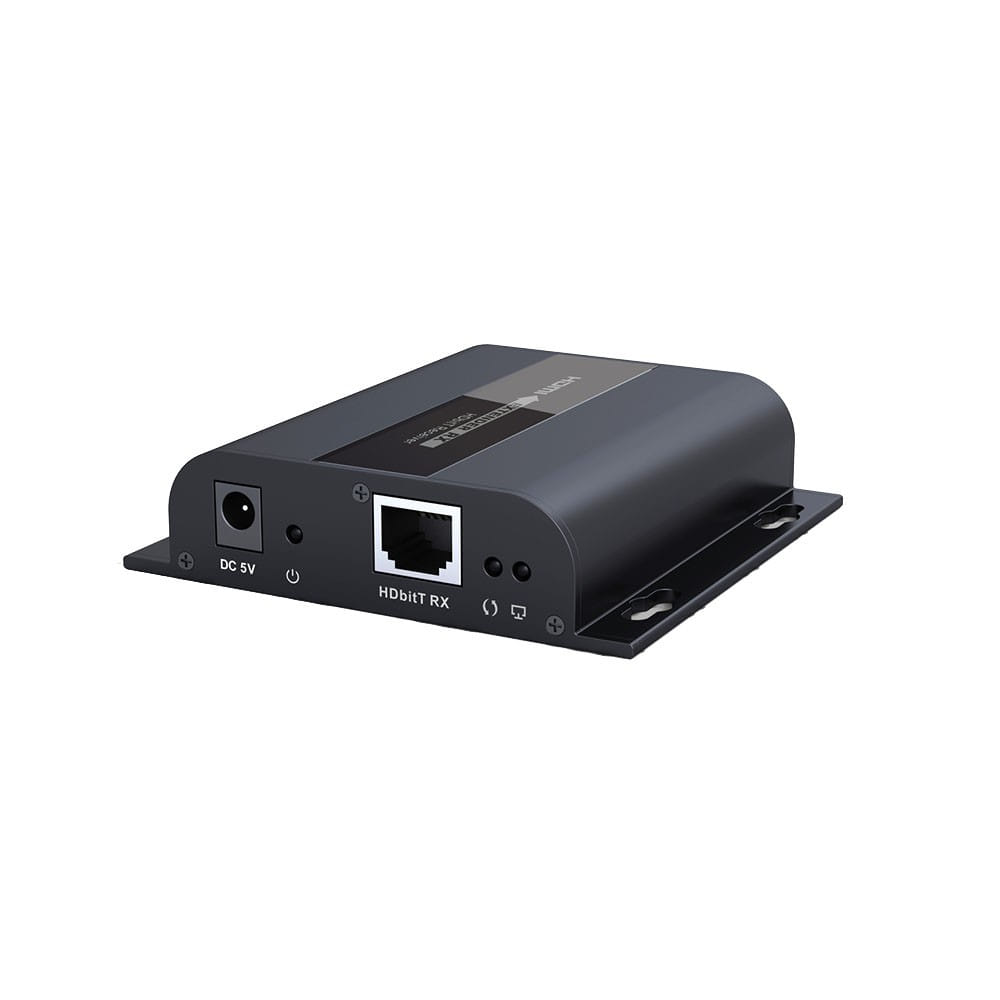

Vivolink HDMI Over IP. Receptor 120m.
- AV signal transmitter.
- Cable types supported: Cat5, Cat5e, Cat6.
- Maximum transfer distance: 120 m.
- Connectivity technology: Wired.
- Operating voltage (transmitter): 5 V.
- Output current: 1 A.
- Operating voltage (receiver): 5 V.
- Width: 96.8mm, Depth: 94mm, Height: 23.7mm.
The price that appears is indicative
of guarantee
Insured
Secure pay
| Tipos de Conexión | |
| Tipos de Conexión | |
| Normative |
VLHDMIEXT1-R is a part of the receiver for VLHDMIEXT1-T.It can extend video / audio / IR with a resolution of 1080P at 60 Hz up to 120 meters through a single network cable (Cat 5e / 6).
Up to 253 receivers can be connected to one transmitter using the Gbit switch. A receiver will occupy 18 Mbits of bandwidth.
HIghlights...
* Resolution up to 1080P @ 60Hz.
* With 18Gbps for each receiver.
* Supports up to 253 devices through Switch.
* Low consumption.
| Salida | 1HDM (Hembra) |
| Señal salida de Video | HDMI |
| Protocolo | HDBitT RJ45 |
| Resoluciones soportadas | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Cable de red | UTP/STP Cat 5/5e/6 |
| Distancia de transmisión | Hasta 120 metros @1080P con cable Cat.6 |
| Ancho de banda | 18Mbps |
| Nº receptores soportados | 253 |
| Modo reset | A traves de botón |
| Fuente de alimentación | DC 5V/1 Amp |
| Consumo | 3.5W |
| Peso | 145g |
| Dimensiones | 96.8 x 29.7 x 94 (mm) |
