Vision VFM-F10/BL. Soporte suelo estilo rotafolios.

Vision VFM-F10/BL. Soporte suelo estilo rotafolios.

Vision
  • Flipchart Style Portable Floor Stand.
  • For 50-65 ″ screens and up to 45 kg / 99 lb.

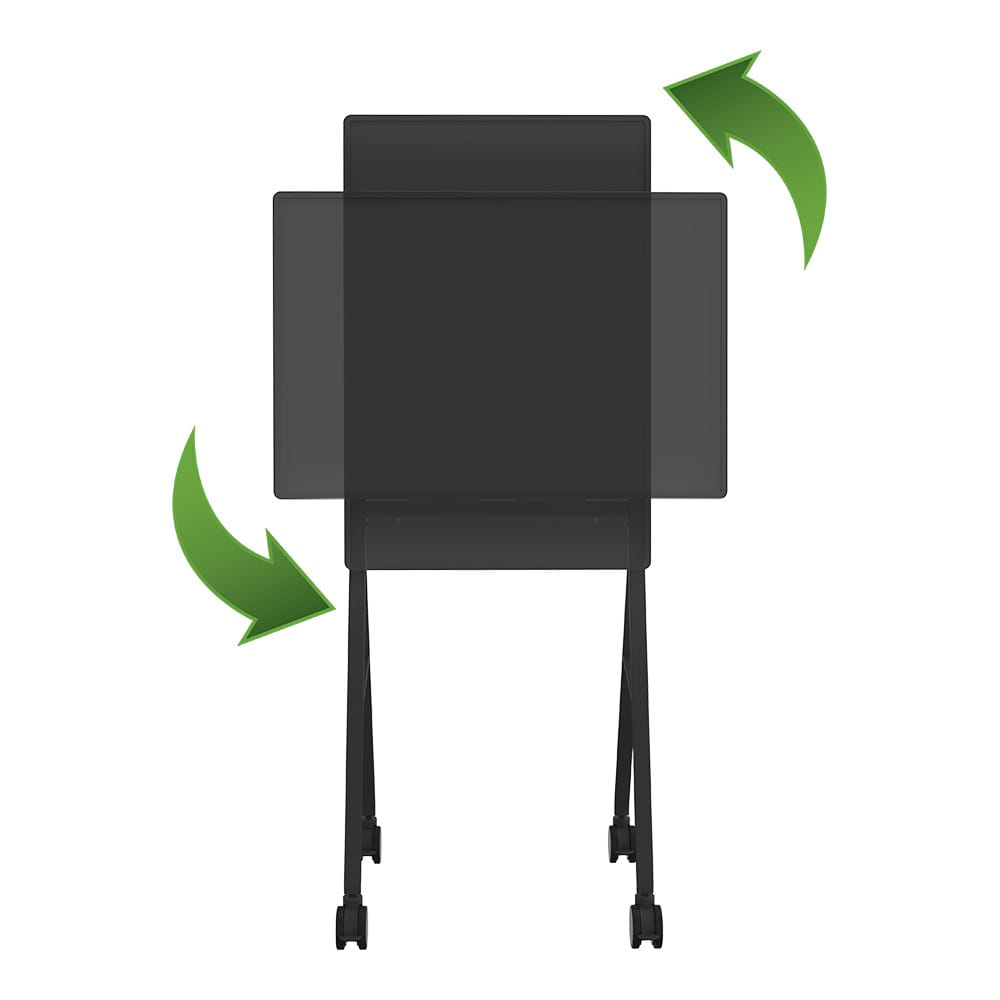

  • Rotates from vertical to horizontal position.
  • Approved according to the UL1678 standard.
  • Large 10 cm / 4 ″ wheels.

P/N: VFM-F10/BL - EAN/UPC: 4967380000005

375,74 € Without VAT
454,65 € With VAT
In stock
Approximate delivery between 28 septiembre and 29 septiembre
2 years
of guarantee
sending
shipping
100%
Secure pay

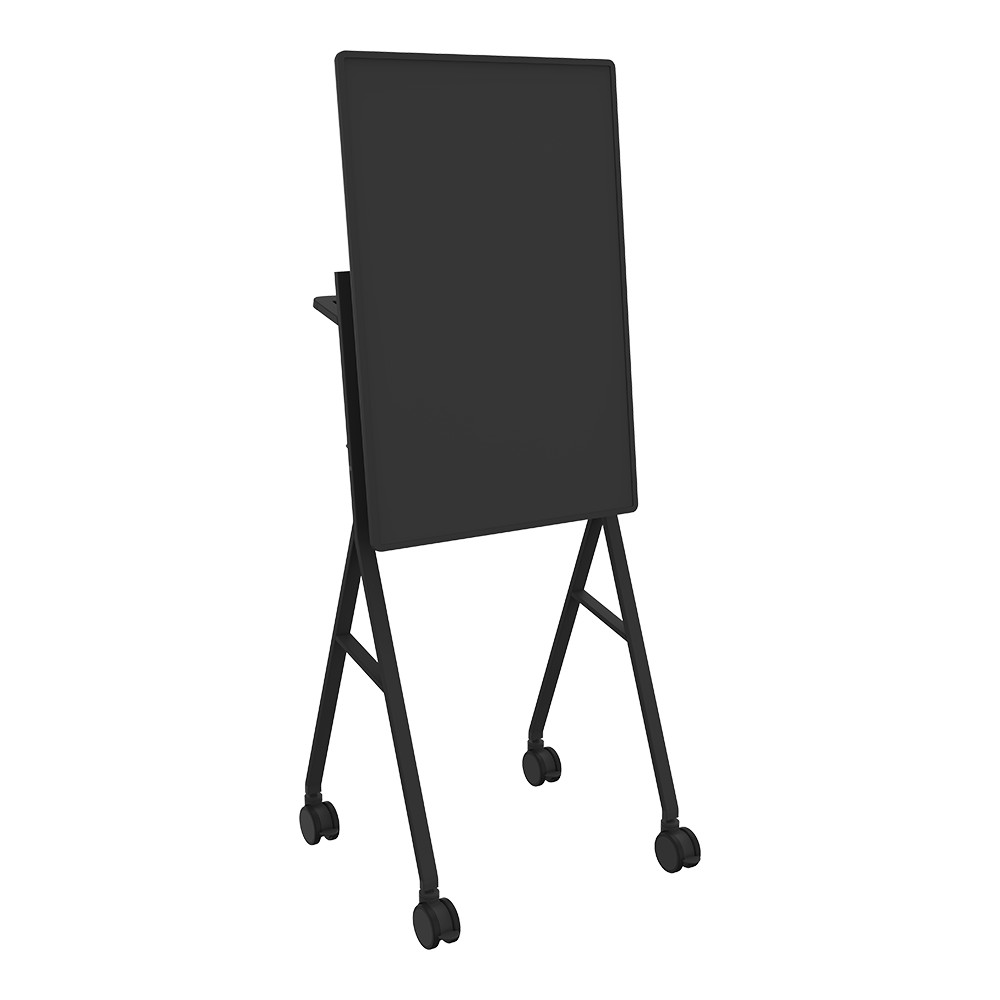

Vision's VFM-F10 floor stand design leans toward the user and offers a sense of stability. Its large wheels make it easy to move, its geometry is designed to minimize possible tripping so that the user can interact with the screen in the most natural way possible, and it also complies with the strict UL1678 standard to prevent tipping on screens of less than 55 ″

Its fine structure is perfectly complemented by flat touch screens. Enhance the appearance of your meeting room with this attractive floor stand. Stop using paper flipcharts and start using digital flipcharts.

To obtain this certification, the heaviest screen allowed is installed, the wheels are locked and the floor is tilted 10 ° in all directions: the support must not tip over. This limits the CTS of this floor stand to 45 kg (99 lb).

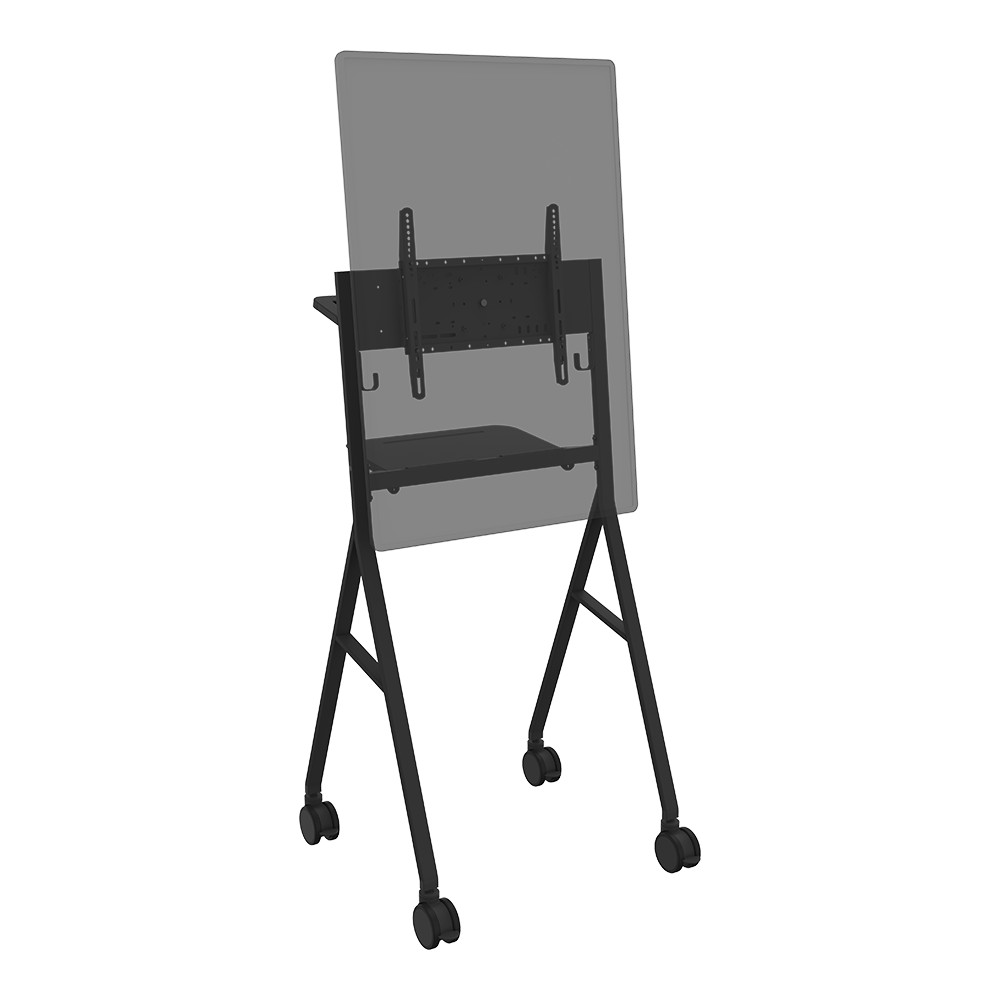

This mount supports all VESA sizes up to 400 x 400mm, including less common sizes such as 350 x 350mm. Users can rotate between portrait and landscape orientation at will. It incorporates superior quality bearings. Note: Rotation can be disabled.

Its shape and size are optimized for 50-65 ″ screens, such as, for example, all Samsung Flip models. Smaller screens can be installed, but the legs will be visible in portrait mode.

High-quality 4 ″ (100mm) wheels glide smoothly over bumps, allowing for easy pulling of the cart, even on thick rugs. In addition, these large wheels reduce vibrations in your expensive audiovisual equipment.

The screen is positioned at a 7 ° angle. This reduces glare and glare from ceiling lights, while presenting a drawing angle similar to that of traditional flipcharts.

4 ″ (100mm) medical grade wheels glide over any unevenness on the floor, making the stand easy to move even on thick carpets. These large wheels reduce vibration for your expensive audiovisual equipment. All wheels are lockable.

At the rear there are two wide hooks so that the cables can be hidden from view. They are particularly useful for hanging power extension cords when you need to move the bracket.

The rear shelf is 460 mm (18.1 ″) wide, large enough for a laptop and mouse. If it is not needed, simply flip it down to remove it. The 100 x 100mm holes in the VESA mount allow you to install a slim media player.

Some displays can be put together to form a single large display, and the F10 has been designed with this in mind. The legs are not wider than the screen in portrait mode, so multiple screens can be placed together.

At just 652 mm (25.7 ″) deep, this bracket can go through standard doors with no problem. It is compatible with the 55 ″ WM55R model in landscape and portrait orientation. Suitable for WM65R 65 ″ model only in landscape orientation.

The F10 is optimized to fit Microsoft's Hub 2. The Hub attaches to the universal VESA mount or, if you want the look of the rear to be tidier, the VESA mount can be replaced by an optional Hub-specific 'halo' mount. The halo integrates a tilt mechanism. Note: Halo available from end of 2019

Highlights...

* Flipchart style portable floor stand.
* For 50-65 ″ screens and up to 45 kg / 99 lb.
* Rotates from vertical to horizontal position.
* Approved according to UL1678 standard.
* Large 10 cm / 4 ″ wheels.

Descripción
Homologación Norma UL1678
Tamaños admitidos Pantallas entre 50-65" (hasta 45 kg)
Rotación Horizontal-Vertical
Ruedas 4x 10 cm / 4"
Peso 22.9 Kg
Carga de trabajo segura 45 Kg
Carga de trabajo segura del estante 5 Kg
Material Acero
Color Negro
Tamaños VESA compatibles
  • 400 × 400 mm
  • 400 x 300 mm
    400 × 200 mm
    300 × 400 mm
    350 x 350 mm
    300 × 300 mm
    200 × 400 mm
    200 × 200 mm
Accesorios Incluidos
  • 4 tornillos M5 de 16 mm (0,6″)
    4 tornillos M6 de 16 mm (0,6″)
    4 tornillos M6 de 25 mm (1,0″)
    4 tornillos M8 de 30 mm (1,18″)
    4 tornillos M8 de 50 mm (1,97″)
