Trendnet TPE-TG240G. Switch PoE+ 24 Puertos Gigabit.

Trendnet TPE-TG240G. Switch PoE+ 24 Puertos Gigabit.

Trendnet
  • 24 Gigabit PoE + ports.
  • Total available power of 370 watts.
  • 48 Gbps switching capacity.
  • Sturdy metal switch.
  • Rack mount brackets included.
  • Jumbo frame.

P/N: TPE-TG240G - EAN/UPC: 0710931160291

Alisa
363,00 € Without VAT
439,23 € With VAT
Only 3 units left in secondary storage
Approximate delivery between 06 diciembre and 06 diciembre
2 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en

At this time, we do not have in our catalog any product with characteristics identical to: Trendnet TPE-TG240G. However, we can show you very similar products, if you tell us what you are looking for:
Layer type
Layer type
Ports and Interfaces
No. of ports
PoE/PoE+

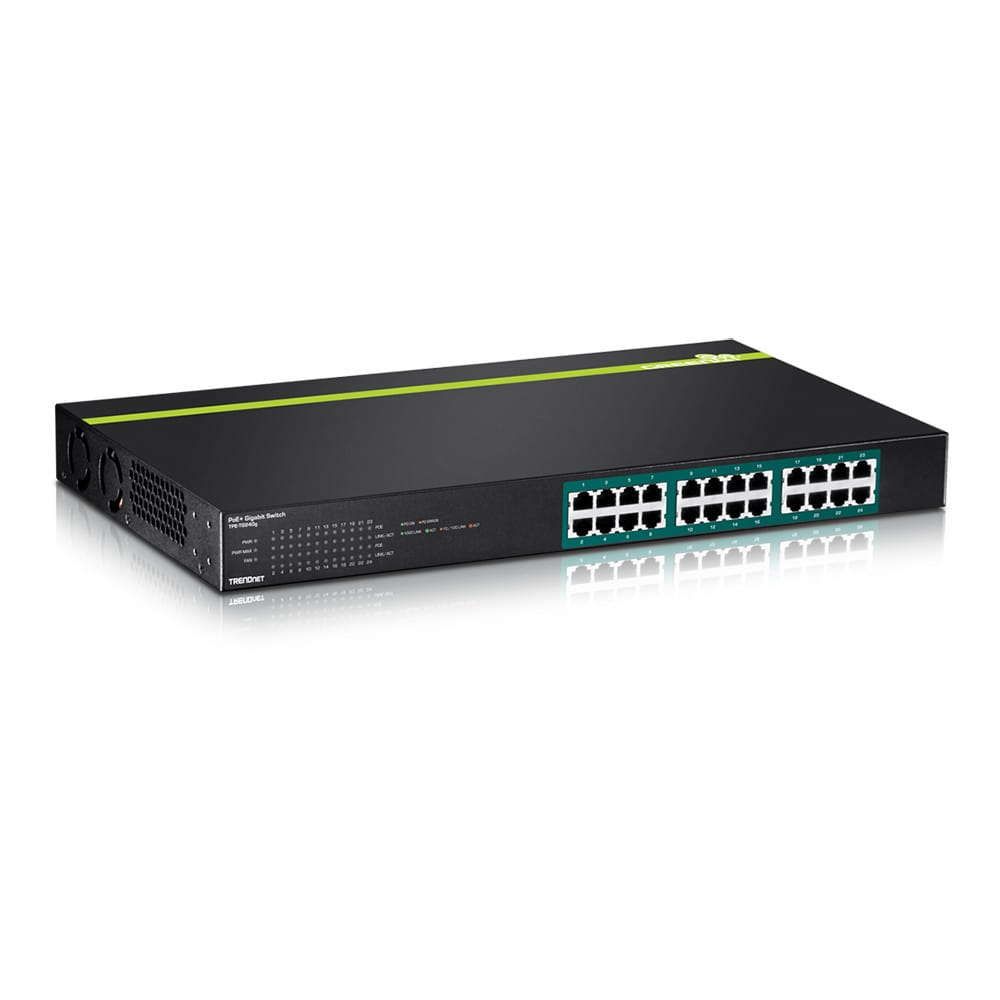

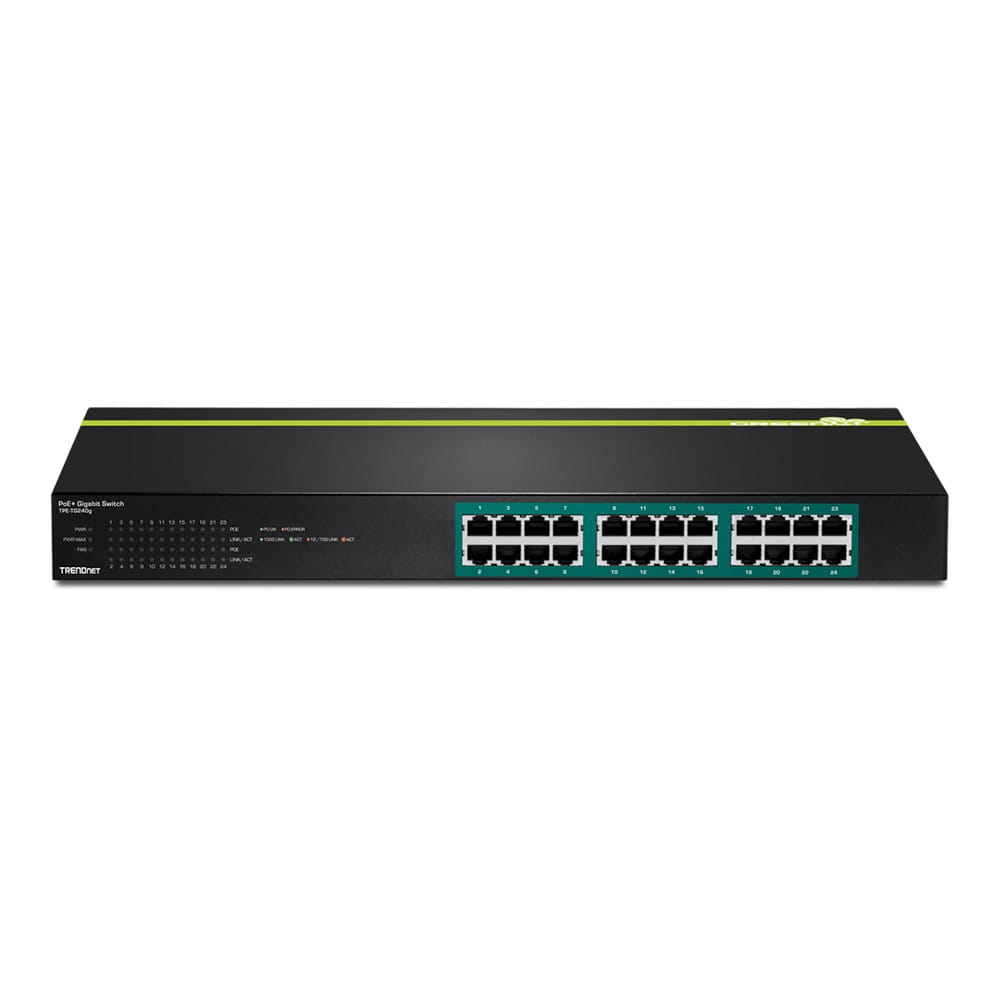

The TRENDnet 24-Port PoE + Gigabit Switch, model TPE-TG240g, offers 24 Gigabit PoE + ports, 48 ​​Gbps switching capacity, and available PoE power of 370 watts. This robust metal switch comes with its rack mount kit.

The switch recognizes 15.4 W non-PoE and PoE cameras, as well as 30 W PoE + cameras (or other PoE devices) and supplies the required amount of current automatically.

The wide available power of 370 various supplies an integral PoE current to each port, thus maximizing the number of permissible connected PoE devices.

All Gigabit ports produce 48 Gbps switching capacity and support Jumbo frames up to 10 KB.

Send larger packets or Jumbo Frames (up to 10 KB) to improve performance.

Highlights ...

* 24 Gigabit PoE + ports.
* Total available power of 370 watts.
* 48 Gbps switching capacity.
* Strong metal switch.
* Rack mount brackets included.
* Jumbo frame.

Estándares
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Interfaz del dispositivo
  • 24 puertos Gigabit PoE / PoE+
  • Indicadores LED
Tasa de transferencia de datos
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Rendimiento
  • Búfer RAM de datos: 512 KB
  • Malla de conmutación: 48 Gbps
  • Tabla de direcciones MAC: Entradas 8 K
  • Tasa de reenvío: 35.7 Mpps (tamaño de paquetes de 64 bytes)
  • Jumbo Frame: 10 KB
Alimentación
  • Entrada: 110-240 V AC y 50/60 Hz, 0.75 A
  • Consumo: 36 vatios (máx. sin dispositivo alimentado)
PoE
  • Consumo PoE: 370 vatios
  • Pin 1,2 para power+ y pin 3,6 para power- (modo A)
  • Protección contra sobrecorriente
  • Protección contra cortocircuitos
Temperatura de funcionamiento
  • 0 – 40 °C (32 - 104 °F)
Humedad admitida
  • Máx. 90% sin condensación
Dimensiones
  • 440 x 250 x 44 mm (17.3 x 9.8 x 1.7 pulgadas)
Peso
  • 3.6 kg (8 libras)
Certificaciones
  • CE
  • FCC
