Trendnet TPE-TG160G. Switch PoE+ 16 Puertos Gigabit.

Trendnet TPE-TG160G. Switch PoE+ 16 Puertos Gigabit.

Trendnet
  • 16 Gigabit PoE + ports.
  • 246 watt available PoE power.
  • 32 Gbps switching capacity.
  • Sturdy metal switch.
  • Rack mount brackets included.
  • Jumbo frame.
  • GREENnet technology.

P/N: TPE-TG160G - EAN/UPC: 0710931160277

Alisa
258,75 € Without VAT
313,09 € With VAT
Only 1 unit left in secondary storage
Approximate delivery between 09 diciembre and 10 diciembre
2 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
2,58 €
Without VAT
3,12 €
With VAT
Cable de red RJ45 Cat.6 UTP AWG24. Rojo. 3m.
35,73 €
Without VAT
43,23 €
With VAT
Intel WLAN 6 AX200 2400Mb/s M.2. BULK.

At this time, we do not have in our catalog any product with characteristics identical to: Trendnet TPE-TG160G. However, we can show you very similar products, if you tell us what you are looking for:
Layer type
Ports and Interfaces
No. of ports
PoE/PoE+

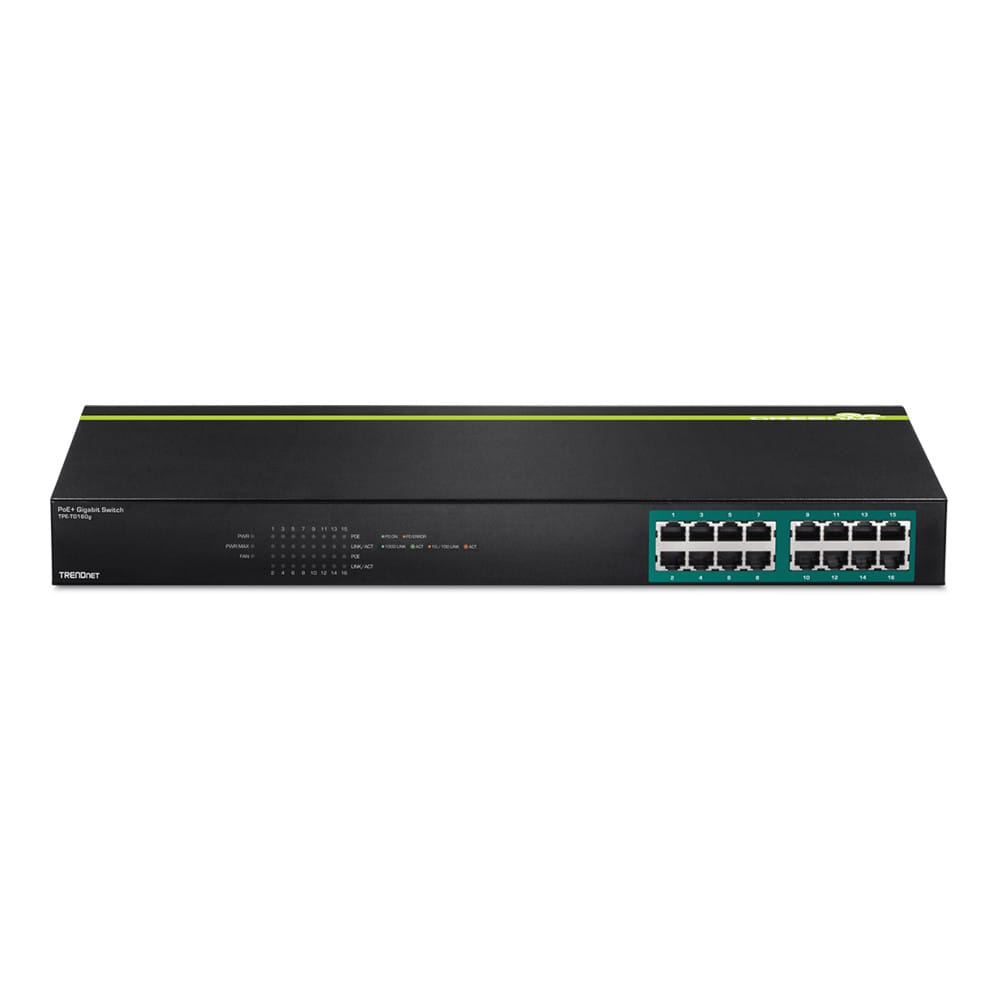

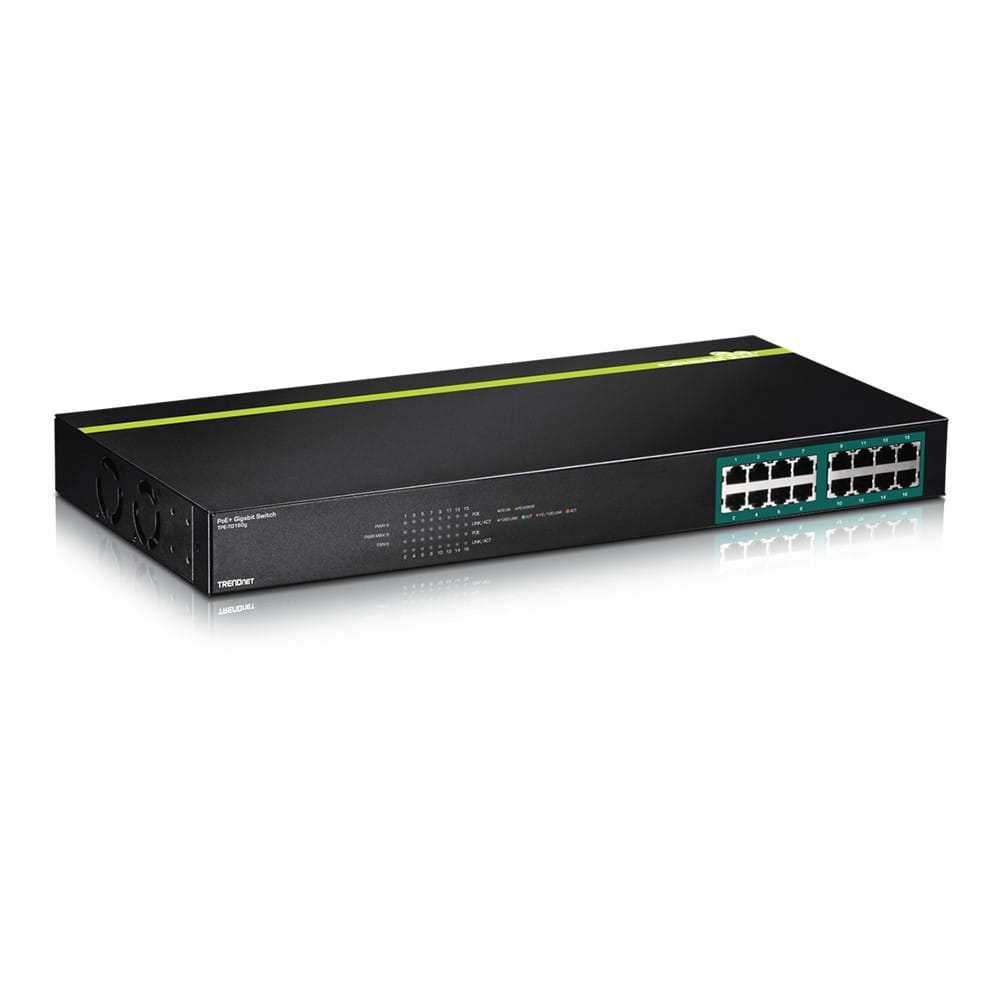

The TRENDnet 16-Port Gigabit PoE + Switch, model TPE-TG160g, offers 16 Gigabit PoE + ports, a 32 Gbps switching capacity, and available PoE power of 246 watts. This robust metal switch comes with its rack mount kit.

The switch recognizes non-PoE and PoE 15.4-watt cameras as well as 30-watt PoE + cameras (or other PoE devices) and supplies the required amount of current automatically.

The wide available 246 watt power supplies an integral PoE current to each port, thus maximizing the number of allowable connected PoE devices. Supplies up to 30 watts of power per port, with available power of 246 watts.

All Gigabit ports produce a switching capacity of 32 Gbps and support Jumbo frames of up to 10 KB.

Highlights ...

* 16 Gigabit PoE + ports.
* 246 watt available PoE power.
* 32 Gbps switching capacity.
* Strong metal switch.
* Rack mount brackets included.
* Jumbo frame.
* GREENnet technology.

Estándares
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af (15.4 vatios / puerto)
  • IEEE 802.3at (30 vatios / puerto)
  • IEEE 802.3az
Interfaz del dispositivo
  • 16 puertos Gigabit PoE/PoE+
  • Indicadores LED
Tasa de transferencia de datos
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2,000 Mbps (full duplex)
Rendimiento
  • Búfer RAM de datos: 512 KB
  • Malla de conmutación: 32 Gbps
  • Tabla de direcciones MAC: 8 K de entradas
  • Tasa de reenvío: 23.8 Mpps (tamaño de paquetes de 64 bytes)
  • Jumbo Frame: 10 KB
Alimentación
  • Entrada: 110-240 V AC, 50/60 Hz fuente de alimentación interna
  • Consumo: 36 vatios (máx. sin dispositivo alimentado)
PoE
  • Potencia PoE disponible: 246 vatios
  • Pin 1, 2 para power+ y pin 3, 6 para power- (modo A)
  • Protección contra sobrecorriente
  • Protección contra cortocircuitos
MTBF
  • 195,809 horas
Temperatura de funcionamiento
  • 0 – 40 °C (32 - 104 °F)
Humedad admitida
  • Máx. 90% sin condensación
Dimensiones
  • 440 x 210 x 44 mm (17.3 x 8.3 x 1.7 pulgadas)
Peso
  • 3 kg (6.8 lbs.)
Certificaciones
  • CE
  • FCC

The TRENDnet 16-Port Gigabit PoE + Switch, model TPE-TG160g, offers 16 Gigabit PoE + ports, a 32 Gbps switching capacity, and available PoE power of 246 watts. This robust metal switch comes with its rack mount kit.

The switch recognizes non-PoE and PoE 15.4-watt cameras as well as 30-watt PoE + cameras (or other PoE devices) and supplies the required amount of current automatically.

The wide available 246 watt power supplies an integral PoE current to each port, thus maximizing the number of allowable connected PoE devices. Supplies up to 30 watts of power per port, with available power of 246 watts.

All Gigabit ports produce a switching capacity of 32 Gbps and support Jumbo frames of up to 10 KB.

Highlights ...

* 16 Gigabit PoE + ports.
* 246 watt available PoE power.
* 32 Gbps switching capacity.
* Strong metal switch.
* Rack mount brackets included.
* Jumbo frame.
* GREENnet technology.

Estándares
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af (15.4 vatios / puerto)
  • IEEE 802.3at (30 vatios / puerto)
  • IEEE 802.3az
Interfaz del dispositivo
  • 16 puertos Gigabit PoE/PoE+
  • Indicadores LED
Tasa de transferencia de datos
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2,000 Mbps (full duplex)
Rendimiento
  • Búfer RAM de datos: 512 KB
  • Malla de conmutación: 32 Gbps
  • Tabla de direcciones MAC: 8 K de entradas
  • Tasa de reenvío: 23.8 Mpps (tamaño de paquetes de 64 bytes)
  • Jumbo Frame: 10 KB
Alimentación
  • Entrada: 110-240 V AC, 50/60 Hz fuente de alimentación interna
  • Consumo: 36 vatios (máx. sin dispositivo alimentado)
PoE
  • Potencia PoE disponible: 246 vatios
  • Pin 1, 2 para power+ y pin 3, 6 para power- (modo A)
  • Protección contra sobrecorriente
  • Protección contra cortocircuitos
MTBF
  • 195,809 horas
Temperatura de funcionamiento
  • 0 – 40 °C (32 - 104 °F)
Humedad admitida
  • Máx. 90% sin condensación
Dimensiones
  • 440 x 210 x 44 mm (17.3 x 8.3 x 1.7 pulgadas)
Peso
  • 3 kg (6.8 lbs.)
Certificaciones
  • CE
  • FCC
