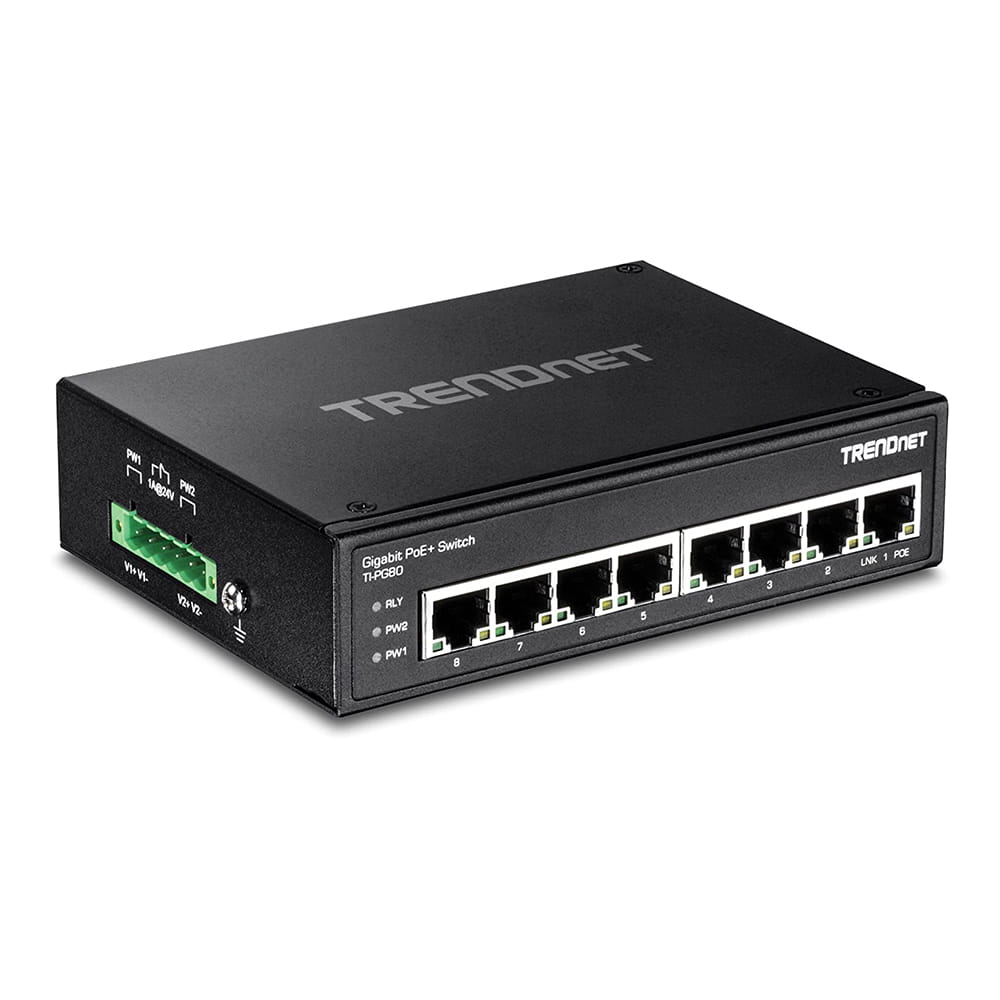

Trendnet TI-PG80. Switch DIN-RAIL PoE+ Gigabit 8 Puertos.
- 8 Gigabit Ethernet PoE + ports.
- Available power up to 200 watts fully PoE +.
- 16 Gbps switching capacity.
- IP30 rated reinforced metal switch.
- Contains DIN-rail and wall mounting materials.
- Extreme operating temperature range, -40 to 75 ° C (-40 to 167 ° F).
- Dual redundant current inputs with overload protection.
- Alarm triggered by power failure.
- The power supply is sold separately (model TI-S24048).
of guarantee
Insured
Secure pay
The TRENDnet TI-PG80 is a robust unmanaged PoE + IP30 DIN-rail switch with rugged components and rated for extreme industrial environments. It offers 8 PoE + Gigabit ports (802.3at / 802.3af) and an available PoE power of up to 200 watts. Dual redundant power inputs (TI-S24048 power supply sold separately) and dropout alarm output trigger suit zero-downtime applications.
Delivers up to 30 watts of PoE / PoE + current per port (802.3at / 802.3af) with available PoE power of up to 200 watts.
IP30-rated metal housing and integrated DIN-Rail and wall-mounting hardware.
Dual redundant current inputs with overload protection (power supply sold separately: model TI-S24048).
Send larger packets or Jumbo Frames (up to 9 KB) to improve performance.
The rugged switch is rated for operating temperatures from -40 to 75 ° C (-40 to 167 ° F).
Classified for Information Technology Equipment (ITE) (EN55022 / 24) and Industrial, Scientific and Medical (ISM) Equipment (EN55011). Rated for shock (IEC 60068-2-27), free fall (IEC 60068-2-32) and vibrations (IEC 60068-2-6).
Highlights ...
* 8 Gigabit Ethernet PoE + ports.
* Available power of up to 200 watts fully PoE +.
* 16 Gbps switching capacity.
* IP30 rated reinforced metal switch.
* Contains DIN-rail and wall mounting materials.
* Extreme operating temperature range, -40 to 75 ° C (-40 to 167 ° F).
* Dual redundant current inputs with overload protection.
* Alarm triggered by power failure.
* The power supply is sold separately (model TI-S24048).
Estándares | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af PoE IEEE 802.3at PoE+ |

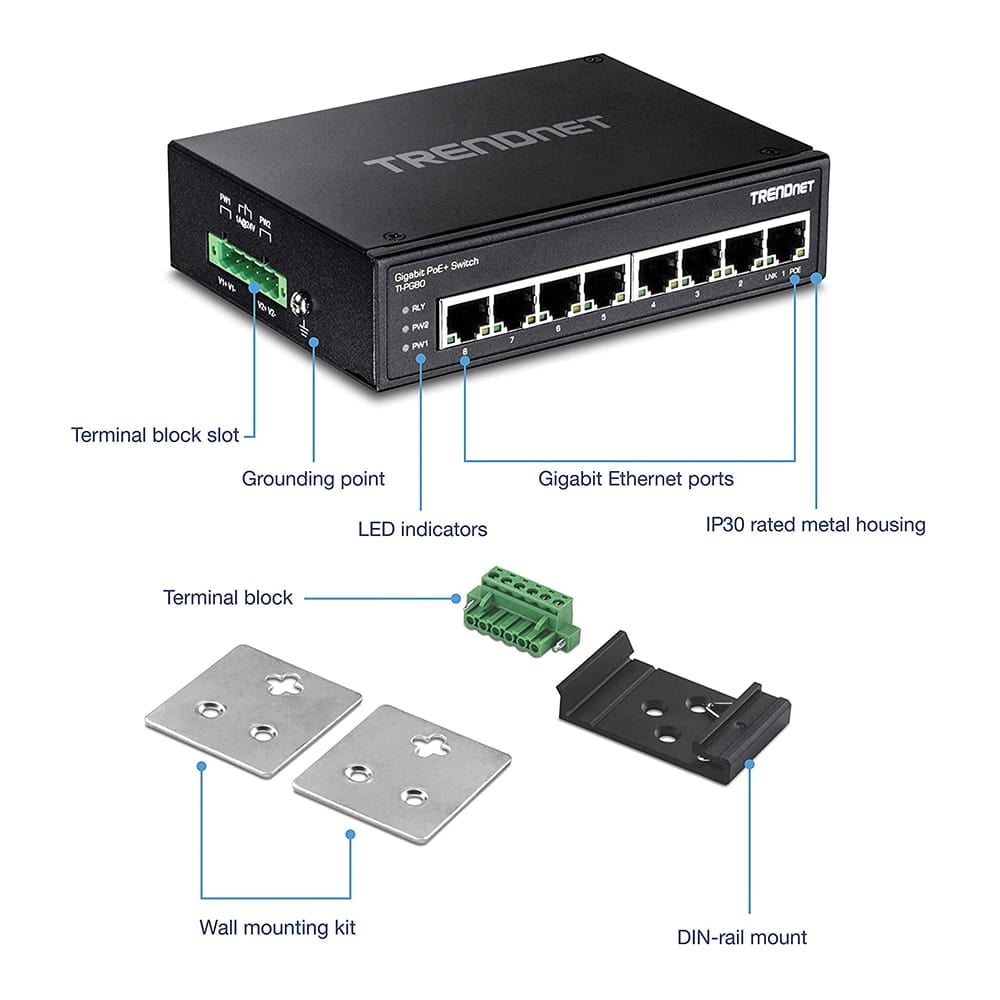

Interfaz del dispositivo | 8 puertos Gigabit PoE+ Zapata de 6 pins extraíble Indicadores LED Montaje en DIN-rail Montaje en pared Punto de conexión a tierra |
Tasa de transferencia de datos | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) |
Rendimiento | Búfer RAM de datos: 1024 KB Malla de conmutación: 16 Gbps Tabla de direcciones MAC: 8 K de entradas Jumbo Frame: 9 KB Tasa de reenvío: 11.9 Mpps (tamaño de paquetes de 64 bytes) |
Características especiales | Componentes reforzados con clasificación para temperaturas extremas Entradas de alimentación redundantes duales Autonegociación Arquitectura de autoalmacenamiento y reenvío Aprendizaje automático de direcciones y control de caducidad de direcciones Protección para descarga electrostática de +-8 kilovoltios y sobrecorriente de +-2 kilovoltios |
Alimentación | Entrada: 48 - 56 V DC Fuente de alimentación compatible: TI-S24048 (se vende por separado) Consumo: Máx. 5.76 vatios (sin dispositivo alimentado) |
PoE | Potencia PoE disponible: 200 vatios Pin 1,2 para power+ y pin 3,6 para power- (modo A) |
Zapata | Entradas de alimentación redundantes, contacto de relé de alarma, 6 pins Alcance del cable: 0.34 mm^2 a 2.5 mm^2 Cable rígido (AWG): 12-24/14-22 Cable trenzado (AWG): 12-24/14-22 Torque: 5 libras – pulgada / 0.5 Nm / 0.56 Nm Longitud del hilo de cable: 7-8 mm |
Contacto de relé de alarma | Salidas de relé con capacidad de transporte de corriente de 1A, 24 V DC Modo circuito abierto cuando se conectan dos fuentes de alimentación Modo cortocircuito cuando se conecta una sola fuente de alimentación |
Consumo eléctrico | Máx. 5.76 Watts (sin PoE) |
Tiempo medio entre fallos | 510,304 horas |
Carcasa | Carcasa de metal IP30 Montaje en DIN-rail Montaje en pared Punto de conexión a tierra Protección para descarga electrostática de +-8 kilovoltios Protección para sobretensiones de +-2 kilovoltios |
Temp. de funcionamiento | De - 40 a 75 °C (-40 a 167 °F) |
Humedad admitida | Máx. 95 % sin condensación |
Dimensiones | 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 pulgadas) |
Peso | 554 g (1.22 libras) |
Certificaciones | CE FCC Golpes (IEC 60068-2-27) Caída libre (IEC 60068-2-32) Vibraciones (IEC 60068-2-6) |

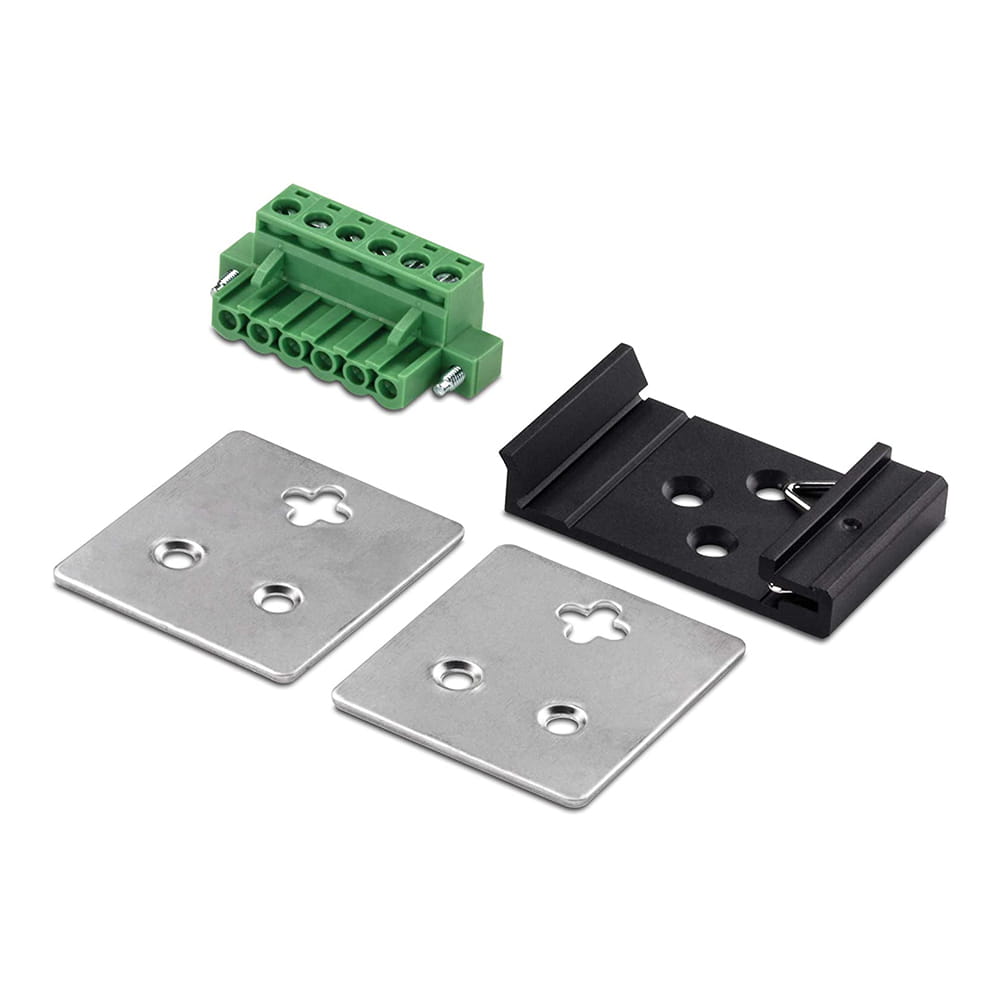

Contenido del paquete | TI-PG80 Guía de instalación rápida Zapata extraíble Kit de montaje en DIN-rail / pared |
