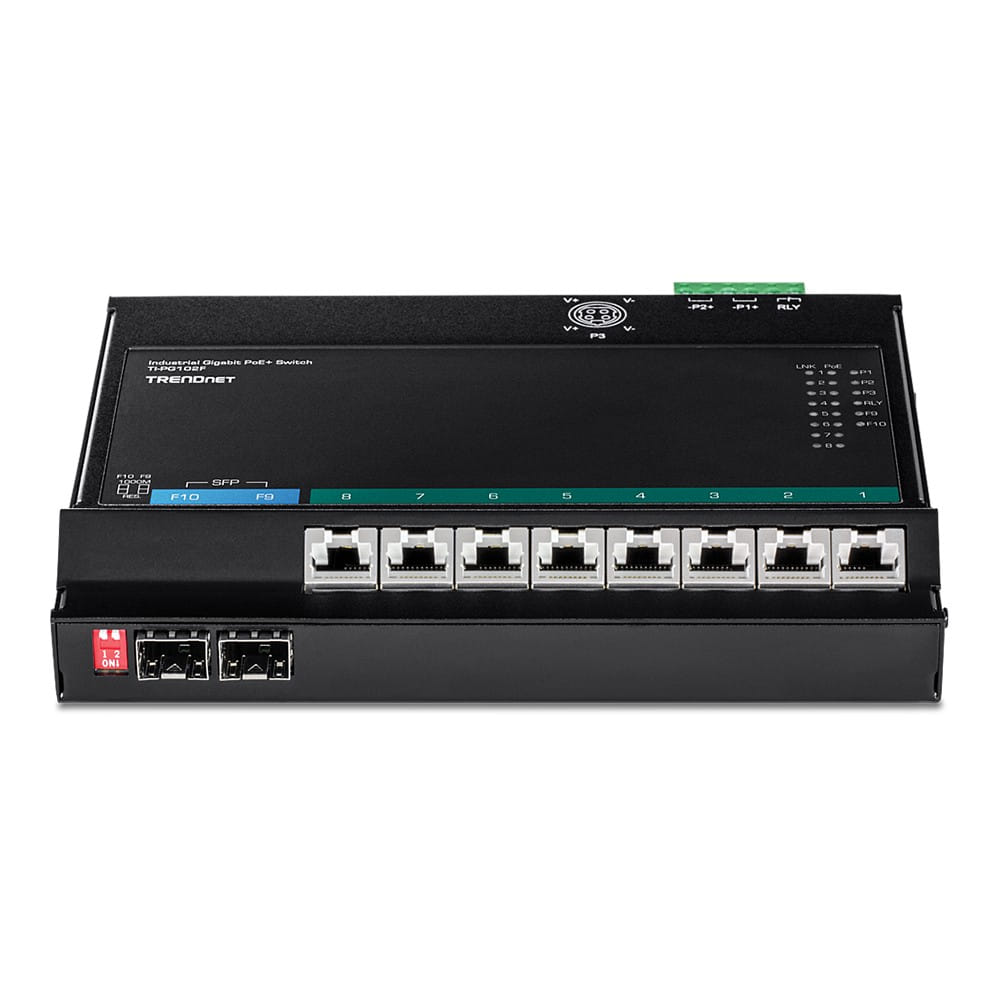

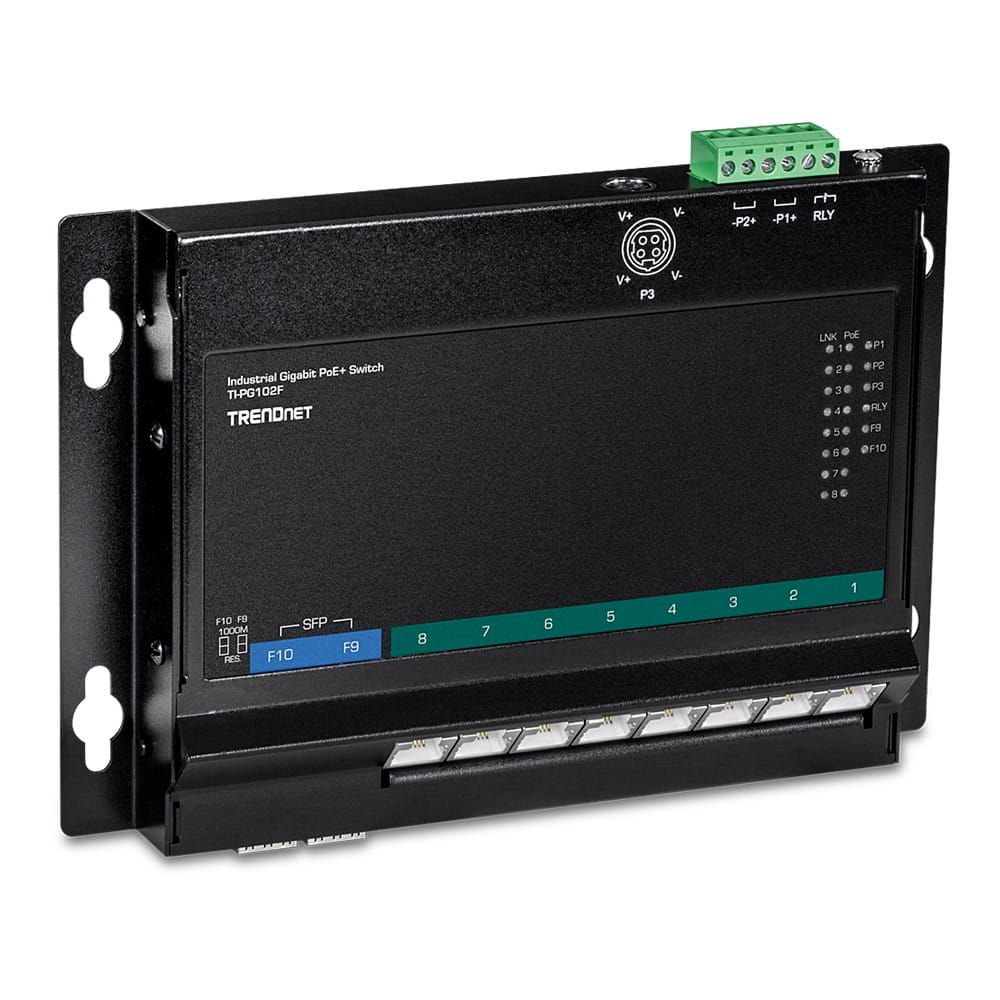

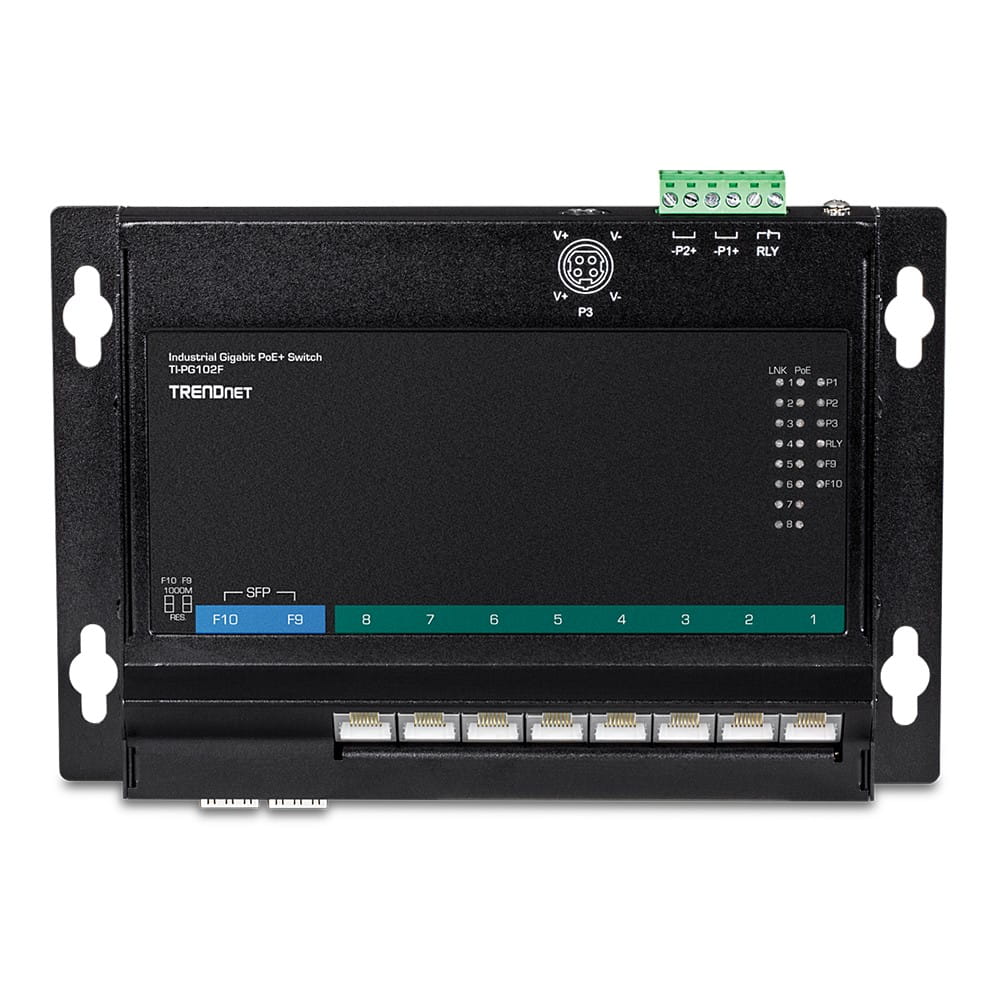

TRENDnet Industrie Switch 10Port Gbit Unman. PoE+ FA Metal
TRENDnet Industrie Switch 10Port Gbit Unman. PoE+ FA Metal
- 8 Gigabit PoE + ports.
- 2 Gigabit SFP slots.
- 240W total PoE power available.
- 20 Gbps switching capacity.
- Forwarding rate: 14.88 Mpps (64-byte packet size).
- Supports jumbo frames up to 10KB.
- Ruggedized metal housing with IP30 rating.
- Includes DIN-Rail mounting brackets and magnetic wall mounting accessories.
- -40 ° to 75 ° C (-40 ° to 167 ° F) operating temperature range.
- Redundant current inputs with overload protection.
- Alarm relay activated by power failure.
of guarantee
shipping
Secure pay
TRENDnet's front-access, wall-mount Gigabit PoE + switch series is suited for IP surveillance, IoT, and home and business automation networks. These rugged, flat, industrial gigabit switches offer front access to power ports and interfaces for easier installation. The compact size and flat shape make them ideal for cabinet installations where space is limited.
Each hardened, front-access industrial switch features gigabit PoE + ports to connect devices such as wireless access points, IP cameras, and IoT devices. These ruggedized front access switches are equipped with an IP30-rated metal housing, designed to withstand a high degree of vibration and shock. Additionally, they operate over a wide temperature range, -40 ° to 75 ° C (-40 ° to 167 ° F) in industrial environments.
The flat switch with wall mount option offers front access to power ports and interfaces for easy installation. Its compact size and flat shape make it ideal for cabinet installations where space is limited.
Its total available power of 240W supplies PoE power from the front-access and hardened industrial switch to up to eight Power over Ethernet devices.
Equipped with an IP30-rated metal housing, this front access switch is designed to withstand a high degree of vibration and shock and to operate in a wide temperature range, - 40 to 75 ° C (- 40 to 167 ° F) in industrial environments.
Highlights...
* 8 Gigabit PoE + ports.
* 2 Gigabit SFP slots.
* 20 Gbps switching capacity.
* Forwarding rate: 14.88 Mpps (64-byte packet size).
* Includes DIN-Rail mounting brackets and magnetic wall mounting accessories.
* Alarm relay activated by power failure.
Estándares |
|
Interfaz del dispositivo |
|
Tasa de transferencia de datos |
|
Rendimiento |
|
Características especiales |
|
Alimentación CC |
|
Adaptador de corriente DIN opcional (48VDC3000, se vende por separado) |
|
PoE |
|
Bloque de terminales |
|
Contacto de relé de alarma |
|
MTBF |
|
Carcasa |
|
Temperatura de funcionamiento |
|
Humedad admitida |
|
Dimensiones |
|
Peso |
|
Certificaciones |
|
TRENDnet's front-access, wall-mount Gigabit PoE + switch series is suited for IP surveillance, IoT, and home and business automation networks. These rugged, flat, industrial gigabit switches offer front access to power ports and interfaces for easier installation. The compact size and flat shape make them ideal for cabinet installations where space is limited.
Each hardened, front-access industrial switch features gigabit PoE + ports to connect devices such as wireless access points, IP cameras, and IoT devices. These ruggedized front access switches are equipped with an IP30-rated metal housing, designed to withstand a high degree of vibration and shock. Additionally, they operate over a wide temperature range, -40 ° to 75 ° C (-40 ° to 167 ° F) in industrial environments.
The flat switch with wall mount option offers front access to power ports and interfaces for easy installation. Its compact size and flat shape make it ideal for cabinet installations where space is limited.
Its total available power of 240W supplies PoE power from the front-access and hardened industrial switch to up to eight Power over Ethernet devices.
Equipped with an IP30-rated metal housing, this front access switch is designed to withstand a high degree of vibration and shock and to operate in a wide temperature range, - 40 to 75 ° C (- 40 to 167 ° F) in industrial environments.
Highlights...
* 8 Gigabit PoE + ports.
* 2 Gigabit SFP slots.
* 20 Gbps switching capacity.
* Forwarding rate: 14.88 Mpps (64-byte packet size).
* Includes DIN-Rail mounting brackets and magnetic wall mounting accessories.
* Alarm relay activated by power failure.
Estándares |
|
Interfaz del dispositivo |
|
Tasa de transferencia de datos |
|
Rendimiento |
|
Características especiales |
|
Alimentación CC |
|
Adaptador de corriente DIN opcional (48VDC3000, se vende por separado) |
|
PoE |
|
Bloque de terminales |
|
Contacto de relé de alarma |
|
MTBF |
|
Carcasa |
|
Temperatura de funcionamiento |
|
Humedad admitida |
|
Dimensiones |
|
Peso |
|
Certificaciones |
|
