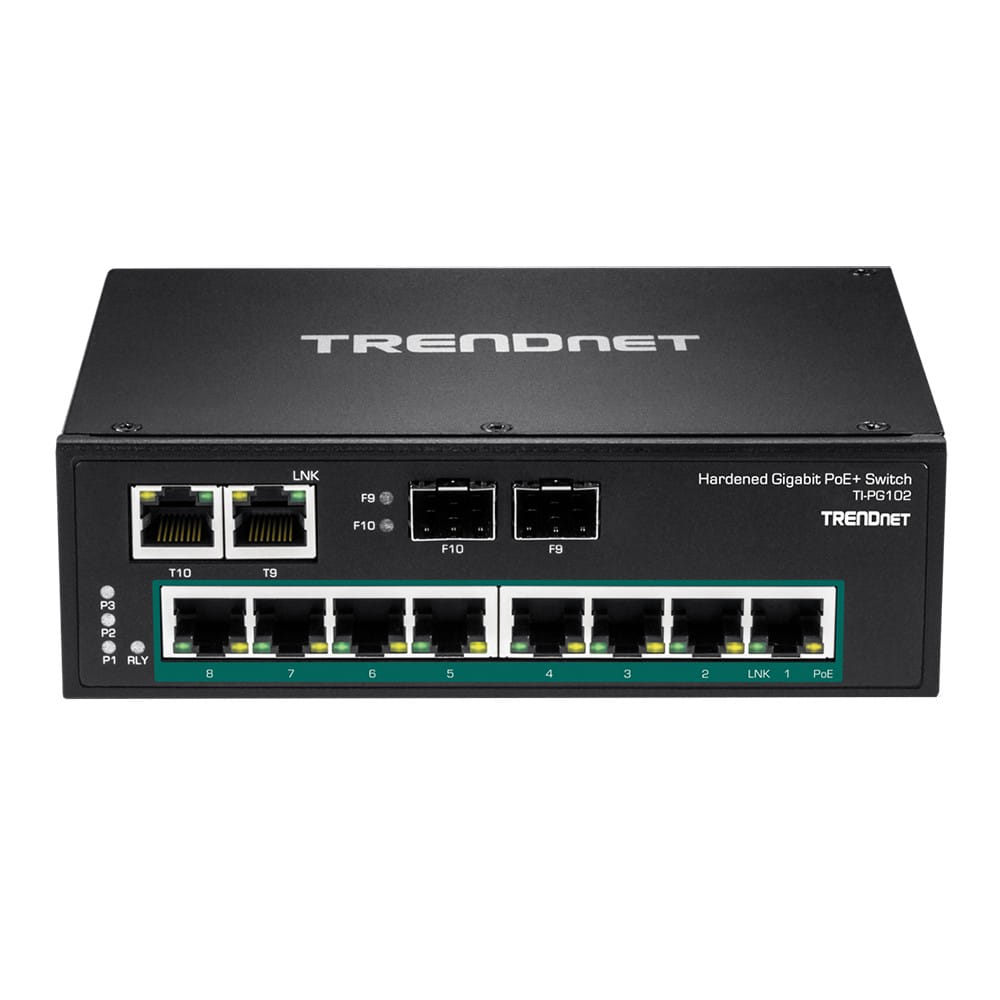

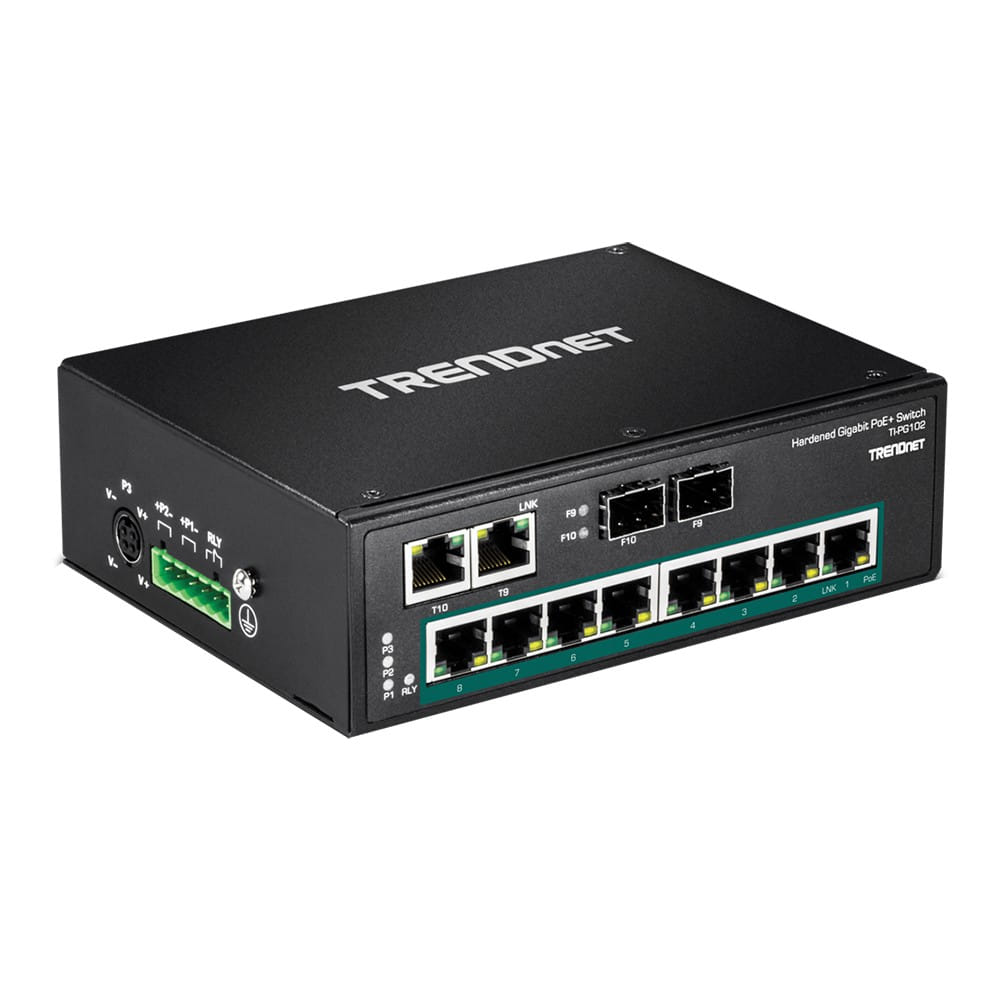

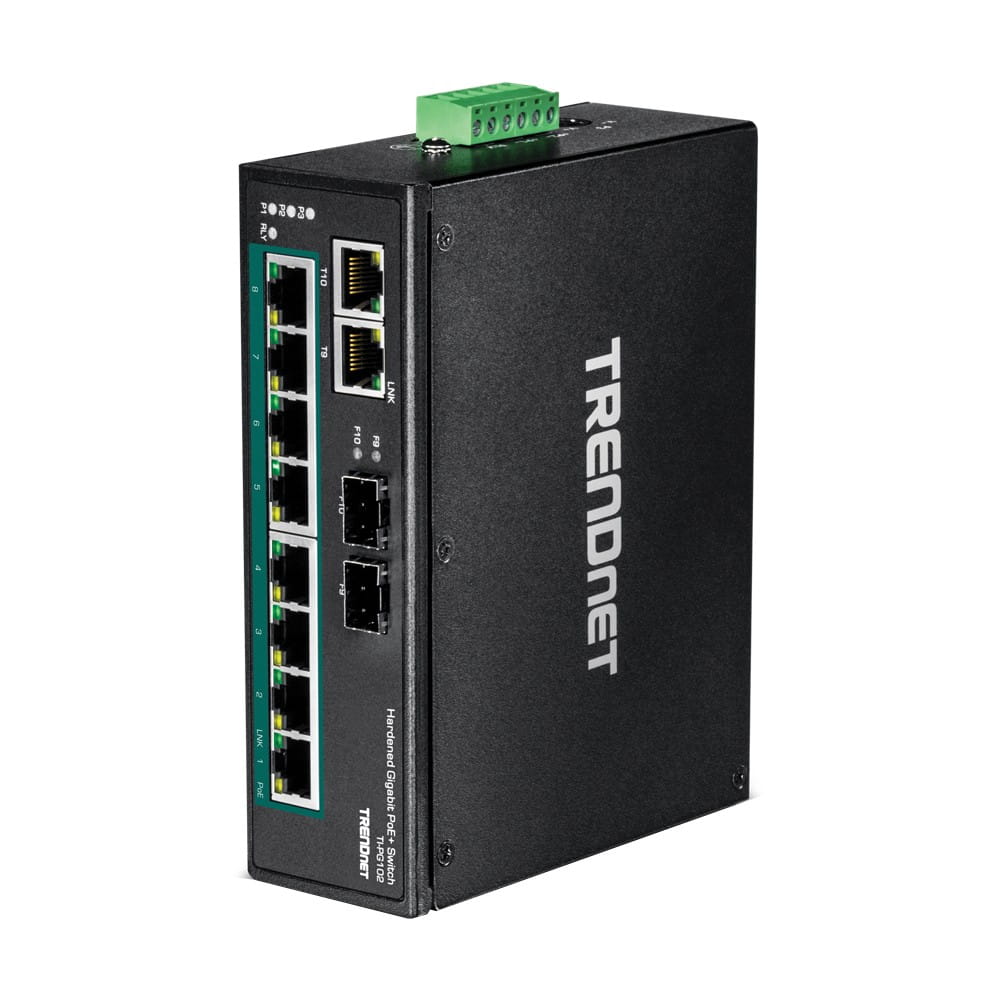

Trendnet TI-PG102. Switch DIN-RAIL PoE+ Gigabit 10 Puertos.
Trendnet TI-PG102. Switch DIN-RAIL PoE+ Gigabit 10 Puertos.
- 8 Gigabit PoE + ports.
- 2 shared Gigabit RJ-45 / SFP ports.
- Total available 240W PoE power.
- 20 Gbps switching capacity.
- IP30 rated reinforced metal switch.
- Contains DIN-rail and wall mounting materials.
- Operating temperature range -40 to 75 ° C (-40 to 167 ° F).
- Dual redundant current inputs with overload protection.
- Alarm triggered by deficiencies in the electricity supply.
- The power supply is sold separately (models: TI-S24048 / 48VDC3000).
of guarantee
shipping
Secure pay
TRENDnet's 10-port Gigabit DIN-Rail industrial switch, model TI-PG102, features eight gigabit PoE + ports with available PoE power of 240W plus two shared gigabit RJ-45 / SFP ports. Users can connect up to eight PoE + devices to the switch, while providing two gigabit ports for additional network connections. It is equipped with an IP30-rated metal housing, designed to tolerate high levels of vibration and shock, capable of operating over a wide temperature range, from -40 to 75 ° C (-40 to 167 ° F), for industrial environments .
The available 240 watt PoE + power supplies PoE + power to up to eight Power over Ethernet devices. Offers redundant dual current inputs with output alarm relay.
It is equipped with an IP30-rated metal housing, designed to tolerate high levels of vibration and shock, capable of operating over a wide range of temperatures, from -40 to 75 ° C (-40 to 167 ° F). Redundant dual current inputs with overload protection (current source sold separately, models: TI-S24048 / 48VDC3000).
8 Gigabit PoE + ports plus 2 shared Gigabit RJ-45 / SFP ports. 20 Gbps switching capacity. Send larger packets or Jumbo Frames (up to 10 KB) to improve performance.
IP30-rated metal housing and DIN-rail and wall mounting hardware included.
Rated for shocks (EN 60068-2-27), free fall (EN 60068-2-32) and vibrations (EN 60068-2-6).
Highlights ...
* 8 Gigabit PoE + ports.
* 2 shared Gigabit RJ-45 / SFP ports.
* Total available PoE power of 240 W.
* 20 Gbps switching capacity.
* IP30 rated reinforced metal switch.
* Contains DIN-rail and wall mounting materials.
* Operating temperature range -40 to 75 ° C (-40 to 167 ° F).
* Dual redundant current inputs with overload protection.
* Alarm triggered by deficiencies in the electrical supply.
* The power supply is sold separately (models: TI-S24048 / 48VDC3000).
Estándares | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at |
Interfaz del dispositivo | 8 puertos Gigabit PoE+ 2 puertos Gigabit Ethernet 2 ranuras SFP compartidas Bloque de terminales de 6 pins extraíble Indicadores LED Montaje en DIN-Rail Montaje en pared Punto de conexión a tierra |
Tasa de transferencia de datos | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) |
Rendimiento | Búfer RAM de datos: 2048 KB Malla de conmutación: 20 Gbps Tabla de direcciones MAC: 16 K entradas Tasa de reenvío: 14.8 Mpps (tamaño de paquetes de 64 bytes) |
Características especiales | Componentes reforzados con clasificación para temperaturas extremas Entradas de alimentación redundantes duales Autonegociación Arquitectura de autoalmacenamiento y reenvío Aprendizaje automático de direcciones y control de caducidad de direcciones Protección contra descargas electrostáticas de 6 kV |
Alimentación | Entrada: 48 - 56 V DC Fuente de alimentación compatible: TI-S24048 (se vende por separado) Consumo: 5.67 W máx. |
PoE | Hasta 30 W por puerto Potencia PoE disponible: 240 W |
Bloque de terminales | Entradas de alimentación redundantes, contacto de relé de alarma, 6 pins Alcance del cable: 0.34 mm^2 a 2.5 mm^2 Cable rígido (AWG): 12-24 / 14-22 Cable trenzado (AWG): 12-24 / 14-22 Par de torsión: 5 libras – pulgada / 0.5 Nm / 0.56 Nm Longitud del hilo de cable: 7-8 mm |
Contacto de relé de alarma | Salidas de relé con capacidad de transporte de corriente de 1 A, 24 V DC Modo de circuito abierto cuando se conectan dos fuentes de alimentación Modo de cortocircuito cuando se conecta solamente una fuente de alimentación 510,400 horas |
Carcasa | Carcasa de metal IP30 Montaje en DIN-rail Montaje en pared Punto de conexión a tierra Protección para descarga electrostática de 6 kilovoltios |
Temp. de funcionamiento | De - 40 a 75 °C (-40 a 167 °F) |
Humedad admitida | Máx. 95 % sin condensación |
Dimensiones | 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 pulgadas) |
Weight | 445 g (1 libras) |
Certifications | CE FCC Golpes (IEC 60068-2-27) Caída libre (IEC 60068-2-32) Vibraciones (IEC 60068-2-6) |
Contenido del paquete | TI-PG102 Guía de instalación rápida Bloque de terminales extraíble Kit de montaje en DIN-rail y pared |
