Español Trendnet TI-PF11SFP. Convertidor SFP a Gigabit PoE+
Trendnet TI-PF11SFP. Convertidor SFP a Gigabit PoE+
- Rugged SFP to Gigabit PoE + converter rated IP30.
- The SFP port supports single or multiple mode fiber.
- Distances of up to 40 km of fiber networking with the TI-MGBS40 SFP module.
- Offers up to 30W for PoE and PoE + compatible devices.
- Contains DIN-rail and wall mounting materials.
- Wide range of operating temperatures, from -40 to 75 ° C (-40 to 167 ° F).
- Dual redundant current inputs with overload protection.
of guarantee
shipping
Secure pay

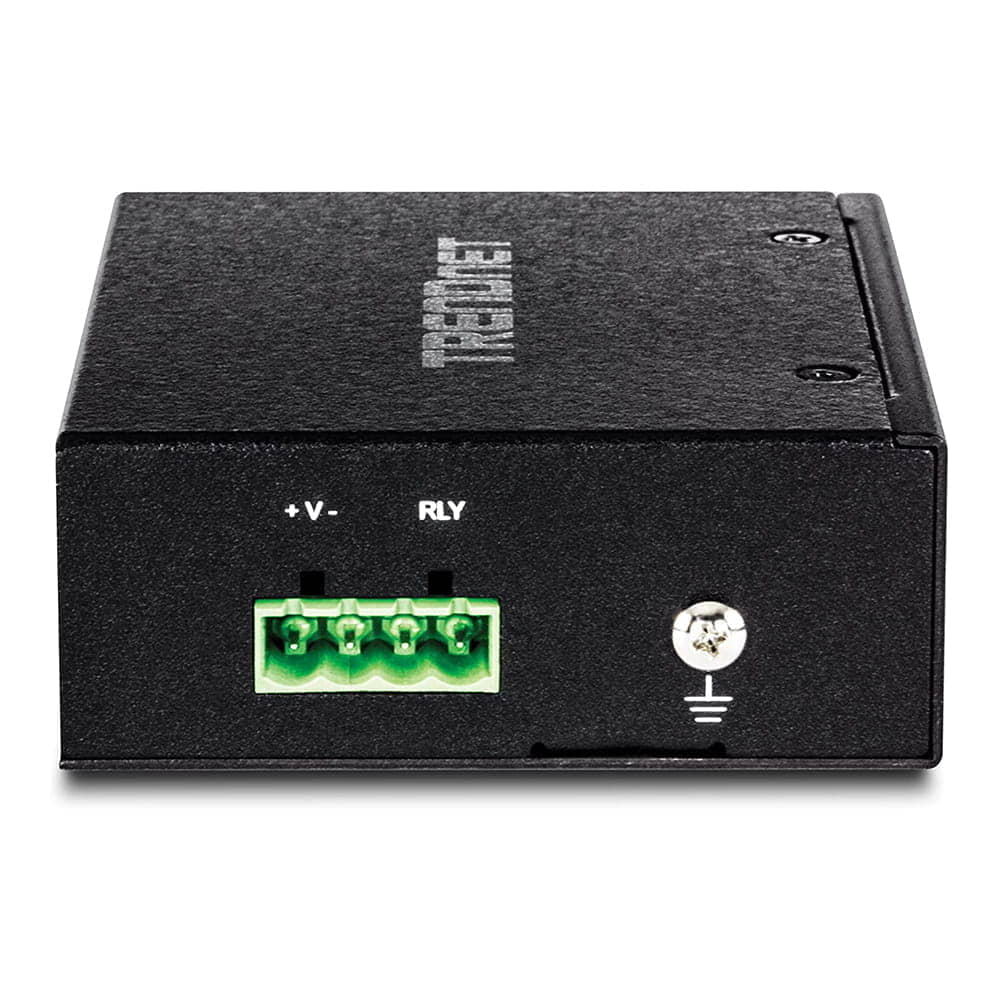

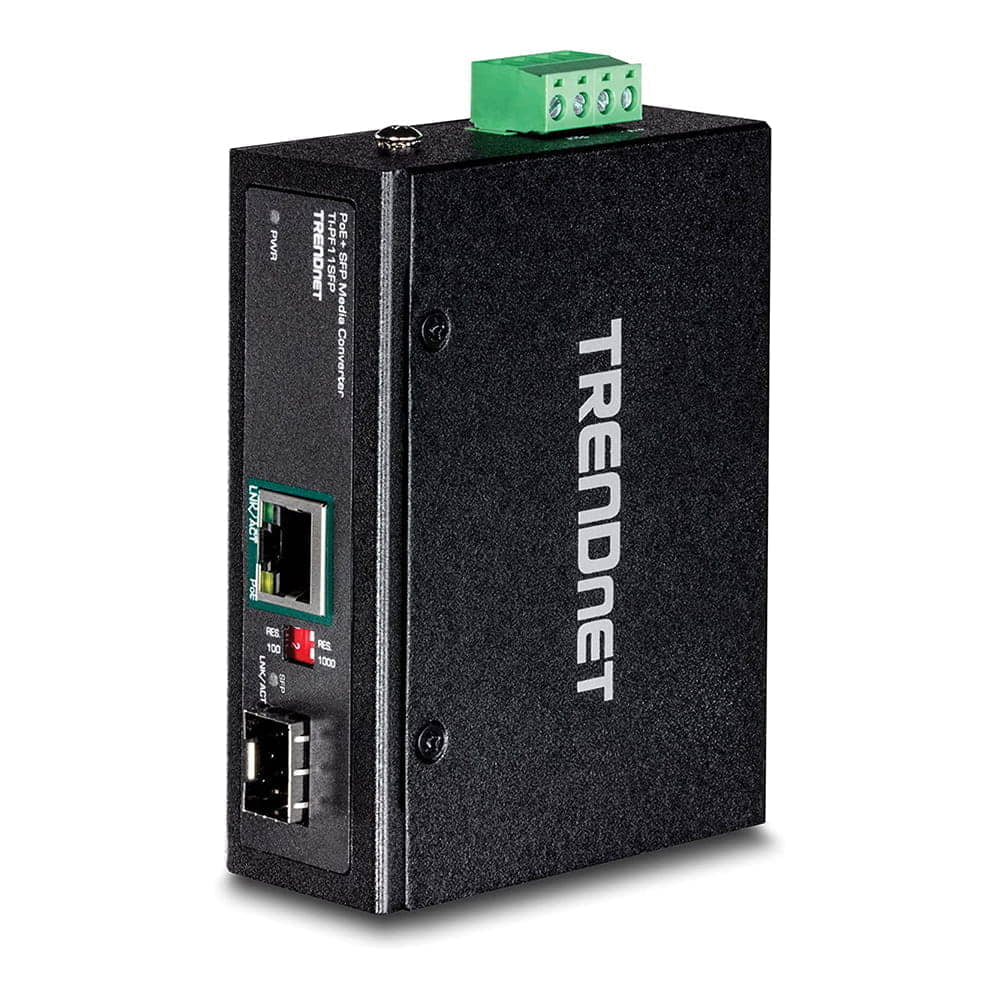

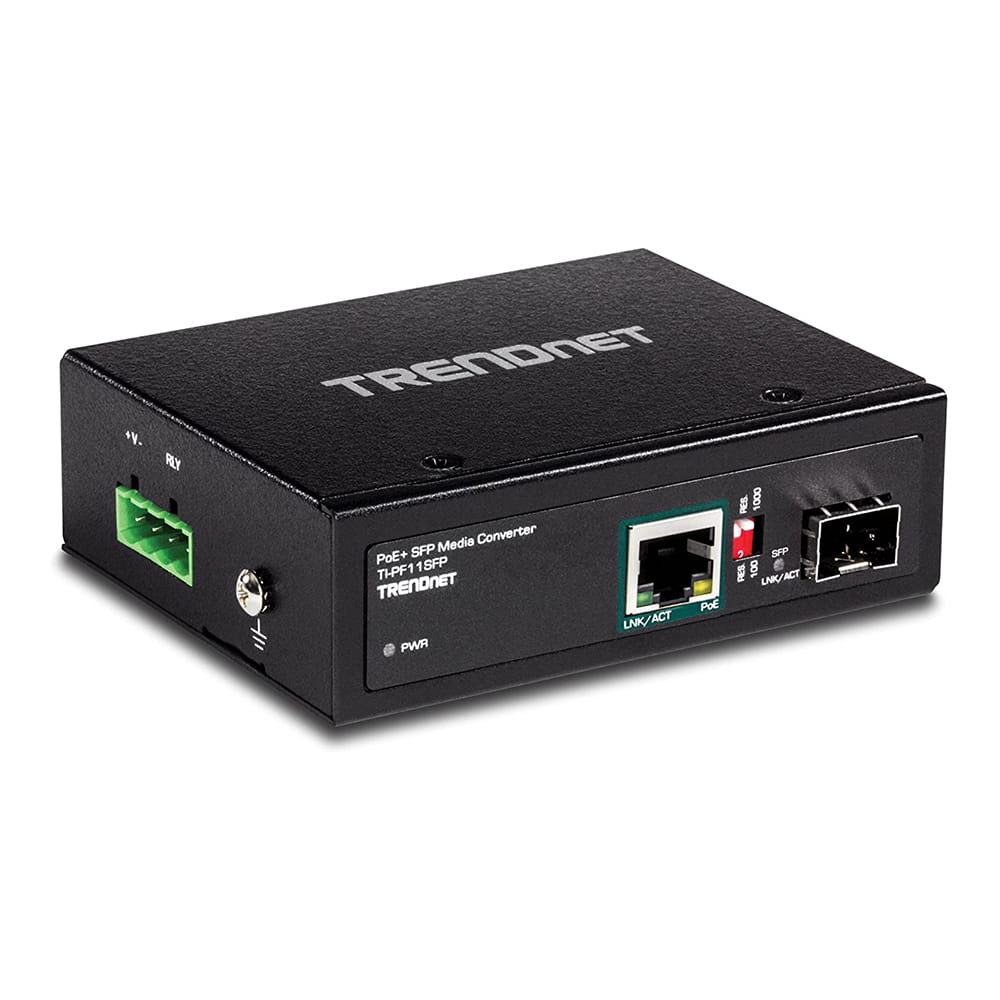

The TRENDnet Model S-to-Gigabit PoE + Industrial Media Converter, Model TI-PF11SFP, converts from fiber to copper while supplying power to PoE and PoE + compatible devices such as IP cameras, VoIP phones and wireless access points. The rugged IP30 enclosure is ideal for extreme industrial environments. Dual redundant current inputs (current source sold separately: TI-S12048) with overload protection minimize downtime.
Network devices for manufacturing, general industrial, warehouse, surveillance, and corporate applications.
It converts from fiber to copper and at the same time supplies power to PoE and PoE + compatible devices, such as IP cameras, VoIP phones and wireless access points.
Rugged IP30 switch, with an operating temperature range of -40 to 75 ° C (-40 to 167 ° F).
IP30-rated metal housing and DIN-rail and wall mounting hardware included.
Redundant dual current inputs with overload protection (current source sold separately, models: TI-S12048)
Highlights ...
* Rugged SFP to Gigabit PoE + converter rated IP30.
* The SFP port supports single or multiple mode fiber.
* Distances of up to 40 km of fiber network with the TI-MGBS40 SFP module.
* Offers up to 30W for PoE and PoE + compatible devices.
* Contains DIN-rail and wall mounting materials.
* Wide range of operating temperatures, from -40 to 75 ºC (-40 to 167 ºF).
* Dual redundant current inputs with overload protection.
| Estándares | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| Interfaz del dispositivo | 1 puerto PoE+ Gigabit 1 ranura SFP de 100/1000 Mbps Bloque de terminales de 4 pins extraíble Indicadores LED Switch DIP Montaje en DIN-rail Montaje en pared Punto de conexión a tierra |
| Tasa de transferencia de datos | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) |
| Rendimiento | Búfer RAM de datos: 1 MB Jumbo Frame: 9 KB |
| Características especiales | Componentes reforzados con clasificación para temperaturas extremas Autonegociación Arquitectura de autoalmacenamiento y reenvío Aprendizaje automático de direcciones y control de caducidad de direcciones |
| Alimentación | Entrada: 48 -56 V DC Fuente de alimentación compatible: TI-S12048 (se vende por separado) Consumo: 2 vatios (sin PoE) con entrada de 48 V DC |
| PoE | Modo A (V+ 1, 2; V- 3,6) Potencia total: 30 vatios Consumo: Máx. 36 vatios con entrada de 56 V DC |
| Bloque de terminales | Entradas de alimentación y relé, 4 pins Alcance del cable: 0.34 mm^2 a 2.5 mm^2 Cable rígido (AWG): 12-24/14-22 Cable trenzado (AWG): 12-24/14-22 Par de torsión: 5 libras – pulgada / 0.5 Nm / 0.56 Nm Longitud del hilo de cable: 7-8 mm |
| Switch DIP | 1: reservada, sin función 2: establecer velocidad SFP a 100 Mbps o 1000 Mbps |
| MTBF | 500,000 horas Carcasa de aluminio IP30 Montaje en DIN-rail Montaje en pared Punto de conexión a tierra |
| Temp. de funcionamiento | De - 40 a 75 °C (de -40 a 167 °F) |
| Humedad admitida | Máx. 95 % sin condensación |
| Dimensiones | 104 x 81 x 32 mm (4 x 3.2 x 1.2 pulgadas) |
| Peso | 154 g (5.4 onzas) |
| Certificaciones | CE FCC Golpes (IEC 60068-2-27) Caída libre (IEC 60068-2-32) Vibraciones (IEC 60068-2-6) EN60950-1 (LVD) |
| Contenido del paquete | TI-PF11SFP Guía de instalación rápida Bloque de terminales extraíble Kit de montaje en DIN-rail y pared |
