Tooq Ecopower II TQEP-750SP - REFURBISHED

Tooq Ecopower II TQEP-750SP - REFURBISHED

Tooq
  • ATX power supply.
  • 140mm top fan, <15 dBA.
  • Full protection against overvoltage, undervoltage, short circuit, overload, overcurrent, over temperature protection.
  • Connectors: 1 x ATX 24/20 pins, (500mm) x1 / 1 x ATX 12V 8-4 pins, (600mm) x1 / 2 x PCI-e 6 + 2 pins + 2 x PCI-e 6 pins, (500+ 150mm) x2 / 3 x SATA, (450 + 150 + 150mm) x1 / 2 x SATA + 1 x 4 Pin (Peripherals), (450 + 150 + 150mm) x1 / 3 x 4 Pin (Peripheral) +1 x 4 Pin (Floppy disk), (450 + 150 + 150 + 150mm) x1.
  • Compatible with AMD / CrossFire and NVIDIA / SLi
  • Includes 1.2m power cable.

P/N: **ACJCFATO-750SP - EAN/UPC: 8433281006171

32,80 € Without VAT
39,69 € With VAT
Only 1 unit left
Delivery 24/48h working
Otras opciones de compra
1 year
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
13,87 €
Without VAT
16,78 €
With VAT
Transformador AC-DC 72W 12V 6A
50,72 €
Without VAT
61,37 €
With VAT
F.A. PicoPSU 120W-WI 12-25V DC-DC

Tooq Ecopower II TQEP-750SP, is an ATX power supply, compatible with ATX 2.3.

The new version of sources includes ACTIVE PFC (PFC ACTIVE, PF> 0.99) of high quality, so that at least 78% efficiency is guaranteed. With Active PFC technology, the source produces much less heat than a Passive PFC source, which can extend the life of the source.

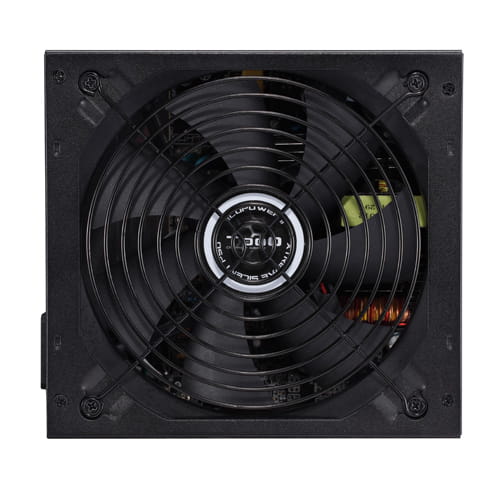

It integrates a superior 140mm fan with automatic speed control, in charge of keeping the power supply well cooled. The noise level of the source will be kept below 15dBA.

Get maximum safety thanks to protection against overvoltage, undervoltage, short circuit, overload, overcurrent, protection against excess temperature.

In addition, the Ecopower II series has a very stable + 12V double rail.

Highlight...

* ATX power supply.
* 140mm top fan, <15 dBA.
* Full protection against overvoltage, undervoltage, short circuit, overload, overcurrent, over-temperature protection.
* Connectors: 1 x ATX 24/20 pins, (500mm) x1 / 1 x ATX 12V 8-4 pins, (600mm) x1 / 2 x PCI-e 6 + 2 pins + 2 x PCI-e 6 pins, (500 + 150mm) x2 / 3 x SATA, (450 + 150 + 150mm) x1 / 2 x SATA + 1 x 4 Pins (Peripherals), (450 + 150 + 150mm) x1 / 3 x 4 Pins (Peripherals) +1 x 4 Pins (Floppy Drive), (450 + 150 + 150 + 150mm) x1.
* Compatible with AMD / CrossFire and NVIDIA / SLi
* Includes 1.2m power cable.

Datos técnicos
Potencia
Modelo

TOOQ ECOPOWER II TQEP-750SP

Voltaje/Frecuencia 220V
Normativa ATX 12V 2.31
Ventiladores 140mm
Nivel Ruido, dB(A) <20dBA
12V Raíles 2
Protecciones

OCP / OVP / UVP / SCP / OPP /OTP

Certificaciones Active PFC
Durabilidad > 10.000 horas

Cableado
A Placa Base 1 x ATX 20+4-Pines / 1 x P4+P4 conector
A Dispositivos

4 x 4 Pines Molex (HDD) / 5 x SATA (5 Pines) / 1 x 4-Pines Floppy

A VGA 2 x 6 Pin PCI-Express / 2 x 6+2 Pin PCI-Express
Extras todos los cables se encuentran enmallados


Datos salida/entrada corriente

AC Input

220 VAC 50/60Hz 2.5-9A

DC Output

3,3V

5V

12V1

12V2





-12V

5VSB

max. current

30A

30A

25A

25A





0.5A

3A



max. Combined power





6W

15W

750W


Dimensiones
Ancho 150mm
Alto 86mm
Fondo 160mm
Peso 1.65 Kg
  Ver.1.1.
