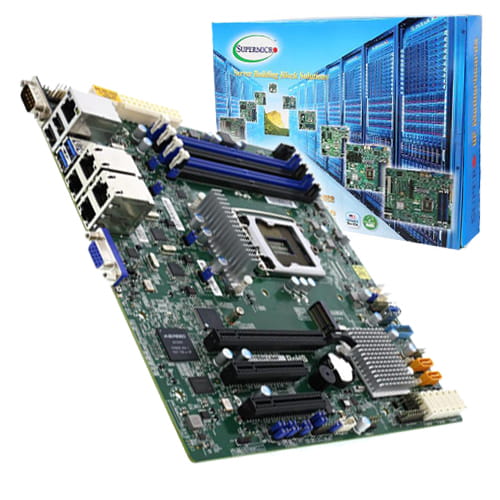

Supermicro X11SSH-LN4F. Socket 1151. Micro-ATX. BULK.
Supermicro X11SSH-LN4F. Socket 1151. Micro-ATX. BULK.
- Micro-ATX format.
- Up to 64 GB UDIMM DDR4 2400Mhz ECC without buffer.
- Socket 1151. Compatible with Intel Xeon E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Celeron and Pentium.
- Expansion slots: 1 PCI-E 3.0 x8 (at x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (at x8).
- Four GbE LAN with Intel i210-AT.
- 8 SATA3 (6 Gbps) through C236; RAID 0, 1, 5, 10.
- 5 USB 3.0 (2 rear, 2 via header (s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header (s)).
of guarantee
shipping
Secure pay

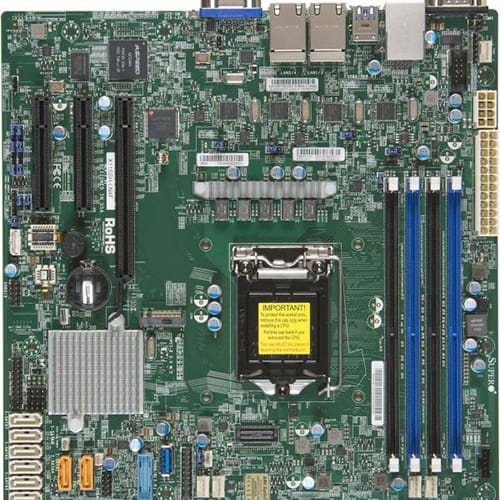

The SuperMicro X11SSH-LN4F motherboard has a Micro-ATX form factor so it is intended for servers.
This wonder supports Intel Xeon E3-1200, 6th Generation Core i3, Pentium and Celeron processors in its 1151 socket (H4). It has support for the Intel C236 chipset, 2133 DDR4 RAM, SATA 3.0., NGFF M.2 hard drive. and Trusted Platform Module (TPM. This motherboard is characterized by its good cost / effectiveness and long service life, which makes it the ideal solution for embedded storage systems and cloud computing platforms.
Another of its peculiarities is that it uses the innovative Intel vPro technology, which allows cutting-edge security at work eliminating the need to use cables. This technology protects our cloud and our virtual environments from rootkits and possible threats such as malware, preventing our company from suffering any kind of security problem or compromise.
Its hardware functions allow managing and centrally managing images, storing them in the network in the safest way and obtaining a unique and reliable out-of-band protection. In addition, it has Intel virtualization technology (Intel VT), which simplifies virtualization and helps reduce your company's overhead. This technology allows practical virtualization, reducing complexity and improving security through hardware. This virtualization allows you to perform several workloads while sharing resource groups. This facilitates that they can be located even while being isolated from each other.
Highlights...
* Form factor: Micro ATX.
* Chipset: Intel C236.
* Processor socket: LGA 1151 (Socket H4).
* Number of DIMM slots: 4, compatible memory types: DDR4-SDRAM, Maximum internal memory: 64 GB.
* HDD interface: Serial ATA III, RAID levels: 0,1,5,10.
* Built-in graphic adapter model: Aspeed AST2400.
* Type of ethernet interface: Gigabit Ethernet.
* BIOS types: AMI.
Physical Stats | Expansion Slots | |||
Form Factor | Micro-ATX | PCI-E | 1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) |
|
Dimensions | 24.38 x 24.38 cm | System BIOS | ||
Processor/Cache | Bios Type | 128Mb SPI Flash EEPROM with AMI BIOS | ||
CPU | Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5. Single Socket H4 (LGA 1151) supported, CPU TDP support 80W. |
Bios Features | Plug and Play (PnP), APM 1.2, PCI 2.3, DMI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support Hardware BIOS Virus protection, SMBIOS 2.7.1, UEFI 2.3.1 |
|
Cores / Cache | Management | |||
System Memory | Software | Intel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog | ||
Memory Capacity | 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots | Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
|
Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs | PC Health Monitoring | ||
DIMM Sizes | 4 Gb, 8Gb, 16Gb | Voltage | +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT | |
Memory Voltage | 1.2 V | LED | CPU / System Overheat LED, UID/Remote UID | |
On-Board Devices | Temperature | PECI, Thermal Monitor 2 (TM2) support, Monitoring for CPU and chassis environment, CPU thermal trip support | ||
Chipset | Intel C236 | FAN | 5x 4-pin fan headers (up to 5 fans), Fan speed control | |
SATA | Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | Other Features | Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, VHD, WO | |
Network Controllers | Quad LAN with Intel Ethernet Controller I210-AT | Operating Environment | ||
Audio | Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) | ||
Graphics | Aspeed AST2400 BMC | Non-Operating Temperature | -40°C - 70°C (-40°F - 158°F) | |
Input / Output | Operating Relative Humidity | 8% - 90% (non-condensing) | ||
M.2 | M.2 Interface: PCI-E 3.0 x2 Form Factor: 2280 Key: M-Key Double Height Connector |
Non-Operating Relative Humidity | 5% - 95% (non-condensing | |
LAN | ||||
USB | 6 USB 2.0 ports (2 rear + 4 headers) 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) |
|||
Video Output | 1 VGA port | |||
Serial Port | 2 COM Ports (1 rear, 1 header) | |||
TPM | TPM Header |
