Supermicro X11SPL-F. Socket 3647. BULK.
- Compatible with 2nd gen. of Intel Xeon Scalable processors.
- Socket 3647.
- TDP consumption up to 165W.
- Up to 2TB 3DS ECC DDR4.
- Supports Intel optane memory up to 1Tb.
- Intel C621 chipset.
- Expansion slots: 2 PCI-E 3.0 x8 (at x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (at x8).
- 2 Gigabit network ports.
- 8 SATA3 ports.
- 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers).
of guarantee
Insured
Secure pay

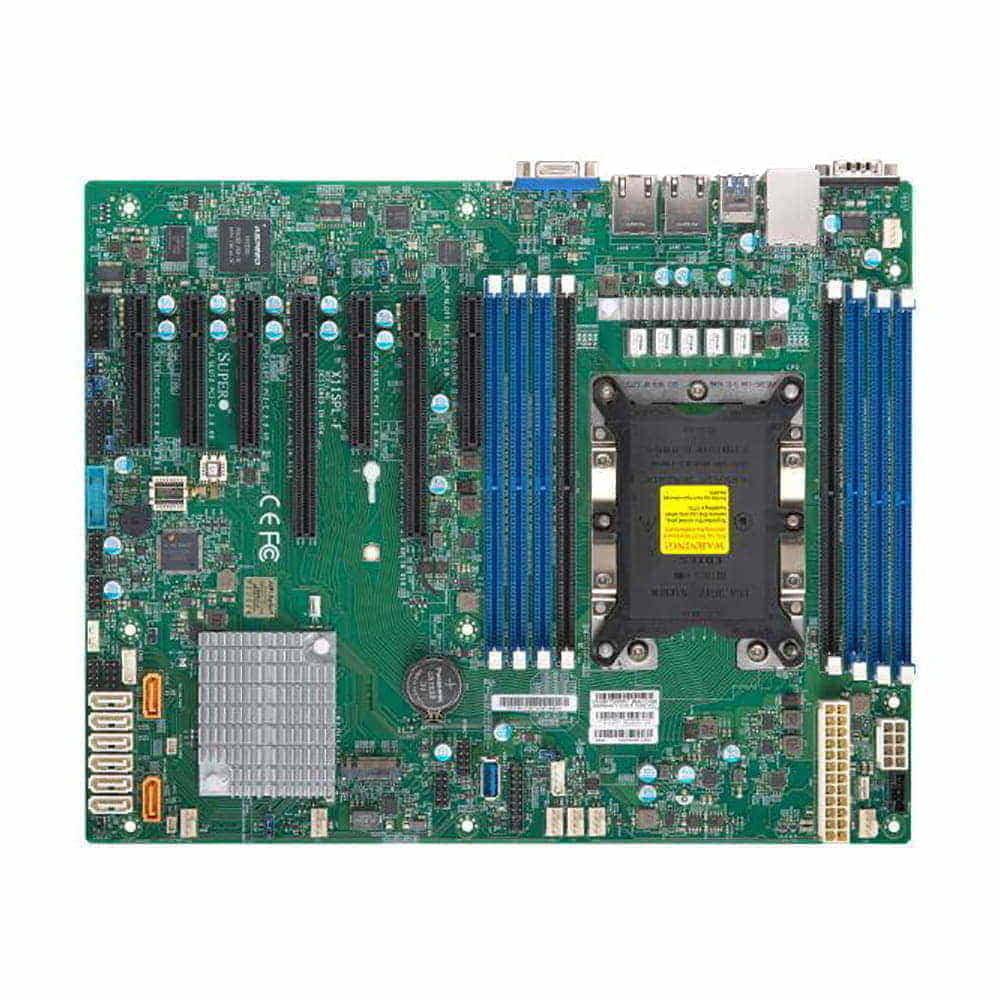

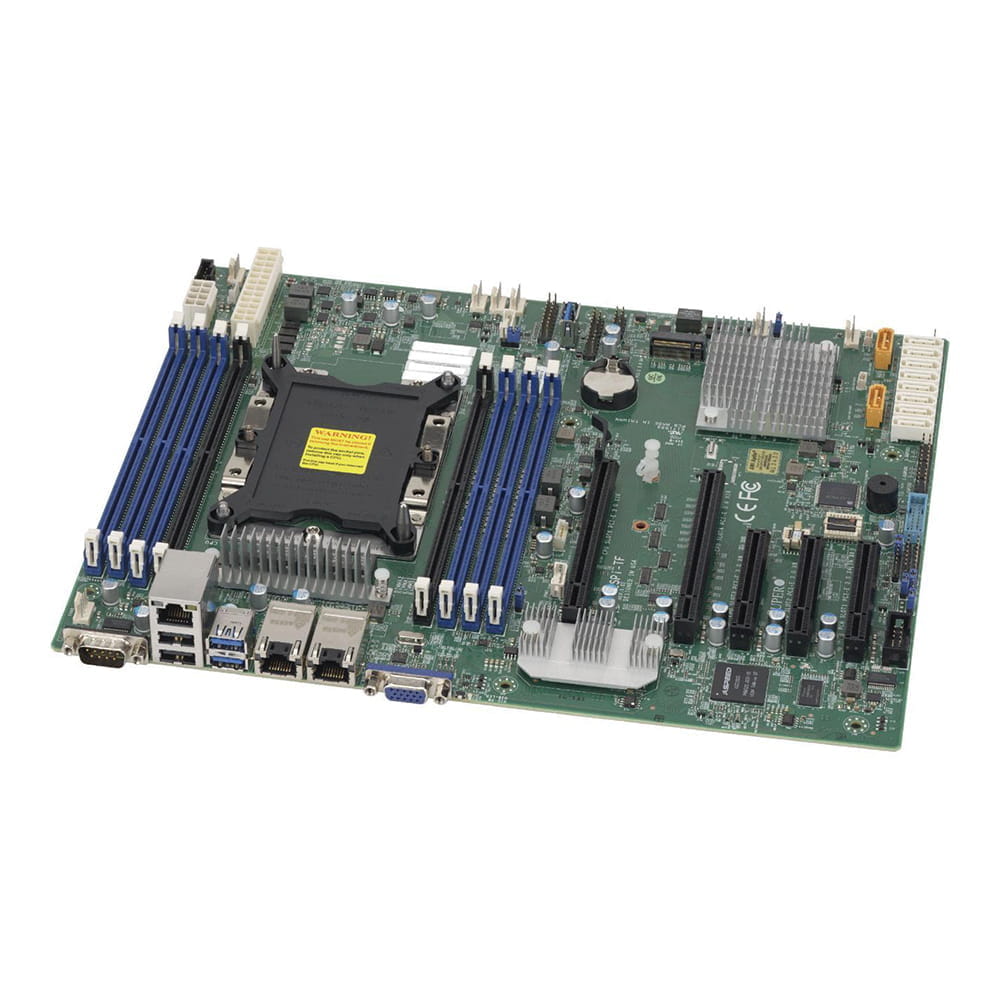

The Supermicro X11SPL-F is an ATX motherboard designed for servers.
It is compatible with the second generation of Intel Xeon Scalable processors. It includes a single 3647 socket, with support for processors with a TDP consumption up to 165W.
Highlights ...
* Compatible with 2nd gen. of Intel Xeon Scalable processors.
* Socket 3647.
* TDP consumption up to 165W.
* Up to 2TB 3DS ECC DDR4.
* Supports Intel optane memory up to 1Tb.
* Intel C621 chipset.
* Expansion slots: 2 PCI-E 3.0 x8 (at x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (at x8).
* 2 Gigabit network ports.
* 8 SATA3 ports.
* 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers).
Datos físicos | Slots de Expansión | |||
Formato | ATX | PCI-E | 2 PCI-E 3.0 x8 (in x16 slot), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) |
|
Dimensiones | 30.48 x 24.38 cm | BIOS del Sistema | ||
Procesador/Caché | Tipo de Bios | AMI UEFI | ||
CPU | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP |
Característica de la Bios | ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later |
|
Núcleos / Caché | Hasta 28 cores | Administración | ||
Memoria del sistema | Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog | ||
Capacidad de memoria | Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots; Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only) |
Configuraciones de energía | ACPI Power Management Power-on mode for AC power recovery |
|
Tipos de memoria | 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM | PC Health Monitoring | ||
Tamaños DIMM | RDIMM: 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB, 128GB 3DS LRDIMM: 64GB, 128GB, 256GB |
Voltaje | +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT | |
Voltaje de memoria | 1.2 V | LED | CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED | |
Dispositivos en placa | Temperatura | CPU thermal trip support, PECI | ||
Chipset | Intel c621 | Ventiladores | 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control | |
SATA | Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | Otras características | ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL | |
Controladoras de red | Dual LAN with 1GbE with Intel® I210 | Entorno operativo | ||
Audio | Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) | ||
Gráficos | Aspeed AST2500 BMC | Non-Operating Temperature | -40°C - 70°C (-40°F - 158°F) | |
Entradas / Salidas | Operating Relative Humidity | 8% - 90% (non-condensing) | ||
SATA | 8 SATA3 (6Gbps) port | Non-Operating Relative Humidity | 5% ~ 95% (non-condensing) | |
LAN | 2 RJ45 Gigabit Ethernet LAN ports | |||
USB | 8 USB 2.0 ports (2 rear + 6 headers) 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) |
|||
Salida Video | 1 VGA port | |||
Puerto Serie | 2 COM Ports (1 rear, 1 header) | |||
TPM | 1 TPM Header |
