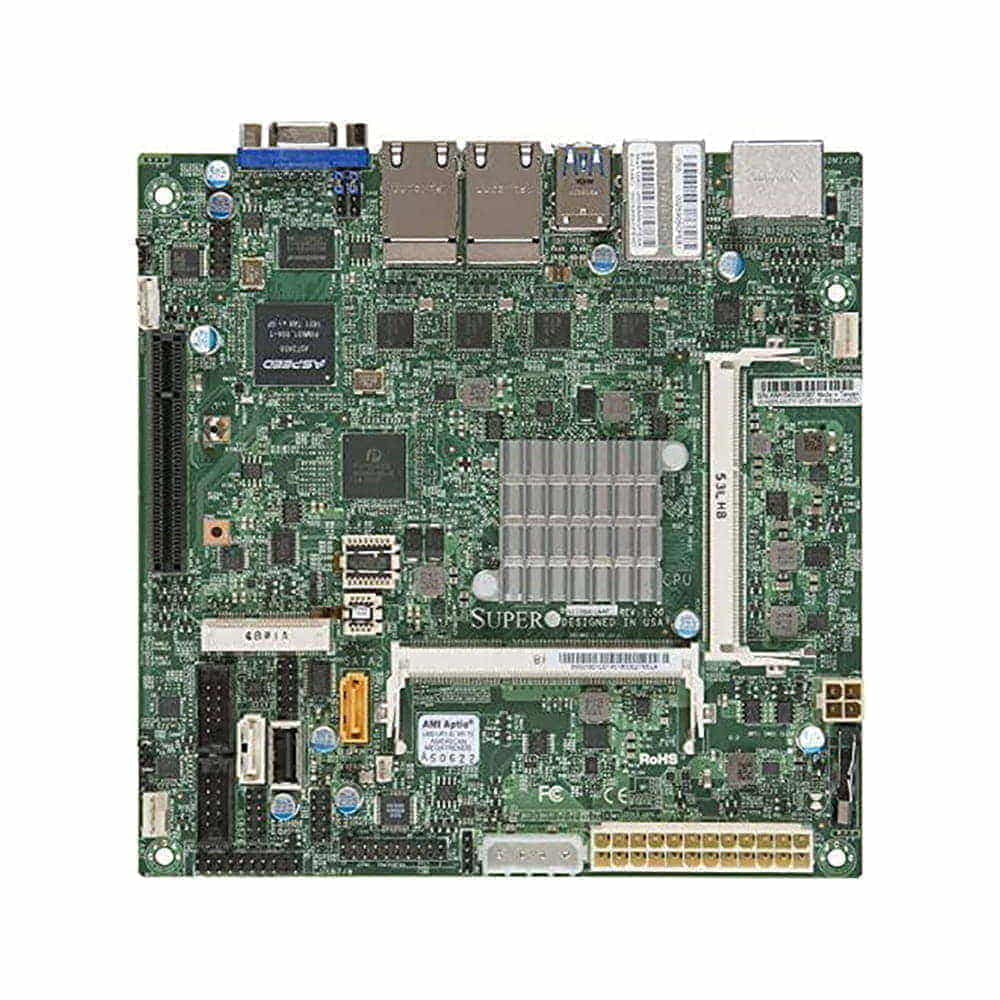

Supermicro X11SBA-LN4F. Intel Pentium N3700. Mini-ITX. BULK.

Supermicro X11SBA-LN4F. Intel Pentium N3700. Mini-ITX. BULK.

Supermicro
  • Intel® Pentium® Processor N3700, Socket FCBGA 1170; CPU 6W.
  • System-on-Chip.
  • Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets.
  • 1x PCI-E 2.0 x1 (in x8) slot, 1x Mini-PCIe slot.
  • HD Graphics with 1x HDMI & 1x DP (Display Port), 1x VGA for BMC.
  • Quad GbE LAN with Intel® i210-AT.
  • 2x USB 3.0 ports (2 rear), 7x USB 2.0 (2 rear, 4 via headers, 1 Type A).
  • 2x COM ports (2 headers).
  • 1x SuperDOM port, TPM header.
  • IPMI 2.0 with dedicated Port and KVM.
  • 12V DC or AT.

P/N: MBD-X11SBA-LN4F-B

214,89 € Without VAT
260,02 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay

Intel® Pentium® (formerly Braswell) is a multi-core system-on-chip (SoC) based on a new microarchitecture and manufactured in Intel's industry-leading 14nm triple-gate process. These processors support up to four cores with Intel® Burst Technology, which dynamically controls the performance and power of both cores and increases graphics performance exactly where and when it is needed and saves power when it is needed. Intel® HD graphics provide an exceptional visual experience and take Intel® embedded visuals to the next level. Intel® Wireless Display3 - Allows you to stream your apps and content like movies, photos, and music to an HDTV with a simple wireless connection. New Intel® Pentium® System-on-a-Chip (SoC) processors balance cost, performance, and power for everyday computing.

Highlights...

* Intel® Pentium® Processor N3700, Socket FCBGA 1170; CPU 6W.
* Non-ECC DDR3 SO-DIMMs up to 8GB 1600MHz in 2 sockets.
* 1x PCI-E 2.0 x1 slot (at x8), 1x Mini-PCIe slot.
* HD graphics with 1x HDMI and 1x DP (display port), 1x VGA for BMC.
* QuadGbE LAN with Intel® i210-AT.
* 2x USB 3.0 ports (2 rear), 7x USB 2.0 (2 rear, 4 through headers, 1 Type-A).
* 1x SuperDOM port, TPM header.
* IPMI 2.0 with dedicated port and KVM.
* 12V DC or AT.

Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17cm x 17cm)
Processor/Cache
CPU
  • Socket FCBGA1170
  • Intel® Pentium® Processor N3700
  • CPU TDP 6W
  • 1.6-2.4GHz, 2MB
System Memory
Memory Capacity
  • 2x 204-pin SO-DIMM slot
  • Supports up to 8GB non-ECC DDR3 1600MHz memory (Dual Channel)
Memory Type 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
DIMM Sizes 4GB, 2GB
Memory Voltage 1.35 V
On-Board Devices
Chipset Intel® N3700 System on Chip
SATA SATA 3.0 (6Gbps) from Intel® SoC
Network Controllers
  • Quad Gigabit Ethernet LAN ports with Intel® I210-AT
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio Realtek ALC888S HD Audio
Graphics Aspeed AST2400 BMC
Input / Output
Serial ATA 2x SATA3 (6Gbps) ports
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (rear)
  • 7x USB 2.0 ports (2 rear, 4 via headers, 1 Type A)
DOM 1x SuperDOM (Disk on Module) port with built-in power
Video Output
  • 1x HDMI, 1x Display Port via SoC HD Graphics
  • VGA port is for BMC via AST2400
Serial Port/Headers 2x COM ports in headers
Others
  • Audio header
  • TPM header
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • ACPI 5.0
  • UEFI 2.3.1
  • SMBIOS 2.7
  • DMI 2.3
  • USB Keyboard support
  • RTC (Real time Clock) Wakeup
  • 3TB HDD Support
