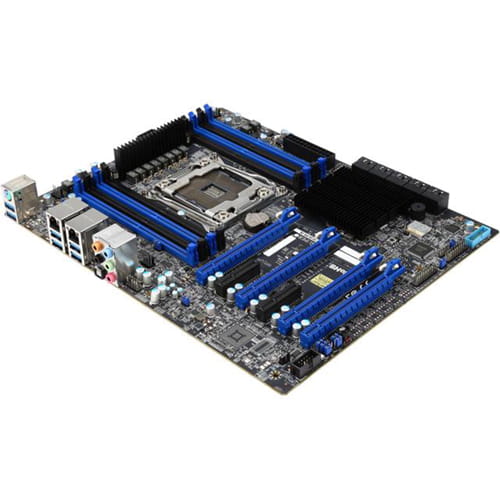

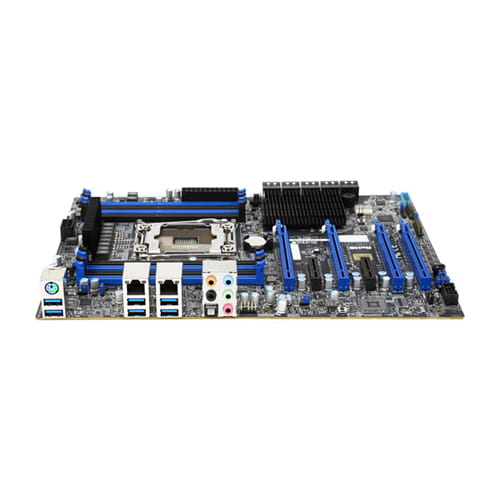

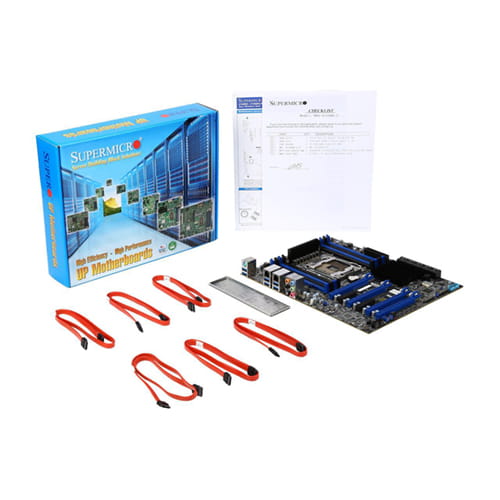

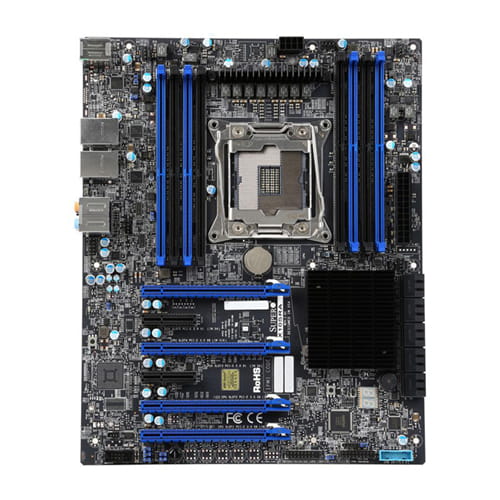

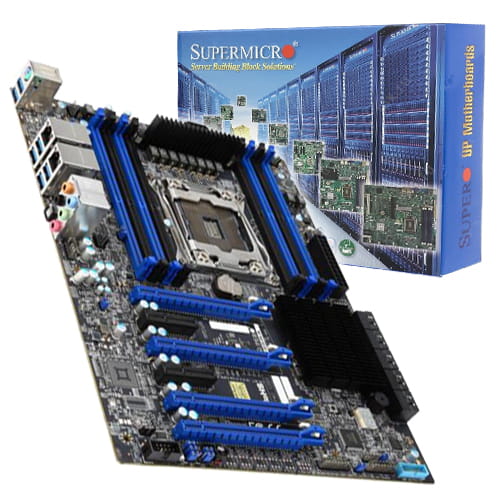

Supermicro X10SRA. Socket 2011.
Supermicro X10SRA. Socket 2011.
- Socket R3 (LGA 2011) with Intel Xeon E5-2600 and E5-1600 support, in addition to Core i7
- Intel C612 chipset
- Up to 512GB of 2400MHz DDR4 ECC memory
- It has 4 PCI-E 3.0 x16 and 2 PCIE 2.0 x1.
- RAID support with level 0, 1, 5, 10.
of guarantee
shipping
Secure pay
Supermicro's new X10 UP server boards offer the latest Xeon E5-2600 / 1600 v3 technology solutions with the highest levels of performance in different ways to meet diverse application needs.
Accepts an LGA 2011 processor socket (Socket R). With 8 DIMM slots and a maximum internal memory acceptance of 512 GB, it accepts RDIMMs of 4, 8, 16 and 32 GB with a maximum RDIMM of 256 GB.
It also has support for RAID level 0, 1, 5 and 10.
Highlight...
* Socket R3 (LGA 2011) with Intel Xeon E5-2600 and E5-1600 support, in addition to Core i7
* Intel C612 chipset
* Up to 512GB of 2400MHz DDR4 ECC memory
* It has 4 PCI-E 3.0 x16 and 2 PCIE 2.0 x1.
* RAID support with level 0, 1, 5, 10.
Modelo | MBD-X10SRA |
Zócalo | LGA 2011 Socket R3 |
Chipset | Intel C612 |
Memoria Admitida | 512 GB ECC LRDIMM 256GB EC RDIMM 128 GB DDR4 ECC/non-ECC |
Tarjeta Gráfica integrada | - |
Zócalos ampliación | x4 PCI 3.0 x16 x2 PCI-E 2.0 x1 |
Conexiones IDE / SATA | x10 SATA 3 (6 Gbps) |
Controlador lan | Intel I210AT |
Tarjeta de sonido | Realtek ALC1150 |
Conexiones Internas | x1 Conector TMP x10 SATA III x1 Cabecera de puerto serie x1 Conector a instrusión a chasis |
Conexiones Traseras | x6 USB 3.0 x2 USB 3.0 via cabecera x2 RJ-45 x1 Puerto Ratón PS/2 |
Formato Placa y Tamaño | ATX, 30.5 cm x 24.4 cm |
Supermicro's new X10 UP server boards offer the latest Xeon E5-2600 / 1600 v3 technology solutions with the highest levels of performance in different ways to meet diverse application needs.
Accepts an LGA 2011 processor socket (Socket R). With 8 DIMM slots and a maximum internal memory acceptance of 512 GB, it accepts RDIMMs of 4, 8, 16 and 32 GB with a maximum RDIMM of 256 GB.
It also has support for RAID level 0, 1, 5 and 10.
Highlight...
* Socket R3 (LGA 2011) with Intel Xeon E5-2600 and E5-1600 support, in addition to Core i7
* Intel C612 chipset
* Up to 512GB of 2400MHz DDR4 ECC memory
* It has 4 PCI-E 3.0 x16 and 2 PCIE 2.0 x1.
* RAID support with level 0, 1, 5, 10.
Modelo | MBD-X10SRA |
Zócalo | LGA 2011 Socket R3 |
Chipset | Intel C612 |
Memoria Admitida | 512 GB ECC LRDIMM 256GB EC RDIMM 128 GB DDR4 ECC/non-ECC |
Tarjeta Gráfica integrada | - |
Zócalos ampliación | x4 PCI 3.0 x16 x2 PCI-E 2.0 x1 |
Conexiones IDE / SATA | x10 SATA 3 (6 Gbps) |
Controlador lan | Intel I210AT |
Tarjeta de sonido | Realtek ALC1150 |
Conexiones Internas | x1 Conector TMP x10 SATA III x1 Cabecera de puerto serie x1 Conector a instrusión a chasis |
Conexiones Traseras | x6 USB 3.0 x2 USB 3.0 via cabecera x2 RJ-45 x1 Puerto Ratón PS/2 |
Formato Placa y Tamaño | ATX, 30.5 cm x 24.4 cm |
