SUPERMICRO MBD-X10SDV-12C-TLN4F+-O

SUPERMICRO MBD-X10SDV-12C-TLN4F+-O

Supermicro
  • Intel Xeon D-1557 processor, FCBGA 1667 single socket; 12 cores, 24 wires, 45W.
  • Up to 128 GB ECC RDIMM DDR4 2133 MHz or 64 GB ECC / non ECC UDIMM in 4 sockets.
  • 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), key M 2242/2280.
  • 2 LAN ports of 10 GbE and 2 GbE.
  • 6 SATA3 ports (6 Gbps) through SoC.
  • 2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers).
  • 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers.

P/N: MBD-X10SDV-12C-TLN4F+-O

1.012,15 € Without VAT
1.224,70 € With VAT
In stock
Approximate delivery between 28 septiembre and 28 septiembre
2 years
of guarantee
sending
shipping
100%
Secure pay

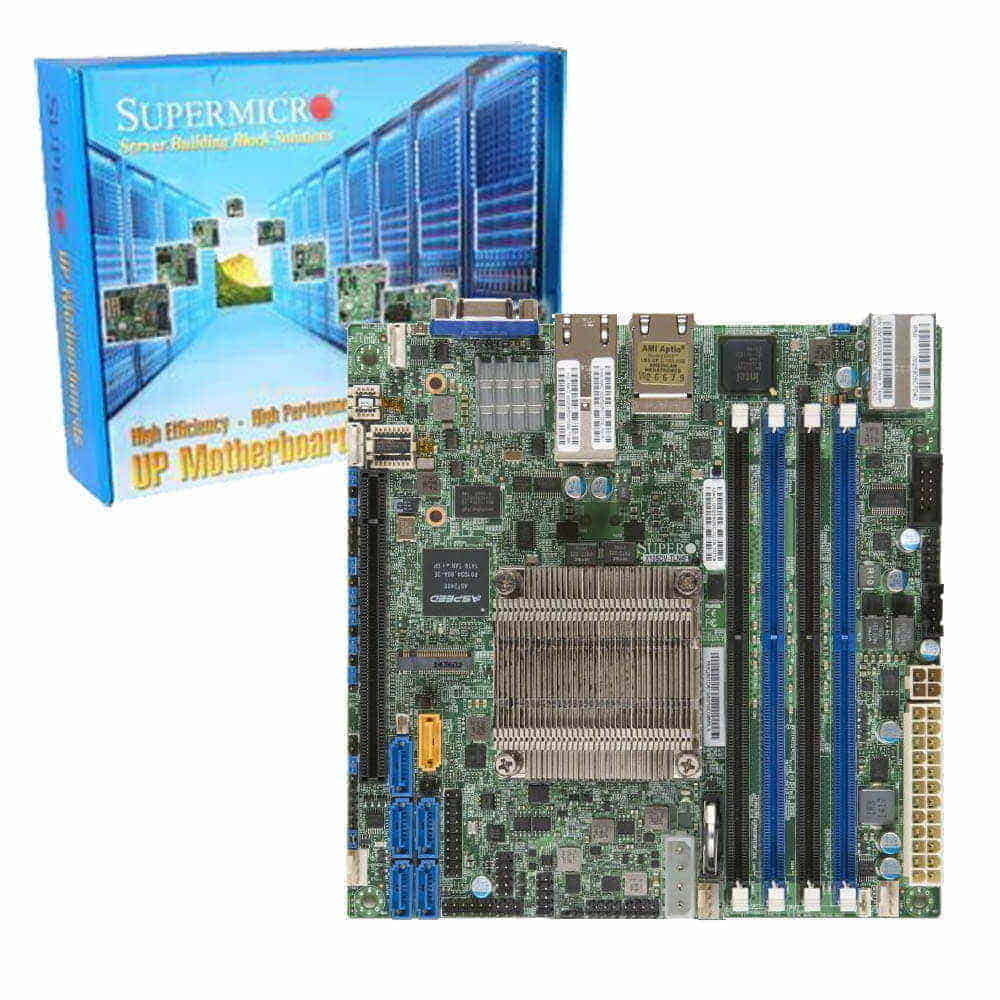

Supermicro motherboard in Mini-ITX format. Power and versatility all in one!

This board integrates the Intel Xeon D-1557 12-core and 24-wire processor. The X10SDV series offers greater optimization, combining the performance and advanced intelligence of Xeon processors.

With the server-class reliability, availability and serviceability (RAS) features now available on an ultradense, low-power device, the X10SDV can offer computing, storage and networks.

Highlights ...

* Intel Xeon D-1557 processor, FCBGA 1667 single socket; 12 cores, 24 wires, 45W.
* Up to 128 GB ECC RDIMM DDR4 2133 MHz or 64 GB ECC / non ECC UDIMM in 4 sockets.
* 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), key M 2242/2280.
* 2 LAN ports of 10 GbE and 2 GbE.
* 6 SATA3 ports (6 Gbps) through SoC.
* 2 USB 3.0 ports (rear) 4 USB 2.0 ports (through headers).
* 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers.

Datos físicos   Slots de Expansión
Formato Mini-ITX   PCI-E 1 PCI-E 3.0 x16
Dimensiones 17.02 x 17.02 cm   BIOS del Sistema
Procesador/Caché   Tipo de Bios 128Mb SPI Flash EEPROM with AMI BIOS
CPU
  • Intel Xeon Processor D-1557.
  • Single Socket FCBGA1667 supported, CPU TDP support 45W
  Característica de la Bios PCI 3.0, ACPI 5.0, USB Keyboard support, Hardware BIOS Virus protection, RTC (Real Time Clock) Wakeup, UEFI 2.4, SMBIOS 2.8
Núcleos / Caché 12 cores, 24 threads   Administración
Memoria del sistema   Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
Capacidad de memoria
  • Up to 128GB Registered ECC RDIMM
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM, in 4 DIMM slots
  Configuraciones de energía
  • ACPI Power Management
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
Tipos de memoria 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM   PC Health Monitoring
Tamaños DIMM 4GB, 8GB, 16GB, 32GB   Voltaje +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, HT, Memory, Memory Voltage
Voltaje de memoria 1.2 V   LED CPU / System Overheat LED, UID/Remote UID
Dispositivos en placa   Temperatura Monitoring for CPU and chassis environment, CPU thermal trip support, PECI, Thermal Monitor 2 (TM2) support
Chipset System on Chip   Ventiladores 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring
SATA
  • SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • RSTe
  Otras características 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector
Controladoras de red Dual LAN with Intel Ethernet Controller I350-AM2
Dual LAN with 10Gbase-T
  Entorno operativo
Audio     Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
Gráficos Aspeed AST2400 BMC   Non-Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Entradas / Salidas   Operating Relative Humidity 8% - 90% (non-condensing)
SATA 6 SATA3 (6Gbps) port   Non-Operating Relative Humidity 10% ~ 95% (non-condensing)
LAN
  • 2 RJ45 10GBase-T ports
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port

USB
  • 4 USB 2.0 ports (4 headers, Type A))
  • 2 USB 3.0 ports (2 rear)

Salida Video 1 VGA port
Puerto Serie 1 COM Ports (1 rear, 1 header)
TPM 1 TPM Header
M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
