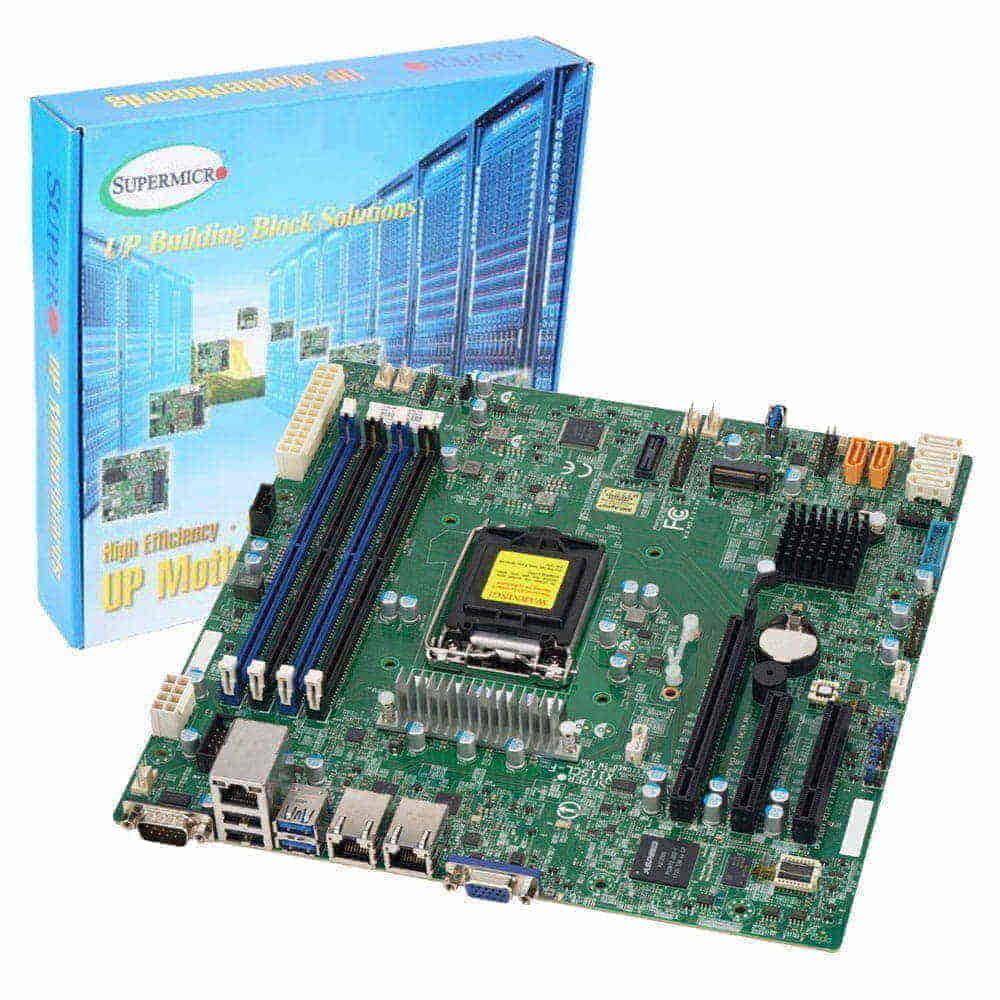

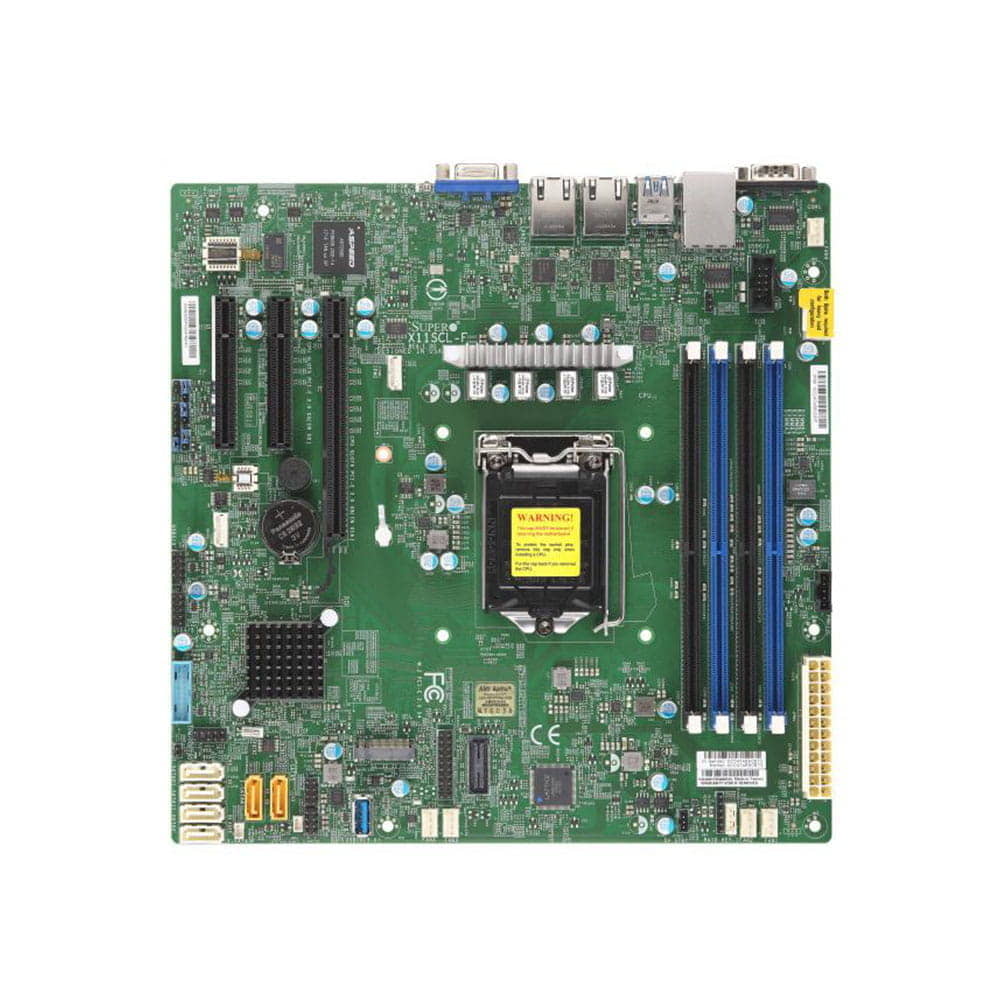

Supermicro MBD-X11SCL-F. Socket 1151. Micro-ATX.
Supermicro MBD-X11SCL-F. Socket 1151. Micro-ATX.
- Micro-ATX motherboard for 8th and 9th generation Intel.
- Socket LGA-1151 (H4).
- Core i3 / Pentium, Celeron, Xeon, Xeon E-2100.
- Memory up to 128 Gb DDR4 2667/2400/2133 ECC (SDRAM 72 bit).
- Intel C242 chipset.
- 6 x USB 2.0, 5 x USB 3.1, 1 x VGA, 2x COM.
of guarantee
shipping
Secure pay
This single processor Supermicro motherboard uses Socket H4 and features an Intel C232 Chipset that is compatible with Intel Xeon E-2100 family processors and Intel 8th and 9th generation i3 / Pentium / Celeron processor family.
Its most outstanding characteristics are that it allows to include up to 128 GB of the very fast DDR4-DRAM in 4 DIMMS, it has integrated USB 3.0 / 3.1, PCI-E 3.0 and its inputs allow you to install up to 6 SATA devices.
This motherboard was designed with long life, reliability, performance, and easy and fast management in mind to become the solution for all types of servers, workstations and embedded applications.
Highlight...
* IPMI.
* Great connectivity thanks to its many SATA ports.
* High quality motherboard with a very long life.
Procesador | ||||
Fabricante de procesador | Intel | |||
Número de procesadores soportados | 1 | |||
Socket de procesador | LGA 1151 (Socker H) | |||
Memoria | ||||
tipos de memoria compatibles | DDR4-SDRAM | |||
Velocidades de reloj de memoria soportadas | 2667/2400/2133 | |||
Número de ranuras DIMM | 4 | |||
Memoria RDIM Máxima | 128 GB | |||
Voltaje de memoria | 1.2 V | |||
Dimensiones | ||||
Ancho | 240 mm | |||
Profundidad | 240 mm | |||
Red | ||||
Ethernet | Si | |||
Tipo de interfaz ethernet | Gigabit Ethernet | |||
Wifi | No | |||
Interno I/O | ||||
USB 2.0, conectores USB 3.1 conectores |
6 5 |
|||
Conectores SATA III | 6 | |||
Conector TPM | Si | |||
Panel trasero Puertos de I/O (entrada/salida) | ||||
Cantidad de puertos USB 2.0 | 2 | |||
Cantidad de puertos tipo A USB 3.0 (3.1 Gen 1) | 2 | |||
Ethernet LAN (RJ-45) cantidad de puertos | 1 | |||
Cantidad de puertos VGA (D-Sub) | 1 | |||
Puertos COM | 2 | |||
Reguladores del almacenaje | ||||
Interfaz del disco duro | Serial ATA III | |||
Niveles RAID | 0, 1, 5, 10 | |||
Ranuras de expansión | ||||
Ranuras PCI Express x8 (Gen 3.x) | 1 | |||
PCI Express x4 Gen (3.x) ranuras | 2 | |||
Diseño | ||||
Componente para | Servidor, workstation | |||
Factor de forma | Micro ATX | |||
Gráficos | ||||
Adaptador de memoria gráficos incorporados | ||||
Modelo de gráficos en tarjeta | Aspeed AST2500 BMC | |||
Desempeño | ||||
Circuito integrado de tarjeta madre | Intel C232 | |||
Canales de salida de audio | ||||
Módulo de plataforma confiable (TPM) | Si |
This single processor Supermicro motherboard uses Socket H4 and features an Intel C232 Chipset that is compatible with Intel Xeon E-2100 family processors and Intel 8th and 9th generation i3 / Pentium / Celeron processor family.
Its most outstanding characteristics are that it allows to include up to 128 GB of the very fast DDR4-DRAM in 4 DIMMS, it has integrated USB 3.0 / 3.1, PCI-E 3.0 and its inputs allow you to install up to 6 SATA devices.
This motherboard was designed with long life, reliability, performance, and easy and fast management in mind to become the solution for all types of servers, workstations and embedded applications.
Highlight...
* IPMI.
* Great connectivity thanks to its many SATA ports.
* High quality motherboard with a very long life.
Procesador | ||||
Fabricante de procesador | Intel | |||
Número de procesadores soportados | 1 | |||
Socket de procesador | LGA 1151 (Socker H) | |||
Memoria | ||||
tipos de memoria compatibles | DDR4-SDRAM | |||
Velocidades de reloj de memoria soportadas | 2667/2400/2133 | |||
Número de ranuras DIMM | 4 | |||
Memoria RDIM Máxima | 128 GB | |||
Voltaje de memoria | 1.2 V | |||
Dimensiones | ||||
Ancho | 240 mm | |||
Profundidad | 240 mm | |||
Red | ||||
Ethernet | Si | |||
Tipo de interfaz ethernet | Gigabit Ethernet | |||
Wifi | No | |||
Interno I/O | ||||
USB 2.0, conectores USB 3.1 conectores |
6 5 |
|||
Conectores SATA III | 6 | |||
Conector TPM | Si | |||
Panel trasero Puertos de I/O (entrada/salida) | ||||
Cantidad de puertos USB 2.0 | 2 | |||
Cantidad de puertos tipo A USB 3.0 (3.1 Gen 1) | 2 | |||
Ethernet LAN (RJ-45) cantidad de puertos | 1 | |||
Cantidad de puertos VGA (D-Sub) | 1 | |||
Puertos COM | 2 | |||
Reguladores del almacenaje | ||||
Interfaz del disco duro | Serial ATA III | |||
Niveles RAID | 0, 1, 5, 10 | |||
Ranuras de expansión | ||||
Ranuras PCI Express x8 (Gen 3.x) | 1 | |||
PCI Express x4 Gen (3.x) ranuras | 2 | |||
Diseño | ||||
Componente para | Servidor, workstation | |||
Factor de forma | Micro ATX | |||
Gráficos | ||||
Adaptador de memoria gráficos incorporados | ||||
Modelo de gráficos en tarjeta | Aspeed AST2500 BMC | |||
Desempeño | ||||
Circuito integrado de tarjeta madre | Intel C232 | |||
Canales de salida de audio | ||||
Módulo de plataforma confiable (TPM) | Si |
