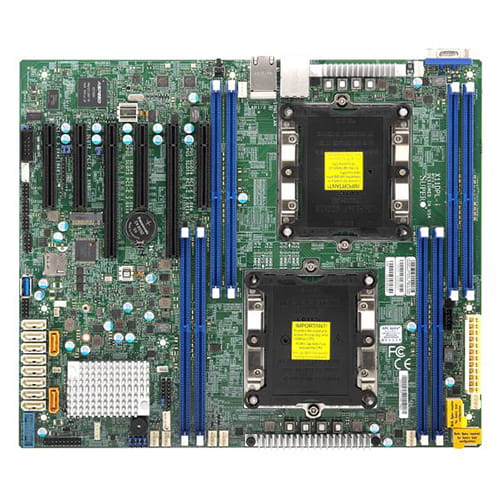

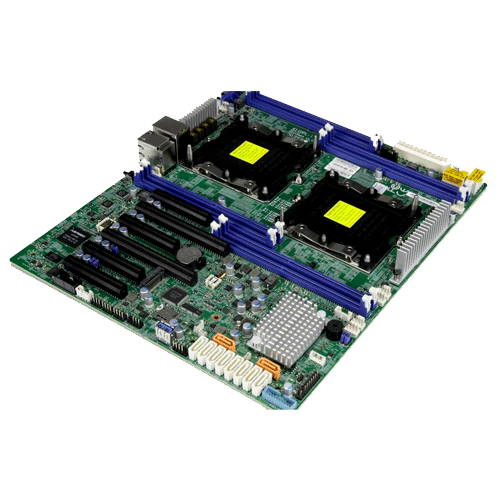

Supermicro MBD-X11DPL-I. 2x Socket 3647.
Supermicro MBD-X11DPL-I. 2x Socket 3647.
- Supports 2x CPU Socket 3647 with maximum TDP up to 140W.
- Up to 2Tb of DDR4 2933Mhz RDIMM Memory.
- 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot).
- M.2 interface: 1 SATA / PCI-E 3.0 x4, M.2 Form factor: 2260, 2280.
- Intel C621 controller for 10 SATA3 ports (6 Gbps); RAID 0,1,5,10.
- Dual LAN with Lewisburg Marvell 88E1512 PHY.
of guarantee
shipping
Secure pay
Supermicro's next-generation X11 DP server boards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0 support / SATA 3.0 / NVMe hot-swap HDD / SSD, 10GBase-T / 10G SFP + / 56Gbps FDR InfiniBand network options, SATA Disk-on-Module (DOM) and IPMI 2.0 plus KVM with dedicated LAN.
SuperWorkstation boards also offer 7.1 HD audio, Thunderbolt AOC header and up to 11 USB ports.
Highlight...
* Supports 2x CPU Socket 3647 with maximum TDP up to 140W.
* Up to 2Tb of DDR4 2933Mhz RDIMM Memory.
* 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot).
* M.2 interface: 1 SATA / PCI-E 3.0 x4, M.2 Form factor: 2260, 2280.
* Intel C621 controller for 10 SATA3 ports (6Gbps); RAID 0,1,5,10.
* Dual LAN with Lewisburg Marvell 88E1512 PHY.
Datos físicos | Slots de Expansión | |||
Formato | ATX | PCI-E | 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) |
|
Dimensiones | 30.67 x 25.78 cm | BIOS del Sistema | ||
Procesador/Caché | Tipo de Bios | AMI UEFI | ||
CPU | 2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s. |
Característica de la Bios | ||
Núcleos / Caché | Administración | |||
Memoria del sistema | Software | Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog | ||
Capacidad de memoria | Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots | Configuraciones de energía | ACPI Power Management | |
Tipos de memoria | 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM | PC Health Monitoring | ||
Tamaños DIMM | RDIMM: 64GB LRDIMM: 128GB 3DS LRDIMM: 128GB, 256GB |
Voltaje | +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility | |
Voltaje de memoria | 1.2 V | LED | CPU / System Overheat LED, UID/Remote UID | |
Dispositivos en placa | Temperatura | CPU thermal trip support, PECI | ||
Chipset | Intel C621 | Ventiladores | 8x 4-pin fan headers (up to 8 fans), Overheat LED indication, PWM fan speed control | |
SATA | Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | Otras características | ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, SDDC, UID | |
Controladoras de red | Dual LAN with Lewisburg Marvell 88E1512 PHY | Entorno operativo | ||
Audio | Operating Temperature | 10°C - 35°C (50°F - 95°F) | ||
Gráficos | Aspeed AST2500 BMC | Non-Operating Temperature | -40°C - 70°C (-40°F - 158°F) | |
Entradas / Salidas | Operating Relative Humidity | 8% - 90% (non-condensing) | ||
SATA | 10 SATA3 (6Gbps) port | Non-Operating Relative Humidity | 5% - 95% (non-condensing) | |
LAN | 2 RJ45 Gigabit Ethernet LAN ports | |||
USB | 4 USB 2.0 ports (2 rear + 2 headers) 3 USB 3.0 ports (2 headers + 1 Type A) |
|||
Salida Video | 1 VGA port | |||
Puerto Serie | 1 COM Port (1 header) | |||
TPM | 1 TPM Header | |||
M.2 | M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2260, 2280 Key: M-Key |
