| Datos físicos | | Slots de Expansión |
| Formato | ATX | | PCI-E | 3 PCI-E 3.0 x8
3 PCI-E 3.0 x16 |
| Dimensiones | 30.5 x 24.4 cm | | BIOS del Sistema |
| Procesador/Caché | | Tipo de Bios | AMI 128Mb SPI Flash EEPROM |
| CPU | Single AMD EPYC 7001/7002* series Processor (*Board revision 2.x required)
Socket SP3 | | Característica de la Bios | Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1 |
| Núcleos / Caché | Up to 32 Cores
Up to 64 Cores (Board revision 2.x required) | | Administración |
| Memoria del sistema | | Software | Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN |
| Capacidad de memoria | 8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
8-channel memory bus | | Configuraciones de energía | ACPI Power Management
Power-on mode for AC power recovery |
| Tipos de memoria | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required) | | PC Health Monitoring |
| Tamaños DIMM | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required) | | Voltaje | +1.5V, +1.8V, +12V +5V, +5V standby |
| Voltaje de memoria | 1.2 V | | LED | CPU / System Overheat LED |
| Dispositivos en placa | | Temperatura | Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic |
| Chipset | | | Ventiladores | |
| SATA | SATA3 (6 Gbps) | | Otras características | Chassis Intrusion Detection
Chassis Intrusion Header
UID |
| Controladoras de red | 2 1GbE LAN via Intel I210
1 Realtek RTL8211E PHY (dedicated IPMI) | | Entorno operativo |
| Audio | | | Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Gráficos | Aspeed AST2500 BMC | | Non-Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Entradas / Salidas | | Operating Relative Humidity | 8% - 90% (non-condensing) |
| SATA | 8 SAS3 (12 Gbps) ports
8 SATA3 (6 Gbps) ports
2 PCI-E 3.0 NVMe x4 Internal Ports | | Non-Operating Relative Humidity | 5% - 95% (non-condensing) |

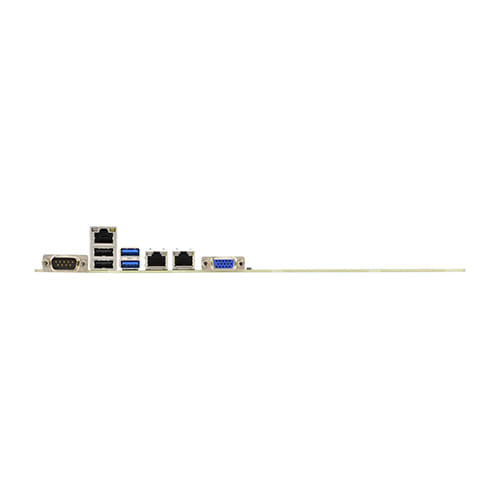

| LAN | 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port | | | |
| USB | 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
4 USB 2.0 ports (2 rear + 2 via header) | | | |
| Salida Video | 1 VGA port | | | |
| Puerto Serie | 1 COM port (rear) | | | |
| TPM | 1 TPM 2.0 header | | | |
| M.2 | PCI-E 3.0 x4
Form factor: 2280, 22110
Key: M-key | | | |
