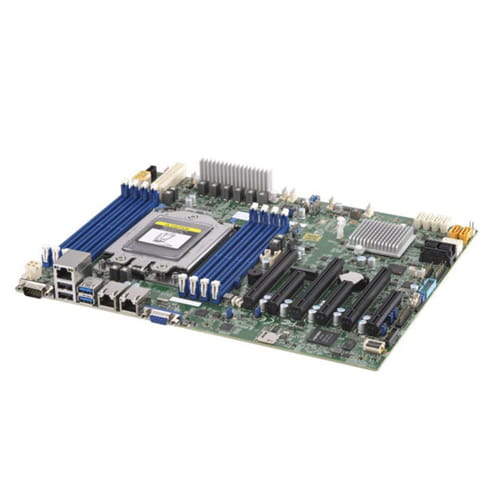

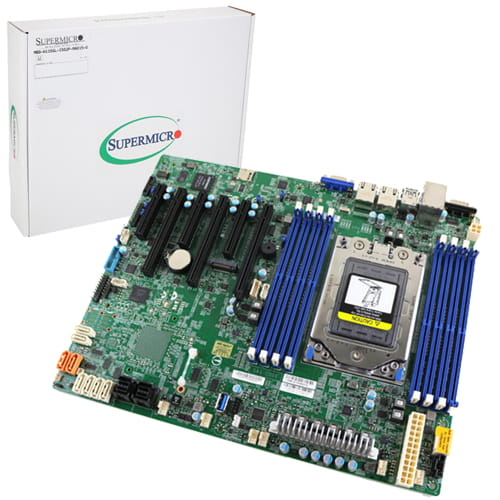

Supermicro H11SSL-C-O. Socket SP3.

Supermicro H11SSL-C-O. Socket SP3.

Supermicro
  • It supports an AMD EPYC 7001/7002 series AMD processor.
  • 1Tb SDRAM ECC registered DDR4 2666MHz in 8 DIMM.
  • Expansion slots: 3x PCI-E 3.0 x16, 3x PCI-E 3.0 x8.
  • M.2: 1 PCI-E 3.0 x4 interface.
  • 8x SATA 3.0 + Broadcom 3008 for 8 SAS3 ports, 1 M.2.
  • Dual Gigabit Ethernet LAN ports.
  • ASPEED AST2500 BMC graphics.
  • Up to 5 USB 3.0 ports.

P/N: MBD-H11SSL-C-O - EAN/UPC: 672042359936

409,71 € Without VAT
495,75 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay
Physical Stats   Expansion Slots
Form Factor ATX   PCI-E 3 PCI-E 3.0 x8
3 PCI-E 3.0 x16
Dimensions 30.5 x 24.4 cm   System BIOS
Procesador/Caché   Bios Type AMI 128Mb SPI Flash EEPROM
CPU Single AMD EPYC 7001/7002* series Processor (*Board revision 2.x required)
Socket SP3
  Bios Features Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1
Cores / Cache Up to 32 Cores
Up to 64 Cores (Board revision 2.x required)
  Management
System Memory   Software Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN
Memory Capacity 8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
8-channel memory bus
  Power Configurations ACPI Power Management
Power-on mode for AC power recovery
Memory type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
  PC Health Monitoring
DIMM Size 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)   Voltage +1.5V, +1.8V, +12V +5V, +5V standby
Memory Voltage 1.2 V   LED CPU / System Overheat LED
On-Board Devices   Temperature Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic
Chipset     FAN
SATA SATA3 (6 Gbps)   Other Features Chassis Intrusion Detection
Chassis Intrusion Header
UID
Network Controllers 2 1GbE LAN via Intel I210
1 Realtek RTL8211E PHY (dedicated IPMI)
  Operating Environment
Audio     Operating Temperature 10°C to 35°C (50°F to 95°F)
Graphics Aspeed AST2500 BMC   Non-Operating Temperature -40°C to 70°C (-40°F to 158°F)
Input / Output   Operating Relative Humidity 8% - 90% (non-condensing)
SATA 8 SAS3 (12 Gbps) ports
8 SATA3 (6 Gbps) ports
  Non-Operating Relative Humidity 5% - 95% (non-condensing)
LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
4 USB 2.0 ports (2 rear + 2 via header)

Video Output 1 VGA port
Serial Port 1 COM port (rear)
TPM 1 TPM 2.0 header
M.2 PCI-E 3.0 x4
Form factor: 2280, 22110
Key: M-key

Physical Stats   Expansion Slots
Form Factor ATX   PCI-E 3 PCI-E 3.0 x8
3 PCI-E 3.0 x16
Dimensions 30.5 x 24.4 cm   System BIOS
Procesador/Caché   Bios Type AMI 128Mb SPI Flash EEPROM
CPU Single AMD EPYC 7001/7002* series Processor (*Board revision 2.x required)
Socket SP3
  Bios Features Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1
Cores / Cache Up to 32 Cores
Up to 64 Cores (Board revision 2.x required)
  Management
System Memory   Software Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN
Memory Capacity 8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
8-channel memory bus
  Power Configurations ACPI Power Management
Power-on mode for AC power recovery
Memory type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
  PC Health Monitoring
DIMM Size 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)   Voltage +1.5V, +1.8V, +12V +5V, +5V standby
Memory Voltage 1.2 V   LED CPU / System Overheat LED
On-Board Devices   Temperature Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic
Chipset     FAN
SATA SATA3 (6 Gbps)   Other Features Chassis Intrusion Detection
Chassis Intrusion Header
UID
Network Controllers 2 1GbE LAN via Intel I210
1 Realtek RTL8211E PHY (dedicated IPMI)
  Operating Environment
Audio     Operating Temperature 10°C to 35°C (50°F to 95°F)
Graphics Aspeed AST2500 BMC   Non-Operating Temperature -40°C to 70°C (-40°F to 158°F)
Input / Output   Operating Relative Humidity 8% - 90% (non-condensing)
SATA 8 SAS3 (12 Gbps) ports
8 SATA3 (6 Gbps) ports
  Non-Operating Relative Humidity 5% - 95% (non-condensing)
LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
4 USB 2.0 ports (2 rear + 2 via header)

Video Output 1 VGA port
Serial Port 1 COM port (rear)
TPM 1 TPM 2.0 header
M.2 PCI-E 3.0 x4
Form factor: 2280, 22110
Key: M-key
