Dual Socket P (LGA 3647) admite procesadores escalables Intel® Xeon® de segunda generación (Cascade Lake/Skylake)
24 DIMM; hasta 6 TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM, compatible con Intel® Optane™ DCPMM
2 PCI-E 3.0 x16 (FH, 10.5"L)
2 puertos LAN 10GBase-T
10 bahías para unidades de 2,5" intercambiables en caliente; 10 NVMe (4 puertos híbridos: SAS3 opcional a través de AOC); 2 M.2 internos (1 SATA3, 1 NVMe); 1 puerto M.2 NVMe, M.2 NVMe adicional opcional y SATA3 puertos
8 ventiladores de servicio pesado con control óptimo de la velocidad del ventilador
Fuentes de alimentación redundantes de 1000 W Nivel de titanio (96 %)
 |
| Product SKUs |
 |
| SYS-1029U-TN10RT |

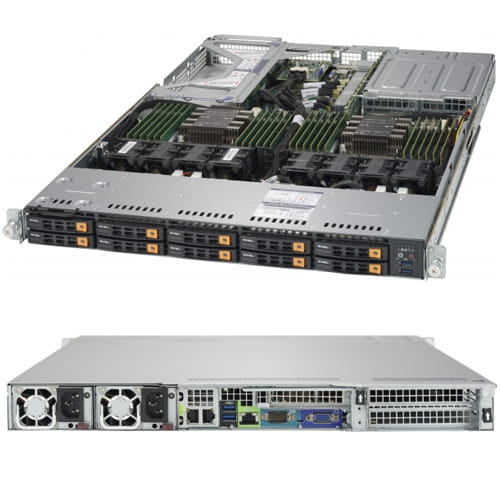

- SuperServer 1029U-TN10RT (Black)
|
| |
| Processor/Cache |
|
| CPU |
- Dual Socket P (LGA 3647)
- 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)‡,
Dual UPI up to 10.4GT/s
- Support CPU TDP 70-205W
|
| Cores |
|
| Note |
‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors |
| |
| System Memory |
|
| Memory Capacity |
- 24 DIMM slots
- Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
- Supports Intel® Optane™ DCPMM††
|
| Memory Type |
- 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
- 2666 ECC DDR4 NVDIMM
|
| Note |
† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| |
| On-Board Devices |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| Network Connectivity |
- 2 10GBase-T ports via AOC-URN6-i2XT
- Intel® X540 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Graphics |
|
| |
| Input / Output |
|
| NVMe |
- 6 NVMe ports (NVMe from CPU 1)
- 4 NVMe Hybrid ports with optional SAS3 (NVMe from CPU 2)
|
| LAN |
- 2 RJ45 10GBase-T ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 5 USB 3.0 ports
(2 rear, 2 front, 1 Type A)
|
| Video |
- 2 VGA ports (1 rear, 1 onboard)
|
| Serial Port |
|
| DOM |
- 2 SuperDOM (Disk on Module) ports
|
| |
| System BIOS |
|
| BIOS Type |
|
| |
| Management |
|
| Software |
|
| Power Configurations |
|
| |
| PC Health Monitoring |
|
| CPU |
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
|
| FAN |
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
|
|
| Chassis |
|
| Form Factor |
|
| Model |
|
| |
| Dimensions and Weight |
|
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Available Color |
|
| |
| Front Panel |
|
| Buttons |
- Power On/Off button
- System UID button
|
| LEDs |
- Power LED
- Hard drive activity LED
- Network activity LEDs
- UID LED
|
| |
| Expansion Slots |
|
| PCI-Express |
- 2 PCI-E 3.0 x16 slots (Full-height, 10.5"L)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
|
| |
| Drive Bays / Storage |
|
| Hot-swap |
- 10 Hot-swap 2.5" drive bays
- 10 NVMe (4 hybrid ports for optional SAS3 via AOC)
|
| M.2 |
- 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
- 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
|
|
| |
| System Cooling |
|
| Fans |
- 8 Heavy duty fans with optimal fan speed control
|
| Air Shroud |
|
| |
| Power Supply |
| 1000W Redundant Power Supplies with PMBus |
| Total Output Power |
- 800W: 100 – 127Vac
- 1000W: 200 – 240Vac
- 1000W: 200 – 240Vdc (for CCC only)
|
Dimension
(W x H x L) |
|
| Input |
- 100-127Vac / 9.8 - 7A / 50-60Hz
- 200-240Vac / 7 - 5A / 50-60Hz
- 200-240Vdc / 7 - 5A (for CCC only)
|
| +12V |
- Max: 66.7A / Min: 0A (100-127Vac)
- Max: 83A / Min: 0A (200-240Vac)
- Max: 83A / Min: 0A (200-240Vdc)
|
| 12Vsb |
|
| Output Type |
- 25 Pairs Gold Finger Connector
|
| Certification |
  Titanium Level
[ Test Report ] |
| |
| Operating Environment |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
- Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
