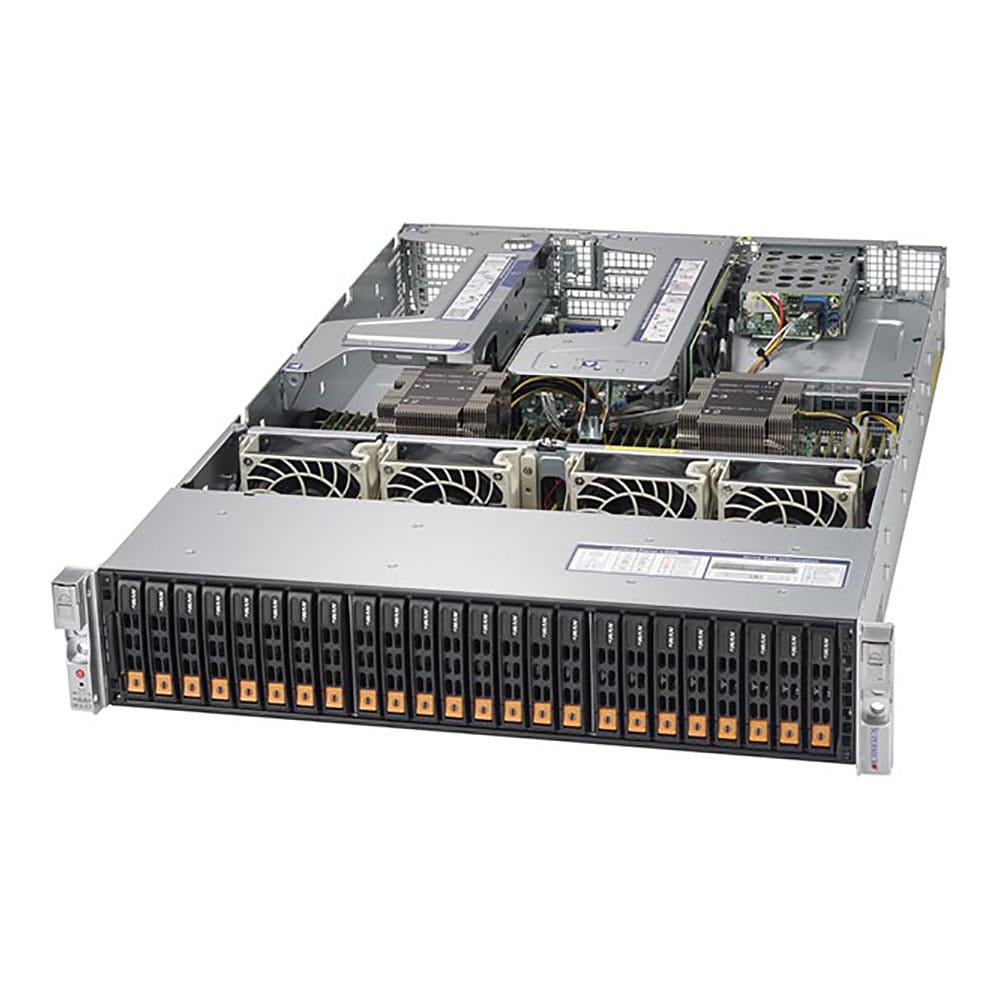

Supermicro Barebone A+ Server AS -2123US-TN24R25M

Supermicro Barebone A+ Server AS -2123US-TN24R25M

Supermicro
Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
Integrated IPMI 2.0 + KVM with dedicated LAN
Dual 25G SFP28 LAN ports
Drive Bays: 24 hot-swap 2.5" U.2 NVMe drive bays
1600W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

P/N: AS-2123US-TN24R25M

3.243,30 € Without VAT
3.924,39 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay
Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
Integrated IPMI 2.0 + KVM with dedicated LAN
Dual 25G SFP28 LAN ports
Drive Bays: 24 hot-swap 2.5" U.2 NVMe drive bays
1600W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
roduct SKUs

AS -2123US-TN24R25M
  • A+ Server 2123US-TN24R25M

Motherboard

H11DSU-iN

Processor/Chipset

CPU
  • Dual AMD EPYC™ 7001/7002* series Processors
    (* Board revision 2.x required)
  • Socket SP3
  • Supports CPU cTDP up to 280W**
Cores
  • Up to 32 Cores (Board revision 1.x + 7001 Processors)
  • Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset
  • System on Chip (SoC)
Note ** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

System Memory

Memory Capacity
  • 32 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
    (* Board revision 2.x required + 7002 Processors)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Connectivity
  • Dual 25GbE SFP28 ports via AOC-2UR68-M2TS-O (Mellanox ConnectX-4 Lx EN)
VGA
  • ASPEED AST2500 BMC

Expansion Slots

2U
  • No expansion slot available.*

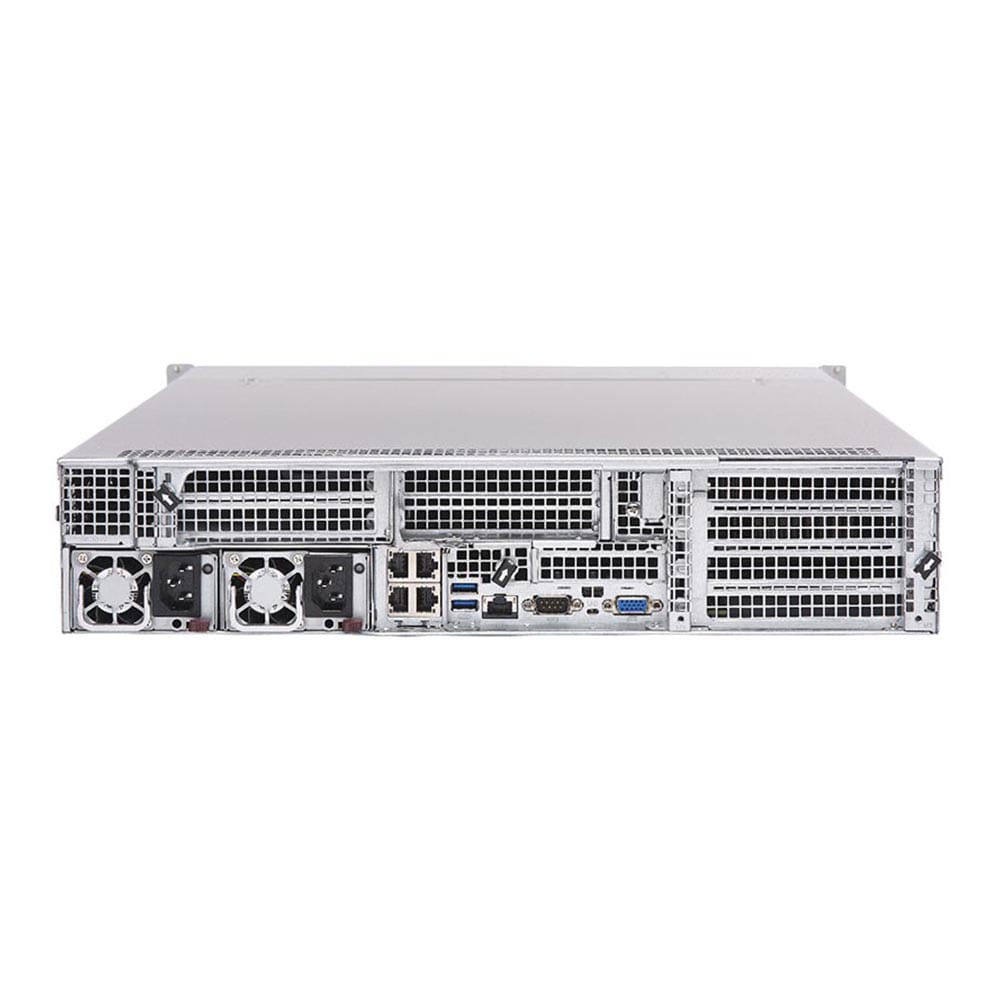

Input / Output

NVMe
  • 24 U.2 NVMe support
LAN
  • Dual 25G SFP28 LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA
  • 2 VGA ports (1 rear, 1 onboard)
Others
  • 1 COM port
  • 2 SATA DOM power connectors
  • TPM 2.0 header

System BIOS

BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
* Please refer to the system manual for more information.

Chassis

Form Factor
  • 2U
Model
  • CSE-219U2TS-R1K62P

Dimensions

Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 28.46" (723mm)
Weight
  • Net Weight: 39 lbs (17.7 kg)
  • Gross Weight: 63 lbs (28.6 kg)

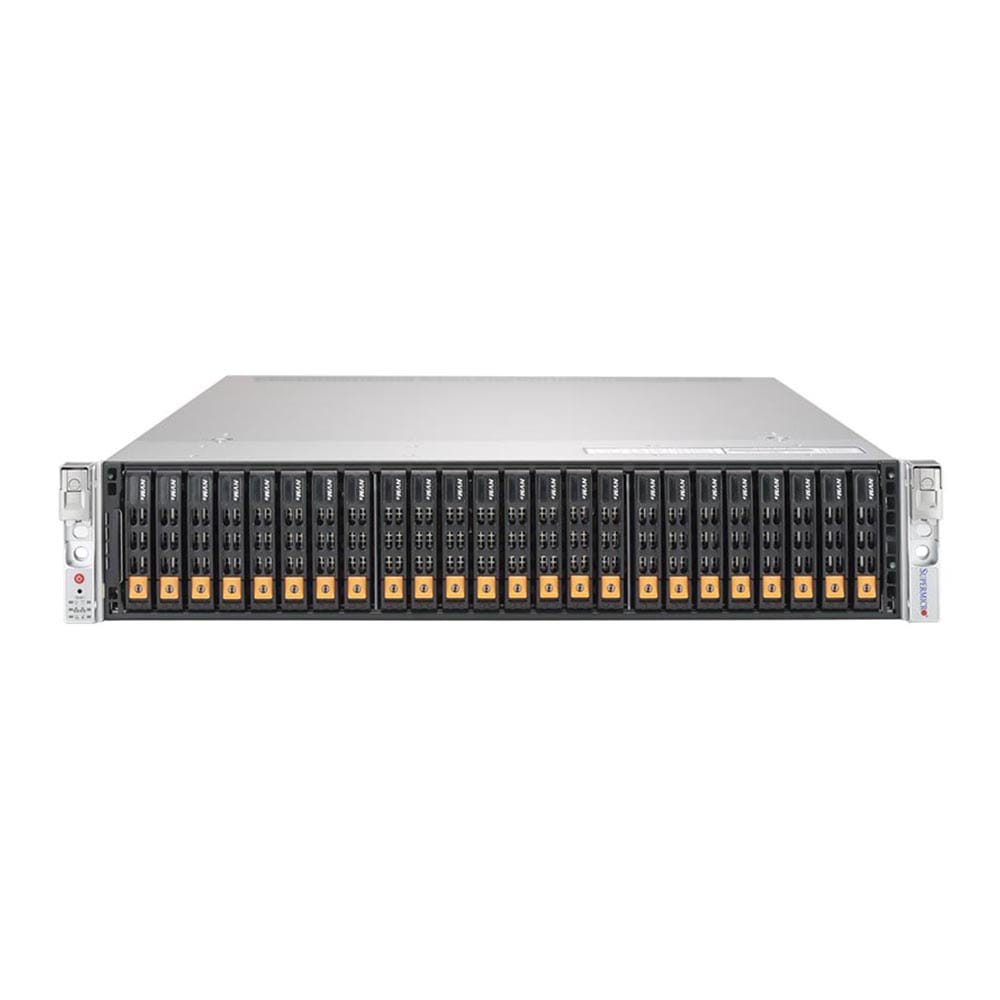

Front Panel

Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Drive Bays

Hot-swap
  • 24 hot-swap 2.5" U.2 NVMe drive bays

System Cooling

Fans
  • 4 heavy-duty PWM fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%Titanium Level
Test Report ]

PC Health Monitoring

CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 4-fan status tachometer monitoring
  • Up to four 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 4x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header

Operating Environment / Compliance

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
