Supermicro A2SDI-8C-HLN4F. Intel Atom C3758. Mini-ITX.
- Intel Atom C3758 processor, FCBGA1310 socket, compatible with 25W TDP CPU.
- Up to 256 GB of registered DDR4-2400MHz ECC.
- Up to 64 GB ECC / non-ECC DDR4-2400MHz; in 4 DIMM slots.
- Expansion slots: 1 PCI-E 3.0 x4, M.2 Interface: PCI-E 3.0 x2 and SATA, M.2 Form Factor: 2242, 2280, M.2 Key: M-Key.
- 4 GbE LAN ports.
- 12 SATA3 ports (6 Gbps).
of guarantee
shipping
Secure pay

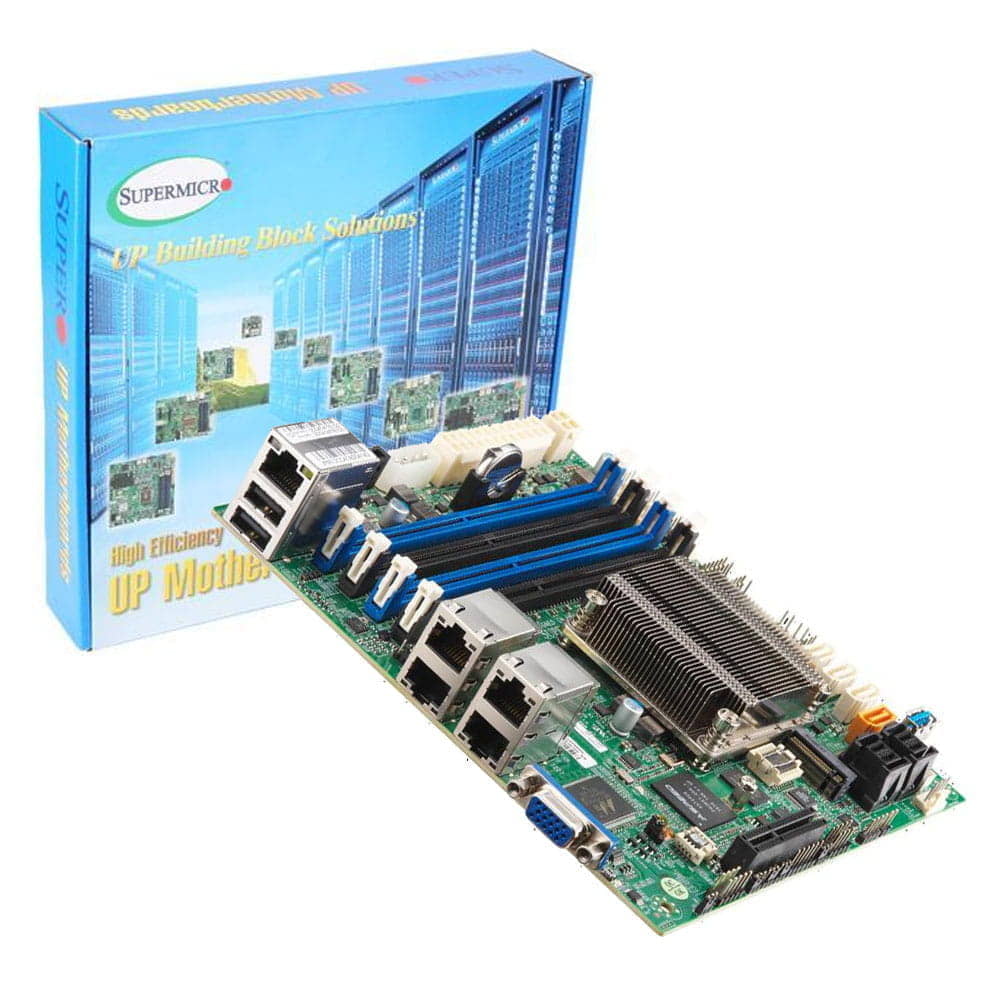

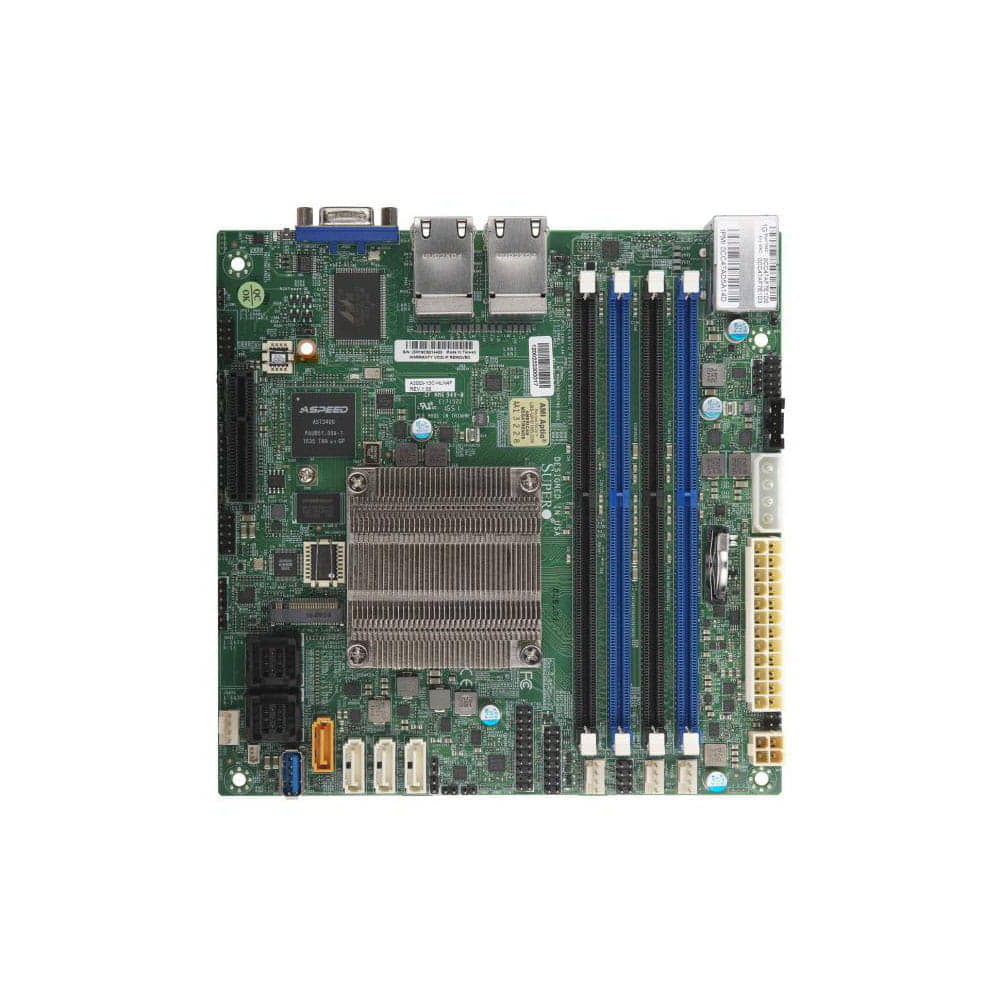

The Supermicro A2SDi-8C-HLN4F, is a compact motherboard, in Mini-ITX format. If you are looking for a small device but with a large memory and storage capacity, this is the board you need.
This motherboard integrates an Intel Atom C3758 8-core processor.
Highlights ...
* Intel Atom C3758 processor, FCBGA1310 socket, compatible with 25W TDP CPU.
* Up to 256 GB of registered DDR4-2400MHz ECC.
* Up to 64 GB ECC / non-ECC DDR4-2400MHz; in 4 DIMM slots.
* Expansion slots: 1 PCI-E 3.0 x4, M.2 Interface: PCI-E 3.0 x2 and SATA, M.2 Form Factor: 2242, 2280, M.2 Key: M-Key.
* 4 GbE LAN ports.
* 12 SATA3 ports (6 Gbps).
* I / O: 1 VGA, 1 COM, TPM header.
* 1 USB 3.0 (Type-A), 4 USB 2.0 (2 rear, 2 through headers).
* Intel Quick Assist technology.
* Supports 12V DC power input.
| Datos físicos | Slots de Expansión | |||
| Formato | Mini-ITX | PCI-E | 1 PCI-E 3.0 x4 | |
| Dimensiones | 17.02 x 17.02 cm | BIOS del Sistema | ||
| Procesador/Caché | Tipo de Bios | AMI UEFI | ||
| CPU |
|
Característica de la Bios |
|
|
| Núcleos / Caché | 8 cores, 8 threads / 16MB cache | Administración | ||
| Memoria del sistema | Software | IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor 5, Watchdog | ||
| Capacidad de memoria |
|
Configuraciones de energía |
|
|
| Tipos de memoria | 2400/2133/1866/1600MHz | PC Health Monitoring | ||
| Tamaños DIMM | 4GB, 8GB, 16GB, 32GB, 64GB | Voltaje | +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 4 -fan status, 4 fans with tachometer monitoring | |
| Voltaje de memoria | 1.2 V | LED | UID/Remote UID | |
| Dispositivos en placa | Temperatura | CPU thermal trip supportsupport | ||
| Chipset | System on Chip | Ventiladores | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring | |
| SATA | SoC controller for 12 SATA3 (6 Gbps) ports; | Otras características | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detectio | |
| Controladoras de red | Quad LAN with Intel C3000 SoC 1GbE | Entorno operativo | ||
| Audio | Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) | ||
| Gráficos | Aspeed AST2400 BMC | Non-Operating Temperature | -40°C - 85°C (-40°F - 185°F) | |
| Entradas / Salidas | Operating Relative Humidity | 10% ~ 85% (non-condensing) | ||
| SATA | 12 SATA3 (6 Gbps) ports | Non-Operating Relative Humidity | 10% ~ 95% (non-condensing) | |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |||
| USB |
|
|||
| Salida Video | 1 VGA port | |||
| Puerto Serie | 1 COM Port (1 header) | |||
| TPM | 1 TPM Header | |||
