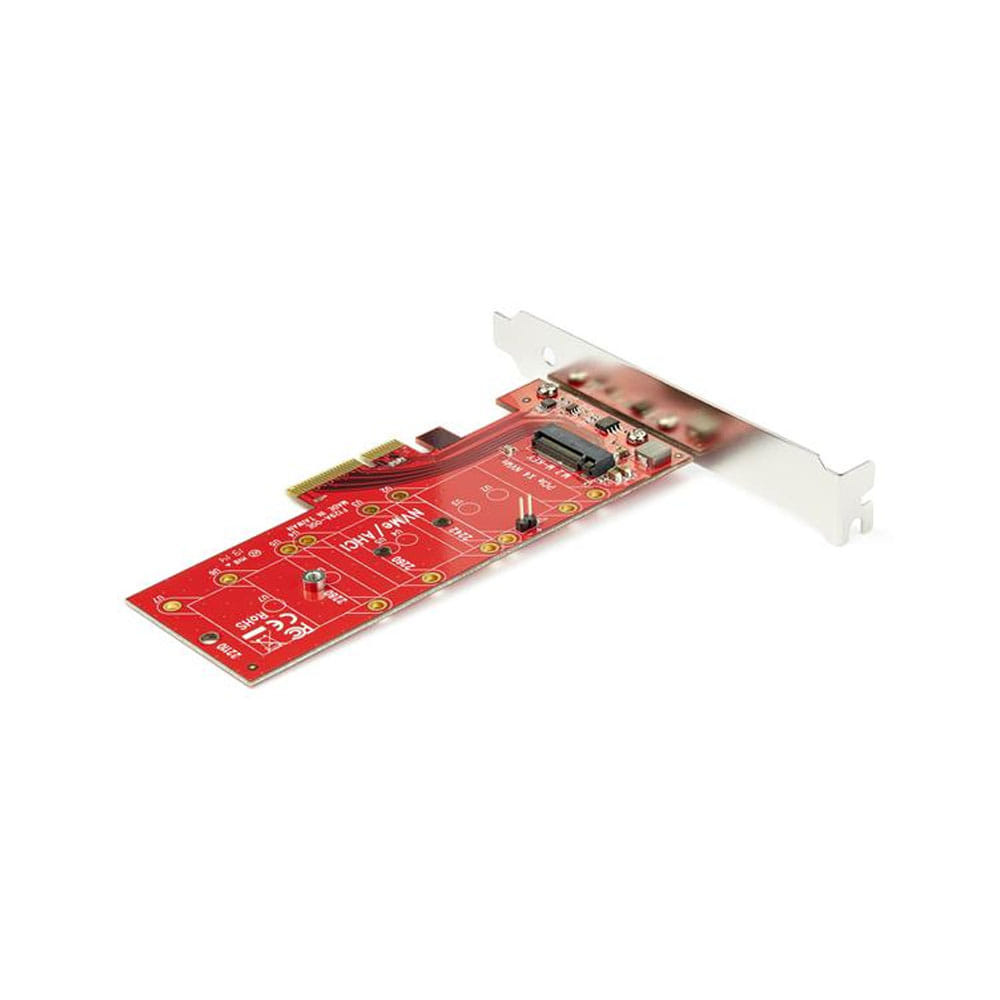

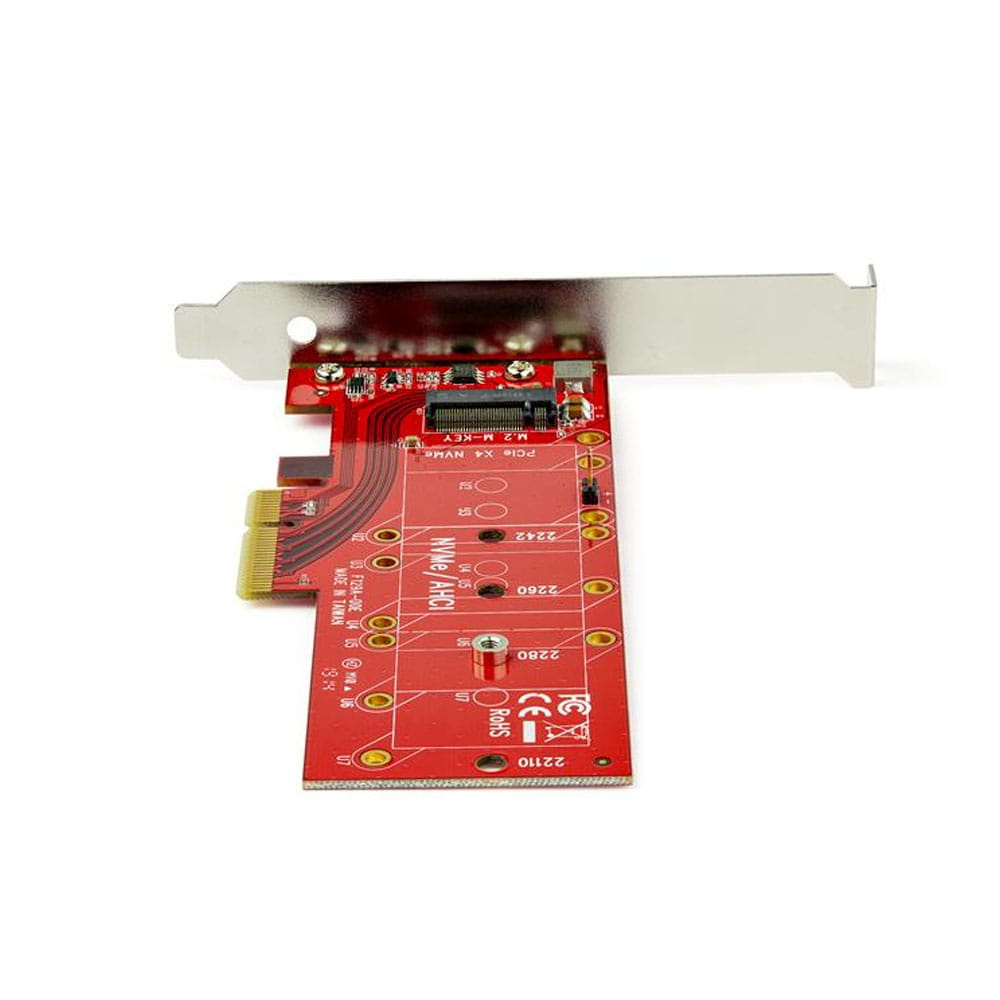

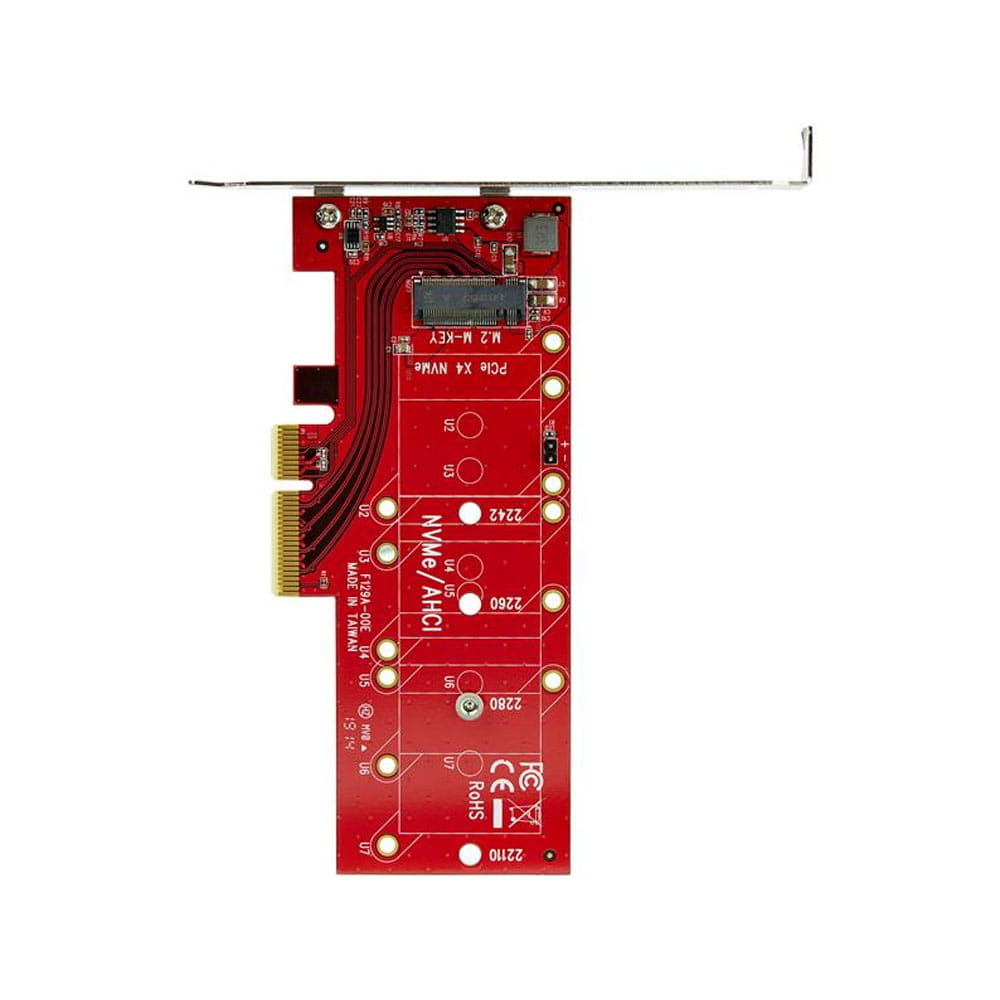

Startech PEX4M2E1. Adaptador PCIe x4 a M.2 para SSD

Startech PEX4M2E1. Adaptador PCIe x4 a M.2 para SSD

Startech
  • Extend system performance and speed by adding a PCIe M.2 SSD to your computer.
    Connect a PCIe M.2 SSD to your computer through a PCI Express x4 expansion slot.
    Ultra-fast data access, ideal for gaming or high-performance workstations.
    Install a PCIe-based M.2 drive in your operating system for quick access, while keeping larger disk drives available for mass storage.
    Compatible with M.2 PCIe SSDs (NVMe and AHCI): 2242, 2260, 2280 and 22110 drives.
    Compatible with PCIe 3.0 motherboards and backwards compatible with PCIe 2.0 and PCIe 1.0.

P/N: PEX4M2E1 - EAN/UPC: 0065030865043

22,46 € Without VAT
27,18 € With VAT
In stock
Approximate delivery between 02 noviembre and 02 noviembre
2 years
of guarantee
sending
shipping
100%
Secure pay

Get superfast access to data by adding a PCIe M.2 SSD to your existing computer. This adapter allows you to add a high speed 4 lane M.2 (PCIe based) SSD, such as Samsung 950 Pro or Samsung SM 951, to a computer that has an available PCI Express x4 expansion slot. You can install the PCIe M.2 drive directly into the adapter, as an easy and practical way to improve your system performance and expand all internal storage.

The expansion card allows you to take full advantage of the fast performance and compact size of internal PCIe M.2 solid state drives. The adapter plugs directly into your computer's motherboard for easy compatibility with a PCIe-based M.2 SSD (NVMe or AHCI) via the ultrafast speed of PCIe x4. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0. With the PCIe-based M.2 drive installed, the adapter will significantly improve the speed of your computer.

The adapter is compatible with PCIe 3.0 x4 NVMe (M-key) and PCIe-AHCI M.2 SSDs, including 2242, 2260, 2280, and 22110 models. The expansion slot adapter supports most common drive sizes. , including 110mm, 80mm, 60mm and 42mm.

The expansion card is equipped with a full profile bracket and includes a low / mid-profile bracket that allows installation on small form factor computers.

Highlights ...

* Expand the performance and speed of your system.
* Compatible with M.2 PCIe SSD drives.
* Easy installation.
* PCI Express x4 interface.

Hardware
Compatible Heights 2242
2260
2280
22110
Number of units 1
Installation Fijo
Interface PCI Express x4
Size 22m - M.2 NGFF
Bus type PCI Express
Compatible units M.2 (PCIe, AHCI, M-Key, NGFF)
M.2 (PCIe, NVMe, M-Key, NGFF)
Performance
Hot Swap No
Type and Speed PCI Express 3.0 (8 Gbps)
Connectors
Unit 1 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
Host 1 - PCI Express x4 Macho
Environmental Requirements
Humidity HR 15% ~ 90%
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature 25°C to 70°C (-13°F to 158°F)
Physical Features
Height 18.4 cm
Width 12.1 cm
Length 17.9 cm
Weight 47 gr
Color Red
Box Contents
1 - Adaptador x4 PCI Express® a SSD M.2 PCIe
1 - Soporte de perfil bajo
1 - soporte para perfil completo (preinstalado)
1 - Soporte de sujeción para unidad SSD y tornillo de instalación
1 - Guía de inicio rápido

Get superfast access to data by adding a PCIe M.2 SSD to your existing computer. This adapter allows you to add a high speed 4 lane M.2 (PCIe based) SSD, such as Samsung 950 Pro or Samsung SM 951, to a computer that has an available PCI Express x4 expansion slot. You can install the PCIe M.2 drive directly into the adapter, as an easy and practical way to improve your system performance and expand all internal storage.

The expansion card allows you to take full advantage of the fast performance and compact size of internal PCIe M.2 solid state drives. The adapter plugs directly into your computer's motherboard for easy compatibility with a PCIe-based M.2 SSD (NVMe or AHCI) via the ultrafast speed of PCIe x4. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0. With the PCIe-based M.2 drive installed, the adapter will significantly improve the speed of your computer.

The adapter is compatible with PCIe 3.0 x4 NVMe (M-key) and PCIe-AHCI M.2 SSDs, including 2242, 2260, 2280, and 22110 models. The expansion slot adapter supports most common drive sizes. , including 110mm, 80mm, 60mm and 42mm.

The expansion card is equipped with a full profile bracket and includes a low / mid-profile bracket that allows installation on small form factor computers.

Highlights ...

* Expand the performance and speed of your system.
* Compatible with M.2 PCIe SSD drives.
* Easy installation.
* PCI Express x4 interface.

Hardware
Compatible Heights 2242
2260
2280
22110
Number of units 1
Installation Fijo
Interface PCI Express x4
Size 22m - M.2 NGFF
Bus type PCI Express
Compatible units M.2 (PCIe, AHCI, M-Key, NGFF)
M.2 (PCIe, NVMe, M-Key, NGFF)
Performance
Hot Swap No
Type and Speed PCI Express 3.0 (8 Gbps)
Connectors
Unit 1 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
Host 1 - PCI Express x4 Macho
Environmental Requirements
Humidity HR 15% ~ 90%
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature 25°C to 70°C (-13°F to 158°F)
Physical Features
Height 18.4 cm
Width 12.1 cm
Length 17.9 cm
Weight 47 gr
Color Red
Box Contents
1 - Adaptador x4 PCI Express® a SSD M.2 PCIe
1 - Soporte de perfil bajo
1 - soporte para perfil completo (preinstalado)
1 - Soporte de sujeción para unidad SSD y tornillo de instalación
1 - Guía de inicio rápido
