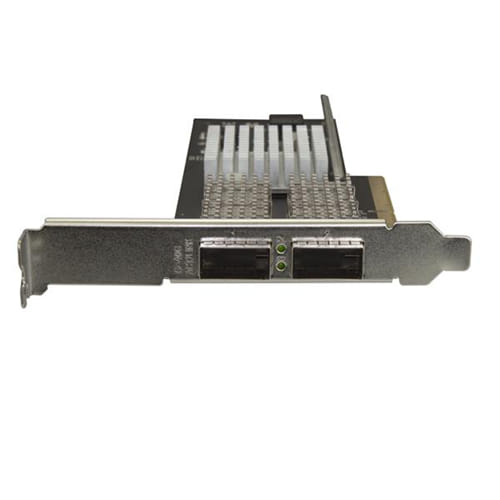

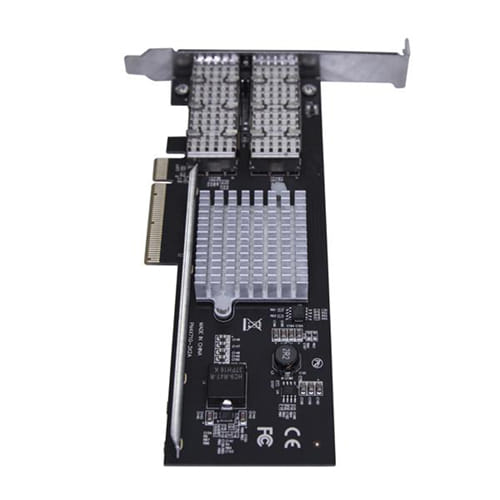

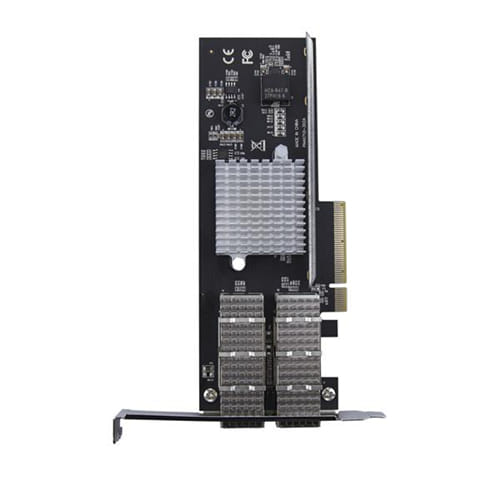

Startech NIC QSFP+. Tarjeta de Red 40G de Fibra.
Startech NIC QSFP+. Tarjeta de Red 40G de Fibra.
- Add two open 40G QSFP + slots to your server or workstation, for fast connectivity and high bandwidth.
- Provides redundant network links for essential systems.
- Compatible with multimode and single mode optical fiber, as well as with DAC QSFP + connectors.
of guarantee
shipping
Secure pay
Add two 40 Gigabit Ethernet ports per high-bandwidth fiber optic to your server or workstation, using your chosen QSFP + transceiver.
Increase the speed of your network. This two-port QSFP + NIC server card allows you to take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.
With its open QSFP + slots, the network interface card supports QSFP + transceiver modules and is compatible with multimode and single mode fiber, thus providing a scalable network solution.
The NIC 40G card uses an Intel XL710 chipset that offers reliable connectivity and converged network functions. It offers many advanced features, such as Intel Virtualization Technology for connectivity.
The PEX40GQSFDPI is backed by a StarTech.com two-year warranty and free lifetime technical support.
Highlights...
* 40G Singlemode Fiber Network Card.
* Internal.
* Connectivity technology: Wired.
* Host interface: PCI Express.
* Interface: Fiber.
* Maximum data transfer range: 40000 Mbit / s.
Hardware | ||
---|---|---|
Number of Ports | 2 | |
Industrial Standards | IEEE 802.3ba 40GBASE-SR4 IEEE 802.3ba 40GBASE-LR4 PCI Express, Rev 3.0, mediante el uso de una ranura PCIe x8 (o superior) |
|
Chipset ID | Intel - XL710-BM2 | |
Bus type | PCI Express | |
Card type | Perfil Estándar (incluye soporte para Perfil Bajo) | |
Performance | ||
Jumbo Frame Support | 9K max. | |
MDIX Automatic | No | |
Supported Protocols | IEEE 802.3ad (Link Aggregation) IEEE 802.3x (Flow Control Support) IEEE 802.1Q (VLAN tagging) |
|
Compatible Networks | 40 Gbps | |
Full Duplex Supoort | Sí | |
Connector(s) | ||
Connector types | 1 - PCI Express x8 Macho | |
2 - QSFP+ Hembra | ||
Power Control | ||
Power Consumption | ||
Environmental Requirements | ||
Humidity | HR 5% ~ 95% | |
Storage temperature | -20°C to 85°C (-4°F to 185°F) | |
Operating temperature | 0°C to 57°C (32°F to 134.6°F) | |
Physical Characteristics | ||
Height | 2.1 cm | |
Width | 12.1 cm | |
Color | Negro | |
Depth | 18.1 cm | |
Weight | 127 gr |
Add two 40 Gigabit Ethernet ports per high-bandwidth fiber optic to your server or workstation, using your chosen QSFP + transceiver.
Increase the speed of your network. This two-port QSFP + NIC server card allows you to take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.
With its open QSFP + slots, the network interface card supports QSFP + transceiver modules and is compatible with multimode and single mode fiber, thus providing a scalable network solution.
The NIC 40G card uses an Intel XL710 chipset that offers reliable connectivity and converged network functions. It offers many advanced features, such as Intel Virtualization Technology for connectivity.
The PEX40GQSFDPI is backed by a StarTech.com two-year warranty and free lifetime technical support.
Highlights...
* 40G Singlemode Fiber Network Card.
* Internal.
* Connectivity technology: Wired.
* Host interface: PCI Express.
* Interface: Fiber.
* Maximum data transfer range: 40000 Mbit / s.
Hardware | ||
---|---|---|
Number of Ports | 2 | |
Industrial Standards | IEEE 802.3ba 40GBASE-SR4 IEEE 802.3ba 40GBASE-LR4 PCI Express, Rev 3.0, mediante el uso de una ranura PCIe x8 (o superior) |
|
Chipset ID | Intel - XL710-BM2 | |
Bus type | PCI Express | |
Card type | Perfil Estándar (incluye soporte para Perfil Bajo) | |
Performance | ||
Jumbo Frame Support | 9K max. | |
MDIX Automatic | No | |
Supported Protocols | IEEE 802.3ad (Link Aggregation) IEEE 802.3x (Flow Control Support) IEEE 802.1Q (VLAN tagging) |
|
Compatible Networks | 40 Gbps | |
Full Duplex Supoort | Sí | |
Connector(s) | ||
Connector types | 1 - PCI Express x8 Macho | |
2 - QSFP+ Hembra | ||
Power Control | ||
Power Consumption | ||
Environmental Requirements | ||
Humidity | HR 5% ~ 95% | |
Storage temperature | -20°C to 85°C (-4°F to 185°F) | |
Operating temperature | 0°C to 57°C (32°F to 134.6°F) | |
Physical Characteristics | ||
Height | 2.1 cm | |
Width | 12.1 cm | |
Color | Negro | |
Depth | 18.1 cm | |
Weight | 127 gr |
