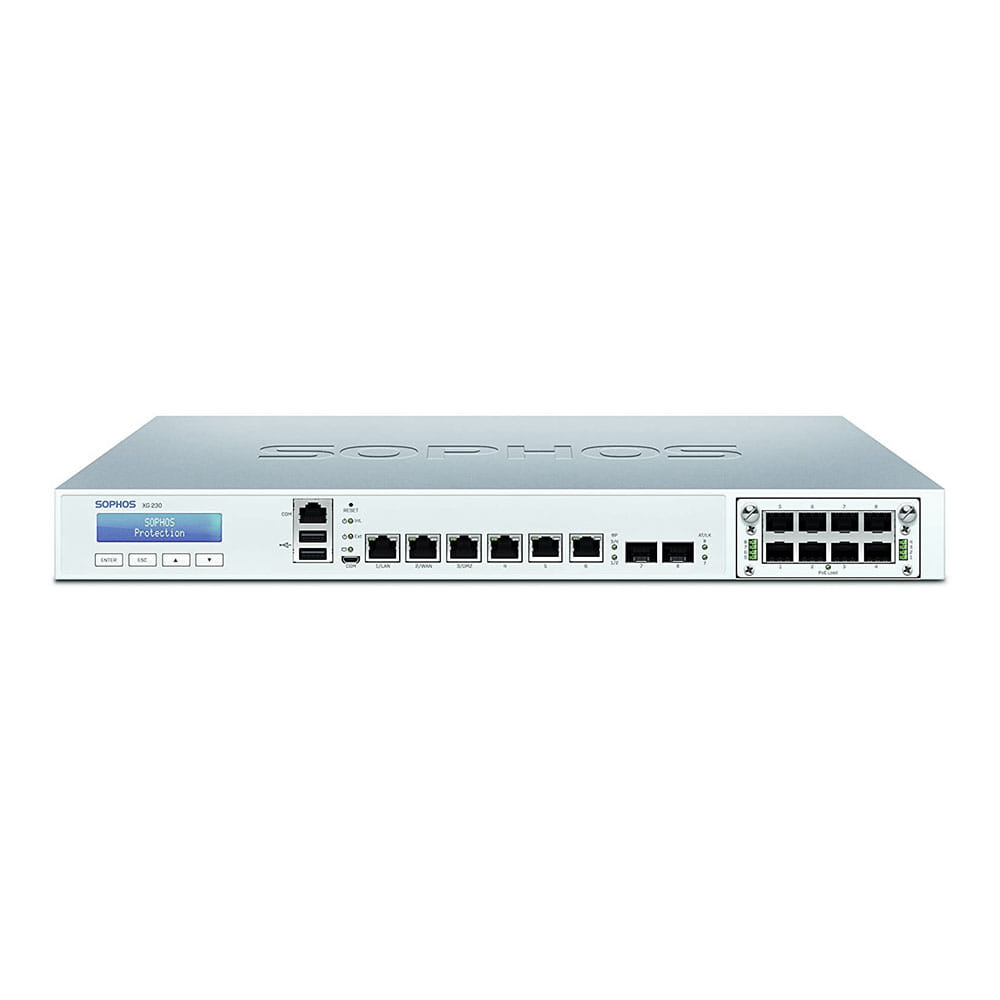

Sophos Firewall XG 230
Sophos Firewall XG 230
- 6 copper GbE ports and 2 integrated GbE SFP ports.
- A FleXi Port modular platform for use with various optional LAN modules.
- Second optional external power supply.
- World's best visibility, protection and response.
- It exposes hidden risks.
- Block unknown threats.
- Automatically respond to incidents.
Simplified Configurator
License Duration
Protection level
of guarantee
shipping
Secure pay
Sophos XG Series 1U Rackmount Devices are the ideal choice for midsize and distributed businesses looking for a variety of connectivity options, as well as the flexibility to adapt their network as their needs change. Our redundancy options in this range are unmatched.
Sophos XG Firewall offers unmatched visibility into risky users, unknown and unwanted applications, advanced threats, suspicious loads, encrypted traffic, and more. It comes with a comprehensive built-in reporting feature, as well as offering powerful centralized reporting for multiple cloud firewalls.
Sophos XG Firewall offers you all the latest advanced technology you need to protect your network against ransomware and advanced threats, such as top-notch IPS, advanced threat protection, secure cloud space and comprehensive AI threat analysis, dual antivirus, web and application control, email protection and a comprehensive web application firewall. And it is easy to configure and manage.
XG Firewall is the only network security solution that can fully identify the source of an infection on the network and respond by automatically limiting access to other network resources. This is made possible by our unique Sophos Security Heartbeat technology, which shares security status and telemetry data between Sophos endpoints and your firewall.
The XG series hardware devices are specially designed with Intel's latest multicore technology, generous RAM provisioning, and solid-state storage. Whether you protect a small business or a large data center, you'll enjoy an industry-leading performance / price ratio, and the ultimate in flexibility, connectivity, and reliability in any form factor.
Sophos XG 230 appliances are designed to protect small and medium businesses and branches. Based on the latest multi-core technology and equipped with 6 copper GbE ports, 2 GbE SFP fiber ports and a FleXi Port slot to be configured with an optional module, they provide great flexibility and speed with an excellent price-performance ratio. There is the option of an external redundant power supply for these models.
Highlights ...
* 6 copper GbE ports and 2 integrated GbE SFP ports.
* A FleXi Port modular platform for use with various optional LAN modules.
* Optional second external power supply.
* World's best visibility, protection and response.
* Exposes hidden risks.
* Block unknown threats.
* Automatically respond to incidents.
Rendimiento | |
Firewall | 20 Gbps |
IMIX | 6.8 Gbps |
VPN | 1.7 Gbps |
IPS | 4.2 Gbps |
NGFW | 3.5 Gbps |
Antivirus (proxy) | 2.8 Gbps |
Conexiones simultáneas | 8.200.000 |
Conexiones nuevas/seg | 140.000 |
Nº máximo de usuarios | Sin restricciones |
Interfaces físicas | |
Almacenamiento | SSD integrado |
Interfaces Ethernet | 6 GbE cobre (incl. 2 pares de omisión) 2 GbE SFP |
Nº ranuras puertos FleXi | 1 |
Mod. Puertos FleXi (opcional) | GbE cobre de 8 puertos GbE SFP de 8 puertos* 2 puertos de 10 GbE SFP+* 4 puertos de 10 GbE SFP+* 2 puertos de 40 GbE QSFP+* PoE GbE de 4 puertos PoE GbE de 8 puertos GE cobre de 4 puertos con omisión LAN |
Módulos conectividad (opcional) | Módulo DSL SFP (VDSL2) Transceptores SFP/SFP+ |
Puertos E/S Trasero | 2x USB 3.0 (delantero) 1x micro USB (delantero) 1x USB 3.0 (trasero) 1x COM (RJ45) (delantero) 1x HDMI (trasero) |
Pantalla | Módulo LCD multifunción |
Fuente de alimentación | Rango automático interno 100-240 VCA, 50-60 Hz Fuente de alimentación redundante opcional (externa) |
Entorno | |
Consumo de energía | 21W, 72 BTU/h (inactivo) 41W, 141 BTU/h (carga completa) |
Temp. Funcionamiento | 0-40°C (en funcionamiento) -20 a +80°C (almacenamiento) |
Humedad | 10%-90%, sin condensación |
Especificaciones físicas | |
Montaje | Montaje en bastidor 1U (2 orejas de montaje en bastidor incluidas) |
Dimensiones | 438 x 344,4 x 44 mm |
Peso | 5.2 kg |
