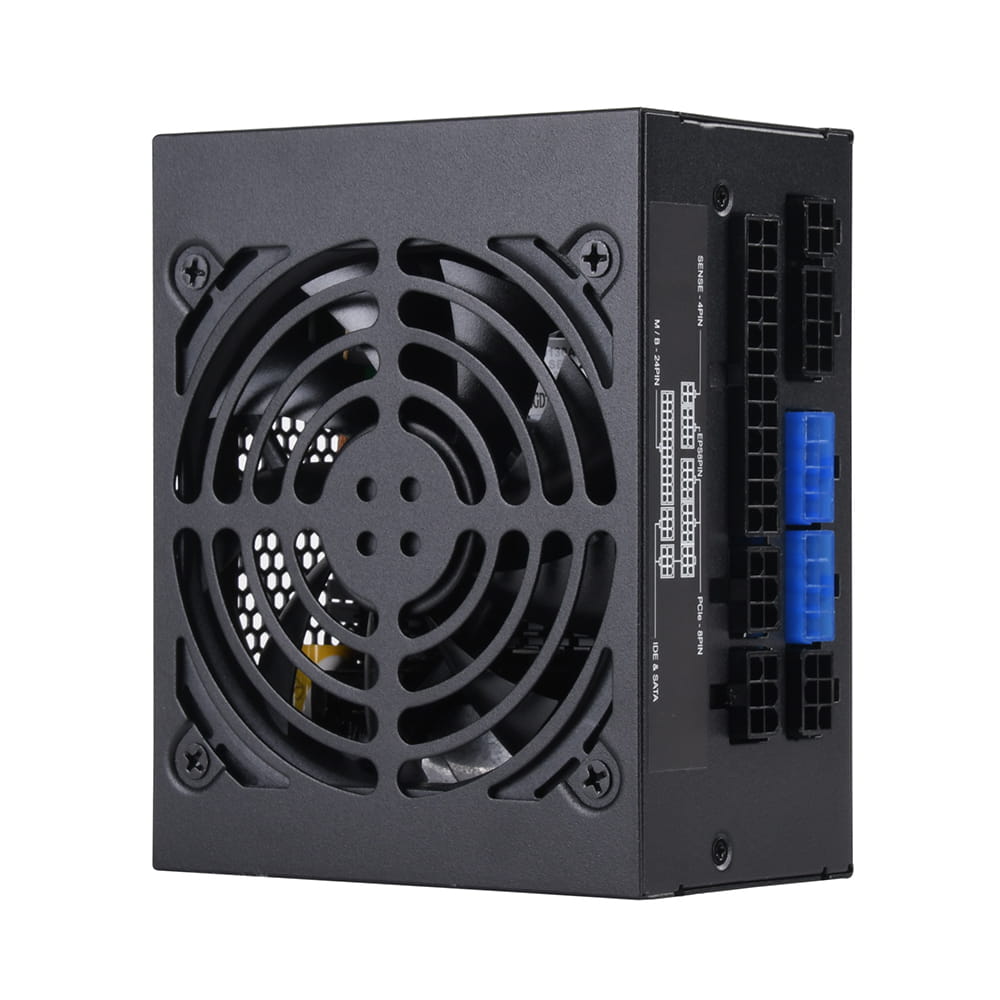

Silverstone SX500 SFX 500W Silent (80Plus Gold, vent. 92mm)
Silverstone SX500 SFX 500W Silent (80Plus Gold, vent. 92mm)
- Standard SFX format.
- FDB Silent 92mm fan with a minimum of 18 dBA.
- Japanese capacitors.
- High efficiency with 80 PLUS Gold certification.
- First class single rail with + 12V.
- Strict voltage regulation of ± 3%.
- 100% modular cables.
of guarantee
shipping
Secure pay

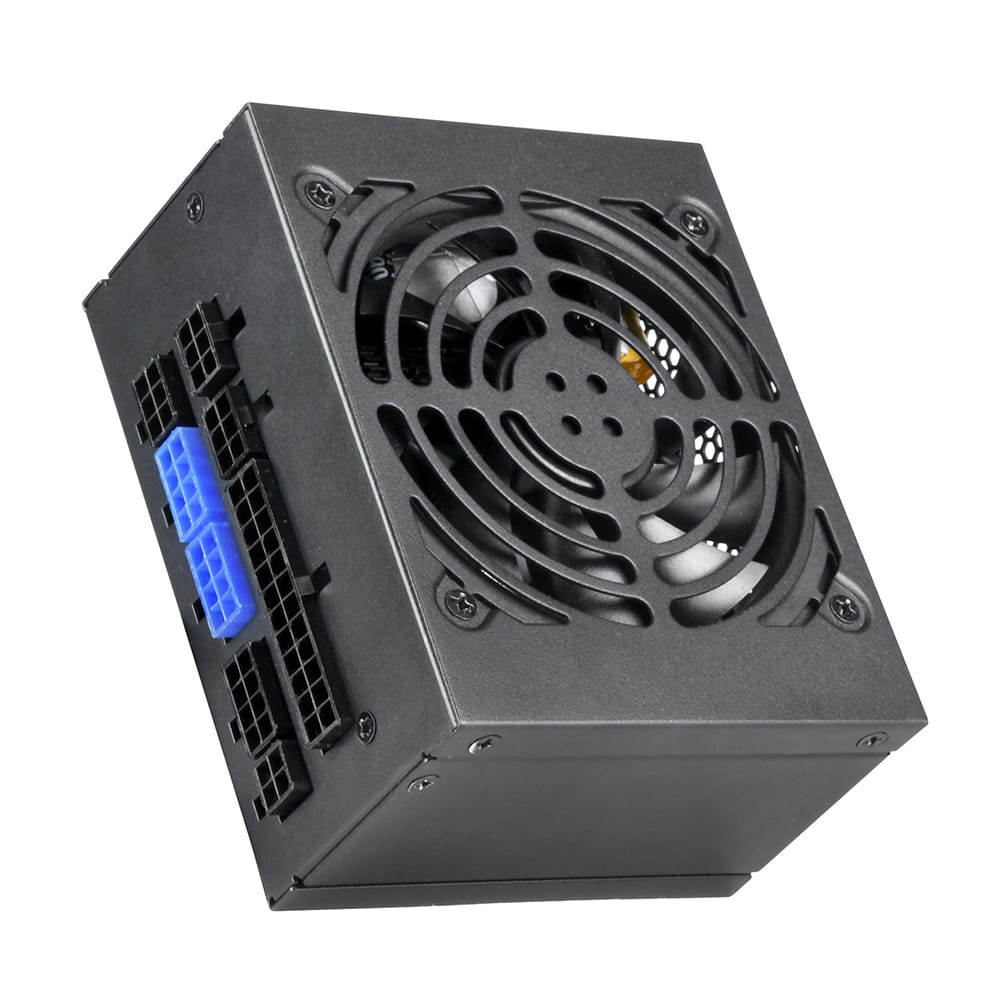

The Silverstone SST-SX500-G V1.1 power supply has been designed with an 80 PLUS Gold efficiency level to reduce waste heat and save electricity.

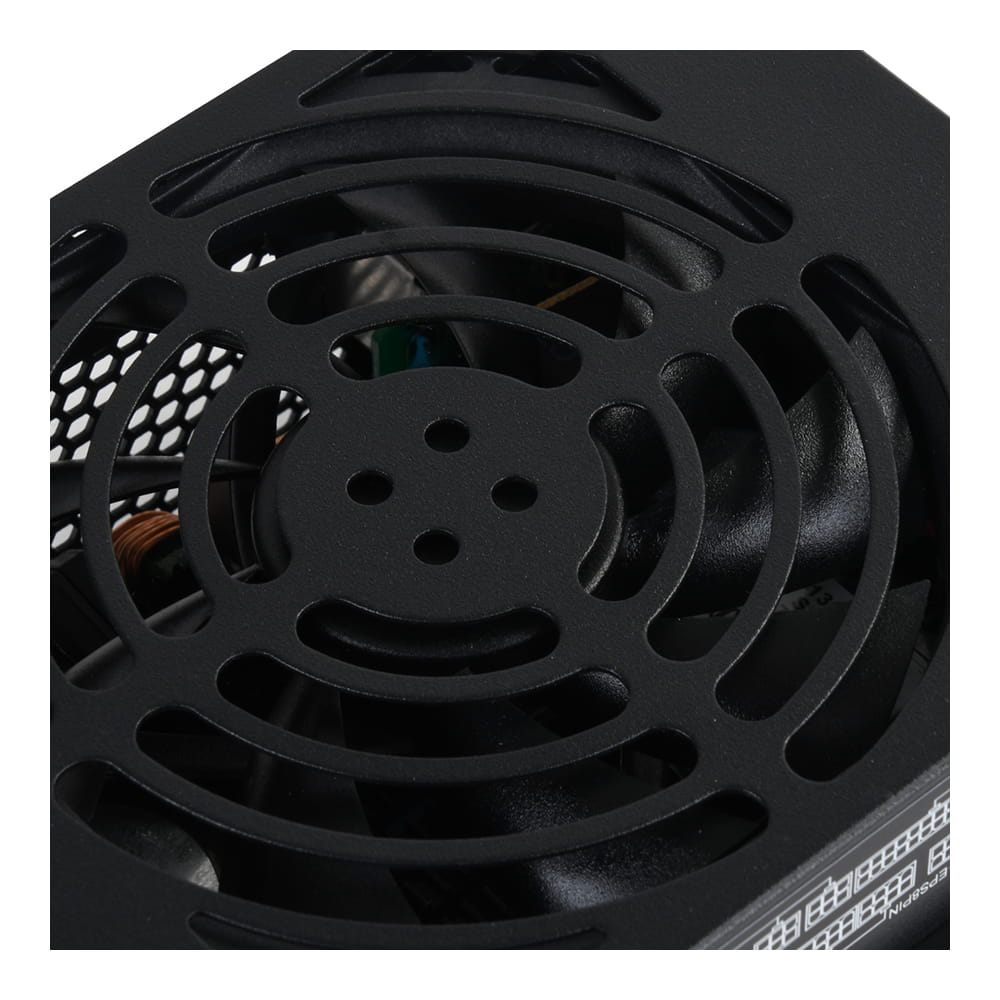

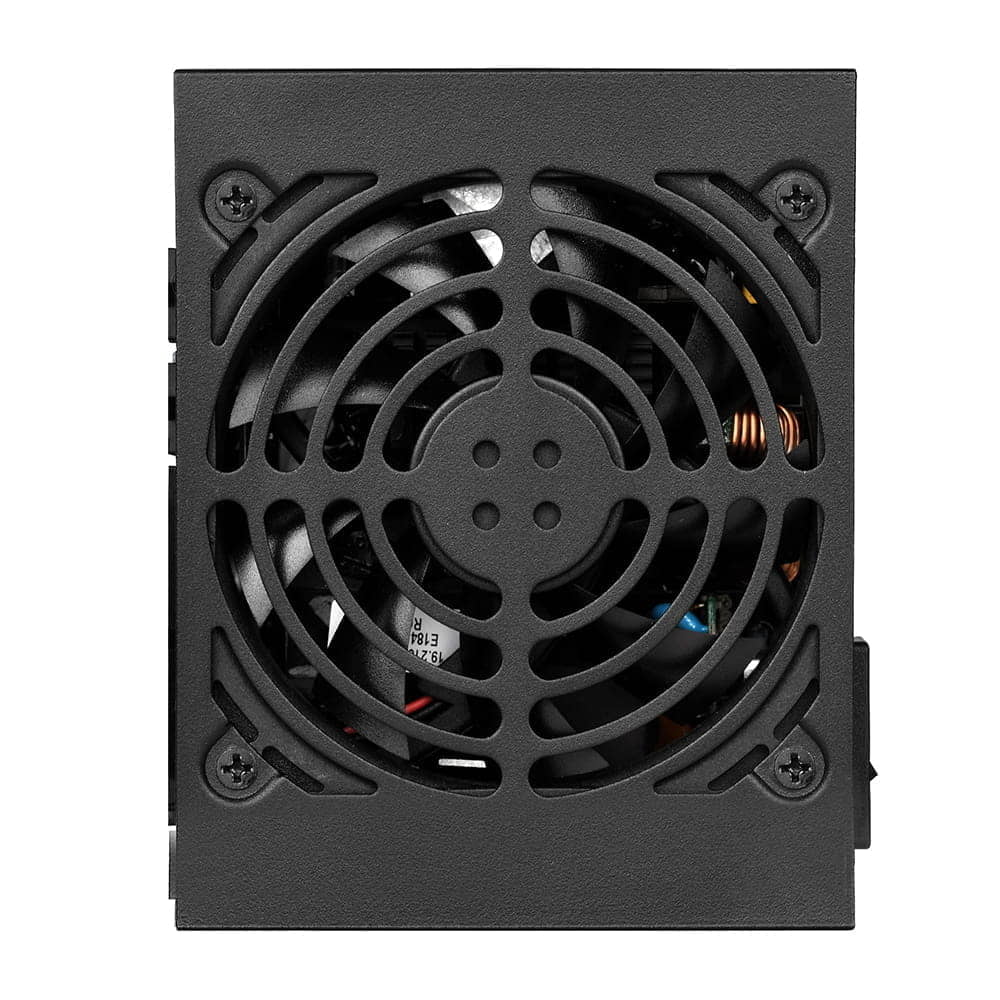

Included 92mm FDB fan with excellent airflow and low noise, perfect for use in the office or at home.

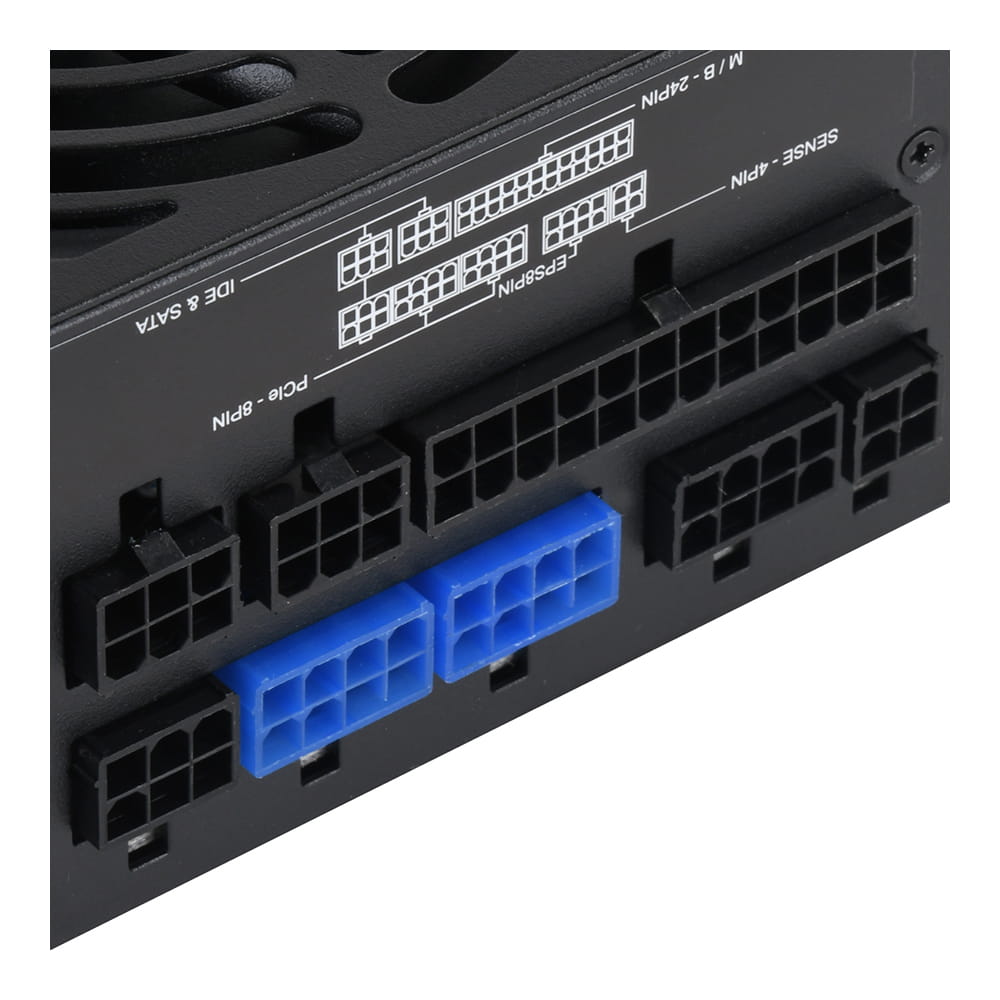

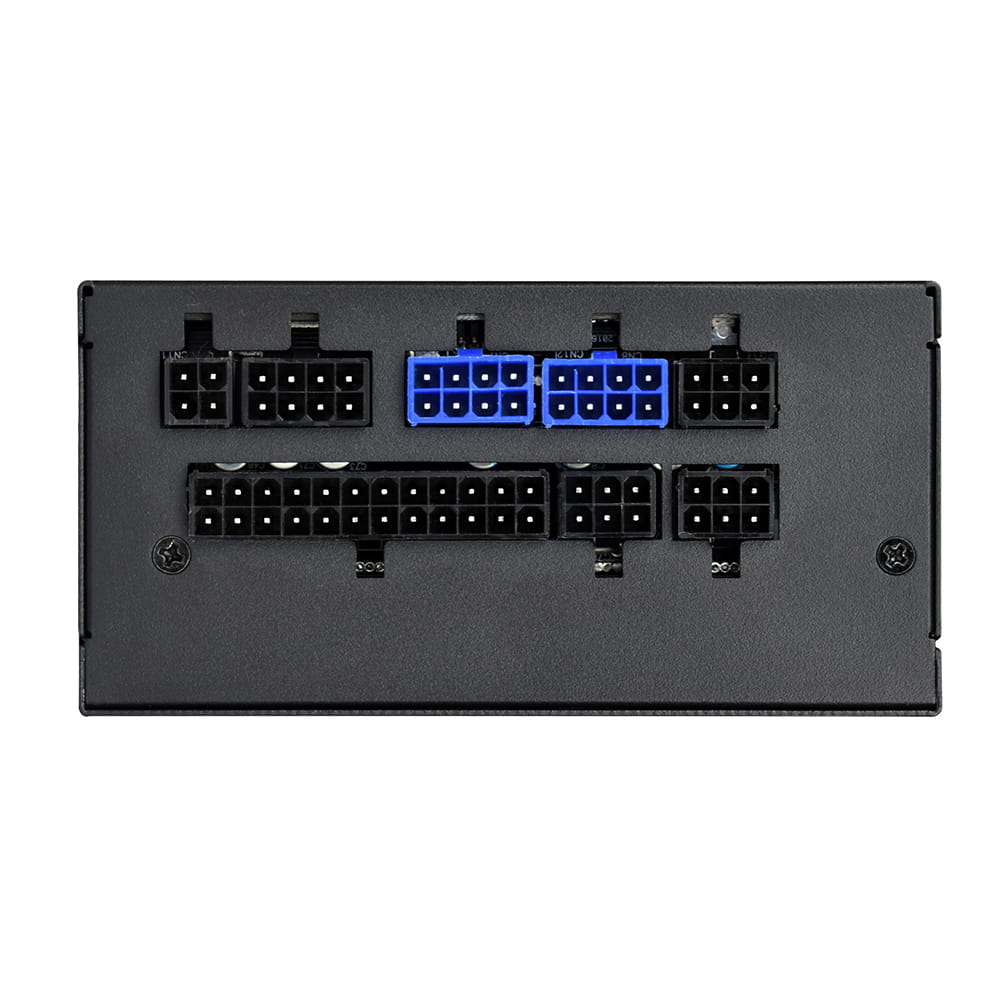

100% modular cable design for easy removal from a casing with cables routed and bundled. The flat cable that offers much greater flexibility for maximum bending and better cable distribution.
Powerful single + 12V rail design, perfect for future high-end upgrades or overclocking.
± 3 % regulation with low ripple and loudness level for high stability.
Highlights ...
* Standard SFX format.
* FDB Silent 92mm fan with a minimum of 18 dBA.
* Japanese capacitors.
* High efficiency with 80 PLUS Gold certification.
* First class single rail with + 12V.
* Strict voltage regulation of ± 3%.
* 100% modular cables.
* All cables are flat and flexible.

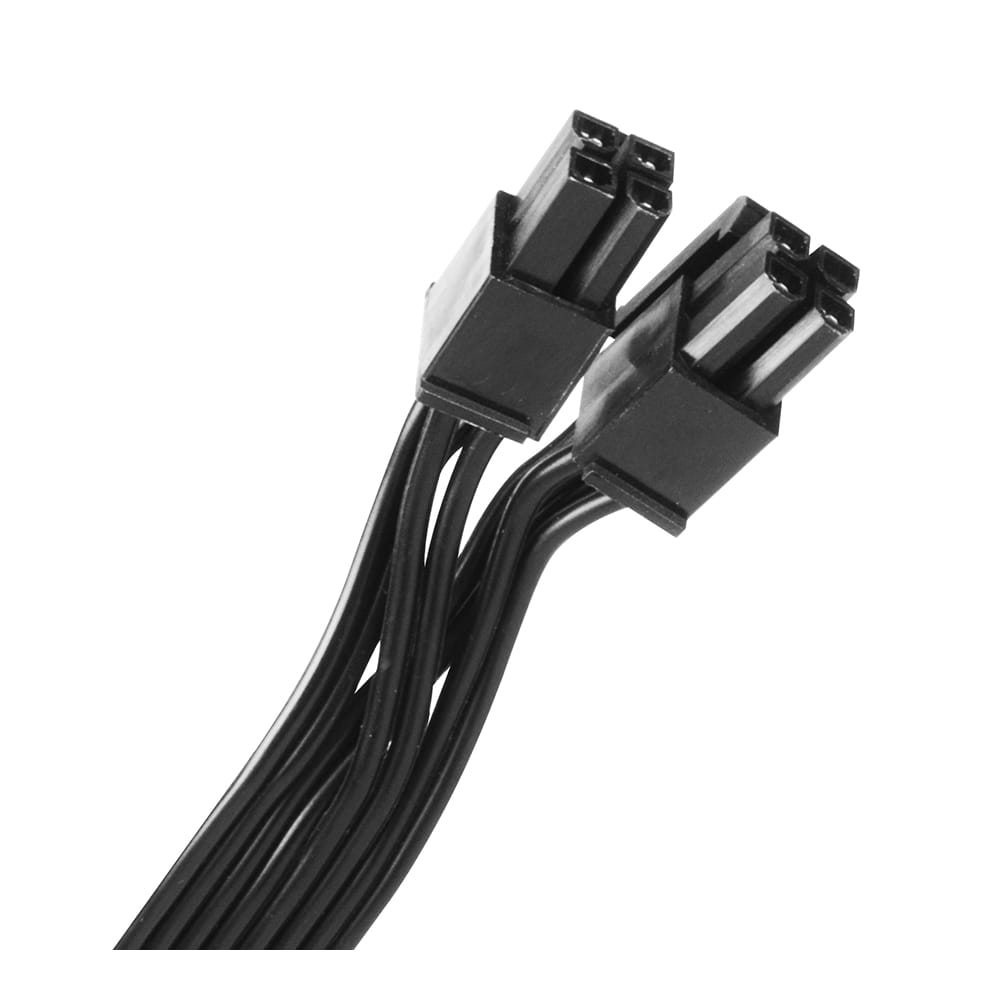

* Dual 8-pin EPS with support for multiple PCI-E 8/6-pin connectors (V1.1).
Modelo No. |
SST-SX500-G V1.1
|
||||||||||||||||||||||||||||||||||||||||||
Max. salida DC |
500W
|
||||||||||||||||||||||||||||||||||||||||||
Densidad de potencia |
630W por litro
|
||||||||||||||||||||||||||||||||||||||||||
Rango de carga |
|||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
Color |
Negro (pintura sin plomo)
|
||||||||||||||||||||||||||||||||||||||||||
Combinado +3.3V & +5V |
110W
|
||||||||||||||||||||||||||||||||||||||||||
Combinado+12V |
500W
|
||||||||||||||||||||||||||||||||||||||||||
Voltaje de entrada |
90 ~ 264 Vrms
|
||||||||||||||||||||||||||||||||||||||||||
Rango de voltaje de entrada |
47Hz ~ 63Hz
|
||||||||||||||||||||||||||||||||||||||||||
PFC |
Active PFC (PF>0,9 en plena carga)
|
||||||||||||||||||||||||||||||||||||||||||
Eficiencia |
87%~90% al 20%~100% de carga
|
||||||||||||||||||||||||||||||||||||||||||
MTFB |
100,000 horas
|
||||||||||||||||||||||||||||||||||||||||||
Temperatura operativa |
0°C ~ 40°C
|
||||||||||||||||||||||||||||||||||||||||||
Protecciones |
Protección por exceso de corriente
Protección por exceso de potencia Protección por exceso de voltaje Protección por poco voltaje Protección por cortocircuitos |
||||||||||||||||||||||||||||||||||||||||||
Conectores |

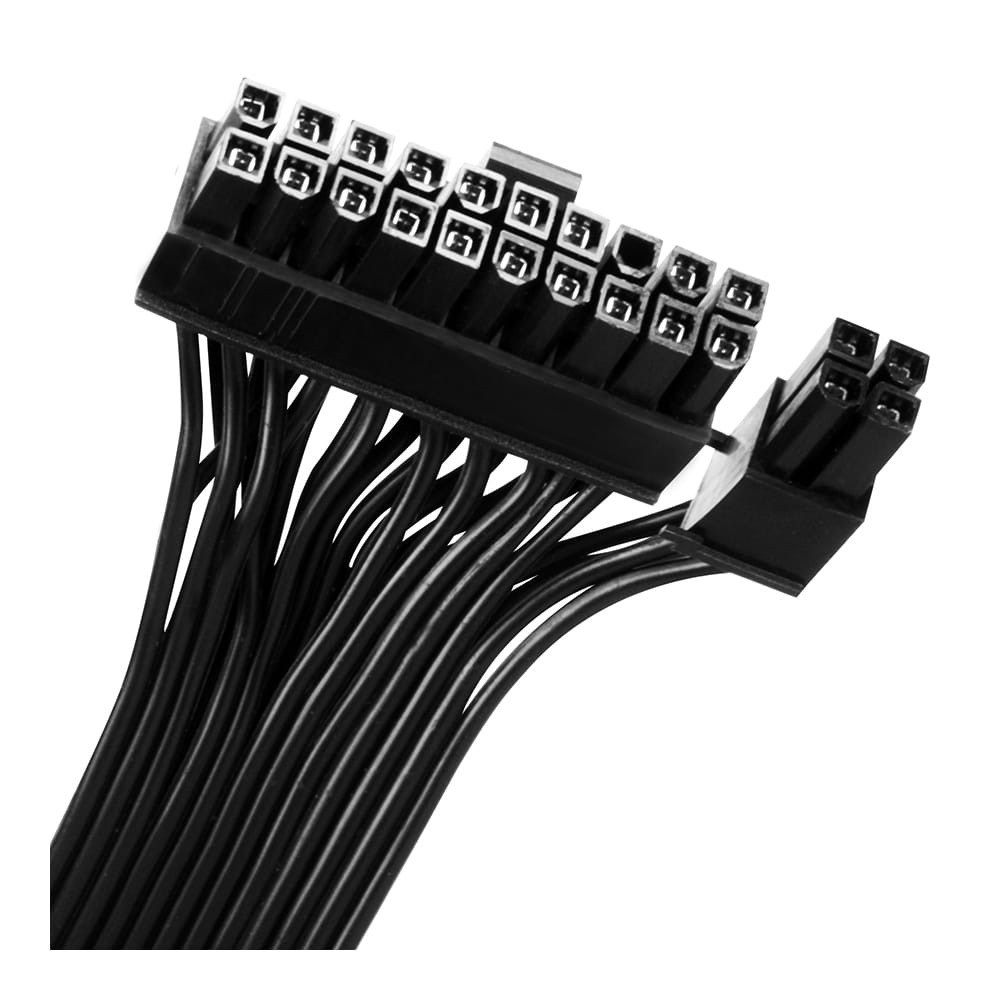

1 x conector placa madre 24 / 20 pin (300mm)

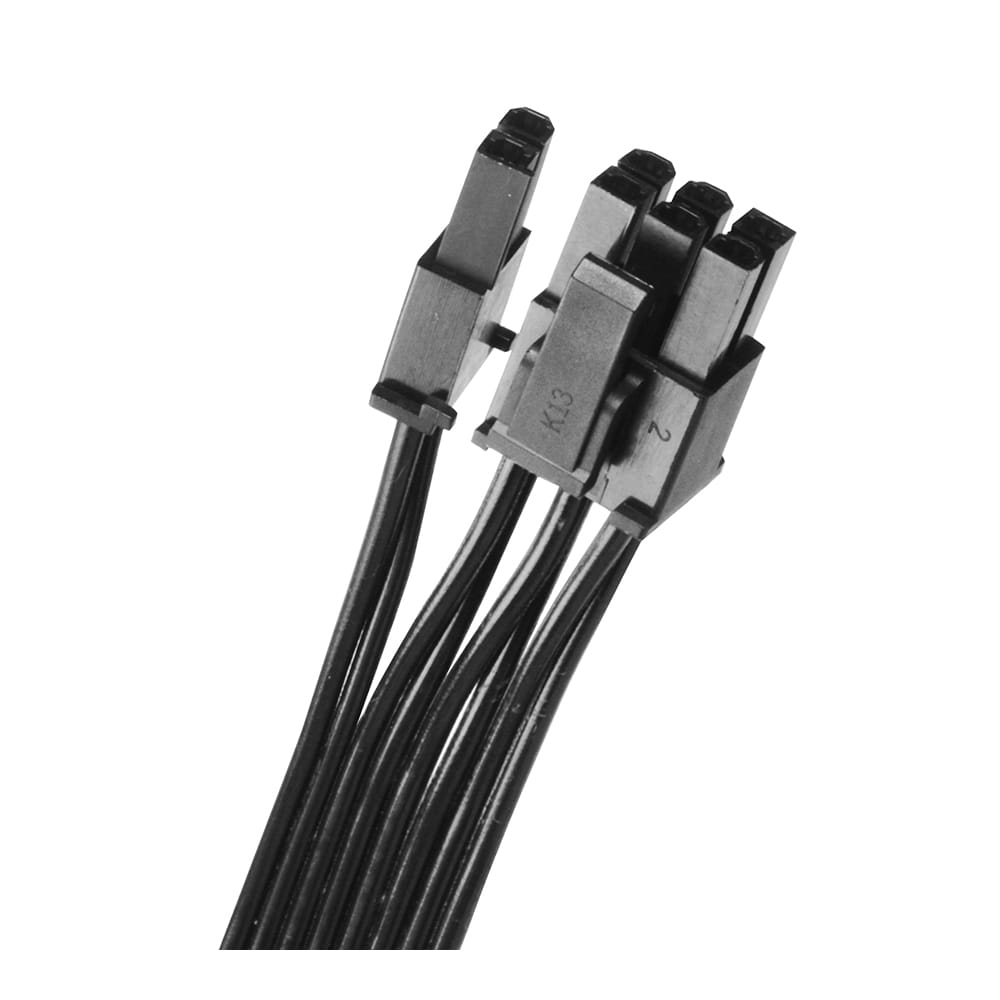

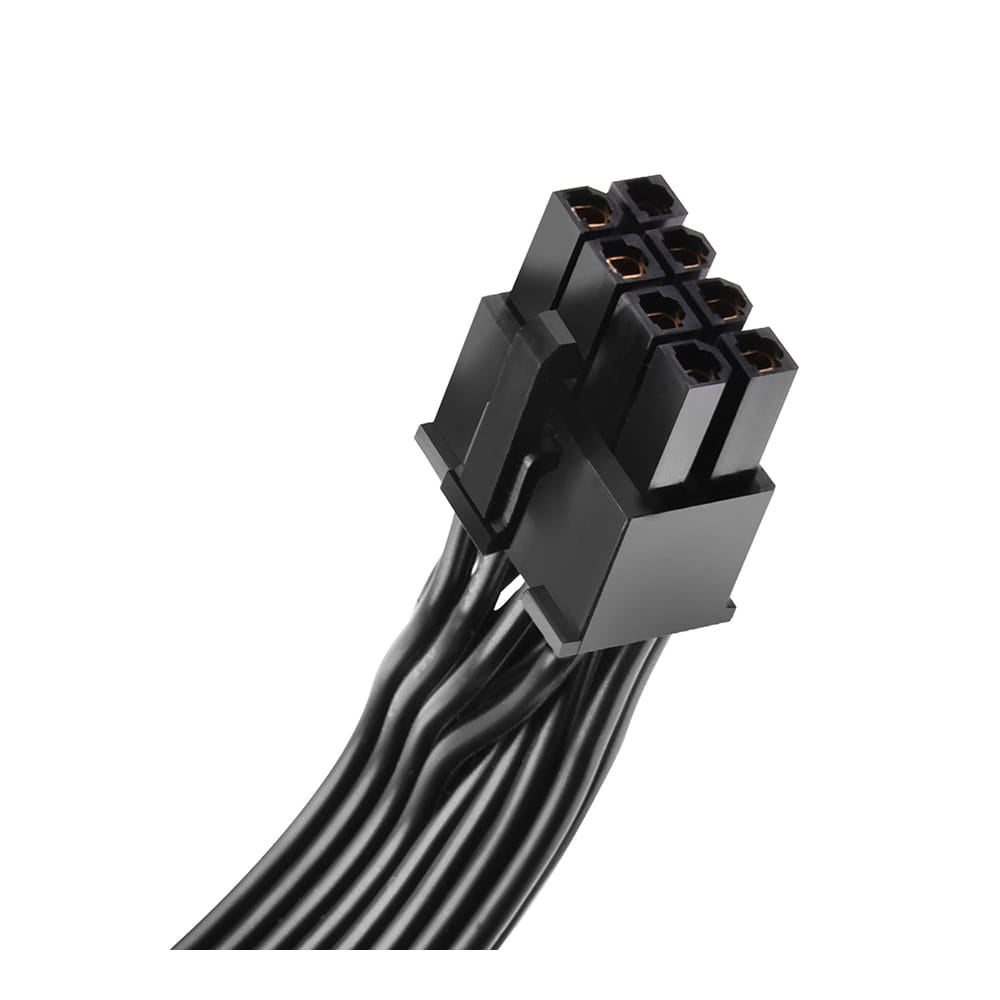

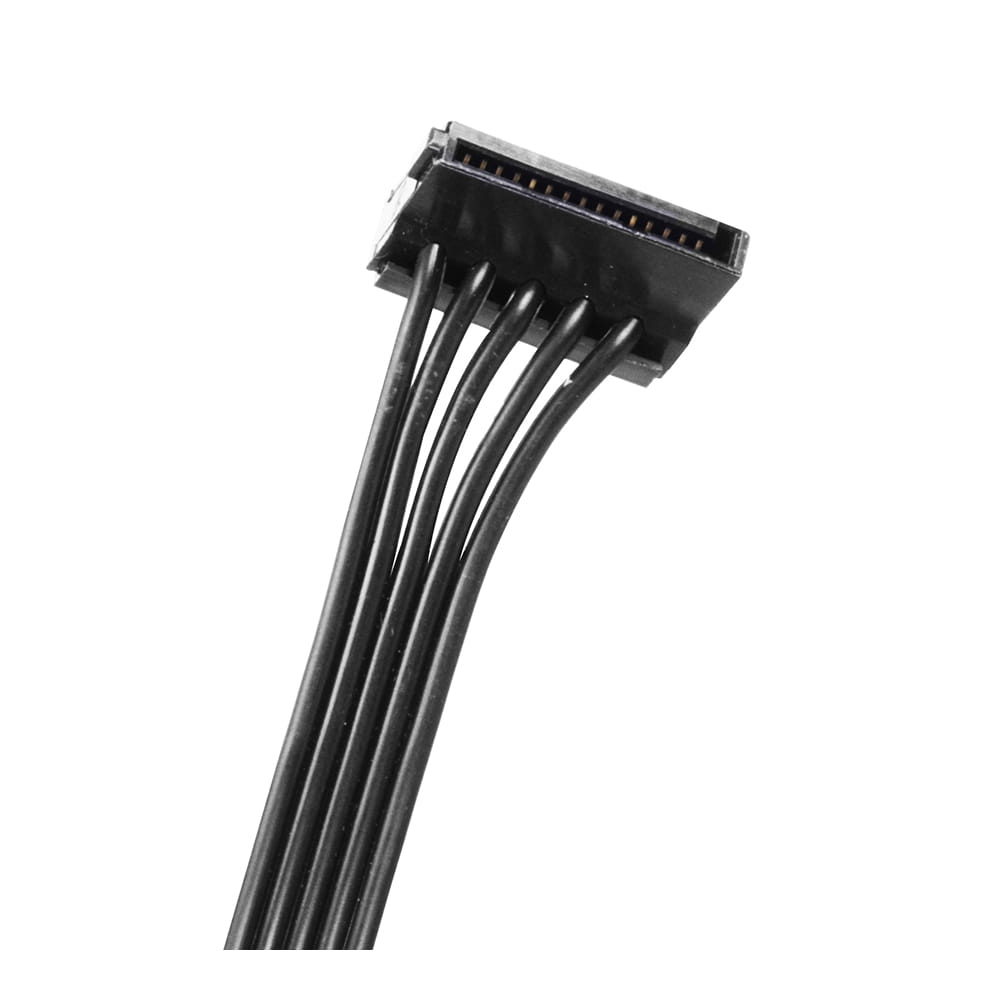

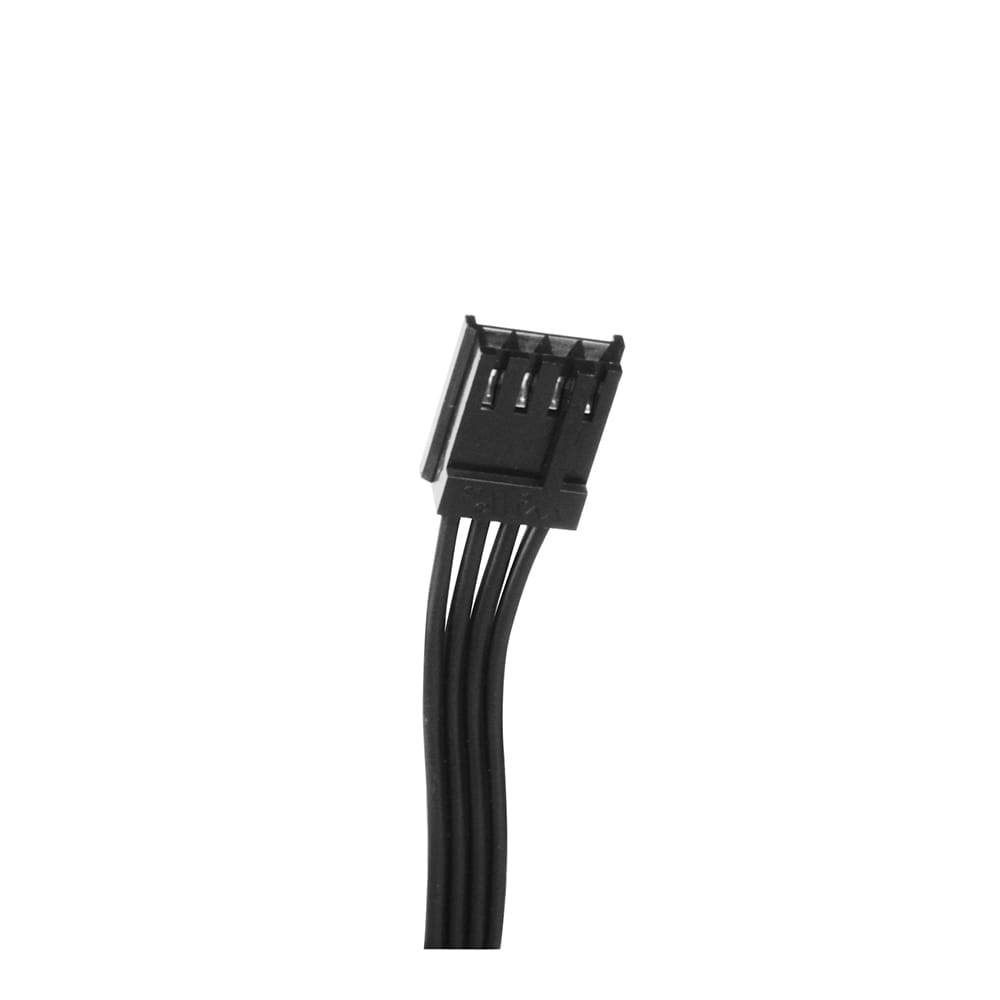

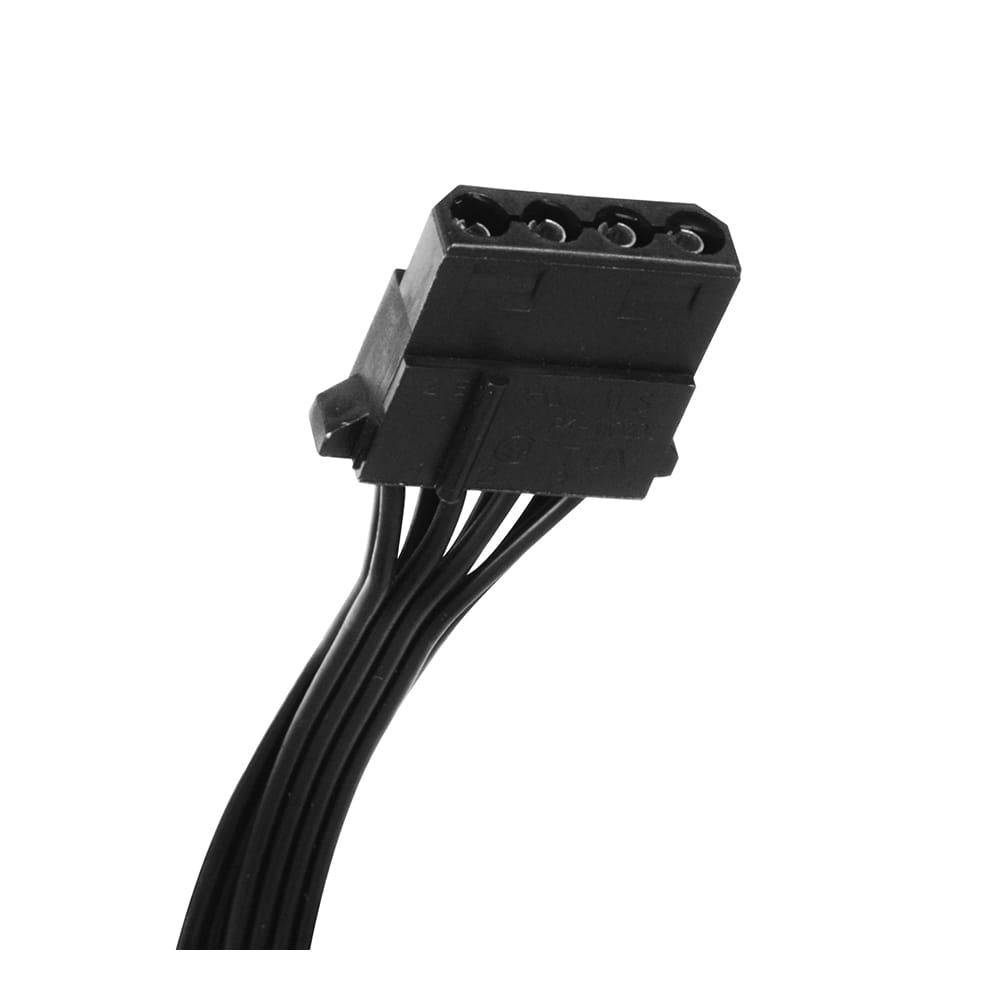

*1 x conector 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V (400mm / 150mm) 1 x conector PCIE 8 / 6 pin (400mm) 1 x conector PCIE 8 / 6 pin (550mm) 6 x conector SATA ("300mm / 220mm / 100mm" x 2) 3 x conector de periféricos de 4 pin (300mm / 200mm / 200mm) 1 x conector Floppy 4 pin (100mm) |
||||||||||||||||||||||||||||||||||||||||||
Sistema de refrigeración |
FDB ventilador silencioso de 92mm
|
||||||||||||||||||||||||||||||||||||||||||
Formato | SFX | ||||||||||||||||||||||||||||||||||||||||||
Nivel sonoro |
Mínimo de 18 dBA
|
||||||||||||||||||||||||||||||||||||||||||
Medidas |
125 mm (L) x 63,5 mm (A) x 100 mm (G)
|
||||||||||||||||||||||||||||||||||||||||||
Peso |
1,35 kg
|
||||||||||||||||||||||||||||||||||||||||||
Certification |
80 PLUS Gold
|
