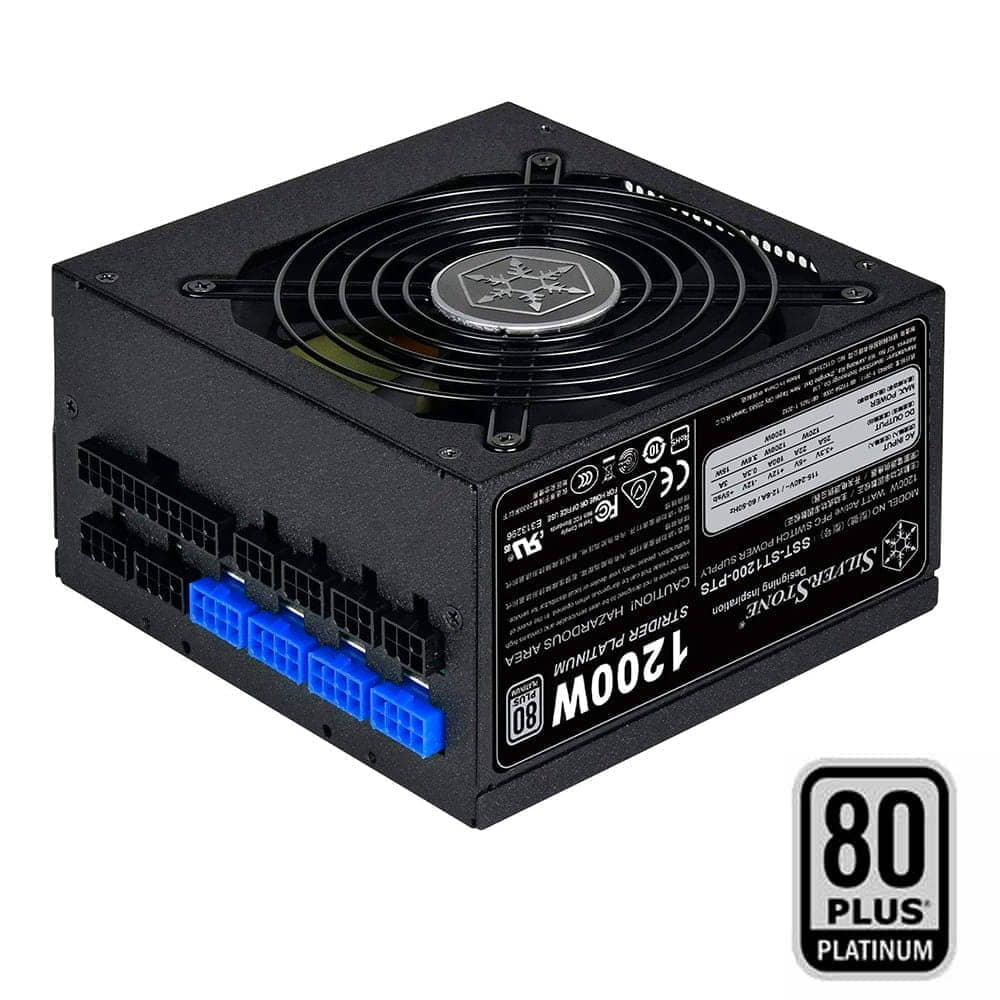

SilverStone ST1200-PTS Strider 1200W (80 Plus Platinum)
- Compact design with a depth of 140mm for easy integration.
- High efficiency with 80 PLUS Platinum certification.
- 100% modular cables.
- 24/7 direct current output with 40ºC operating temperature.
- First-class + 12V single rail.
- Strict 3% voltage regulation and low fluctuation and electrical noise.
- Quiet and robust included fan with HYB bearings.
- Magnetic filter for fan FF122 included.
of guarantee
Insured
Secure pay
As computers continue to move toward smaller, more efficient designs, SilverStone is leading the efficiency movement by launching a new generation of one kilowatt-rated Strider Platinum series power supplies. Created to be the smallest fully modular ATX power supplies with up to 1200W, they are also incredibly quiet and rugged with the integration of a HYB bearing fan.
A built-in smart fan controller allows the ST1200-PTS to run quietly during periods of no activity or low power, while it can boost up to maximum cooling during peak load or stress conditions. Other great features inherited from previous Strider series include 3% dimming, a powerful single + 12V rail, 24/7 DC output, and multiple PCI-E cables. For those who want to mount a powerful one kilowatt system in the smallest possible space, the ST1200-PTS is the best foundation.
Highlights...
* Compact design with a depth of 140mm for easy integration.
* High efficiency with 80 PLUS Platinum certification.

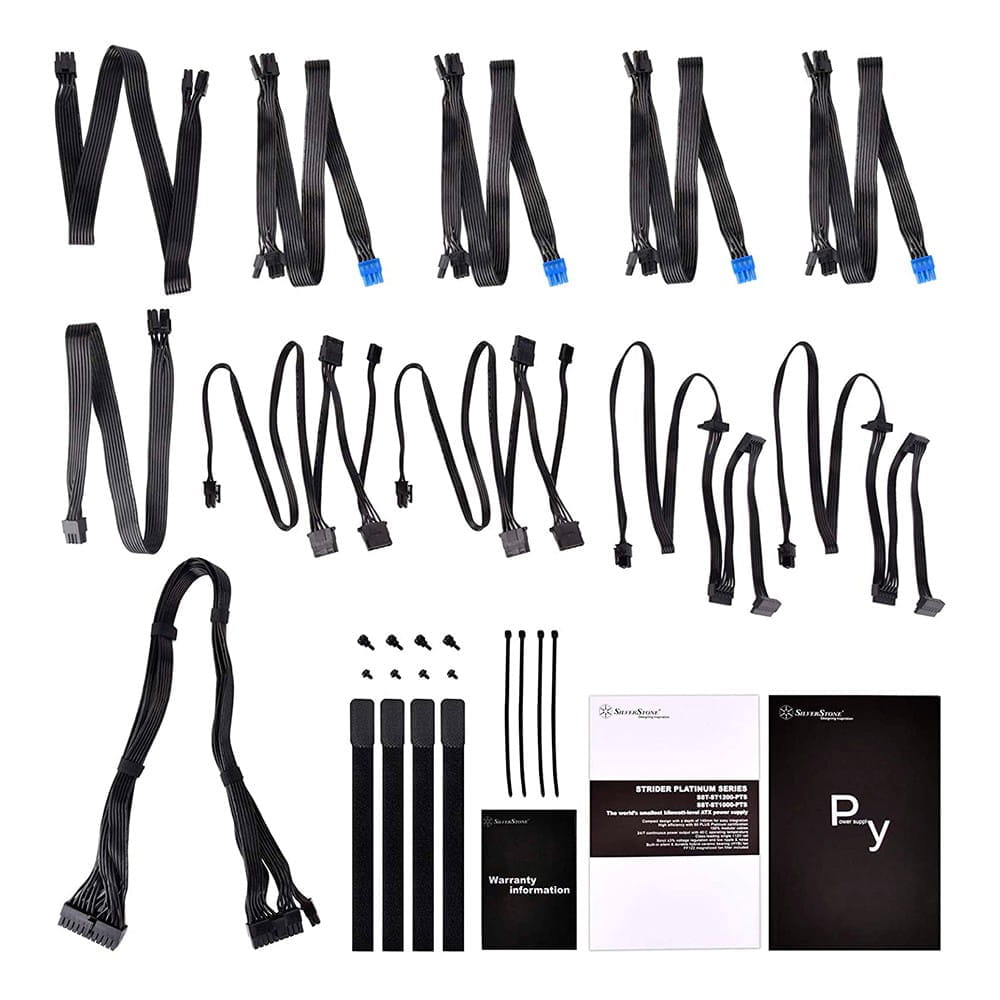

* 100% modular cables.
* 24/7 direct current output with 40ºC operating temperature.
* First-class + 12V single rail.
* Strict 3% voltage regulation and low fluctuation and electricl noise.
* Quiet and robust included fan with HYB bearings.
* Magnetic filter for fan FF122 included.
Modelo | SST-ST1200-PTS |
Max. salida DC | 1200W |
Densidad de potencia | 664W por litro |
Color | Negro (Pintura sin plomo) |
Combinado +3.3V & +5V | 120W |
Combinado+12V | 996W |
Voltaje de entrada | 90V~264V |
Rango de voltaje de entrada | 47Hz~63Hz |
PFC | PFC activo (PF>0.9 a plena carga) |
Eficiencia | 89%~92% al 20%~100% de carga |
MTFB | 100,000 horas |
Temperatura operativa | 0°C ~ 40°C |

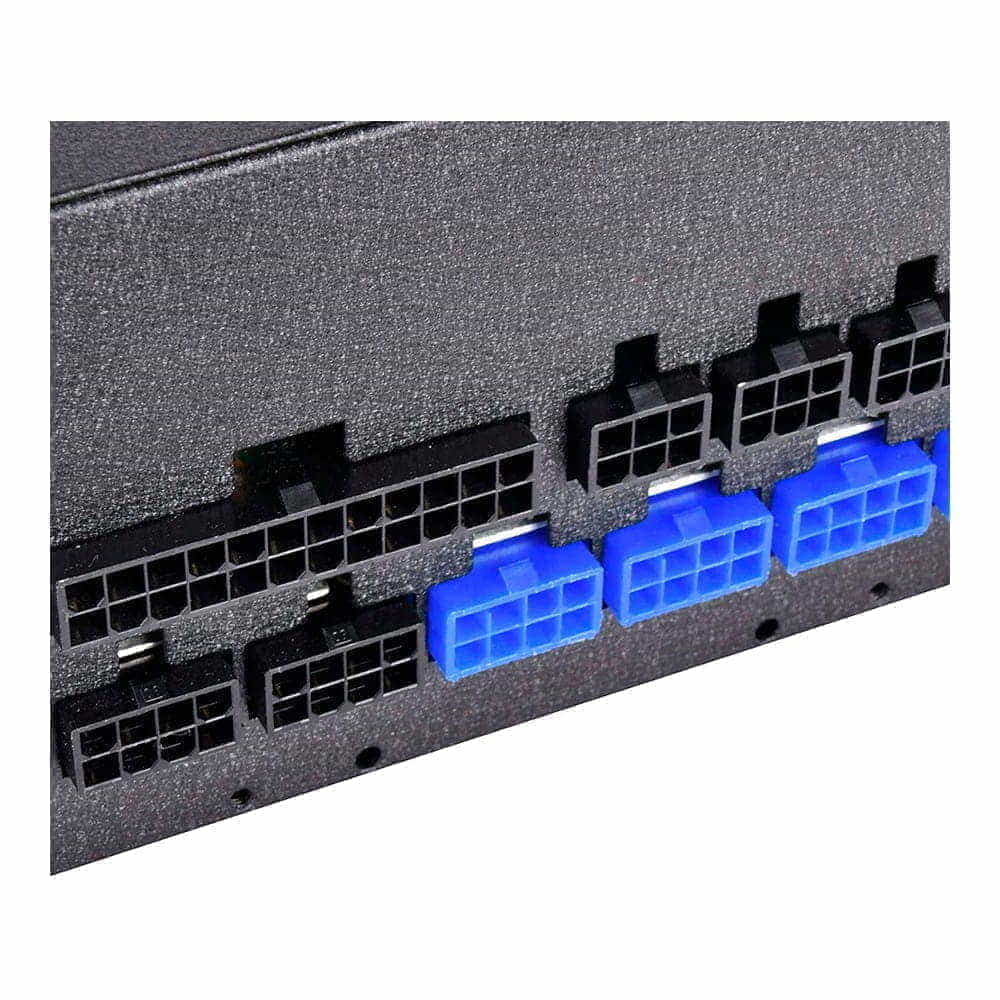

Conectores | 1 x 24 / 20-Pines conector placa base (”600mm”), 1 x 8 / 4-Pines conector EPS / ATX 12V ("550mm”), 1 x 8 / 4-Pines conector EPS / ATX 12V (”750mm”), 8 x 8 / 6-Pines conector PCIE (”550mm/150mm” X4), 8 x conector SATA ("600mm /150mm / 150mm / 150mm" X2), 6 x 4-Pines conector periférico (”600mm / 150mm / 150mm” X2), 2 x 4-Pines conector floppy(”150mm” X2) |
Sistema de refrigeración | Ventilador único HYB de 120mm |
Formato | ATX |
Nivel sonoro | 18 dBA mínimo |
Medidas | 150 mm (Ancho) x 86 mm (Alto) x 140 mm (Profundo) |
Peso | 1,98kgs |
Certification | 80 PLUS Platinum |
