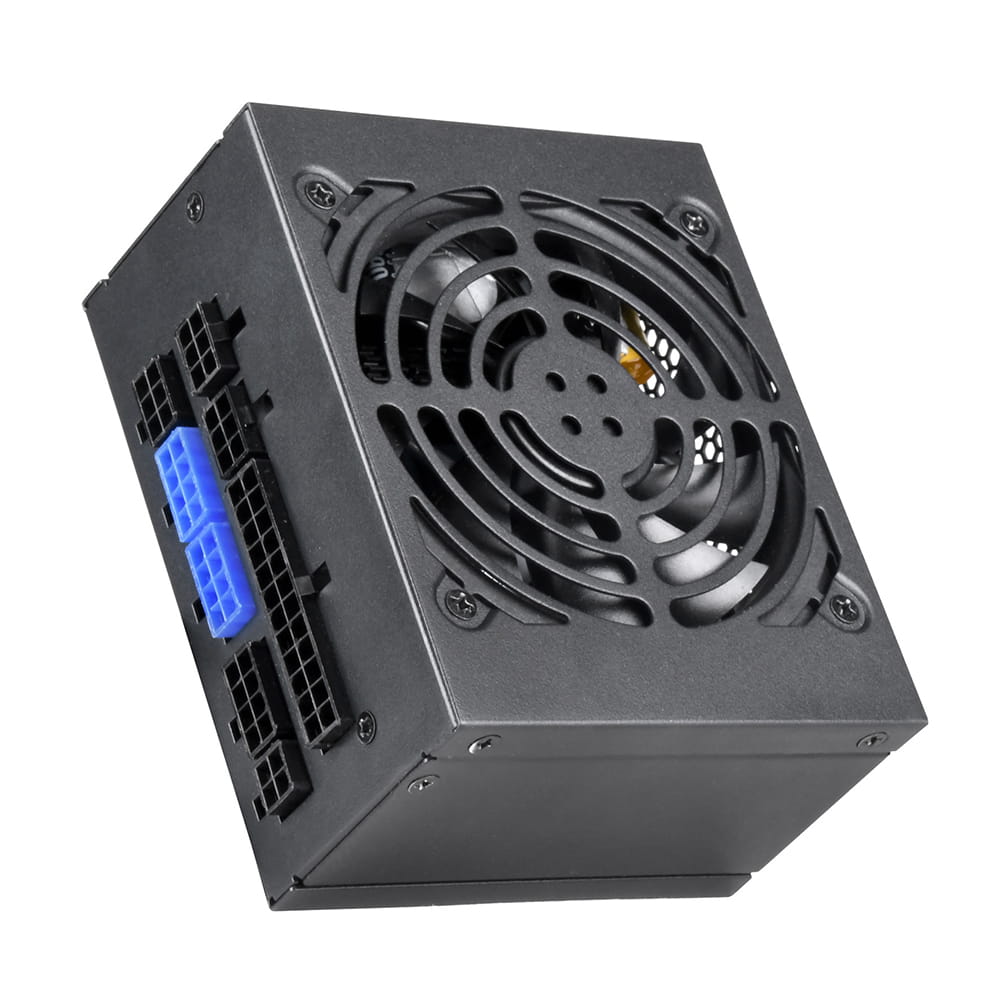

SilverStone SST-SX500-G SFX 500W (80 Plus Gold)

SilverStone SST-SX500-G SFX 500W (80 Plus Gold)

SilverStone
  • Standard SFX format.
  • FDB Silent 92mm fan with a minimum of 18 dBA.
  • Japanese capacitors.
  • High efficiency with 80 PLUS Gold certification.
  • First class single rail with + 12V.
  • Strict voltage regulation of ± 3%.
  • 100% modular cables.

P/N: SST-SX500-G - EAN/UPC: 4710007225332

79,64 € Without VAT
96,36 € With VAT
Only 2 units left
Delivery 24/48h working
2 years
of guarantee
sending
shipping
100%
Secure pay

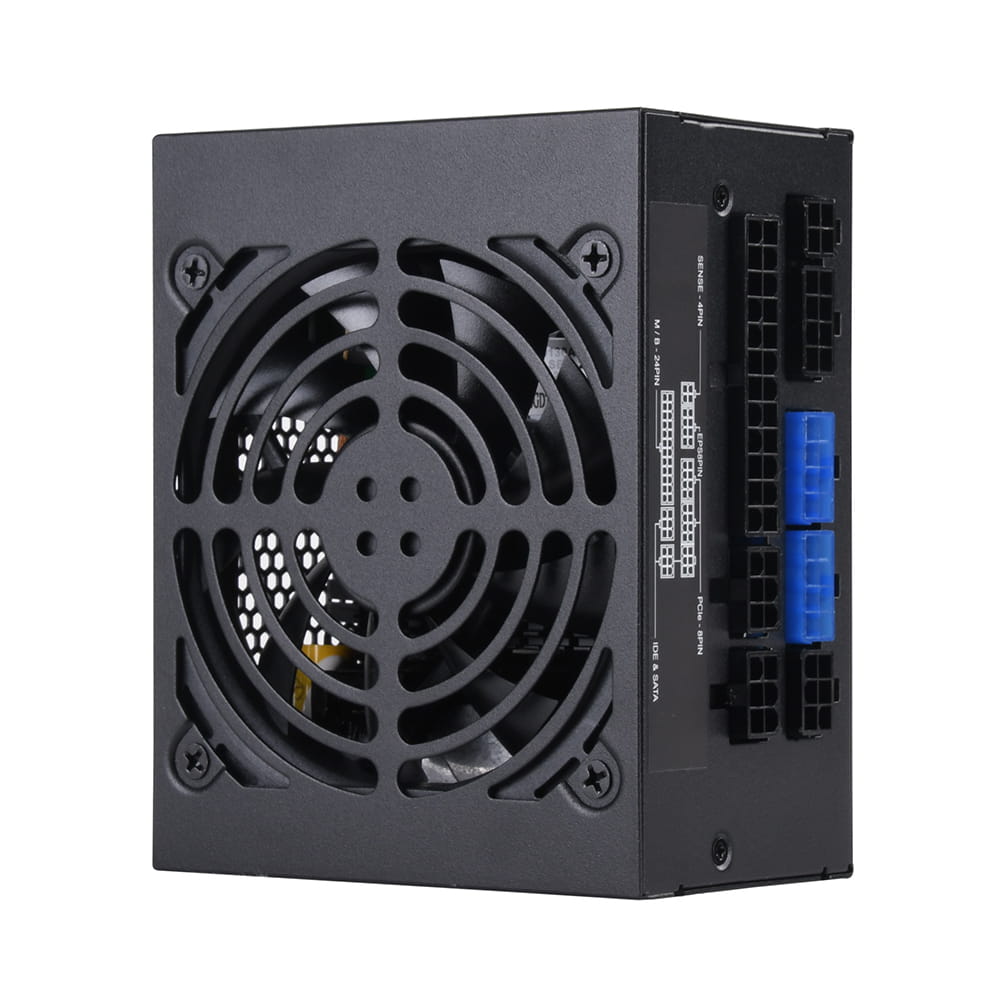

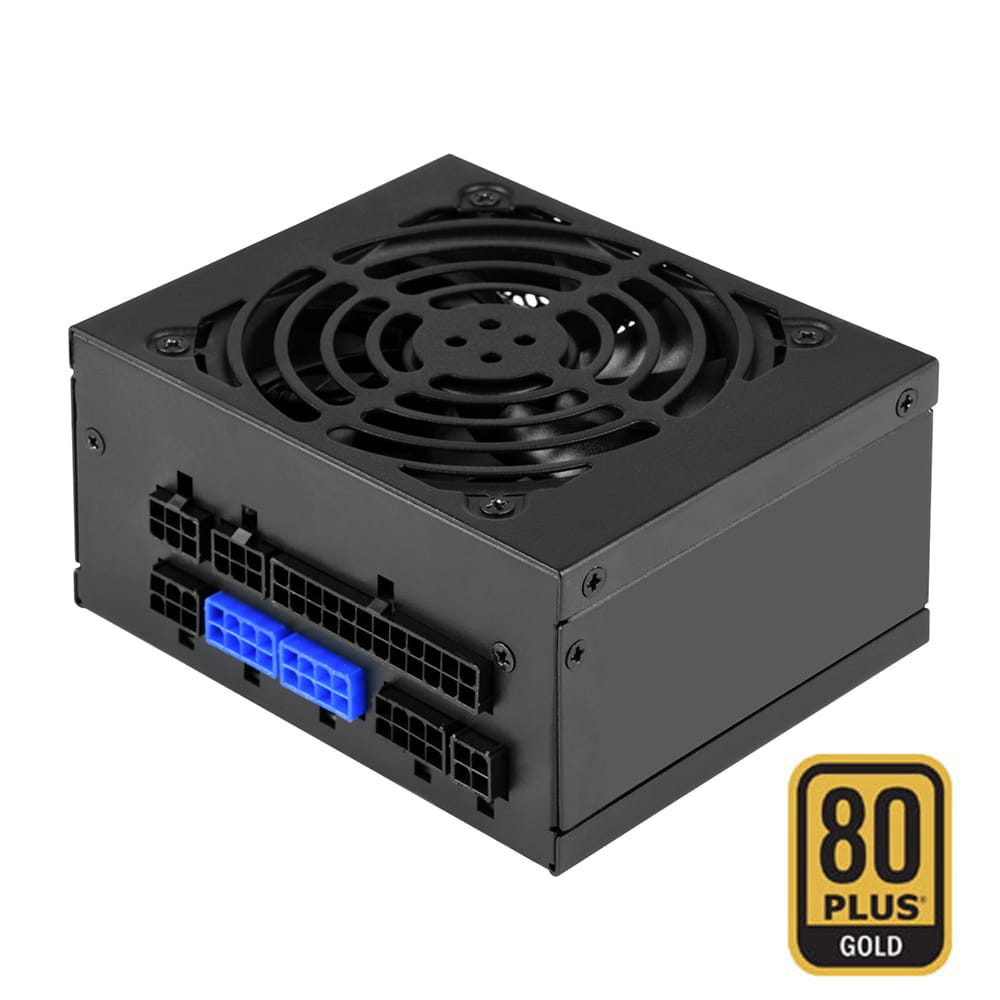

The Silverstone SST-SX500-G power supply has been designed with an 80 PLUS Gold efficiency level to reduce waste heat and save electricity.

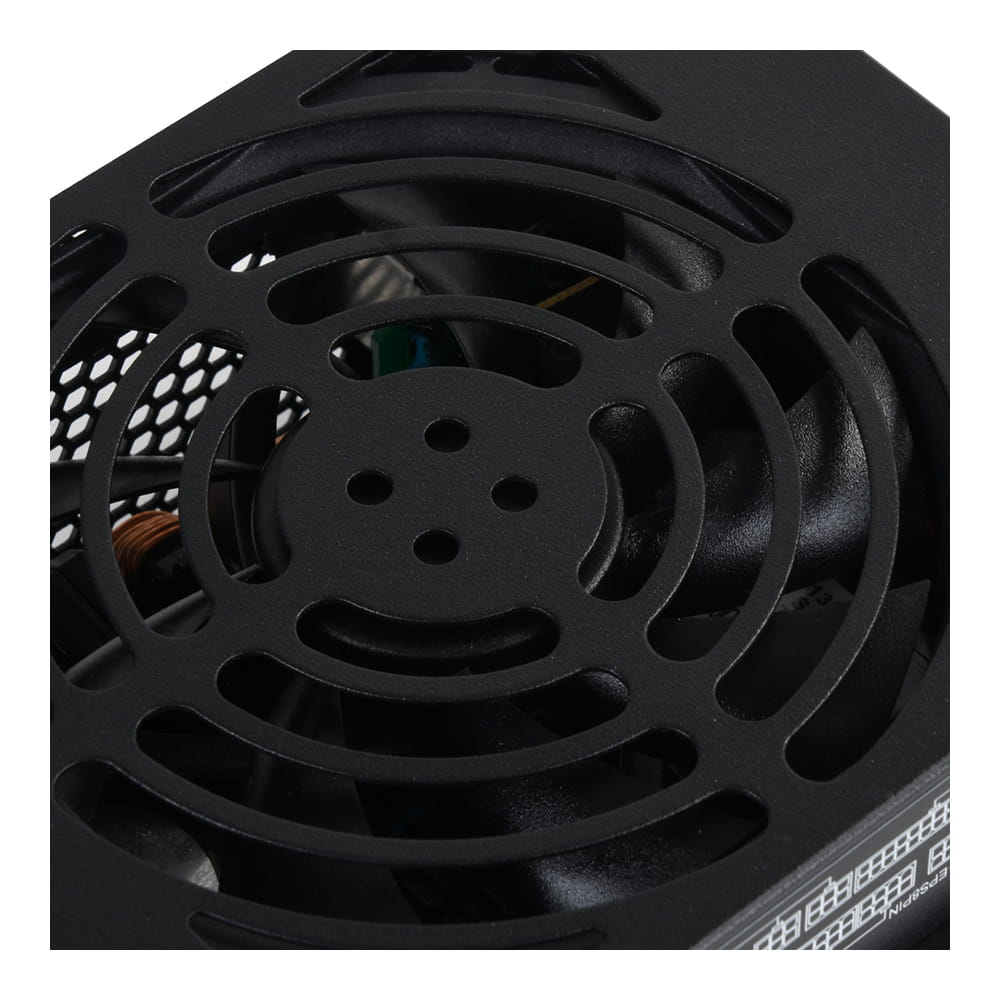

Included 92mm FDB fan with excellent airflow and low noise, perfect for use in the office or at home.

100% modular cable design for easy removal from a casing with cables routed and bundled. The flat cable that offers much greater flexibility for maximum bending and better cable distribution.

Powerful single + 12V rail design, perfect for future high-end upgrades or overclocking.

± 3 % regulation with low ripple and loudness level for high stability.

Highlights ...

* Standard SFX format.
* FDB Silent 92mm fan with a minimum of 18 dBA.
* Japanese capacitors.
* High efficiency with 80 PLUS Gold certification.
* First class single rail with + 12V.
* Strict voltage regulation of ± 3%.
* 100% modular cables.
* All cables are flat and flexible.
* Dual 8-pin EPS with support for multiple PCI-E 8/6-pin connectors (V1.1).

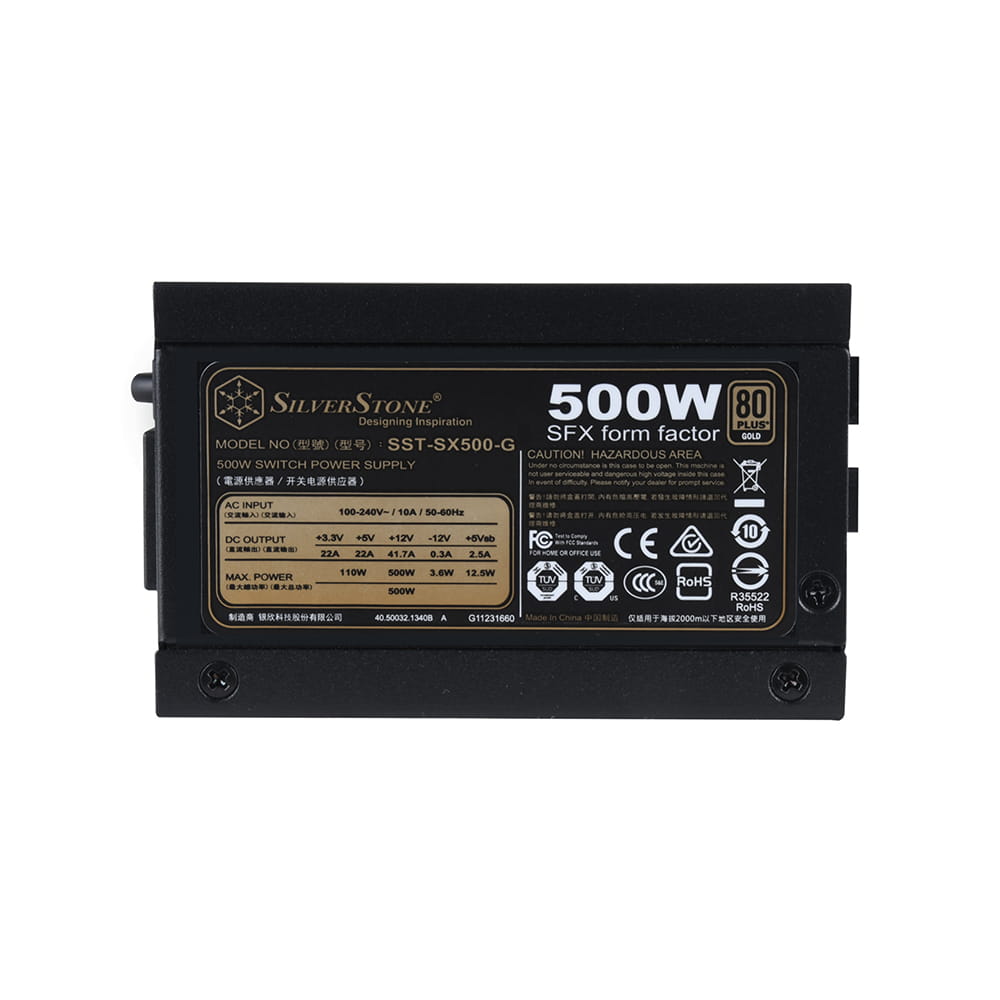

Modelo No.
SST-SX500-G
Max. salida DC
500W
Densidad de potencia
630W por litro

Rango de carga


+3.3V +5V +12V +5VSB -12V
Max. (amperio)
22A 22A 41.7A 2.5A 0.3A
Pico (amperio)
/ / / / /
Min. (amperio)
0A 0A 0A 0A 0A
Rango (%)
±3% ±3% ±3% ±5% ±10%
linea Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Negro (pintura sin plomo)
Combinado +3.3V & +5V
110W
Combinado+12V
500W
Voltaje de entrada
90 ~ 264 Vrms
Rango de voltaje de entrada
47Hz ~ 63Hz
PFC
Active PFC (PF>0,9 en plena carga)
Eficiencia
87%~90% al 20%~100% de carga
MTFB
100,000 horas
Temperatura operativa
0°C ~ 40°C
Protecciones
Protección por exceso de corriente
Protección por exceso de potencia
Protección por exceso de voltaje
Protección por poco voltaje
Protección por cortocircuitos

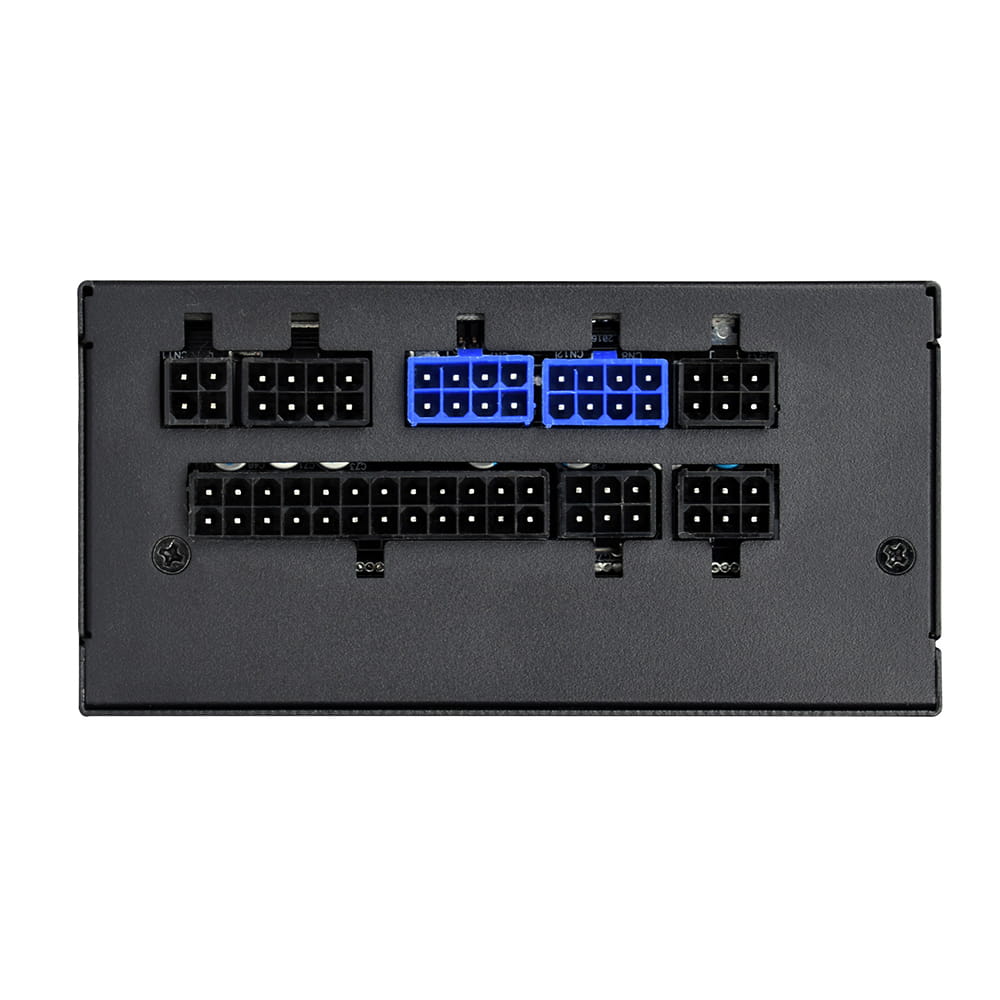

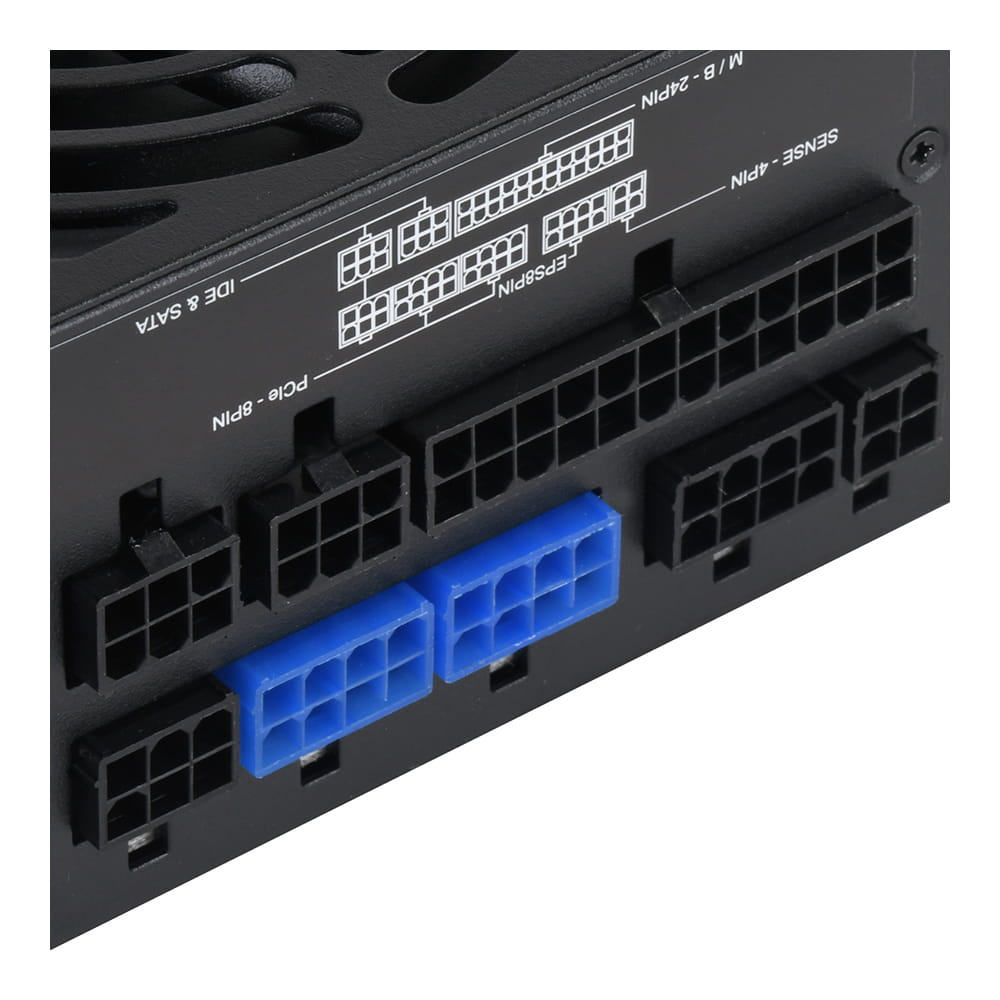

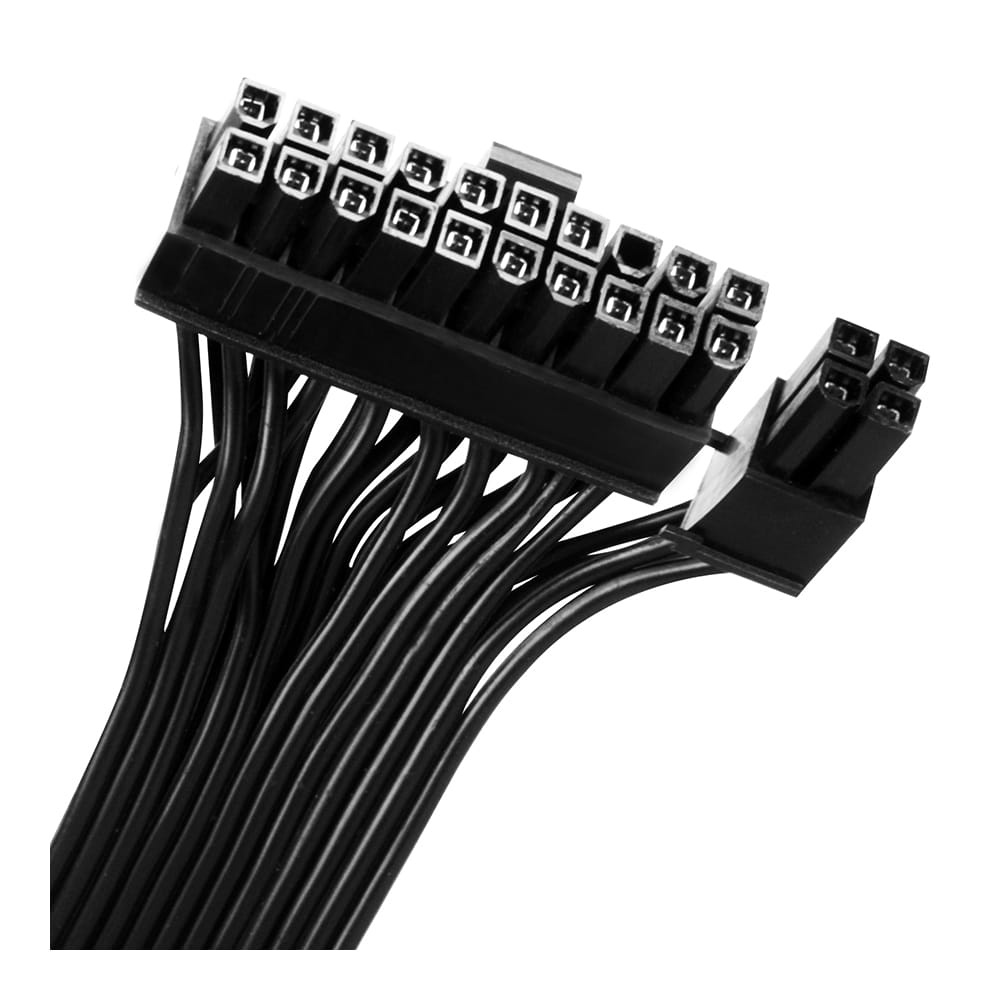

Conectores 1 x conector placa madre 24 / 20 pin (300mm)

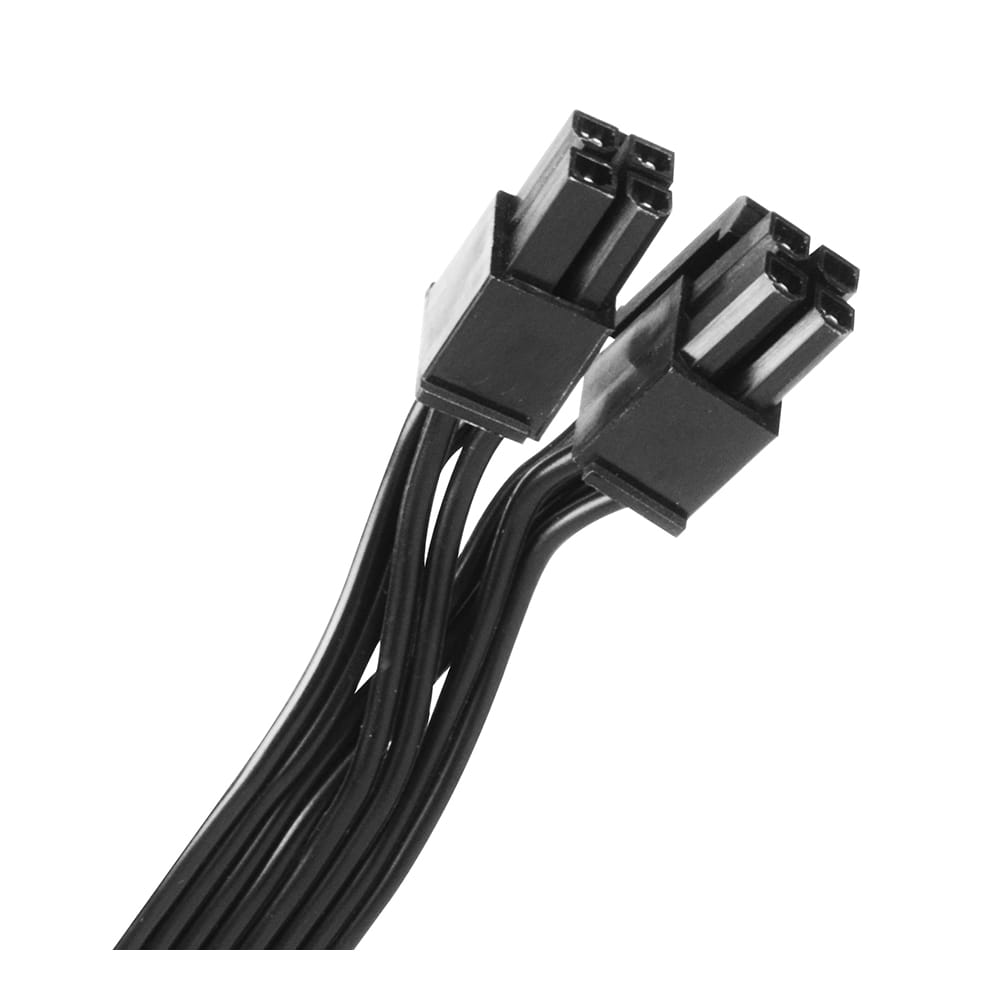

1 x conector 12V 8 / 4 pin EPS / ATX (400mm)

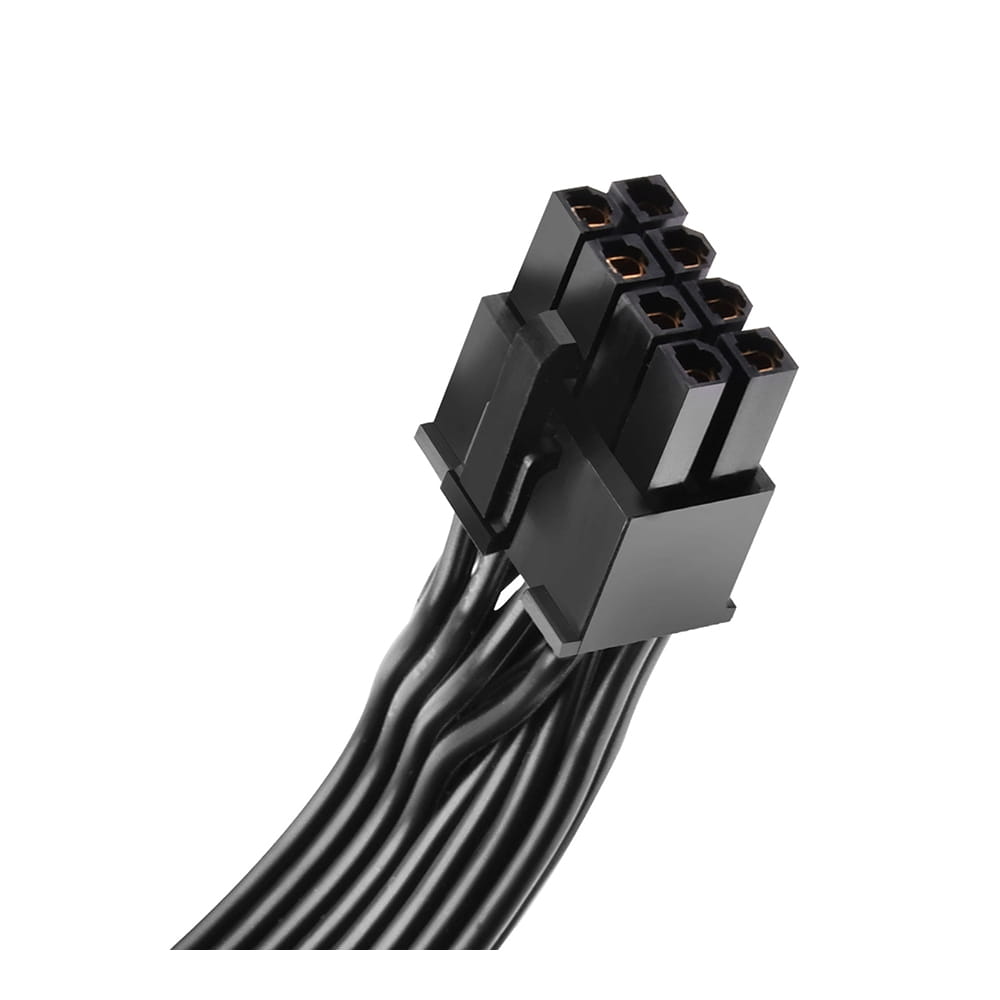

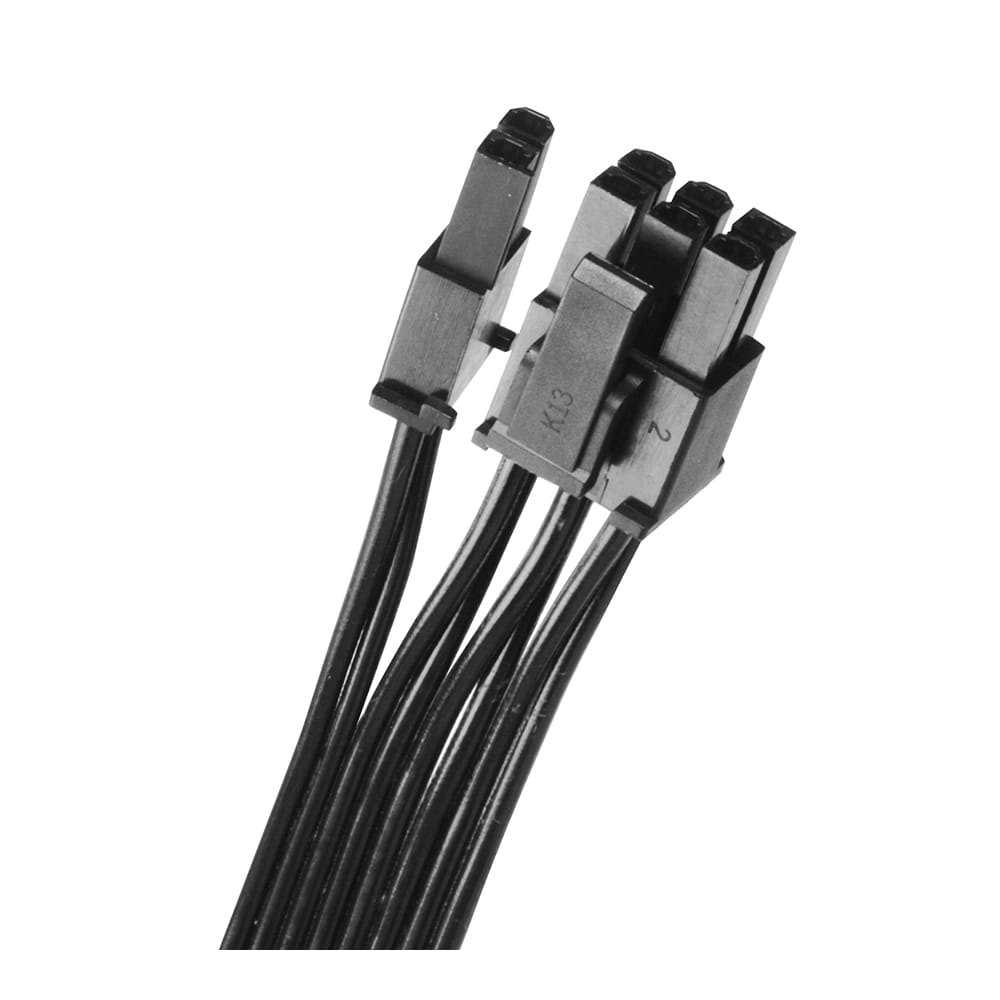

1 x conector PCIE 8 / 6 pin (400mm)
1 x conector PCIE 8 / 6 pin (550mm)

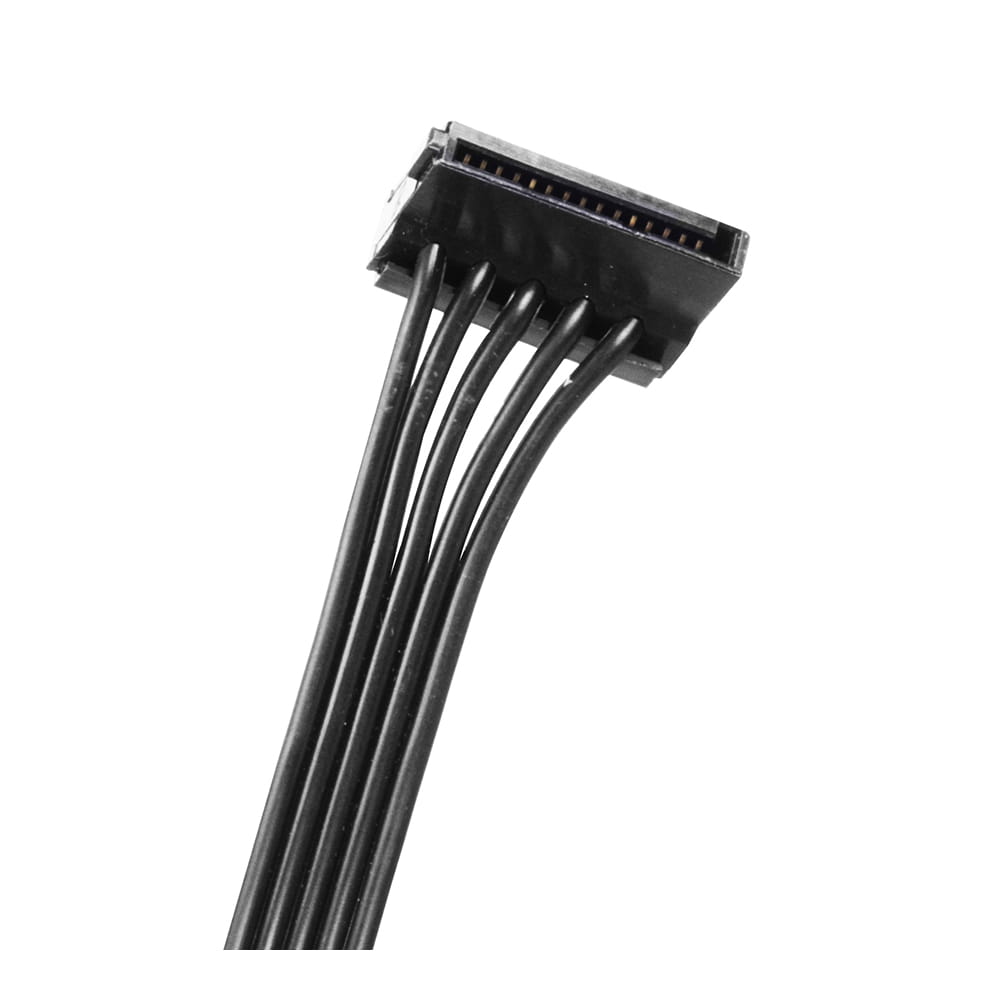

6 x conector SATA ("300mm / 220mm / 100mm" x 2)

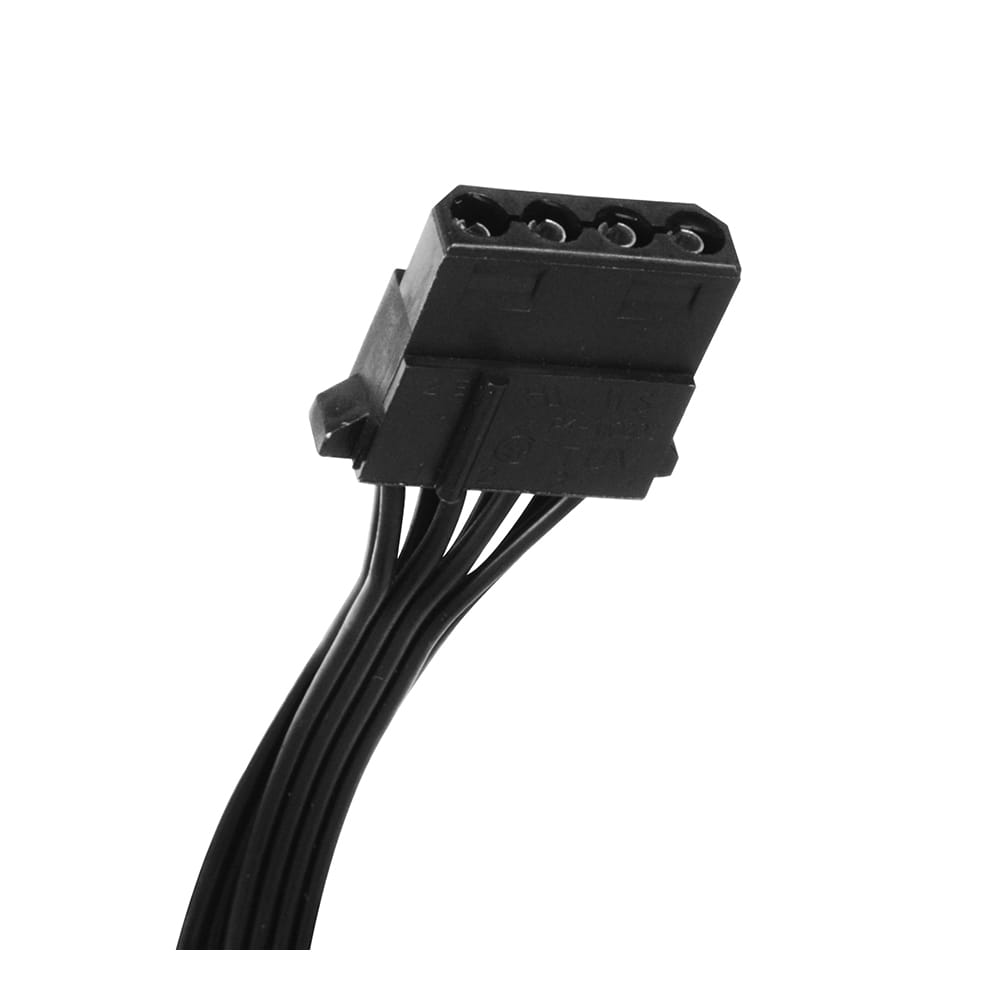

3 x conector de periféricos de 4 pin (300mm / 200mm / 200mm)

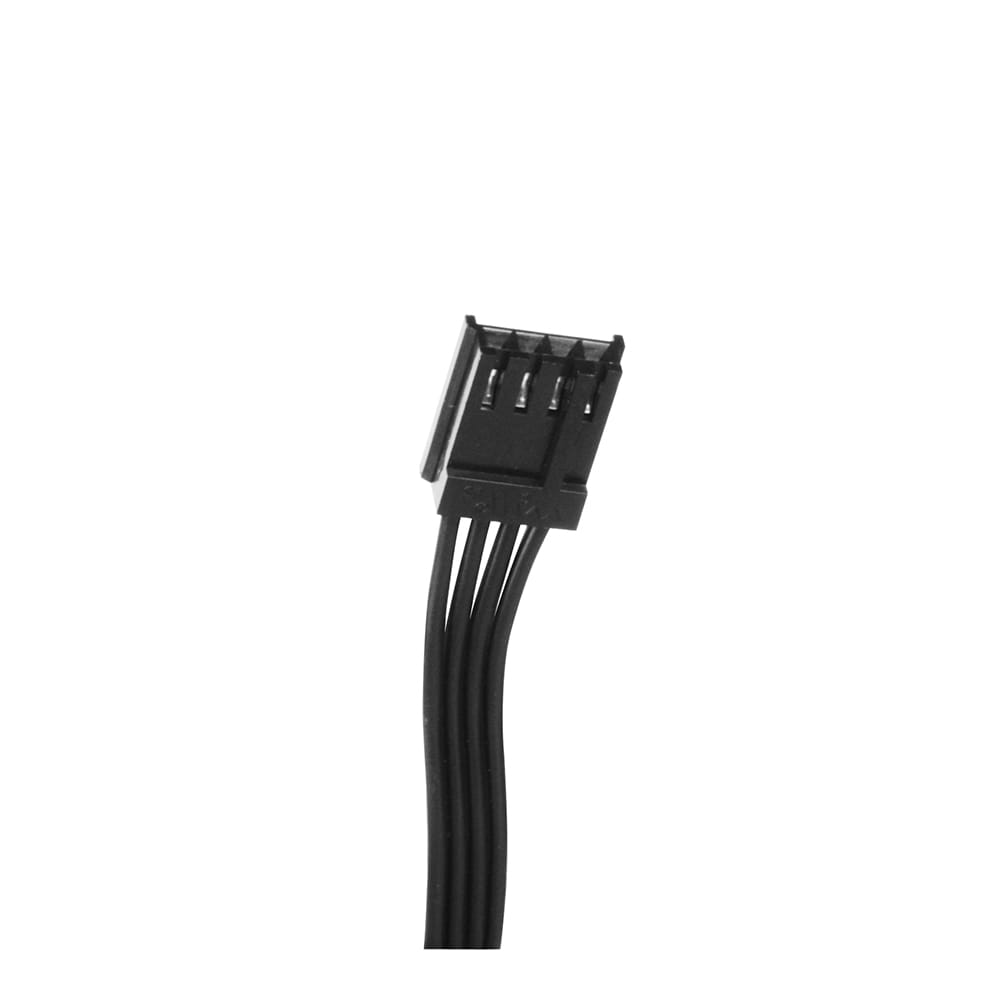

1 x conector Floppy 4 pin (100mm)

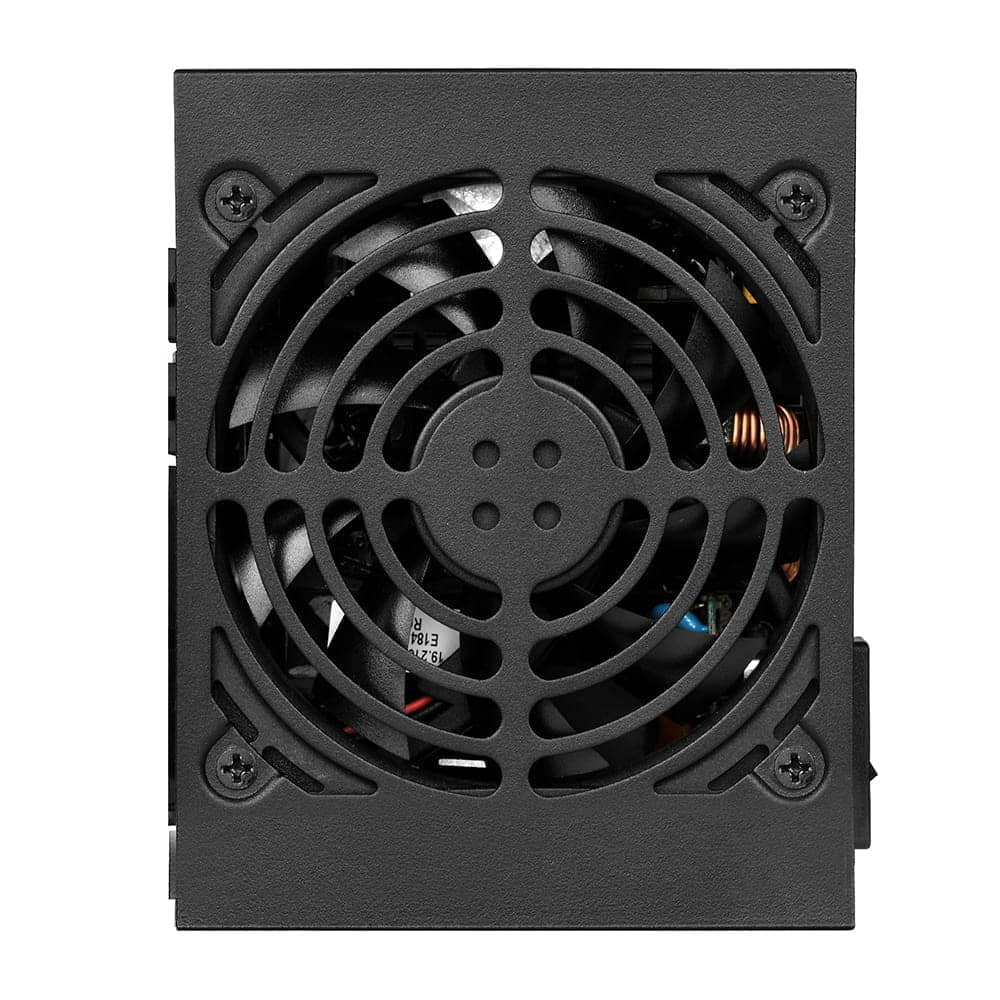

Sistema de refrigeración
FDB ventilador silencioso de 92mm
Formato SFX
Nivel sonoro
Mínimo de 18 dBA
Medidas
125 mm (L) x 63,5 mm (A) x 100 mm (G)
Peso
1,35 kg
Certification
80 PLUS Gold
