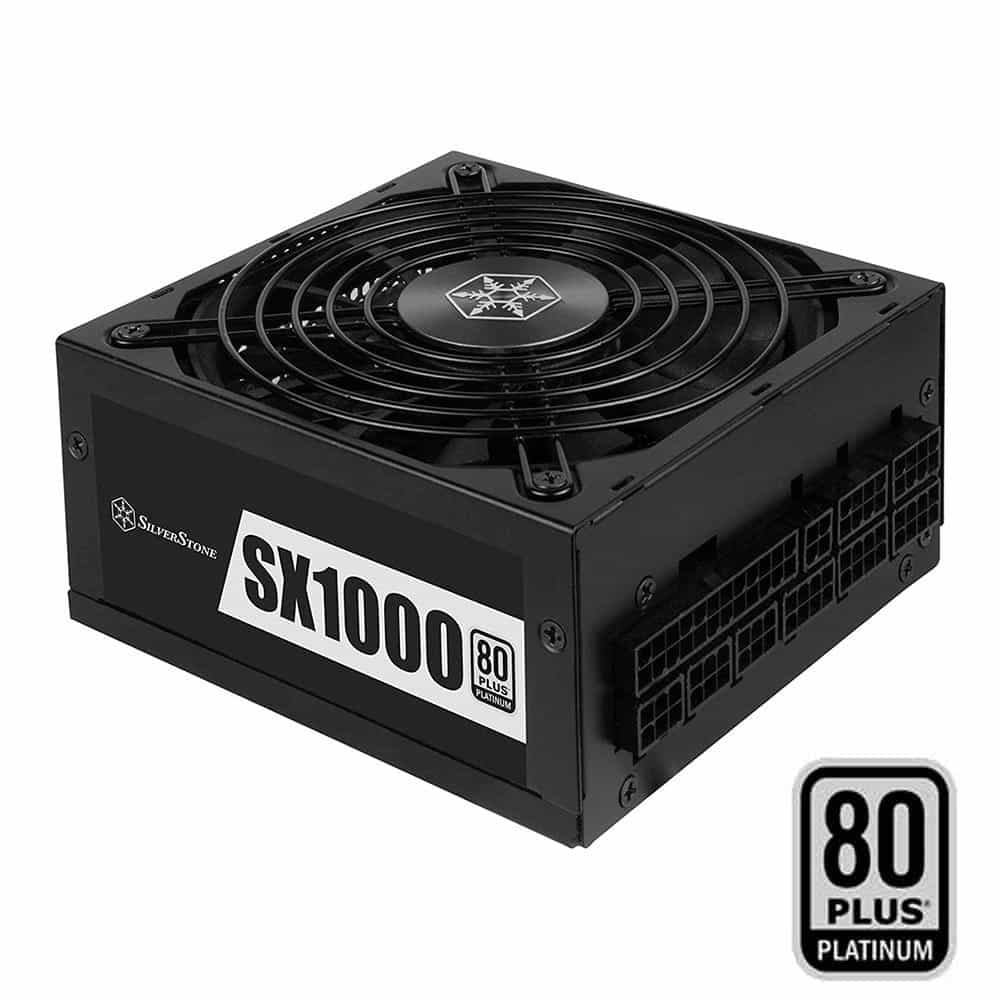

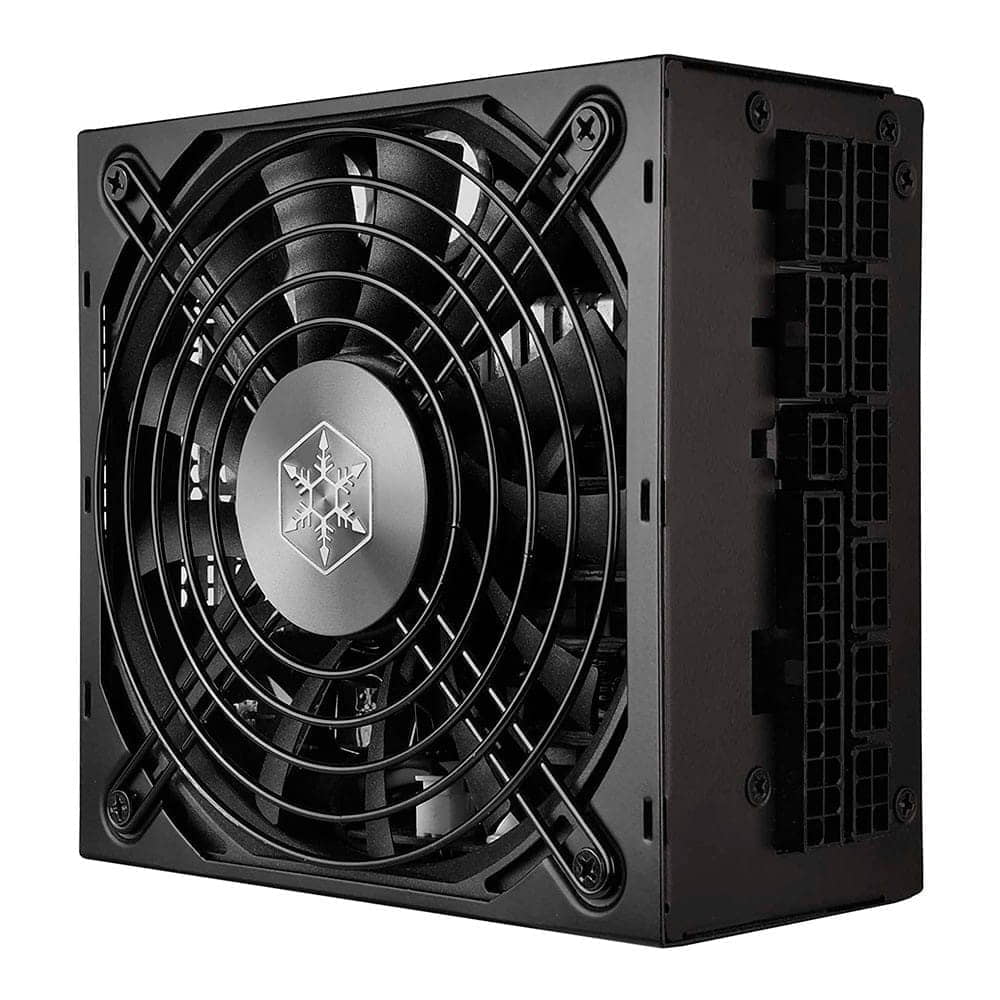

SilverStone SST-SX1000-LPT 1000W SFX (80 Plus Platinum)

SilverStone SST-SX1000-LPT 1000W SFX (80 Plus Platinum)

SilverStone
  • SFX-L form factor for use in small form factor computers
  • 1000W continuous power output rated for 24/7 operation
  • Class leading + 12V single rail with 83.3A
  • High efficiency with 80 PLUS Platinum certification
  • Quiet 120mm dual ball bearing fan with advanced fanless operation
  • 100% modular short cables with flexible flat arrays
  • Tight ± 3% voltage regulation and low ripple and noise
  • 24/7 continuous power output with operating temperature of 50?
  • High quality construction with all Japanese capacitors

P/N: SST-SX1000-LPTV1.1 - EAN/UPC: 4710679810218

202,41 € Without VAT
244,92 € With VAT
Only 3 units left
Delivery 24/48h working
3 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
73,33 €
Without VAT
88,73 €
With VAT
Transformador AC-DC 192W 12V 16A para PicoXT
100,00 €
Without VAT
121,00 €
With VAT
SEASONIC SSE-4501PF-48
10,36 €
Without VAT
12,54 €
With VAT
Regleta blanca 6 tomas.

At this time, we do not have in our catalog any product with characteristics identical to: SilverStone SST-SX1000-LPTV1.1. However, we can show you very similar products, if you tell us what you are looking for:
Formate
Wiring type
Power
Certification

Silverstone TX700-G is a power supply designed with 80 Plus Platinium efficiency level to reduce waste heat and save electricity.

100% modular cable design compatible with the use of cable kits such as Silverstone PP05-E or for easy removal in case of routed and flanged cables.

The 175mm depth sets a new standard for high voltage AM with modular cables. Powerful single + 12V rail design, perfect for future high-end upgrades or overclocking. Its ± 3% regulation with low ripple and loudness level for high stability.

In addition, it has an ultra-quiet 80mm fan with intelligent RPM control and silent operation with a maximum of 18dBA during fan operation. Fanless mode is available below 20% load.

Highlights...

* SFX-L form factor for use in small form factor computers
* Class leading + 12V single rail with 83.3A.
* High efficiency with 80 PLUS Platinum certification.
* Strict voltage regulation of ± 3% and low ripple and noise.
* High quality construction with all Japanese capacitors.


Datos Generales
Número de producto

SST-SX1000-LPT

Max. salida DC

1000W

Densidad de potencia

969W por litro

Rango de carga



+3.3V +5V +12V +5VSB -12V

Max. (amperio)

25A 25A 83.3A 3.0A 0.3A

Pico (amperio)

/ / / / /

Min. (amperio)

0A 0A 0A 0A 0A

Rango (%)

±3% ±3% ±3% ±5% ±10%

linea Reg.(%)

±1% ±1% ±1% ±1% ±1%

Ripple(mVp-p)

40mV 40mV 100mV 40mV 80mV
Modelo (seguridad)

SST-SX1000-LPT

Color

Negro (pintura sin plomo)

Combinado +3.3V & +5V

125W

Combinado+12V

999,6W

Voltaje de entrada

90V ~ 264V

Rango de voltaje de entrada

47Hz ~ 63Hz

PFC

PFC activo (PF>0.9 a plena carga)

Eficiencia

89% ~ 92% al 20% ~ 100% de carga

MTFB

100,000 horas

Temperatura operativa

0°C ~ 50°C

Protecciones

Protección por exceso de corriente
Protección por exceso de potencia
Protección por exceso de voltaje
Protección por cortocircuitos
Protección por exceso de la temperatura

Conectores

1 x conector placa madre 24 / 20 pin(300mm)
2 x conector 12V 8 / 4 pin EPS / ATX("400mm" x 2)
6 x conector PCIE 8 / 6 pin(400mm / 150mm x3)
8 x conector SATA("300mm / 200mm / 100mm / 100mm" x 2)
3 x conector de periféricos de 4 pin(300mm / 200mm / 200mm)
1 x conector Floppy 4 pin (100mm)

Sistema de refrigeración

Ventilador único de 120mm con rodamientos dobles

Formato SFX-L
Nivel sonoro

0 ~ 36 dBA

Medidas

125 mm (Ancho) × 63.5 mm (Alto) × 130 mm (Profundo)

Peso

1,39 Kg

Certification

80 PLUS Platinum

Varias

Compatible with ATX12V v2.4

Silverstone TX700-G is a power supply designed with 80 Plus Platinium efficiency level to reduce waste heat and save electricity.

100% modular cable design compatible with the use of cable kits such as Silverstone PP05-E or for easy removal in case of routed and flanged cables.

The 175mm depth sets a new standard for high voltage AM with modular cables. Powerful single + 12V rail design, perfect for future high-end upgrades or overclocking. Its ± 3% regulation with low ripple and loudness level for high stability.

In addition, it has an ultra-quiet 80mm fan with intelligent RPM control and silent operation with a maximum of 18dBA during fan operation. Fanless mode is available below 20% load.

Highlights...

* SFX-L form factor for use in small form factor computers
* Class leading + 12V single rail with 83.3A.
* High efficiency with 80 PLUS Platinum certification.
* Strict voltage regulation of ± 3% and low ripple and noise.
* High quality construction with all Japanese capacitors.


Datos Generales
Número de producto

SST-SX1000-LPT

Max. salida DC

1000W

Densidad de potencia

969W por litro

Rango de carga



+3.3V +5V +12V +5VSB -12V

Max. (amperio)

25A 25A 83.3A 3.0A 0.3A

Pico (amperio)

/ / / / /

Min. (amperio)

0A 0A 0A 0A 0A

Rango (%)

±3% ±3% ±3% ±5% ±10%

linea Reg.(%)

±1% ±1% ±1% ±1% ±1%

Ripple(mVp-p)

40mV 40mV 100mV 40mV 80mV
Modelo (seguridad)

SST-SX1000-LPT

Color

Negro (pintura sin plomo)

Combinado +3.3V & +5V

125W

Combinado+12V

999,6W

Voltaje de entrada

90V ~ 264V

Rango de voltaje de entrada

47Hz ~ 63Hz

PFC

PFC activo (PF>0.9 a plena carga)

Eficiencia

89% ~ 92% al 20% ~ 100% de carga

MTFB

100,000 horas

Temperatura operativa

0°C ~ 50°C

Protecciones

Protección por exceso de corriente
Protección por exceso de potencia
Protección por exceso de voltaje
Protección por cortocircuitos
Protección por exceso de la temperatura

Conectores

1 x conector placa madre 24 / 20 pin(300mm)
2 x conector 12V 8 / 4 pin EPS / ATX("400mm" x 2)
6 x conector PCIE 8 / 6 pin(400mm / 150mm x3)
8 x conector SATA("300mm / 200mm / 100mm / 100mm" x 2)
3 x conector de periféricos de 4 pin(300mm / 200mm / 200mm)
1 x conector Floppy 4 pin (100mm)

Sistema de refrigeración

Ventilador único de 120mm con rodamientos dobles

Formato SFX-L
Nivel sonoro

0 ~ 36 dBA

Medidas

125 mm (Ancho) × 63.5 mm (Alto) × 130 mm (Profundo)

Peso

1,39 Kg

Certification

80 PLUS Platinum

Varias

Compatible with ATX12V v2.4
