Español SilverStone SST-ST75F-PB Strider Plus 750W (80 Plus Bronze)
SilverStone SST-ST75F-PB Strider Plus 750W (80 Plus Bronze)
- High efficiency with 80 PLUS Bronze certification.
- 24/7 continuous power output with 40ºC operating temperature.
- 100% modular and flat cables.
- First-class single + 12V rail.
- Strict voltage regulation of ± 3% and low ripple and noise.
- Silent 120mm 18dBA fan.
- Accepts 8/6-pin PCIe connectors.
of guarantee
shipping
Secure pay
The Strider Series is SilverStone's most versatile and proven line of power supply products with models from 500W to 1500W and packed with features for the enthusiast. Following this fine tradition, SilverStone Strider Bronze models retain high efficiency (80 PLUS Bronze), compact dimensions (140mm deep), tight regulation and quiet cooling.
Additionally, a new generation of 100% modular cables with flexible flat arrays help make Strider Plus Bronze easy to use and manage cables in almost all system builds. Enthusiasts looking for a power supply that has all the right features for a great looking and well balanced system, Strider Plus Bronze models will do the job perfectly.
Highlights ...
* High efficiency with 80 PLUS Bronze certification.
* 24/7 continuous power output with 40ºC operating temperature.
* 100% modular and flat cables.
* Strict voltage regulation of ± 3% and low ripple and noise.
* Accepts 8/6 pin PCIe connectors.
| Modelo No. | SST-ST75F-PB |
| Max. salida DC | 750W |
| Densidad de potencia | 415W por litro |
| Color | Negro （Pintura sin plomo） |
| Combinado +3.3V & +5V | 100W |
| Combinado+12V | 710W |
| Voltaje de entrada | 103 ~ 264 Vrms |
| Rango de voltaje de entrada | 47Hz~63Hz |
| PFC | PFC activo (PF>0.9 a plena carga) |
| Eficiencia | 82%~85% al 20%~100% de carga |
| MTFB | 100,000 horas |
| Temperatura operativa | 0°C ~ 40°C |
| Protecciones | Protección por exceso de potencia Protección por exceso de corriente Protección por exceso de voltaje Protección por exceso de temperatura Protección por bajo voltaje Protección frente a cortocircuitos |

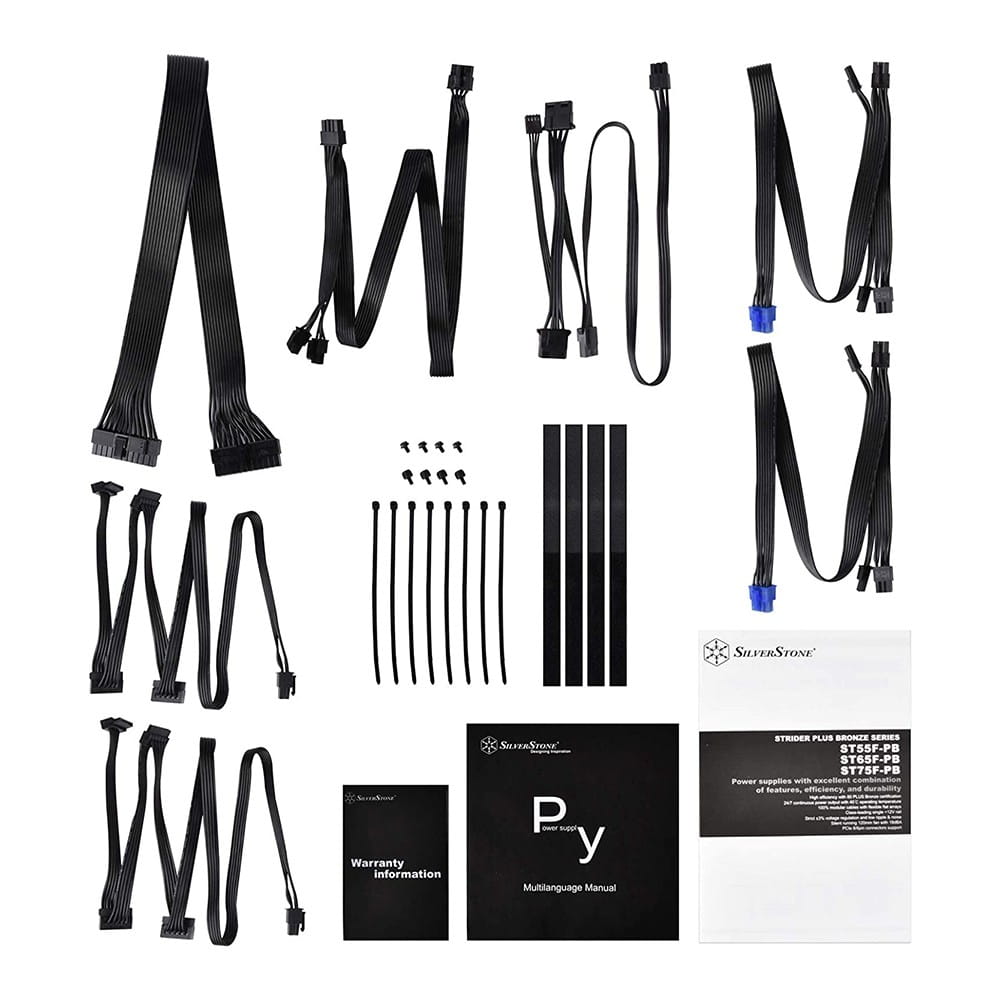

| Conectores | 1 x 24 / 20-Pines conector placa base（600mm） 2 x 8 / 4-Pines conector EPS / ATX 12V（750mm / 150mm）* 4 x 8/6-Pines conector PCIe（"550mm / 150mm" x 2） 8 x SATA conector（"600mm / 150mm / 150mm / 150mm" x 2） 3 x 4-Pines conector periféricos（600mm / 150mm / 150mm） 1 x 4-Pines conector floppy（150mm） |
| Sistema de refrigeración | Ventilador silencioso de 120mm |
| Formato | ATX |
| Nivel sonoro | mínimo 18 dBA |
| Medidas | 150 mm (Ancho) x 86 mm (Alto) x 140 mm (Profundo) |
| Peso | 1,51 kgs |
| Certification | 80 PLUS Bronze |
| Varias | Compatible with ATX12V v2. |
