Español SilverStone SST-ST30SF SFX 300W (80 Plus Bronze)

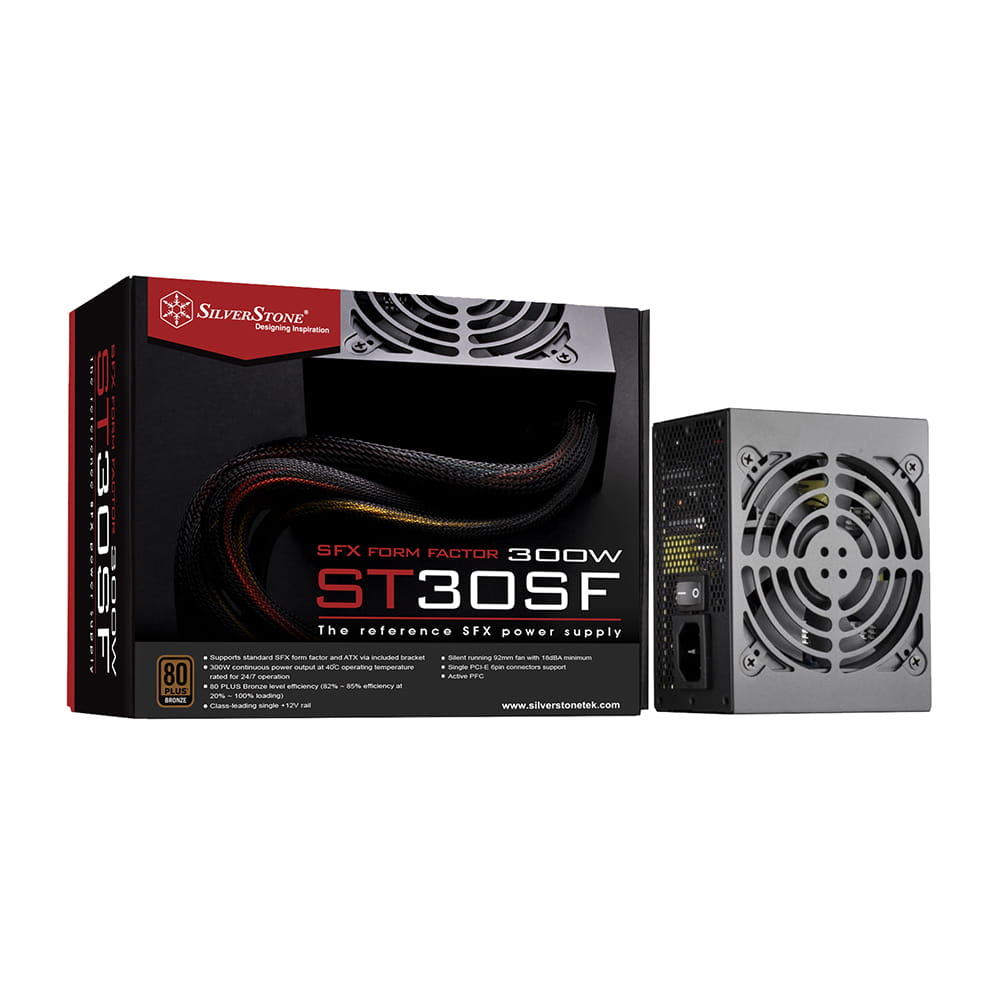

SilverStone SST-ST30SF SFX 300W (80 Plus Bronze)
- Accepts standard SFX and ATX thanks to the included Bracket.
- Continuous output power of 300W at an operational temperature of 40ºC, suitable for continuous use (V2.0).
- Efficiency level 80 PLUS Bronze (82% ~ 85% efficiency at 20% ~ 100% load).
- First class single rail with + 12V.
- Silent 92mm fan (V2.0).
- Accepts single 6-pin connector.
- Active PFC.
of guarantee
Insured
Secure pay
| Formate | |
| Wiring type | |
| Power | |
| Certification |
Silverstone has revised version 2.0 of the SFX SST-ST30SF compact power supply with a rated power of 450 watts, especially regarding gaming PCs and home computers.
Thanks to the SFX format, this power supply is mainly intended for mini-housings (generally in mini ITX format) and offers high performance with minimal dimensions. Unlike its predecessor, version 2.0 is based on a larger 92mm fan and therefore quieter with an optimized fan curve.
The SST-ST30SF V2.0 provides a perfect solution for almost all users who want to combine high performance with low volume.
Designed with an 80 PLUS Bronze efficiency level to reduce residual heat and save electricity.

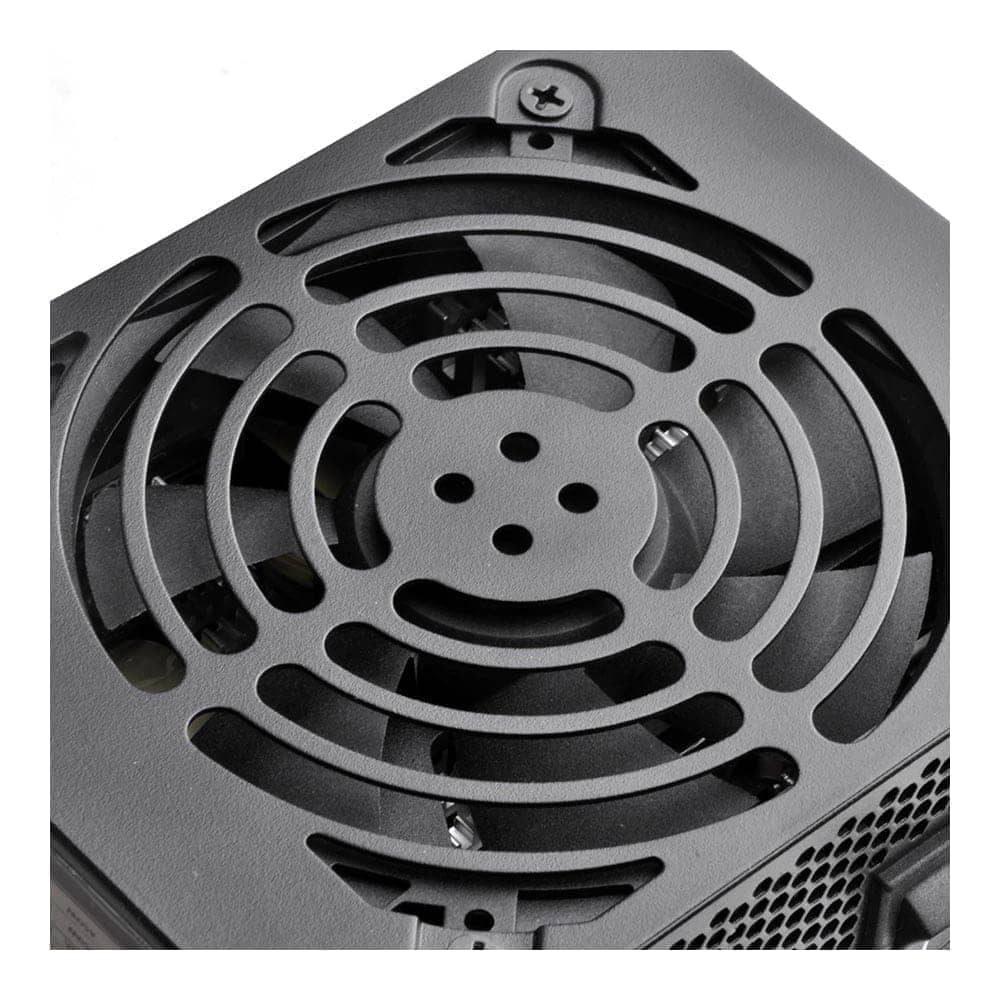

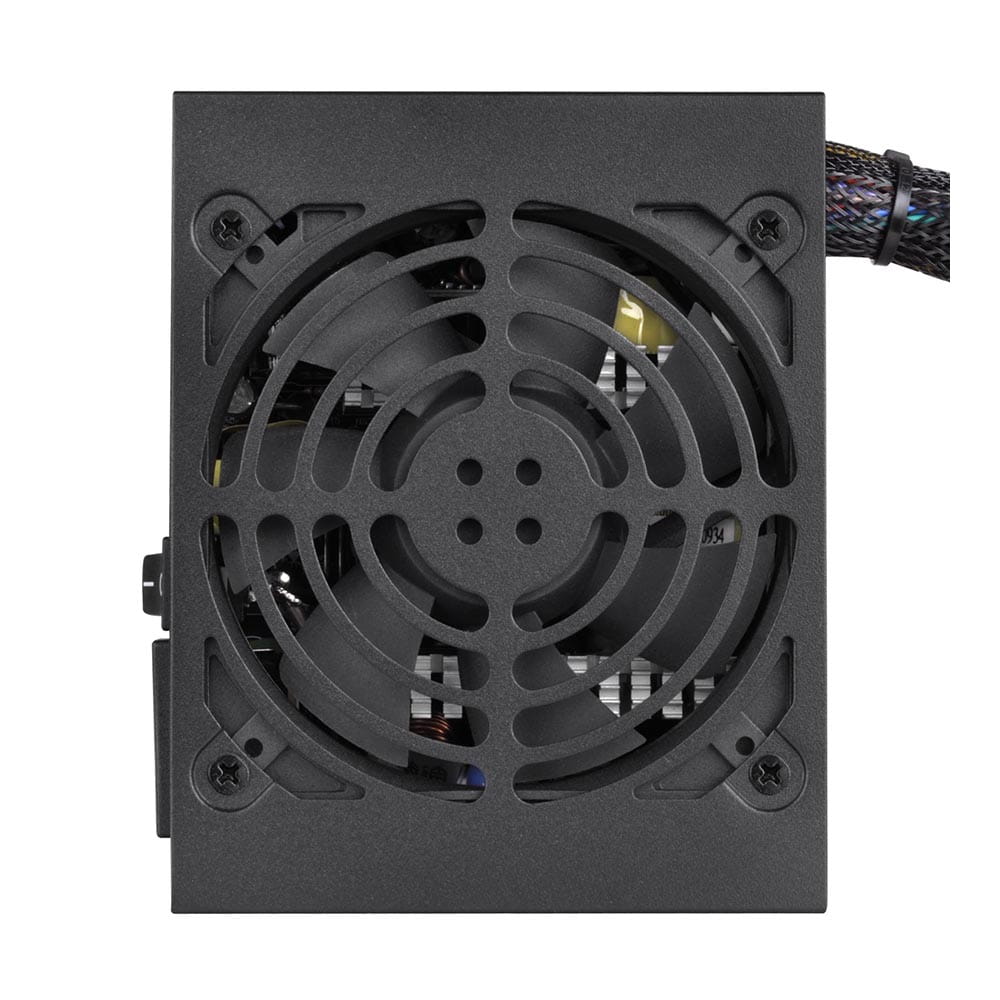

Included 92mm fan with excellent airflow and low noise, perfect for use in the office or at home.
The power supply has a 6-pin PCIe connector to connect a graphics card. Additionally, 20 + 4-pin, 4 + 4-pin, three SATA, two 4-pin Molex, and a flexible connector are available for the motherboard and peripherals.

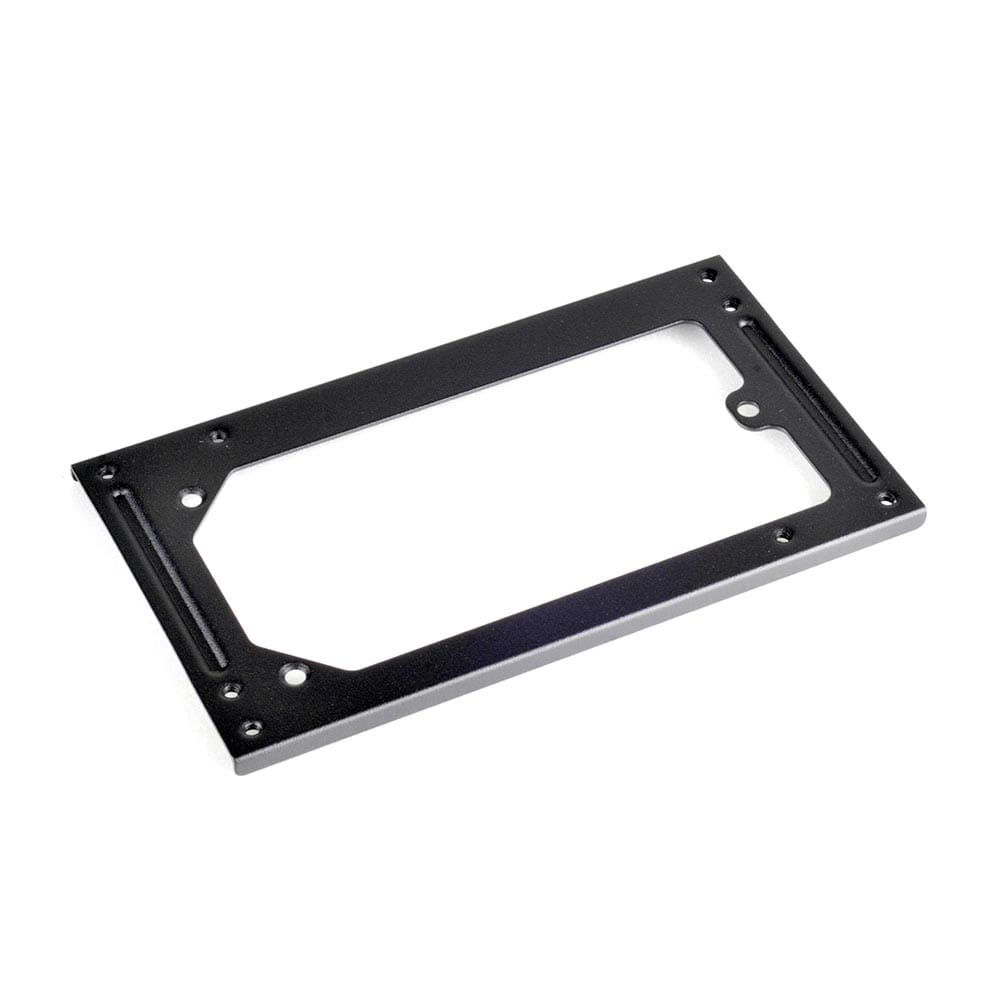

But the ST30SF also plays in the league in terms of efficiency and achieves an efficiency of up to 85 percent, which is why the PSU has received an 80 PLUS bronze certification. An adapter cover is included for mounting to ATX housings.
Highlights ...
* Accepts standard SFX and ATX thanks to the included Bracket.
* 300W continuous output power at an operating temperature of 40ºC, suitable for continuous use (V2.0).
* Efficiency level 80 PLUS Bronze (82% ~ 85% efficiency at 20% ~ 100% load).
* First class single rail with + 12V.
* 92mm silent fan (V2.0).
* Accepts single 6-pin connector.
* PFC active.
| Modelo | SST-ST30SF | ||||||||||||||||||||||||||||||||||||
| Max. salida DC | 300W | ||||||||||||||||||||||||||||||||||||
| Densidad de potencia | 378W por litro | ||||||||||||||||||||||||||||||||||||
| Rango de carga (V2.0) | |||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
| Color | Negro (pintura sin plomo) | ||||||||||||||||||||||||||||||||||||
| Combinado +3.3V & +5V | 90W (V2.0) | ||||||||||||||||||||||||||||||||||||
| Combinado+12V | 300W / 25A (V2.0) | ||||||||||||||||||||||||||||||||||||
| Voltaje de entrada | 90 - 264 Vrms | ||||||||||||||||||||||||||||||||||||
| Rango de voltaje de entrada | 47Hz ~ 63Hz | ||||||||||||||||||||||||||||||||||||
| PFC | Active PFC (PF>0.9 en plena carga) | ||||||||||||||||||||||||||||||||||||
| Eficiencia | 82%~85% al 20%~100% de carga | ||||||||||||||||||||||||||||||||||||
| MTFB | 100,000 horas | ||||||||||||||||||||||||||||||||||||
| Temperatura operativa | 0 ~ 40℃(V2.0) | ||||||||||||||||||||||||||||||||||||
| Protecciones | Protección por exceso de corriente Protección por exceso de voltaje Protección por cortocircuitos Protección por exceso de potencia (V2.0 only) Protección por poco voltaje (V2.0 only) |
||||||||||||||||||||||||||||||||||||
| Conectores | 1 x 24 / 20-Pin motherboard connector（300mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（400mm） 1 x 6-Pin PCIE connector（400mm） 3 x SATA connector （300mm / 200mm / 100mm） 2 x 4-Pin Peripheral connector （300mm / 200mm） 1 x 4-Pin Floppy connector（300mm / 200mm / 200mm） |
||||||||||||||||||||||||||||||||||||
| Sistema de refrigeración | Ventilador silencioso de 92mm (V2.0) | ||||||||||||||||||||||||||||||||||||
| Formato | SFX | ||||||||||||||||||||||||||||||||||||
| Nivel sonoro | Mínimo de 18dBA(V2.0) | ||||||||||||||||||||||||||||||||||||
| Dimensiones | 125 mm (Ancho) × 63.5 mm(Alto) × 100 mm(Profundo) | ||||||||||||||||||||||||||||||||||||
| Peso | 1.0 kg (V2.0) | ||||||||||||||||||||||||||||||||||||
| Certification | 80 PLUS Bronze | ||||||||||||||||||||||||||||||||||||
