Silverstone SST-SDP12. Adaptador 3.5" a 2x M.2 SATA + 1x M.2 NVMe

Silverstone SST-SDP12. Adaptador 3.5" a 2x M.2 SATA + 1x M.2 NVMe

SilverStone
  • You can mount two M.2 SATA SSDs and one NVMe M.2 SSD in a 3.5 ”device bay.
  • Accepts devices of various lengths: 42mm, 60mm, 80mm, 110mm.
  • Accepts PCIe NVMe M.2 SSDs up to 30.5mm wide.
  • Improve system performance by replacing your dual-plate disk with up to three M.2 SSDs.
  • Pre-drilled mounting holes make it easy to install and replace an SSD.
  • No driver installation is required.

P/N: SST-SDP12 - EAN/UPC: 4710007226605

43,18 € Without VAT
52,25 € With VAT
In stock
Approximate delivery between 09 noviembre and 09 noviembre
2 years
of guarantee
sending
shipping
100%
Secure pay

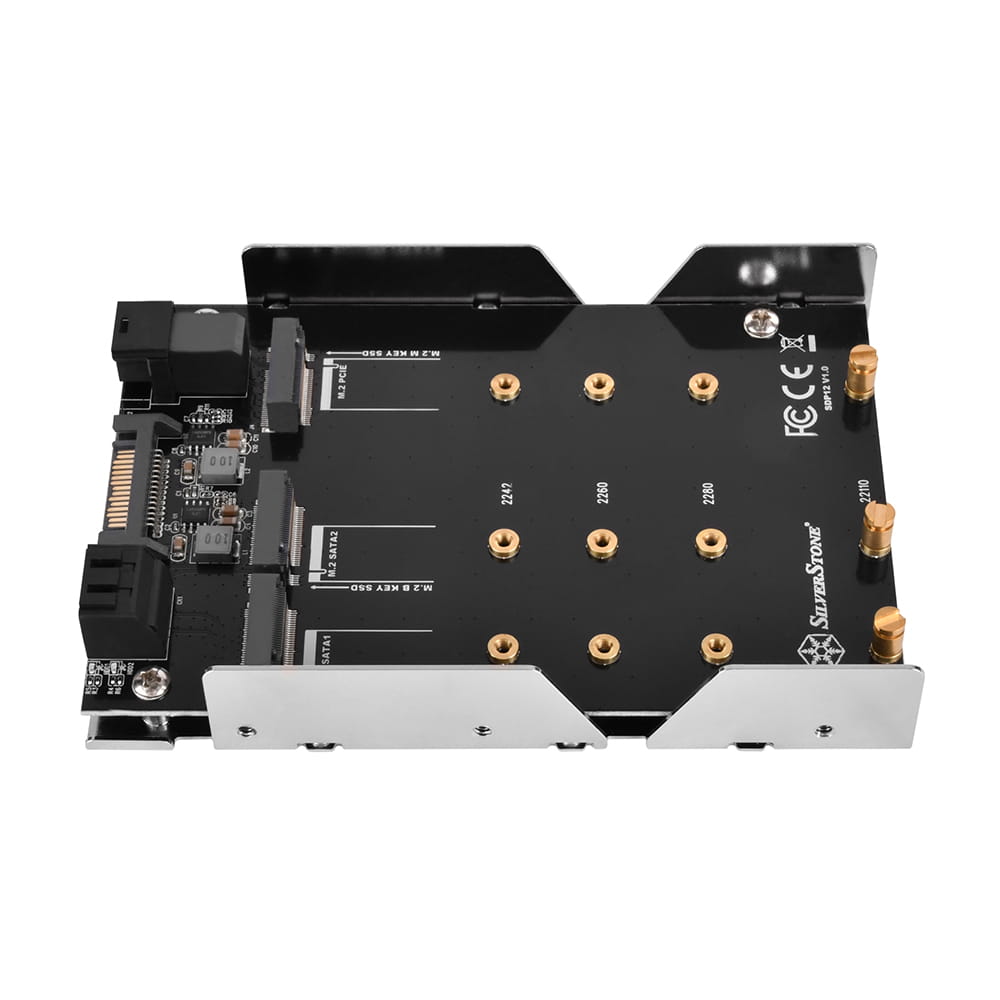

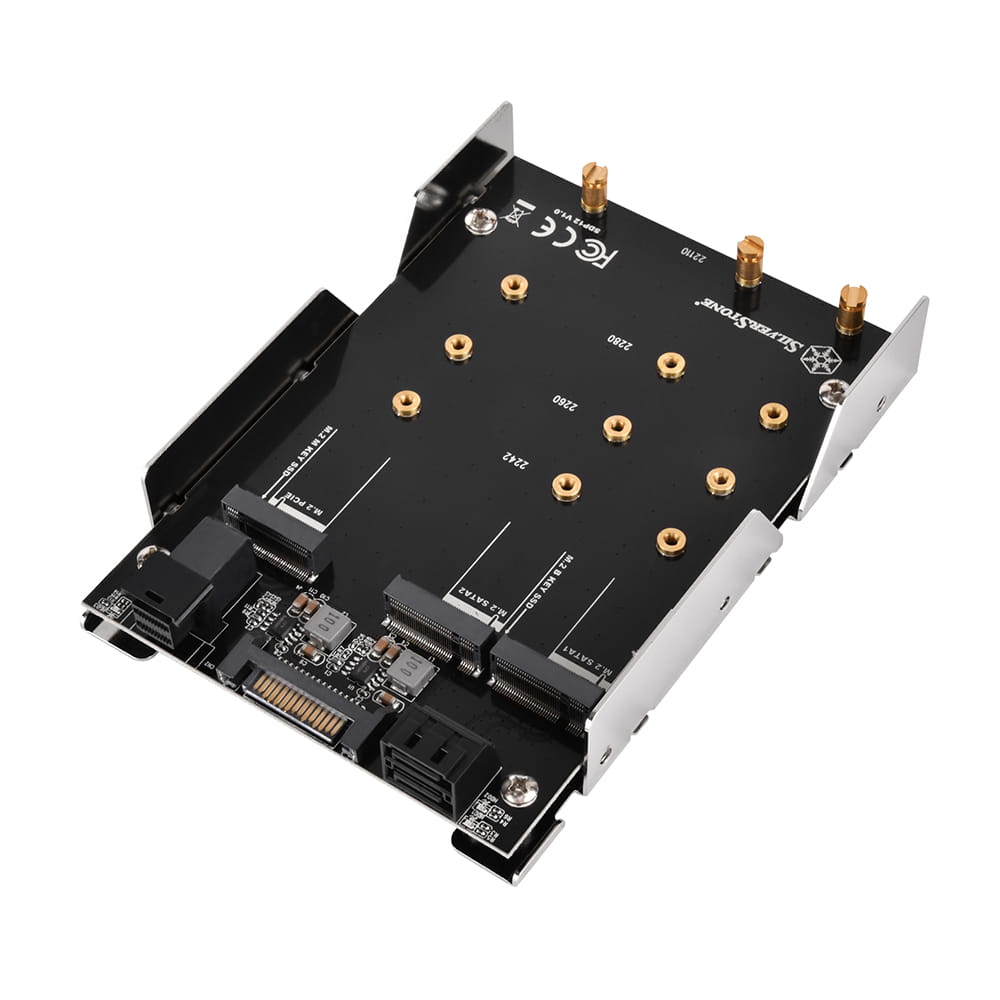

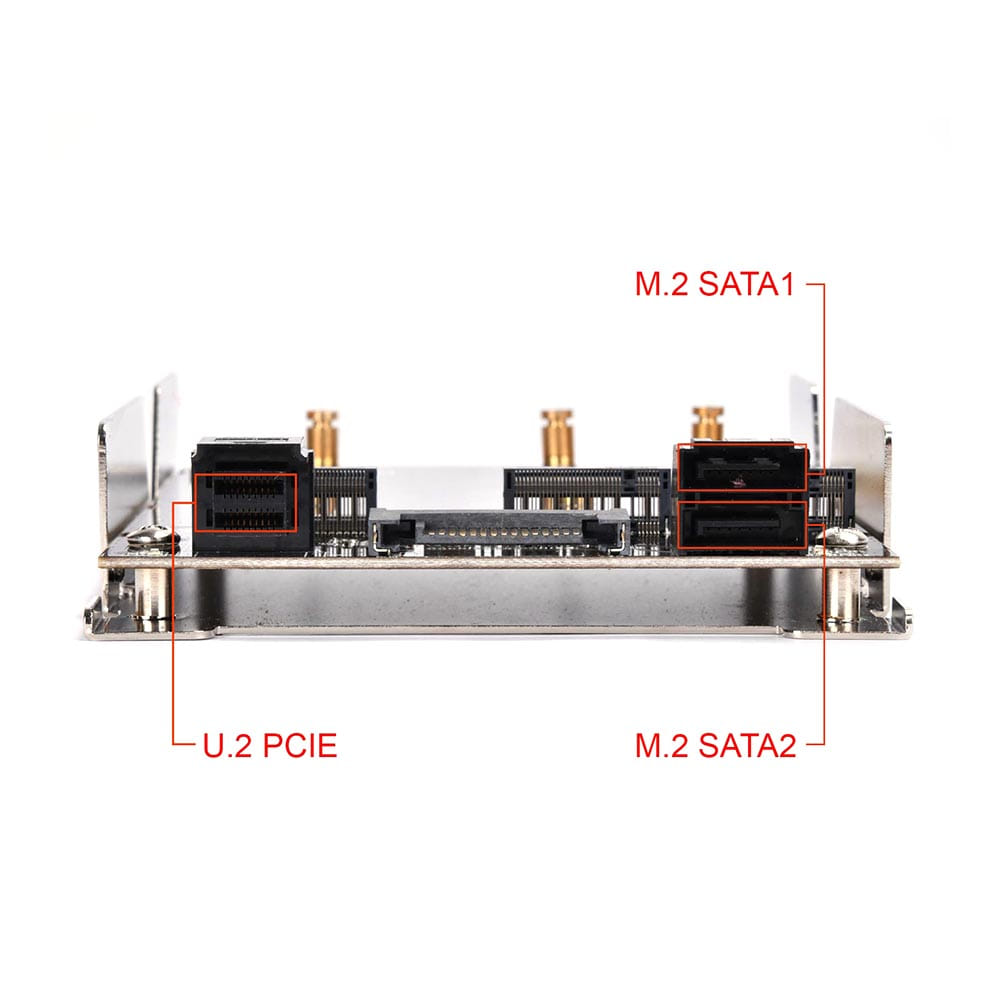

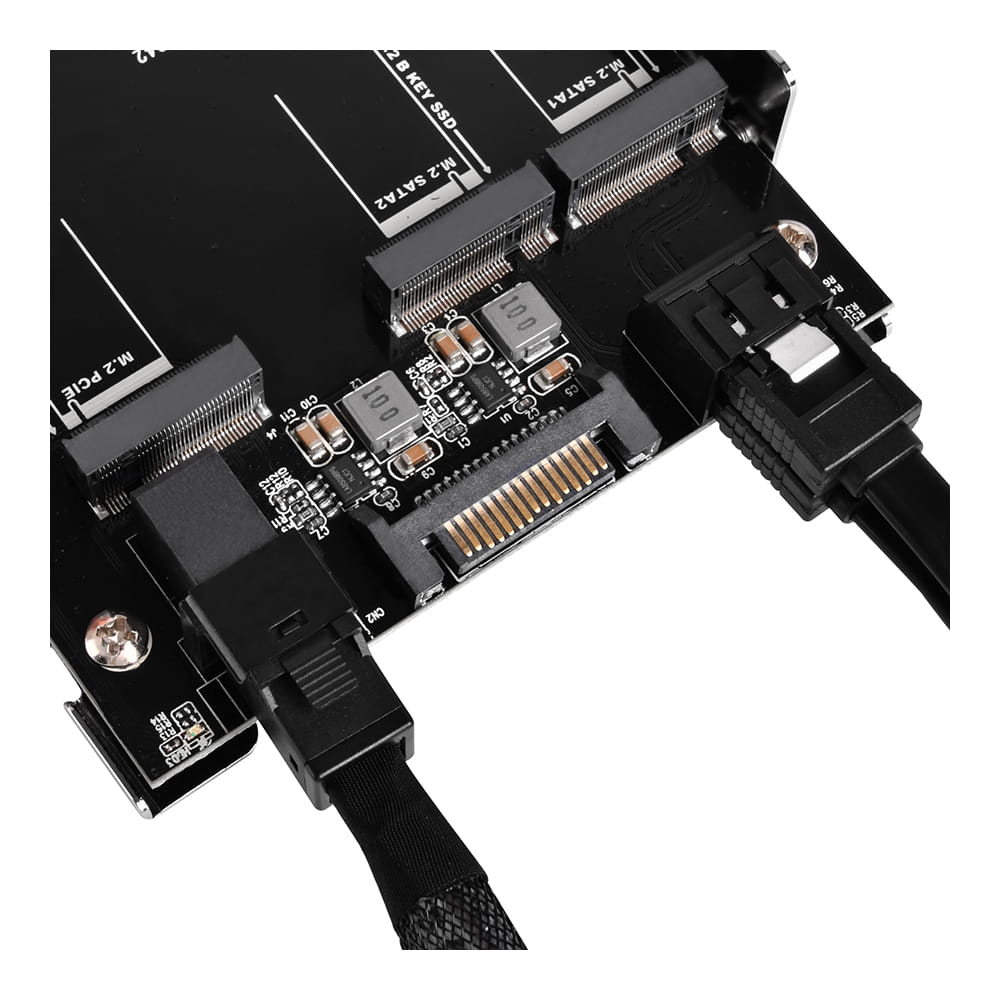

The Silverstone SST-SDP12 enables two M.2 SATA SSDs and one M.2 NVMe SSD to operate on two SATA ports and one mini-SAS (U.2) port.

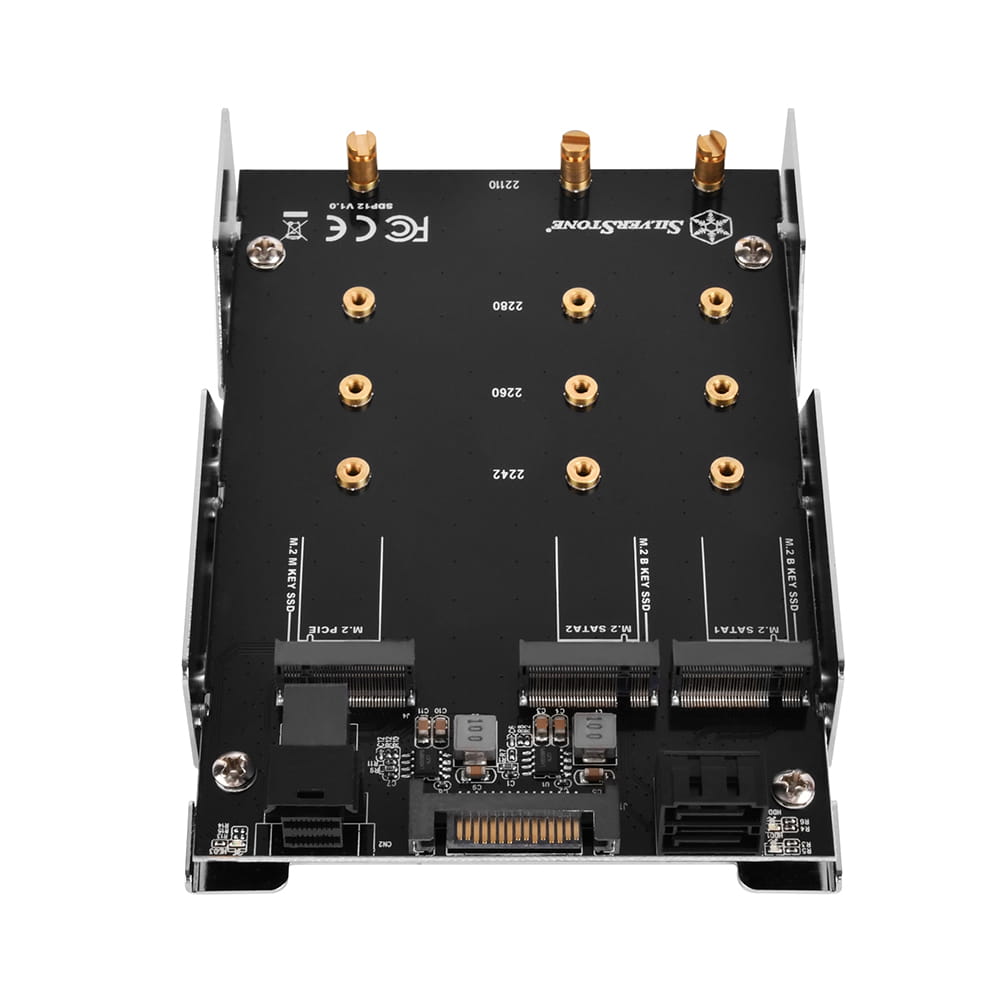

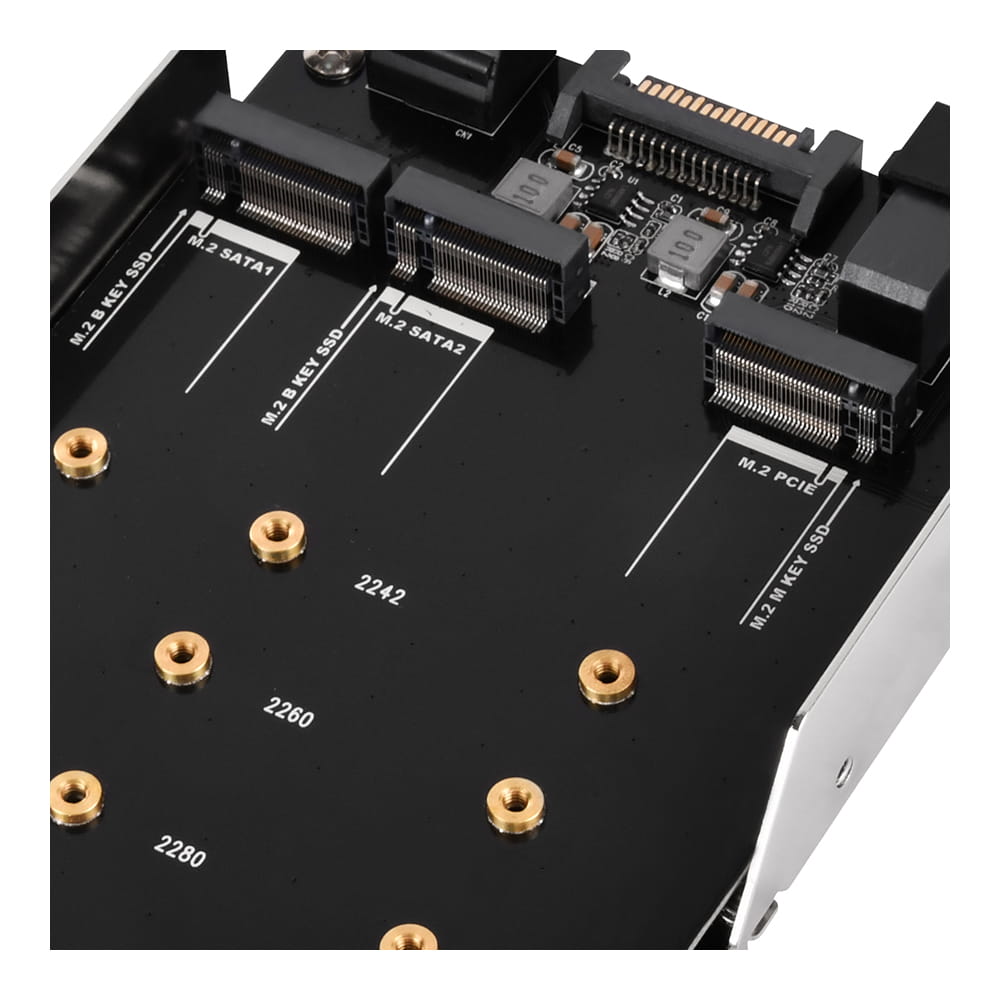

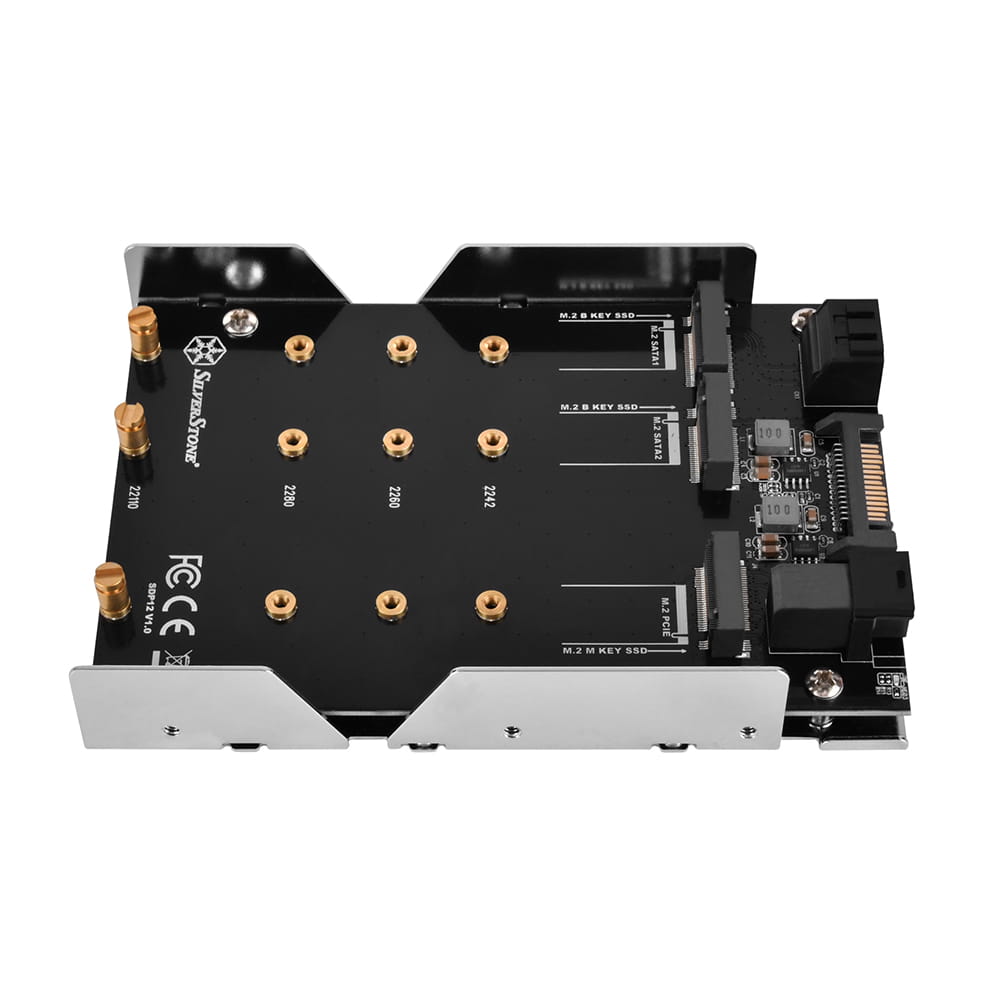

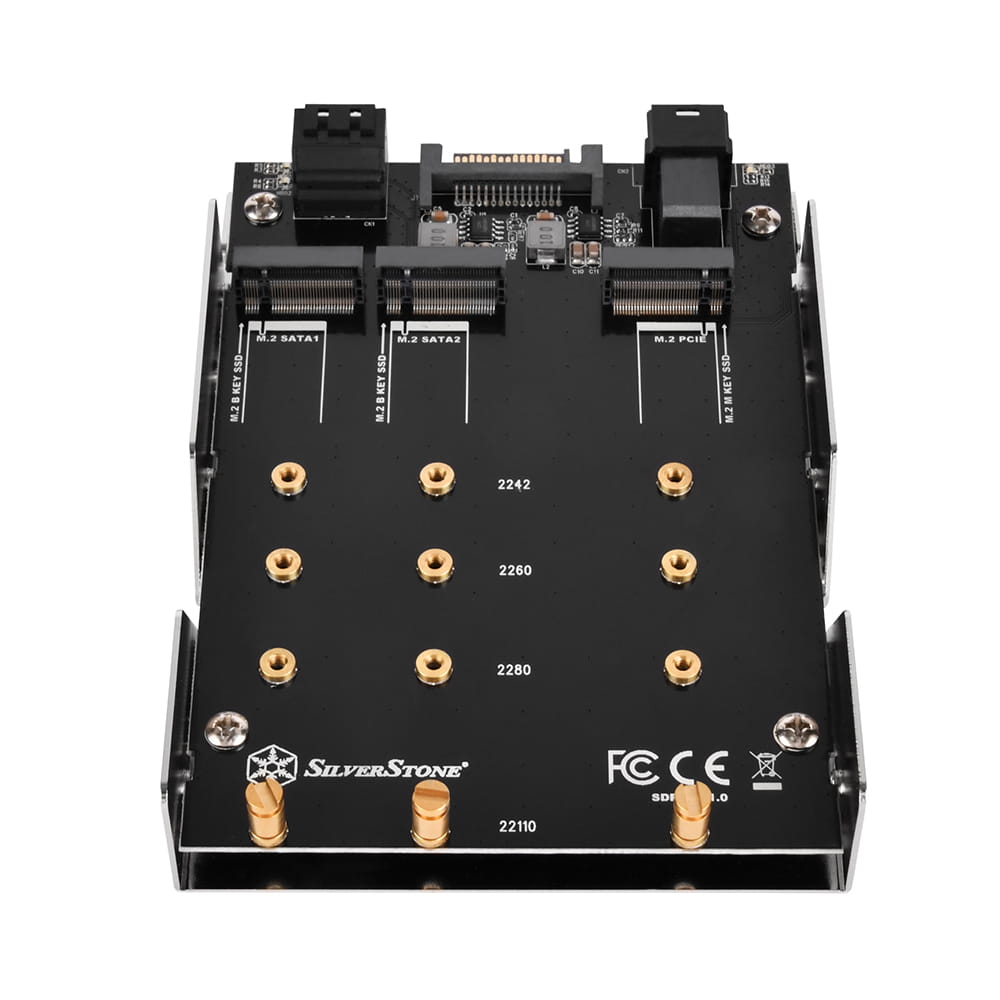

The three M.2 slots allow the installation of M.2 SSDs up to 110 millimeters long. Therefore, the adapter is compatible with almost all common M.2 SSD sizes. The 22110, 2280, 2260 or 2242 SSDs are inserted and screwed into the slots. There are three types of M.2 SSDs, please make sure you know the differences between them and if your system / motherboard supports them before using them with your SilverStone product.

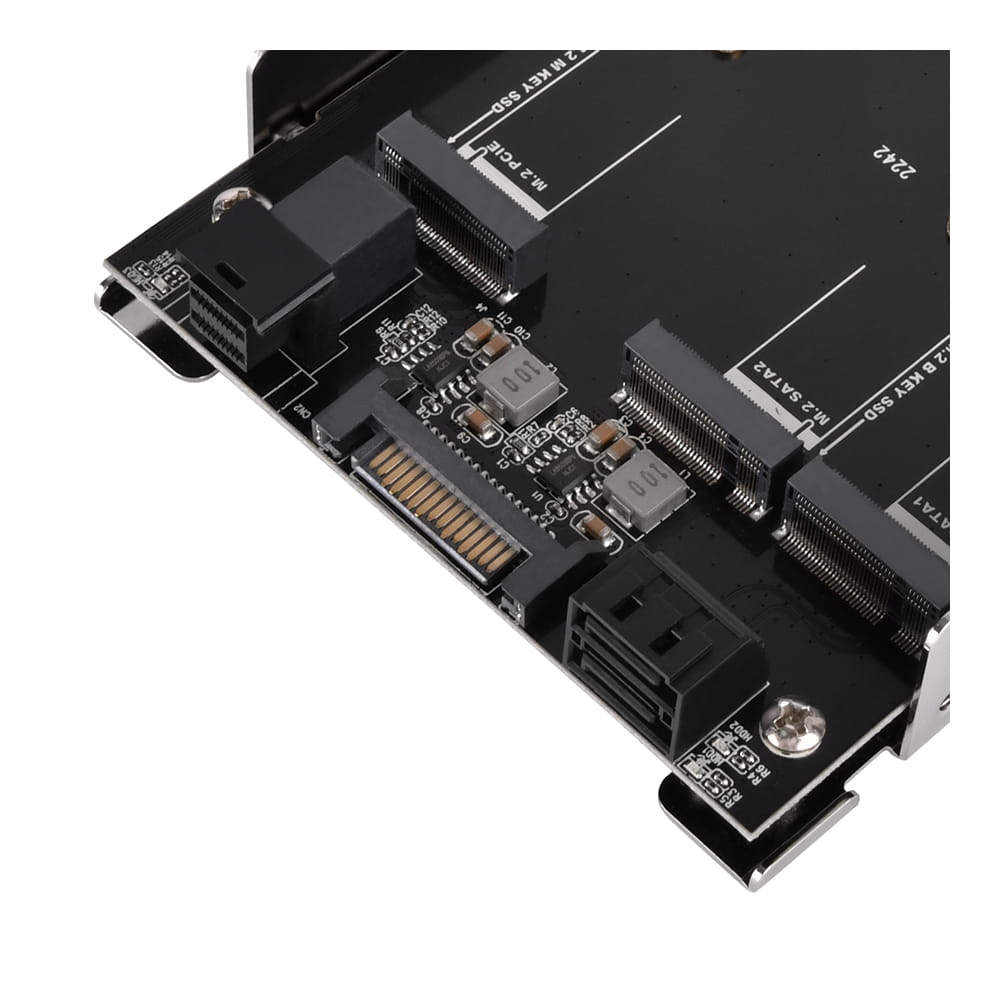

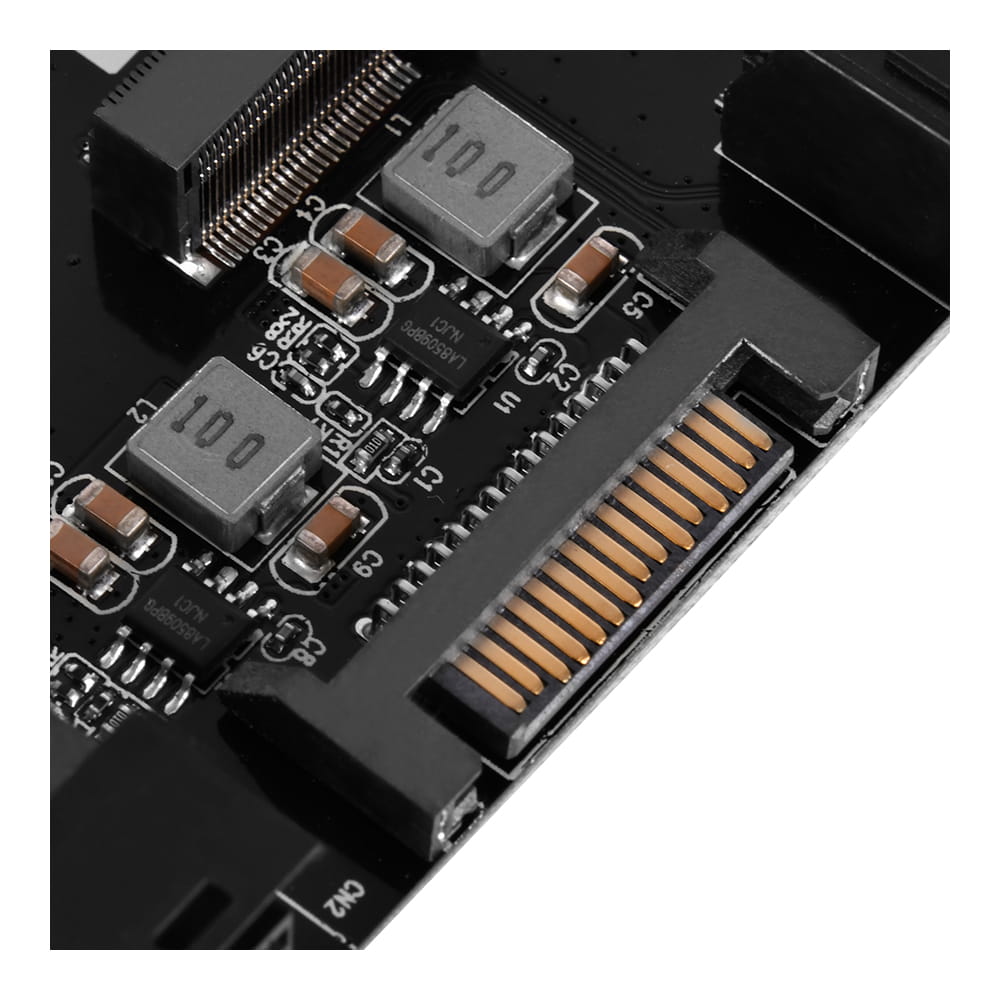

A 15-pin SATA connector is used for SATA power, which is used to power the adapter and the built-in SSD. The card uses the 3.5-inch form factor and can therefore easily be accommodated in a hard drive enclosure or mounting location for 3.5 "data carriers.

It is used in SATA SSDs and with an interface through the AHCI controller and the SATA 3.0 port (6 Gbit / s) exposed through the M.2 connector.

It is used in PCI Express SSDs and interfaces through the AHCI controller and PCI Express channels, providing backward compatibility with broad SATA support in operating systems at the cost of not providing optimal performance for using AHCI to access PCI Express SSDs.

It is used in PCI Express SSDs and interfaces through the NVMe controller and PCI Express channels, as a scalable, high-performance host controller interface specially designed and optimized to interface with PCI Express SSDs. The NVMe has been designed from the ground up, taking advantage of the low latency and parallelism of PCI Express SSDs and complementing the parallelism of contemporary CPUs, platforms and applications.

Highlights ...

* You can mount two M.2 SATA SSDs and one NVMe M.2 SSD in one 3.5 ”device bay.
* Accepts devices of various lengths: 42mm, 60mm, 80mm, 110mm.
* Accepts PCIe NVMe M.2 SSDs up to 30.5mm wide.
* Improve system performance by replacing your dual-plate disk with up to three M.2 SSDs.
* Pre-drilled mounting holes make it easy to install and replace an SSD.
* No driver installation required.

Modelo SST-SDP12
Color Plata
Material Acero pintado de 1,0mm
Alimentación 1x SATA 15-Pines

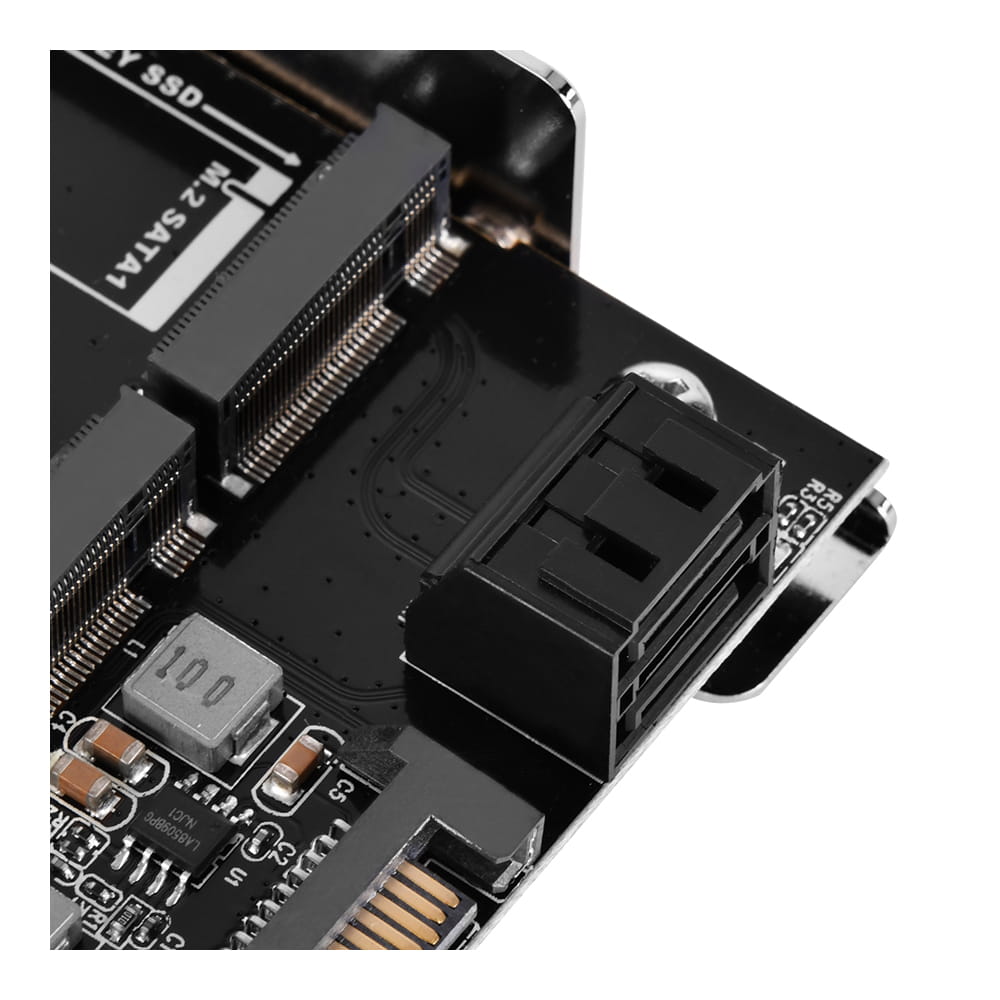

Interfaz de host 2x Conector SATA 7-Pines

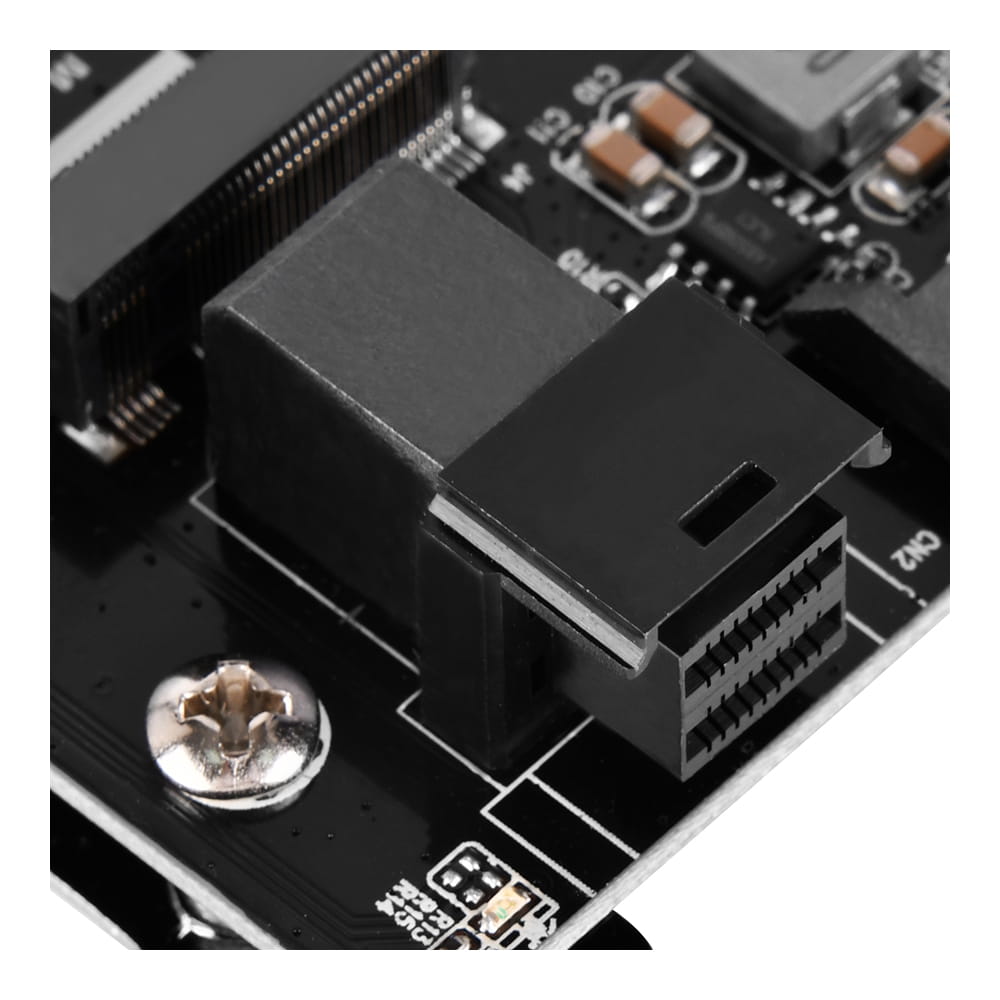

1x Conector SFF-8643 36-pines  (U.2)
Instalación Bahía de dispositivo interna de 3,5”
Capacidad 2x SATA M.2
1x PCIe NVMe M.2
Form factor M.2

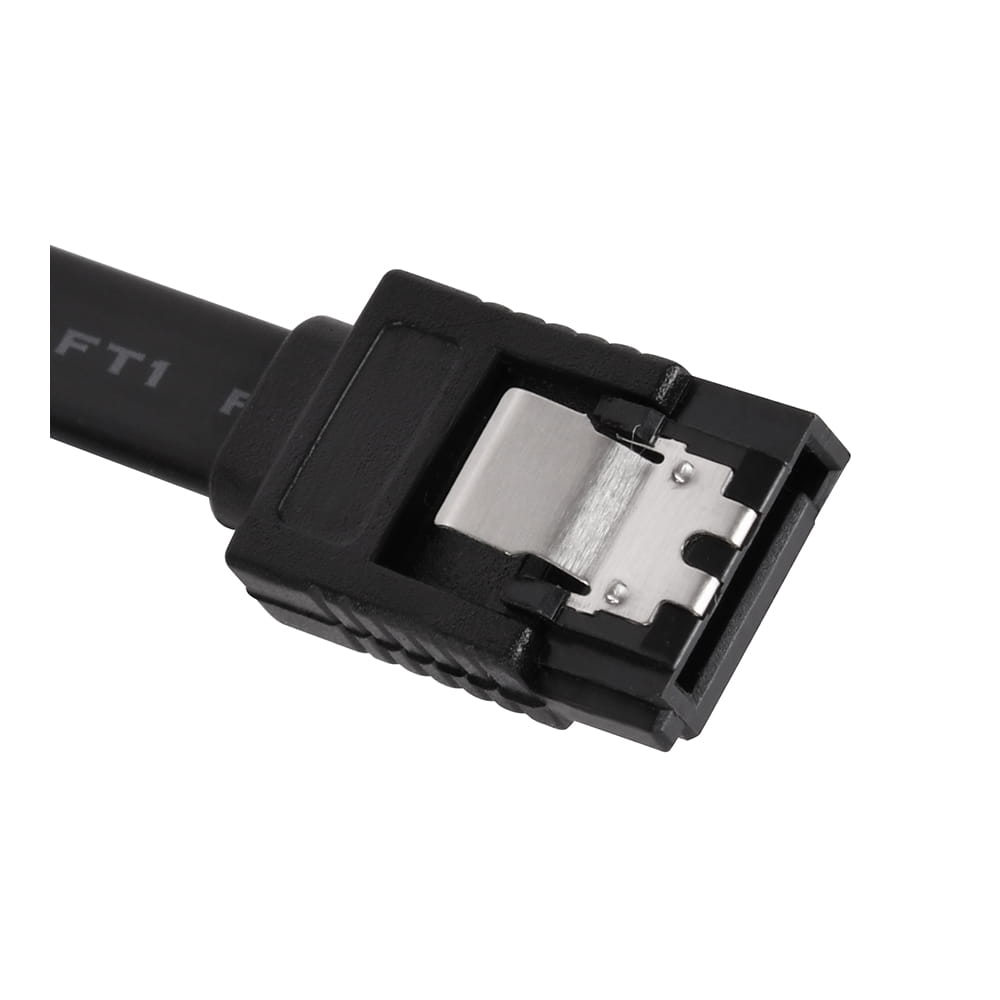

Longitud del cable SATA 500mm±10mm

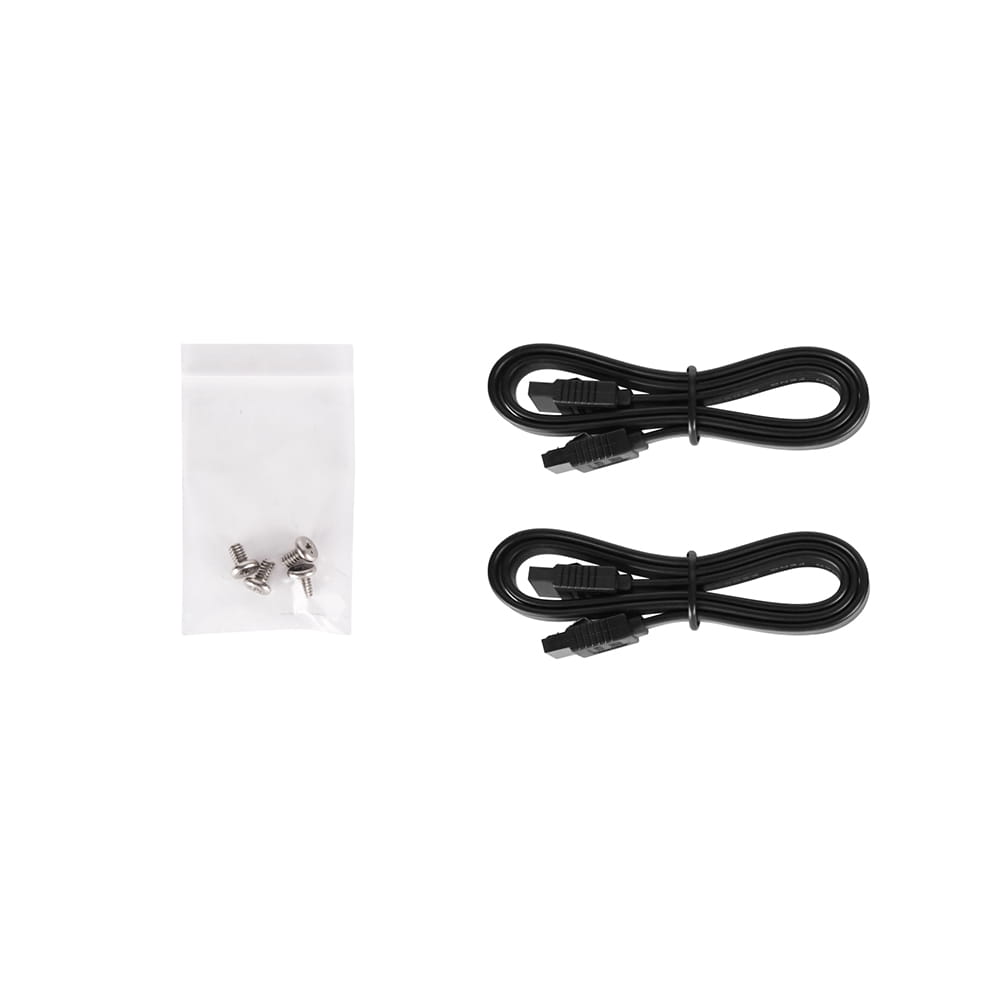

Número de cables SATA 2 pcs
Letra del modulo B key* basado en SATA
M key basado en NVMe PCIe x4
Indicador LED Acceso al HDD: Parpadeo azul**
Peso 235,4g±10g

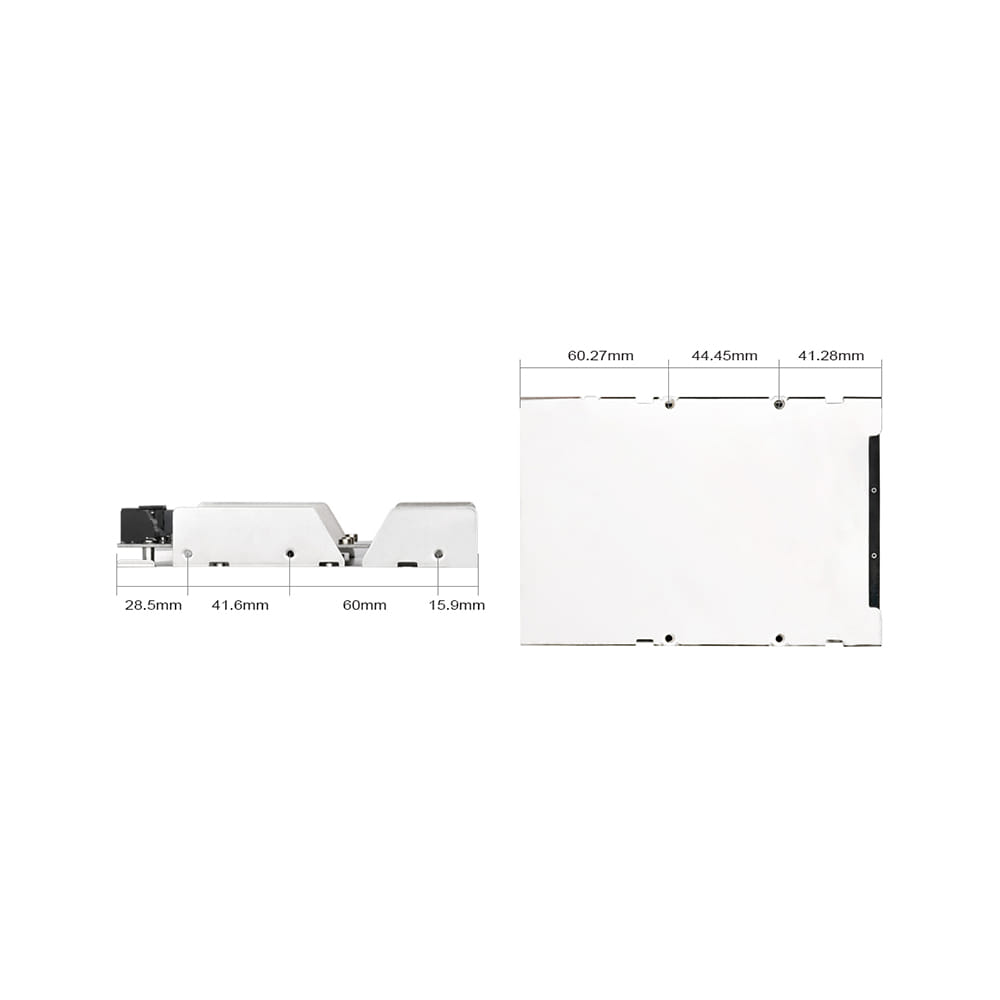

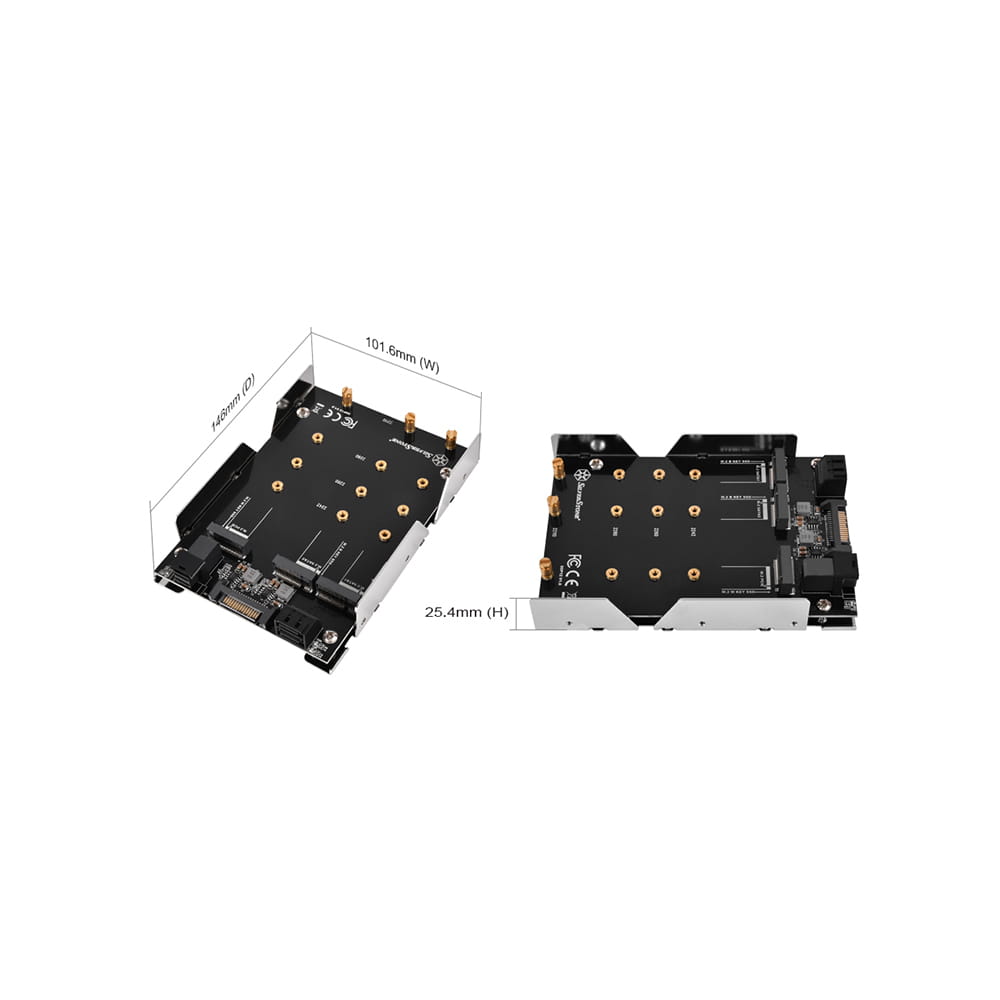

Dimensiones 101,6 mm (An) x 25,4 mm (Al) x 146 mm (P)
