SilverStone SST-RM22-312

SilverStone SST-RM22-312

SilverStone
  • Backplane with support for 12-port SAS/SATA drives and Mini-SAS HD SFF-8643 + SGPIO 12 Gb/s
  • Supports twelve 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays
  • Includes three 80mm x 38mm hot-swappable PWM fans

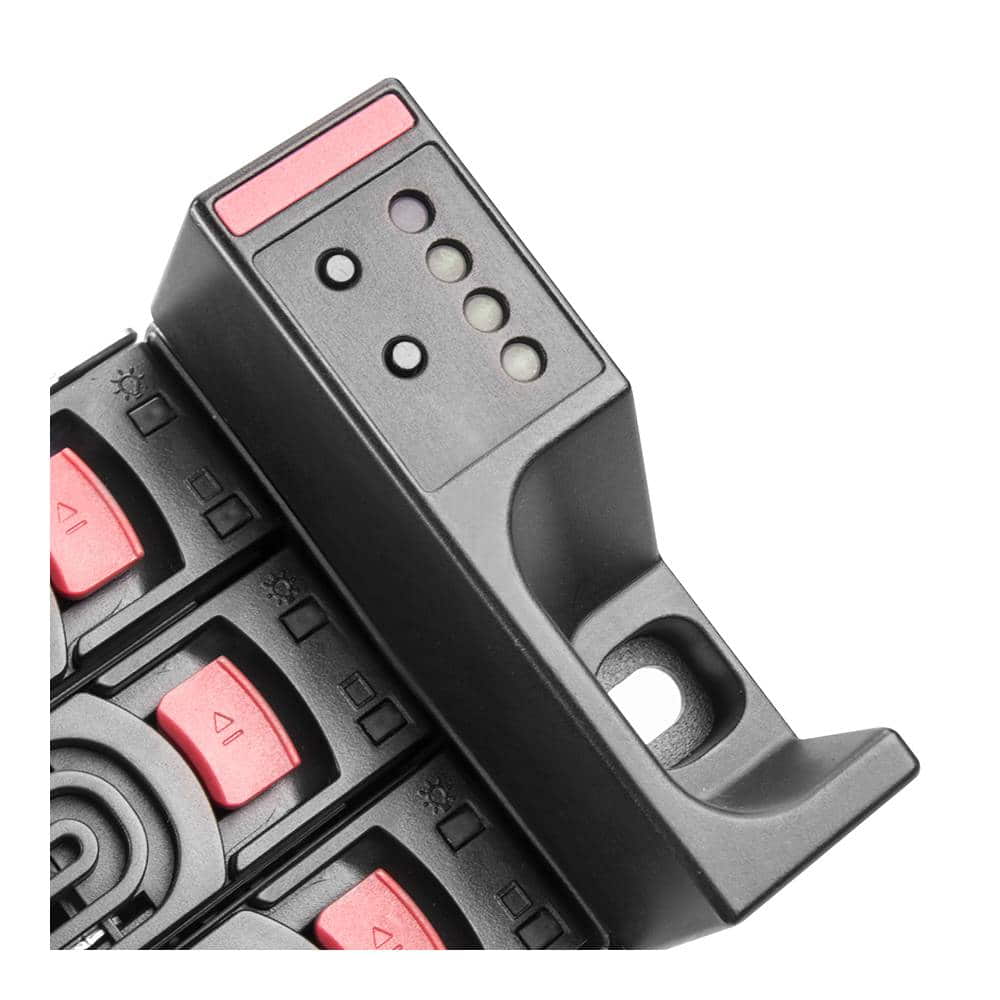

  • Stand-alone drive status LED
  • Supports E-ATX or SSI-EEB motherboards
  • Supports 7 low profile PCI/PCIe slots

P/N: SST-RM22-312 - EAN/UPC: 4710679811178

345,85 € Without VAT
418,48 € With VAT
In stock in secondary storage
Approximate delivery between 08 julio and 11 julio
3 years
of guarantee
Shipment
Insured
100%
Secure pay

At this time, we do not have in our catalog any product with characteristics identical to: SilverStone SST-RM22-312. However, we can show you very similar products, if you tell us what you are looking for:
Power supply
Height
Fondo
Supported board
Supported board
Supported board
Supported board
Supported board
Front Hot-Swap
Número de Slots
Tarjeta gráfica

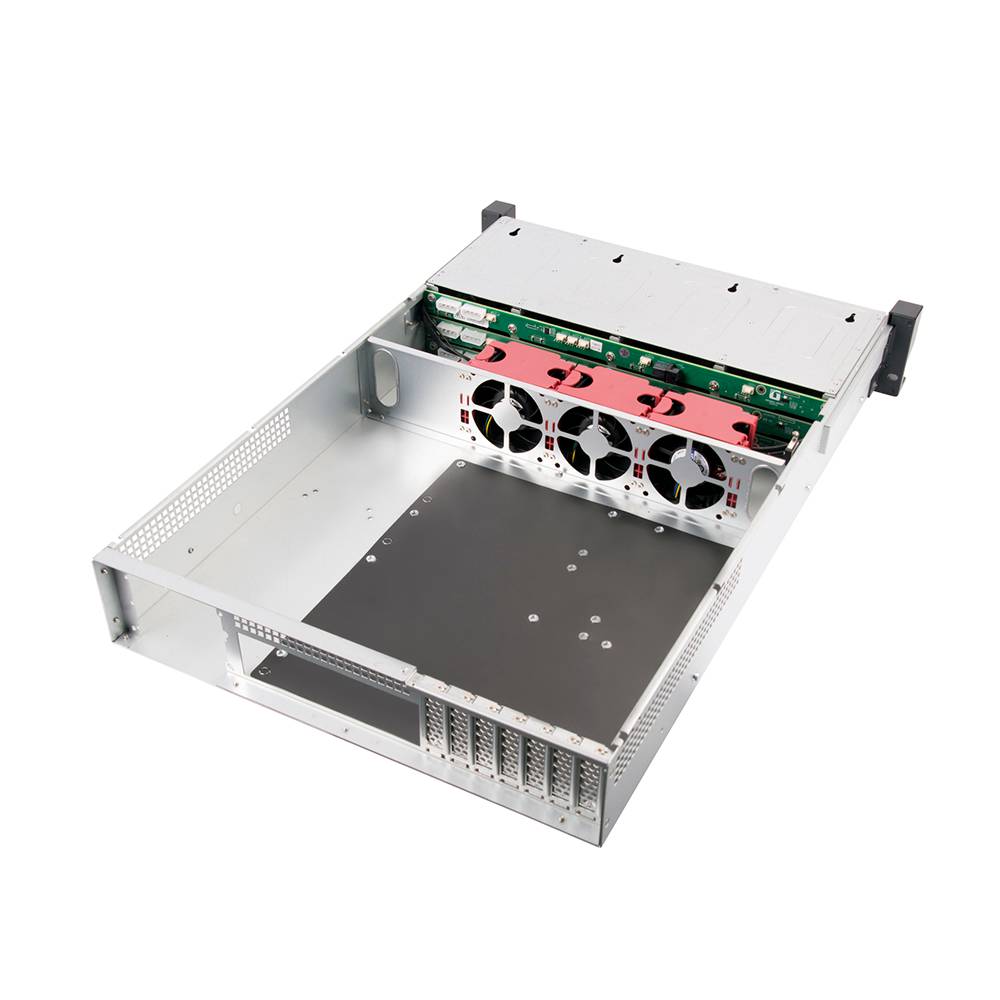

2U 12 Bay 2.5"/3.5" HDD/SSD Rackmount Storage Server Chassis with Mini-SAS HD SFF-8643 12Gb/s Interface

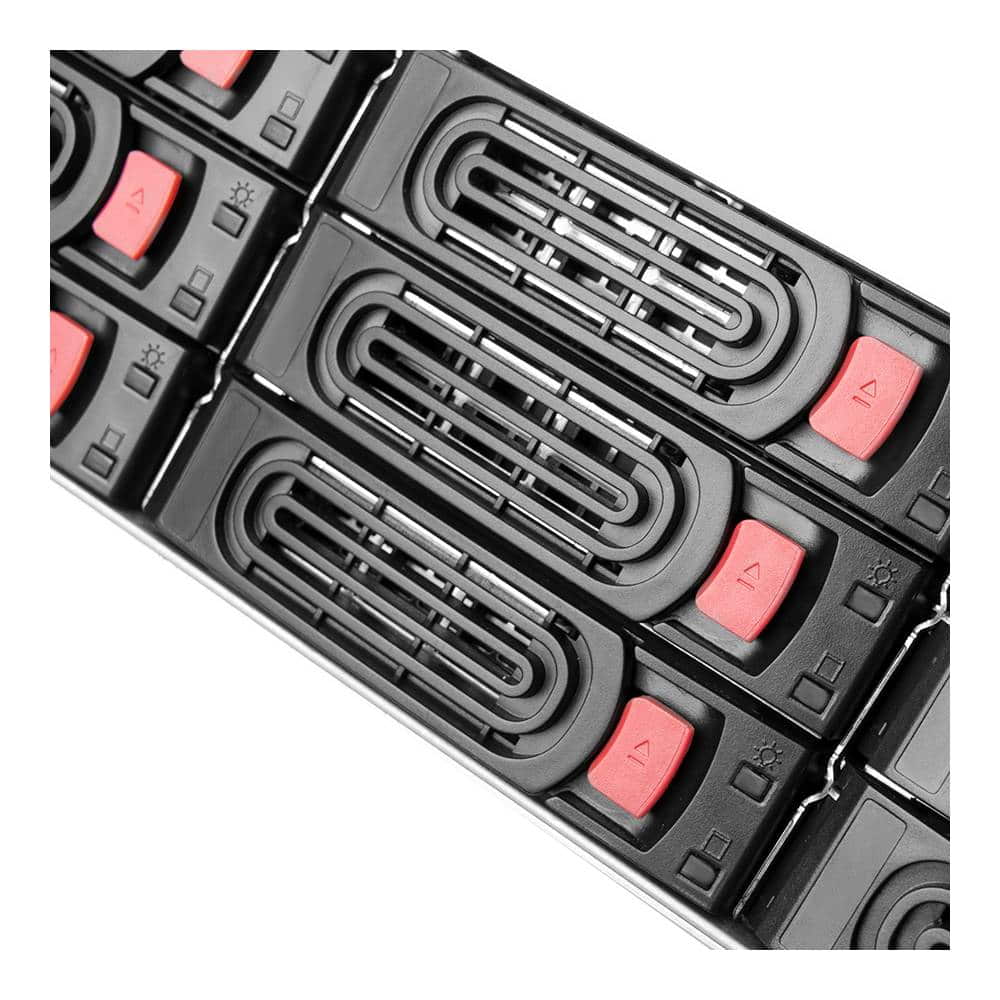

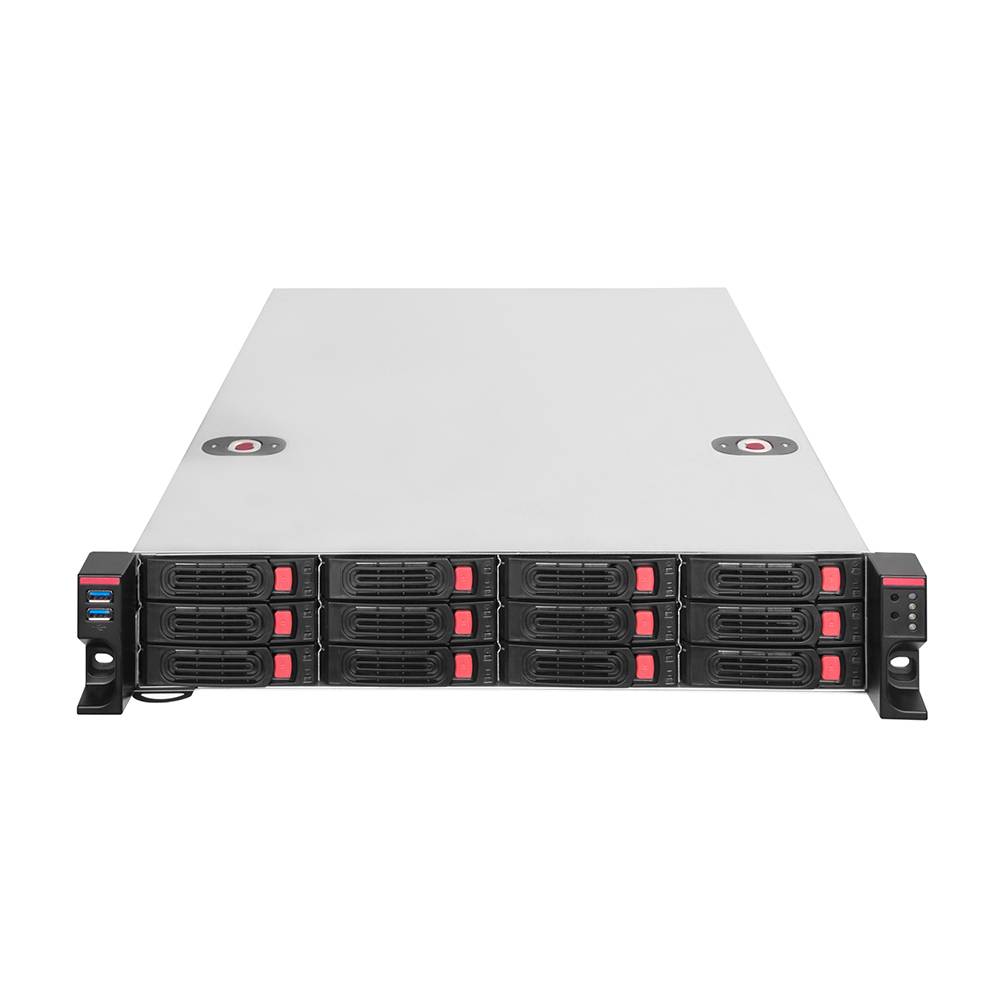

Distinctive front panel features 12 hot-swappable 3.5" bays or 12 hot-swappable 2.5" bays with bars that allow easy access to internal components

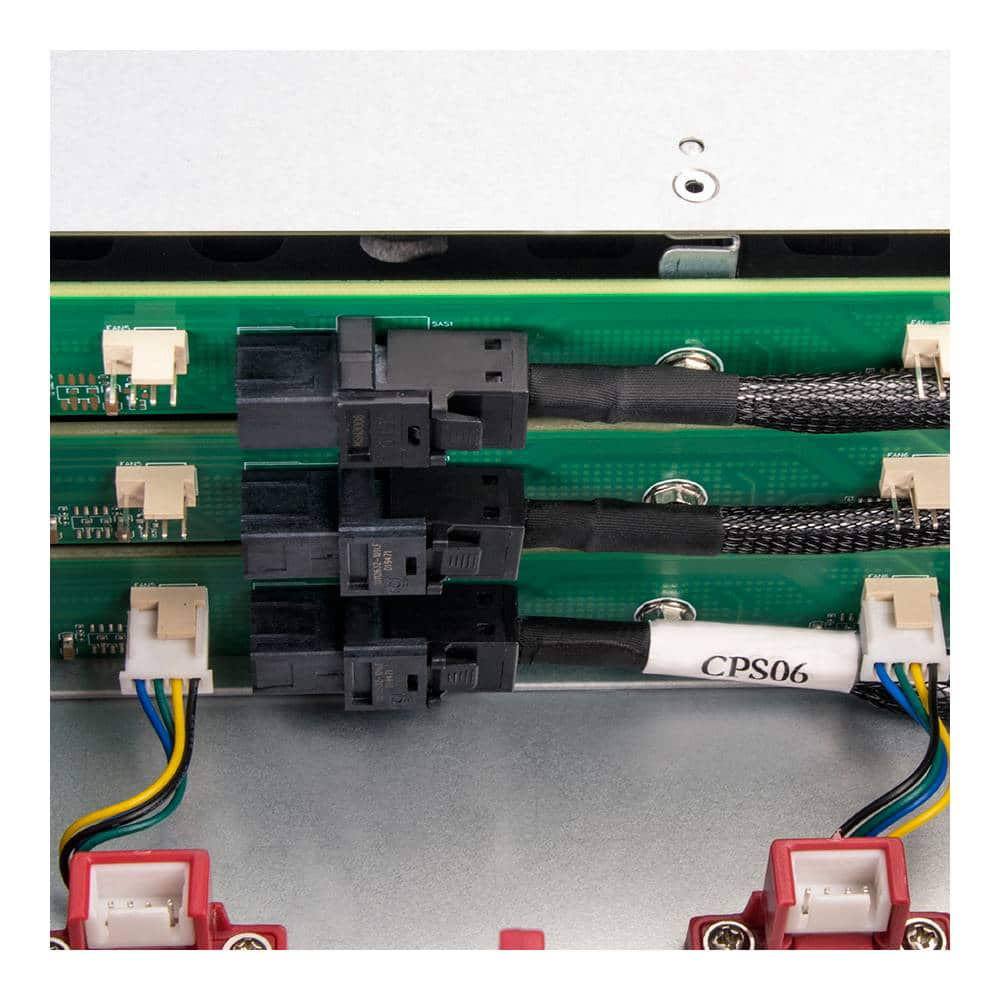

HDD backplane supports 12-port SAS/SATA and Mini-SAS HD SFF-8643 x 3 12 Gb/s drives with SGPIO

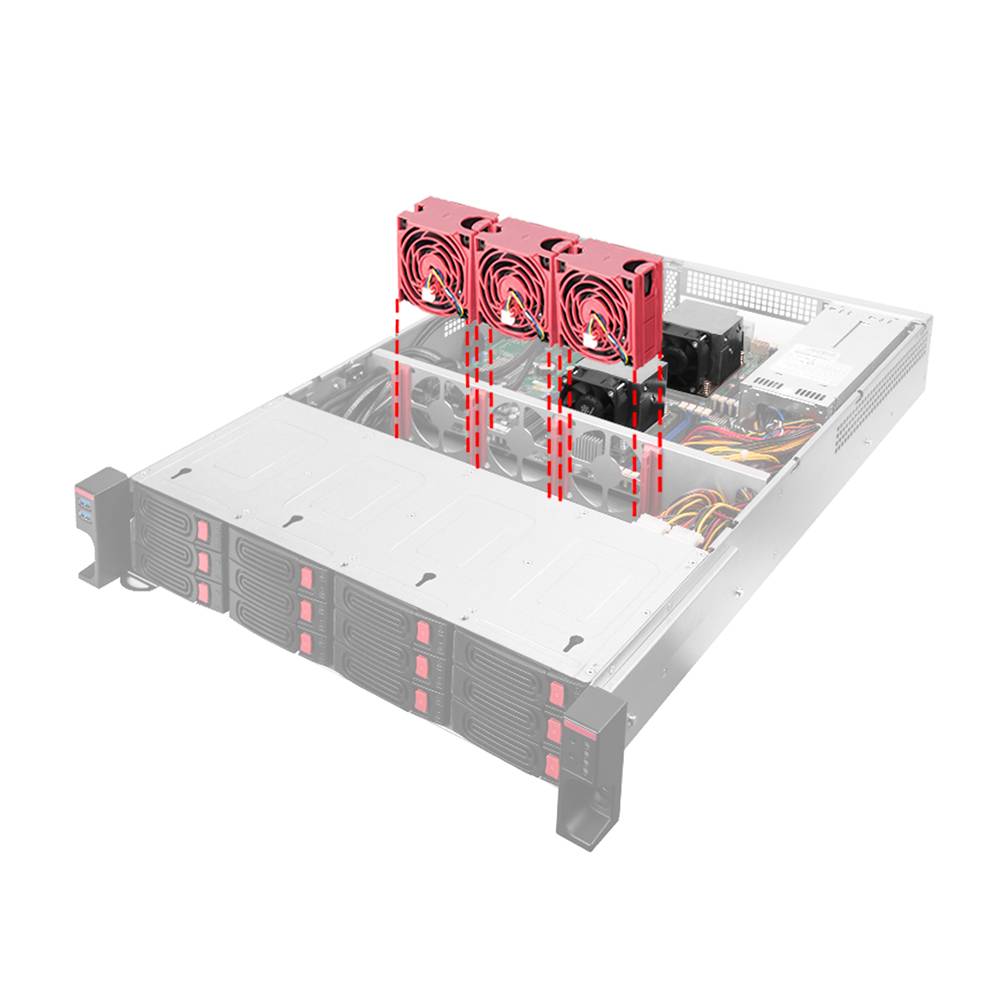

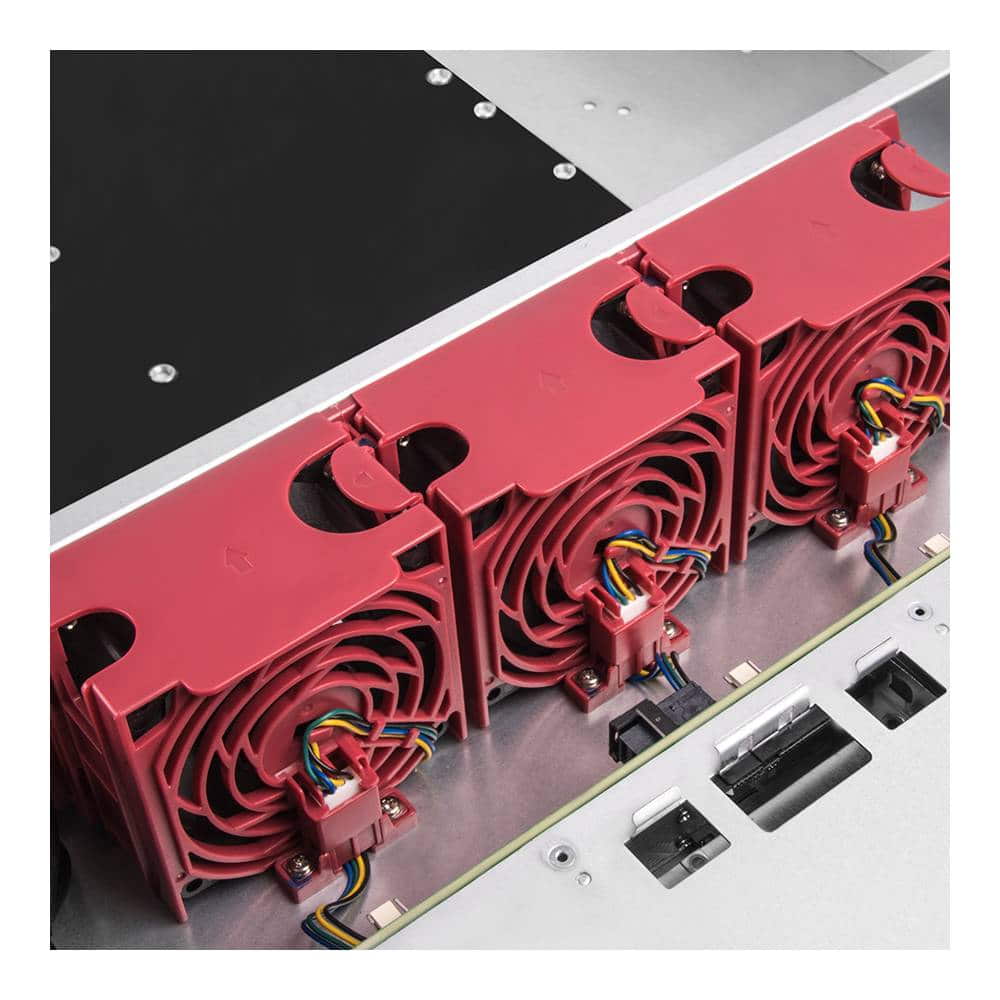

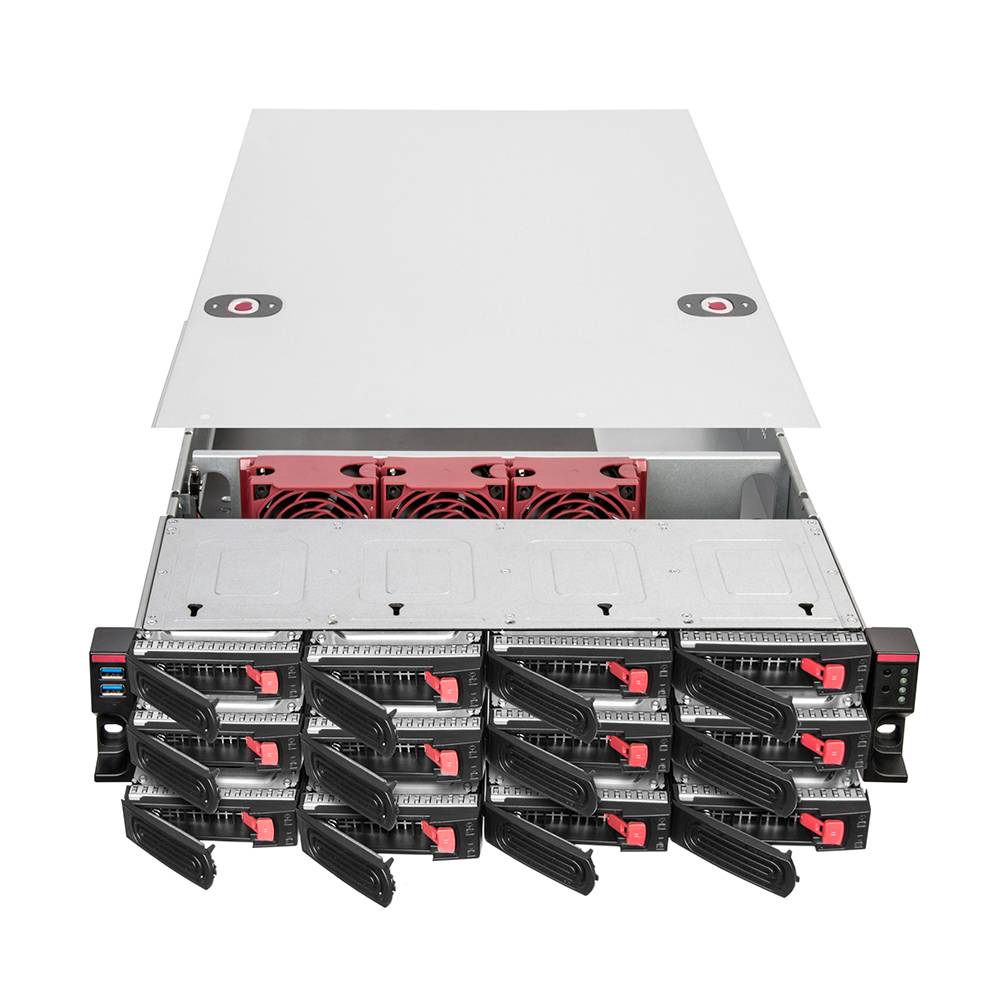

Utilizing typical front-to-rear directional airflow, the RM22-312 comes pre-installed with three 80mm x 38mm hot-swappable PWM fans, designed for a fast heat dissipation effect that doesn't easily collect hot air in the case. inside

Reserved mounting holes for slide rails that can be easily installed. Can be used with RMS03-26 rail

Main features...

* Backplane supports 12-port SAS/SATA drives and Mini-SAS HD SFF-8643 + SGPIO 12 Gb/s.
* Supports twelve 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays.
* Includes three 80mm x 38mm hot-swappable PWM fans.
* Supports E-ATX or SSI-EEB motherboards.

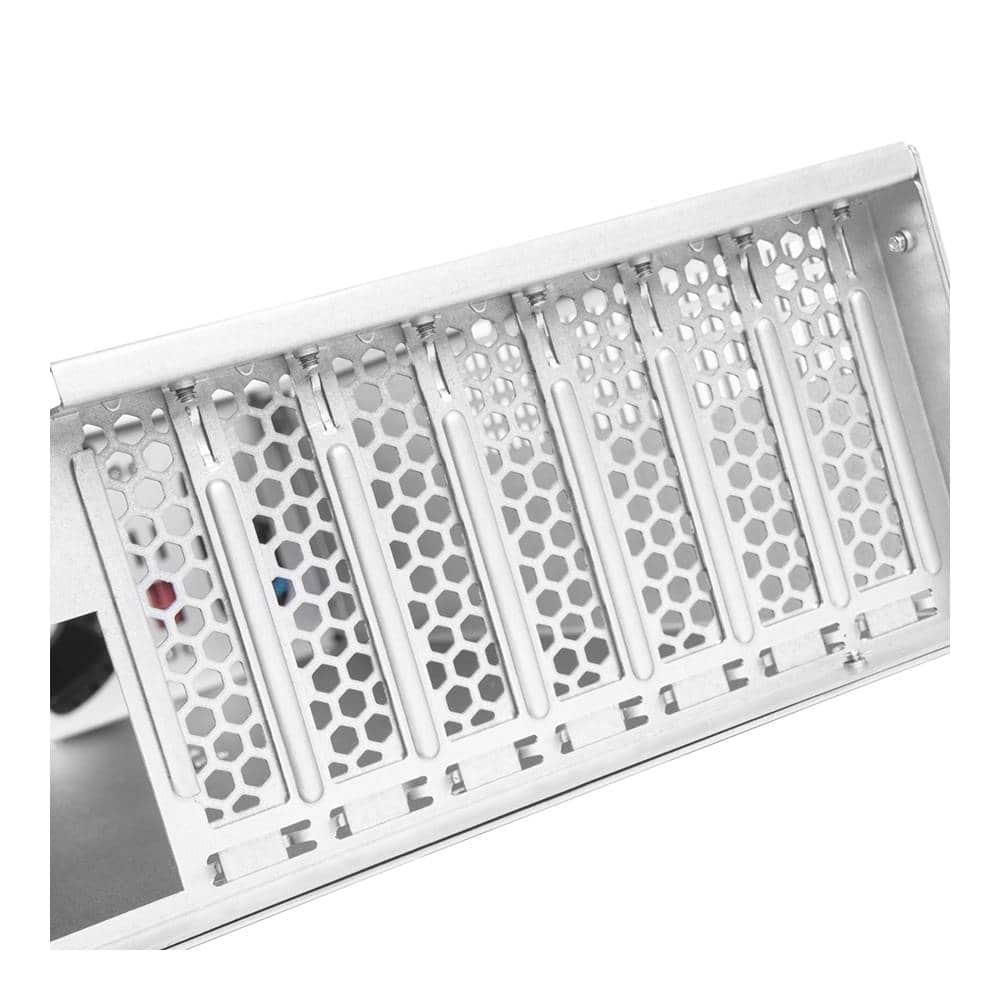

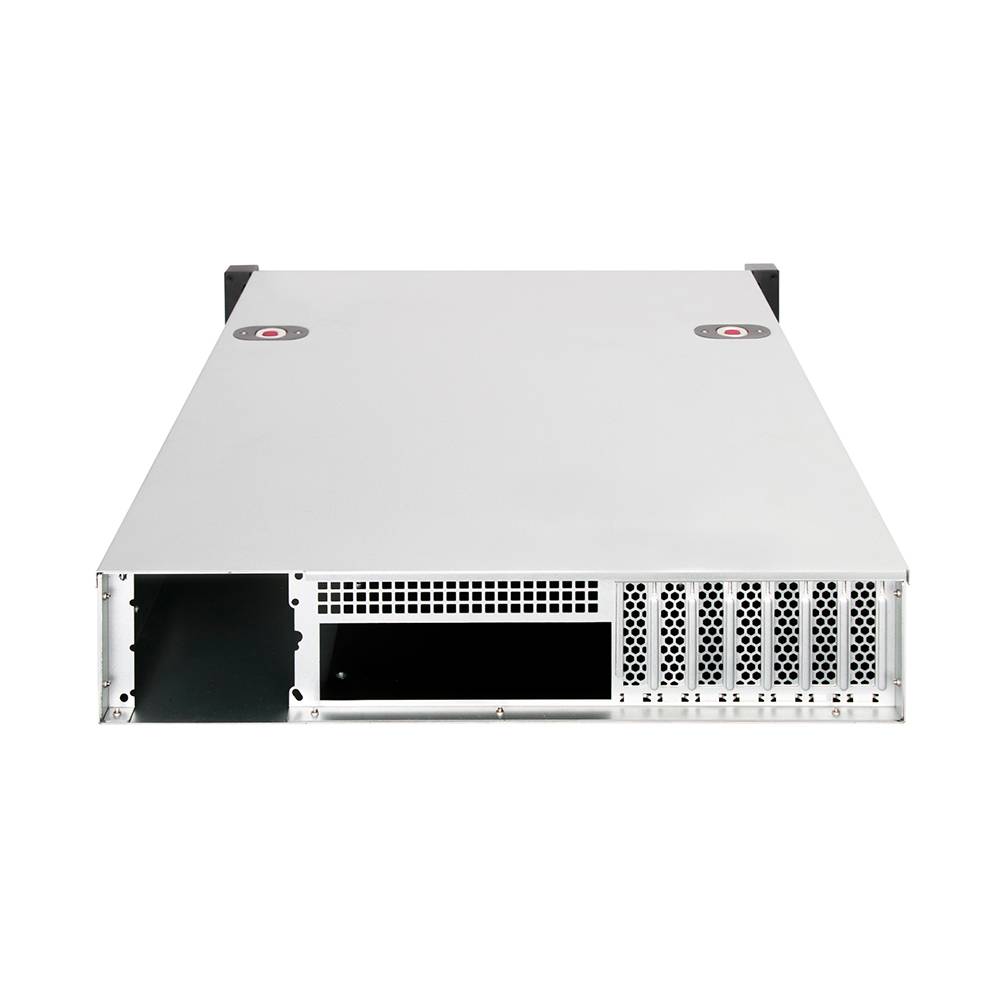

* Supports 7 low profile PCI/PCIe slots.


Descripción
Modelo SST-RM22-312
Material Acero SGCC 1.2 mm
Formato 2U
Color Externo Frontal -> Negro
Cuerpo -> Gris
Color Interno Interior y rejillas grises

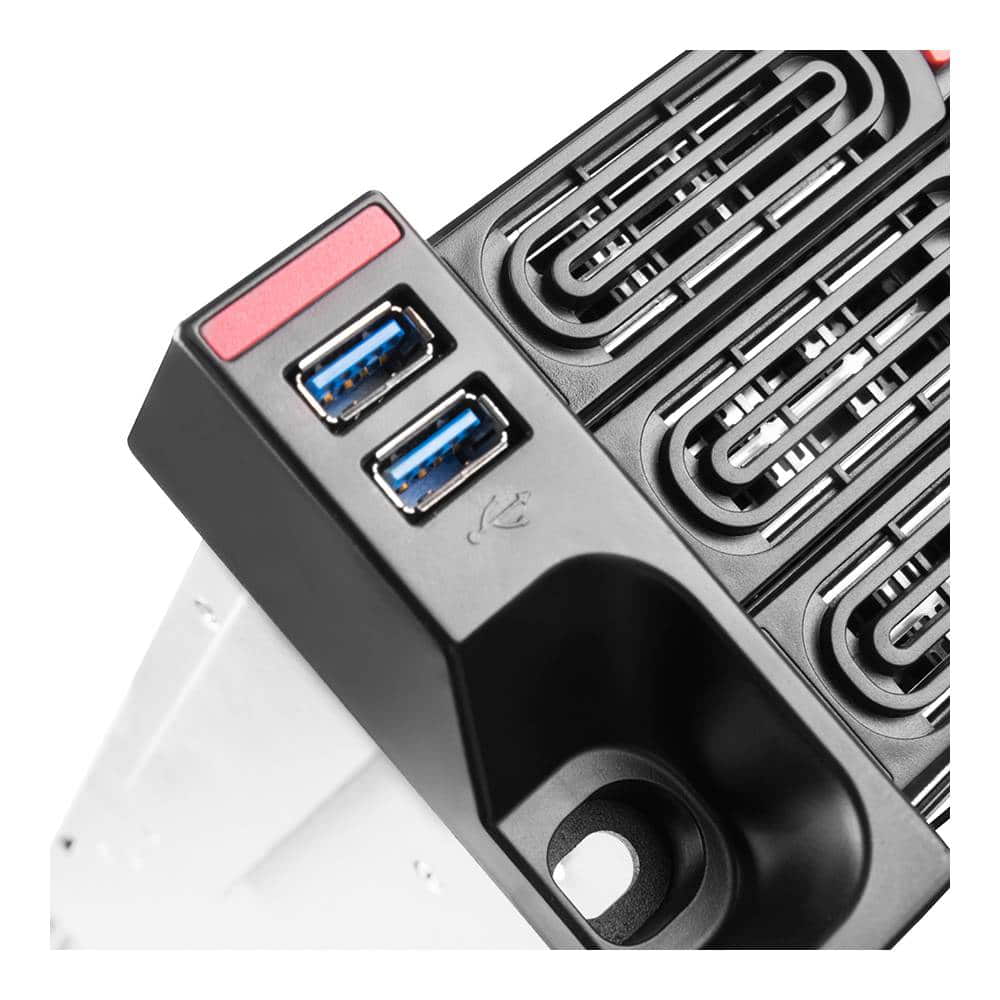

Conexiones 2x USB 3.1 Gen 1 Type-A
Incluye Fuente No
Extras 12 bahías de 2,5"/3,5" con interfaz Mini-SAS HD SFF-8643 de 12 Gb/s
Compatibilidad
Formato Placa Madre SSI-EEB, SSI-CEB, ATX extendido, ATX, Micro-ATX, Mini-ITX
Formato F.A. Formato 2U
Long. máxima F.A. 231mm
Long. máxima VGA 230mm
Alto máximo Cooler 68mm
Expansión
Slots 7x Bajo perfil
Bahías Externas 12x 3.5" Hot-Swap
1x Slim ODD
Bahías Internas -
Ventilación
Frontal -
Trasero -
Inertermedios 3x 80x38 mm
Dimensiones
Ancho 430 mm
Alto 88.5 mm
Fondo 660mm
Peso 10.9kg
