Español Servidor 2U Gigabyte R282-Z91 (rev. 100)
Servidor 2U Gigabyte R282-Z91 (rev. 100)
- Support Dual AMD EPYC 7002 series processor family.
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs.
- 2 x 1Gb/s LAN ports (Intel I350-AM2).
- 1 x Dedicated management port.
- Onboard 12Gb/s SAS expander.
- 24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in front side.
- 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in rear side.
- Ultra-Fast M.2 with PCIe Gen3 x4 interface.
- 8 x PCIe Gen4 x16 and x8 expansion slots.
- 1600W 80 PLUS Platinum redundant power supply.
of guarantee
shipping
Secure pay
The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.
AMD EPYC Rome is ready to support PCIe Gen 4.0 with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD’s Radeon MI50 GPGPU.
On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel. GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!
GIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.
GIGABYTE’s AMD EPYC server platforms come ready to support the full list of AMD EPYC Rome 7002 Series processors: up to 225W (standard TDP) / 240W (cTDP).
GIGABYTE’s AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.
GIGABYTE’s AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.
Highlights...
* Support Dual AMD EPYC 7002 series processor family.
* 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs.
* 2 x 1Gb/s LAN ports (Intel I350-AM2).
* 1 x Dedicated management port.
* Onboard 12Gb/s SAS expander.
* 24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in front side.
* 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in rear side.
* Ultra-Fast M.2 with PCIe Gen3 x4 interface.
* 8 x PCIe Gen4 x16 and x8 expansion slots.
* 1600W 80 PLUS Platinum redundant power supply.
| Dimensions (WxHxD) | 438 x 87 x 730 mm |
| Motherboard | MZ92-FS0 |
| CPU | AMD EPYC 7002 series processor family Dual processors, 7nm, Socket SP3 Up to 64-core, 128 threads per processor cTDP up to 240W |
| Chipset | System on Chip |
| Memory | 32 x DIMM slots DDR4 memory supported only 8-Channel memory per processor architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Memory speed: Up to 3200*/ 2933 MHz |
| LAN | 2 x 1GbE LAN ports (1 x Intel I350-AM2) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| Storage | Front side: 24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays, connected to SAS expander Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays, connected to SAS expander Broadcom SAS35x36R expander Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port Default configuration supports: 0 x SAS/SATA drives |
| RAID | - |
| Perfipheral Drives | - |
| Expansion Slots | 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0 Supported NCSI function 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2) Supported NCSI function 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280/22110 cards |
| Internal I/O | 1 x M.2 slot 1 x USB 3.0 header 1 x COM header 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper |

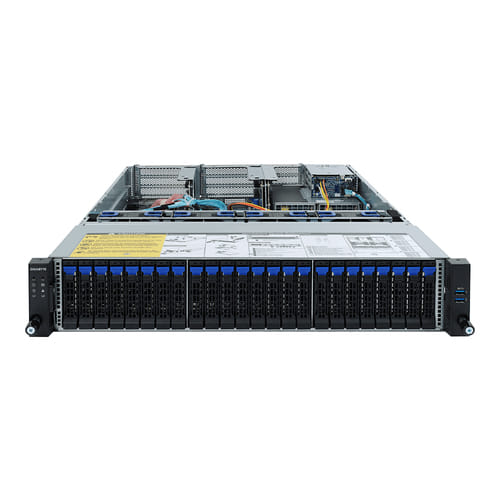

| Front I/O | 2 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED 1 x HDD activity LED 2 x LAN activity LEDs |

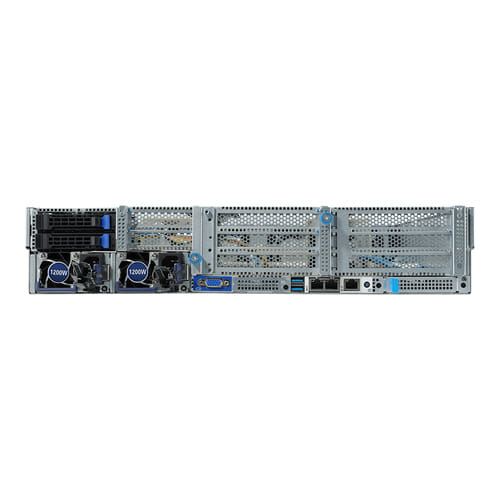

| Rear I/O | 2 x USB 3.0 1 x VGA 2 x RJ45 1 x MLAN 1 x ID button with LED |
| Backplane I/O | Front side_CBP20O5: 24 x SATA/SAS ports Rear side_CBP2020: 2 x SATA/SAS ports Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s per port |
| TPM | 1 x TPM header with SPI interface |
| Power Supply | 2 x 1600W redundant PSUs 80 PLUS Platinum |
| Weight | Net Weight: 18.5 kg Gross Weight: 25.5 kg |
| System Fans | 4 x 80x80x38mm (16,300rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Content | 1 x R282-Z91 system 2 x CPU heatsinks 1 x Rail kit |
