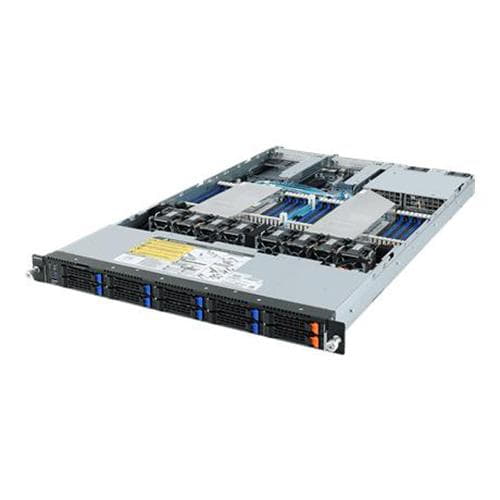

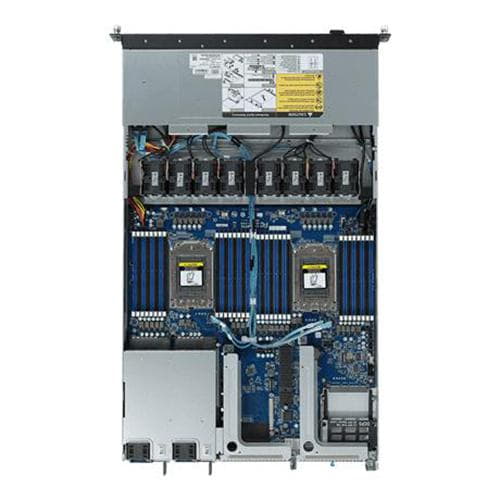

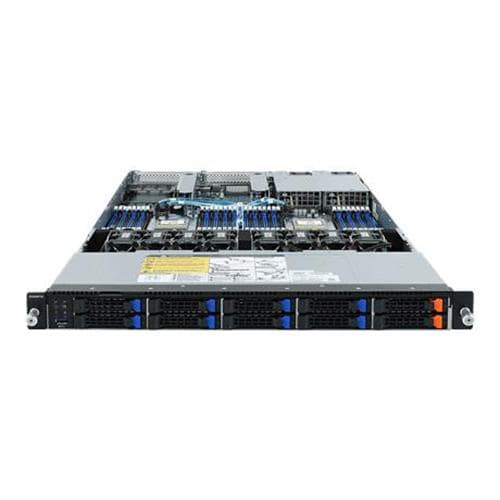

Servidor 1U Gigabyte R182-Z91 (rev. 100)

Servidor 1U Gigabyte R182-Z91 (rev. 100)

Gigabyte
  • Dual AMD EPYC 7002 series processor family.
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs.
  • 2 x 1Gb/s LAN ports (Intel I350-AM2).
  • 1 x Dedicated management port.
  • 8 x 2.5" SATA and 2 x 2.5 NVMe hot-swappable HDD/SSD bays.
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface.
  • 2 x PCIe Gen4 x16 expansion slots.
  • 1 x OCP 3.0 Gen4 x16 mezzanine slot.
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot.
  • Aspeed AST2500 remote management controller.
  • 1200W 80 PLUS Platinum redundant power supply.

P/N: 6NR182Z91MR-00

2.386,25 € Without VAT
2.887,36 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

AMD EPYC Rome is ready to support PCIe Gen 4.0 with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD’s Radeon MI50 GPGPU.

On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel. GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!

GIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.

GIGABYTE’s AMD EPYC Rome Server Platforms feature an onboard OCP 3.0 mezzanine slot for the next generation of PCI Gen 4.0 add on cards.

GIGABYTE’s AMD EPYC server platforms come ready to support the full list of AMD EPYC Rome 7002 Series processors: up to 225W (standard TDP) / 240W (cTDP).

GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.

GIGABYTE’s AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again!

GIGABYTE’s AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.

To take advantage of the fact that a PSU will run at greater power efficiency with a higher loading, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with dual PSU. When the total system loading falls lower than 40%, the system will automatically place one PSU into standby mode, enabling the other PSU to take over the greater load. This can enable total system power efficiency savings of up to 10%.

Highlights...

* Dual AMD EPYC 7002 series processor family.
* 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs.
* 2 x 1Gb/s LAN ports (Intel I350-AM2).
* 1 x Dedicated management port.
* 8 x 2.5" SATA and 2 x 2.5 NVMe hot-swappable HDD/SSD bays.
* Ultra-Fast M.2 with PCIe Gen3 x4 interface.
* 2 x PCIe Gen4 x16 expansion slots.
* 1 x OCP 3.0 Gen4 x16 mezzanine slot.
* 1 x OCP 2.0 Gen3 x8 mezzanine slot.
* Aspeed AST2500 remote management controller.
* 1200W 80 PLUS Platinum redundant power supply.

Dimensions (WxHxD) 1U - 438 x 43.5 x 730 mm
Motherboard MZ92-FS0
CPU AMD EPYC 7002 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 240W
Compatible with AMD EPYC 7001 series processor family
Chipset Sytem on Chip
Memory 32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz
LAN 2 x 1GbE LAN ports (1 x Intel I350-AM2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
Storage 8 x 2.5" SATA/SAS and 2 x 2.5" NVMe hot-swappable HDD/SSD bays
SAS -
RAID -
Peripheral Drives -
Expansion Slots

Riser Card CRS101E:
- 1 x PCIe x16 slot (Gen4 x16), FHHL

Riser Card CRS101E:
- 1 x PCIe x16 slot (Gen4 x16), FHHL

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2)
Supported NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards

Internal I/O 1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O 1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
Rear I/O 2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O Backplane P/N: 9CBP10A4NR-00
Speed and bandwidth:
SAS 12Gb/s, SATA 6Gb/s, PCIe Gen3 x4
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply

2 x 1200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A

OS Supported

Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later

Citrix Hypervisor 8.1.0

Weight Net Weight: 13 kg
Gross Weight: 22 kg
System Fans 8 x 40x40x56mm (23'000rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
