SenseVision Hub USB 3.0 Tipo C a 4 Puertos USB Tipo A

SenseVision Hub USB 3.0 Tipo C a 4 Puertos USB Tipo A

Club3d
  • Hub 4x USB 3.1 Gen 1 Tipo A.
  • SDP: Puerto de Velocidad Normal (USB 2.0 500mA, USB 3.1 Gen 1 900mA carga y datos).
  • CDP: Puerto de Velocidad de Carga (hasta 1500mA para dispositivos soportados y datos).
  • DCP: Puerto dedicado a Carga (más de 1500mA para dispositivos soportados sin datos).

P/N: CSV-1541 - EAN/UPC: 8719214470531

33,43 € Without VAT
40,45 € With VAT
In stock
Approximate delivery between 28 octubre and 29 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

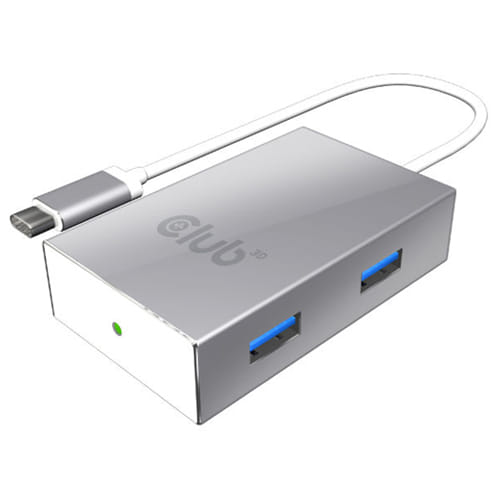

The SenseVision USB 3.1 Gen 1 Type C to USB Type A data and power charging hub is a compact tool that adds four USB 3.1 Gen 1 Type A ports to your USB 3.1 Gen 1 Type C device. Many of the new Ultrabooks and laptops generation do not have enough ports for expansion, which is difficult to make use of your favorite devices such as mouse, USB sticks and external hard drives which also limits the ports if you want to charge your Smartphone, headset or other device.

This hub offers additional USB 3.1 Gen 1 Type A ports for both data and electrical charging. It has voltage regulators and supports the USB Specifications 1.2 Comprehensive Battery Charge that supports three (fast) charging modes: SDP, CDP and DCP. With this Hub, battery charging can surely be done with a wide range of mobile devices.

The current limit of electric charge to USB is 500mA for USB 2.0 and 900mA for USB 3.1 Gen 1. Depending on the device, the Quick Charge features limits 1000mA and 2000mA. Fast Charging allows charging with a higher source than USB specifications but requires a Host and devices that support this functionality.

Highlights...

* Connectivity technology: Wired.
* Host interface: USB 3.0 (3.1 Gen 1) Type-C.
* USB connector: USB type A.
* Data transfer rate: 5 Gbit / s.
* LED indicators: Operation.
* Power: USB.
* SDP: Normal Speed ​​Port (USB 2.0 500mA, USB 3.1 Gen 1 900mA charging and data).
* CDP: Charging Speed ​​Port (up to 1500mA for supported devices and data).
* DCP: Port dedicated to Load (more than 1500mA for supported devices No data).

Interface 1x USB 3.1 Gen1 Type C
Output Configuration 3x USB 3.1 Gen1 Type A
1x USB 3.1 Gen1 Type A con soporte BC 1.2 Charging
Voltage 1.2V Core Power
3.3V Suspend Power
5V Regulator for 5- 3.3V Output
Dimensions 41 x 67 x 16 mm
Cable length 185 mm
Weight 51gr
PC Requirements CPU: AMD or Intel Dual Core CPU 2GHz or higher processor clock.
GPU: AMD, Intel or Nvidia
RAM: 1GB or higher
USB 2.0, 3.1 Gen 1 Type C Output
Supported OS Windows 8.1 (32 & 64 Bit)
Windows 10 (32 & 64 Bit)
Apple OS X
Chrome OS

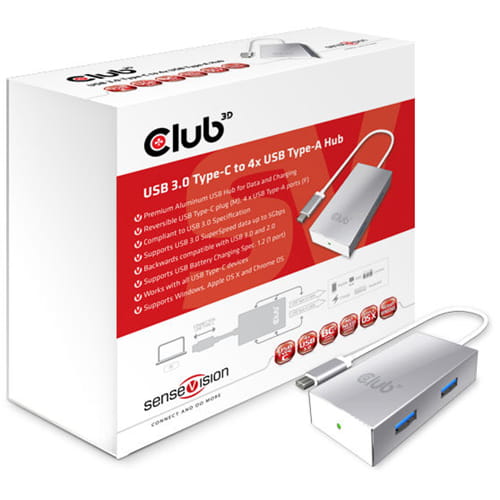

Content Box SenseVision Hub
Quick install guide
Other Features Reversible USB Type C connector (male)
Compliant to USB 3.1 Gen 1 Specification, backwards compatible with USB 2.0 Specification
USB 3.1 Gen 1 Data and Fast Charging through a single cable
Supports USB 3.1 Gen 1 SuperSpeed data up to 5Gbps
Supports USB Battery Charging Specification 1.2 (Port 5)
Support for Vendor specific Charging Modes
Works out of the box with Windows, Apple OS X, Chrome OS, no driver needed
Works with all USB 3.1 Gen 1 Type C enabled devices
