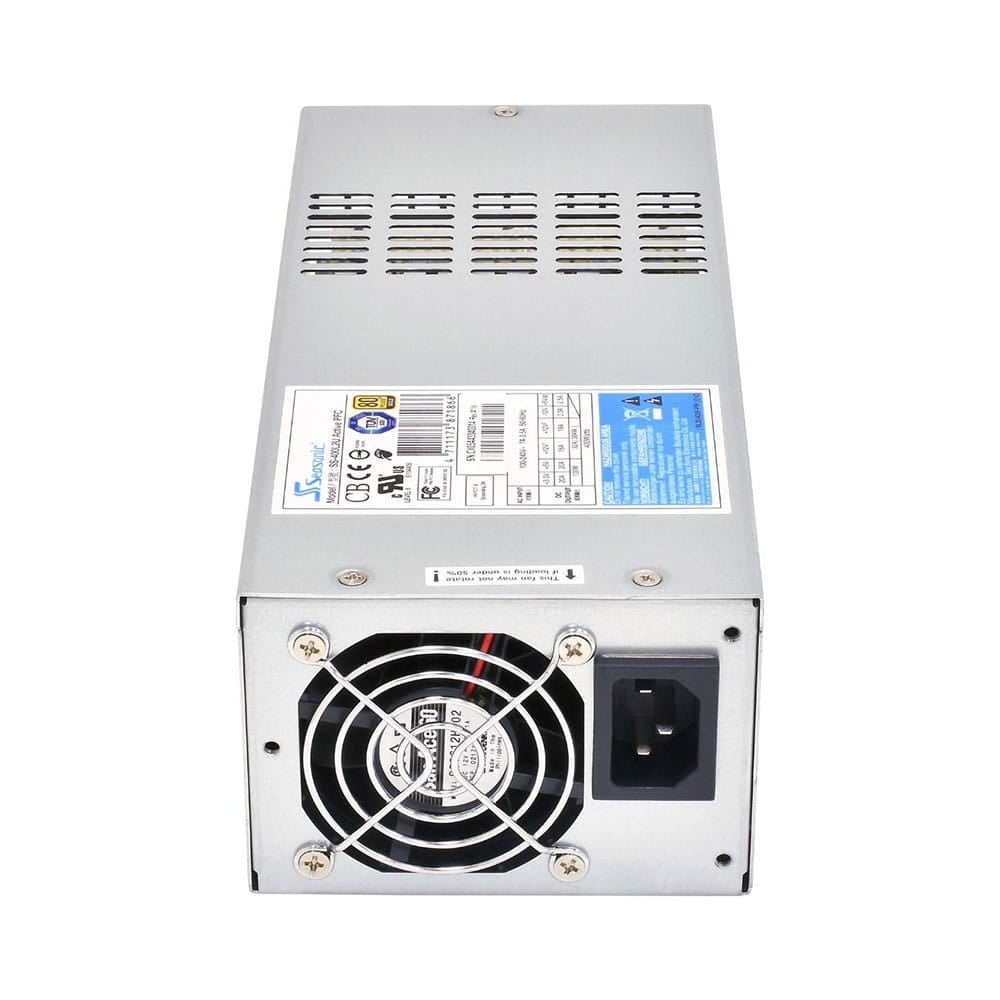

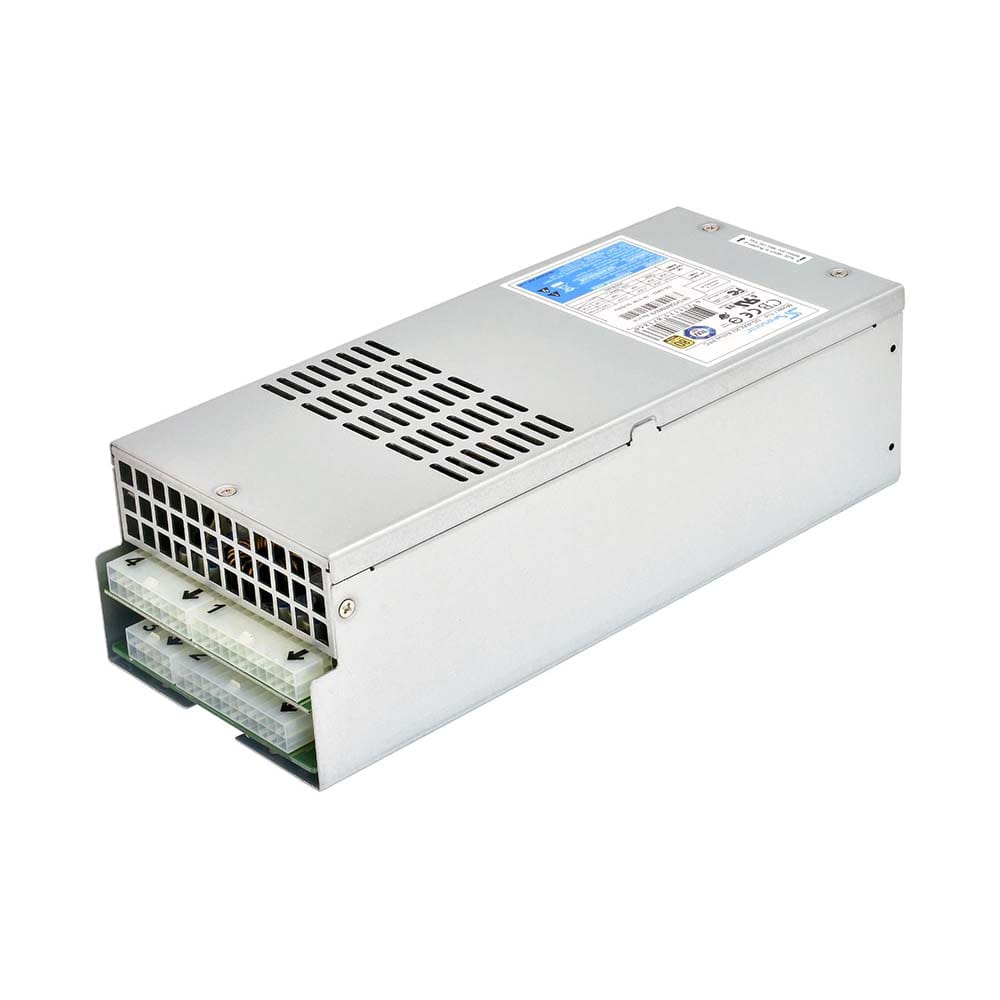

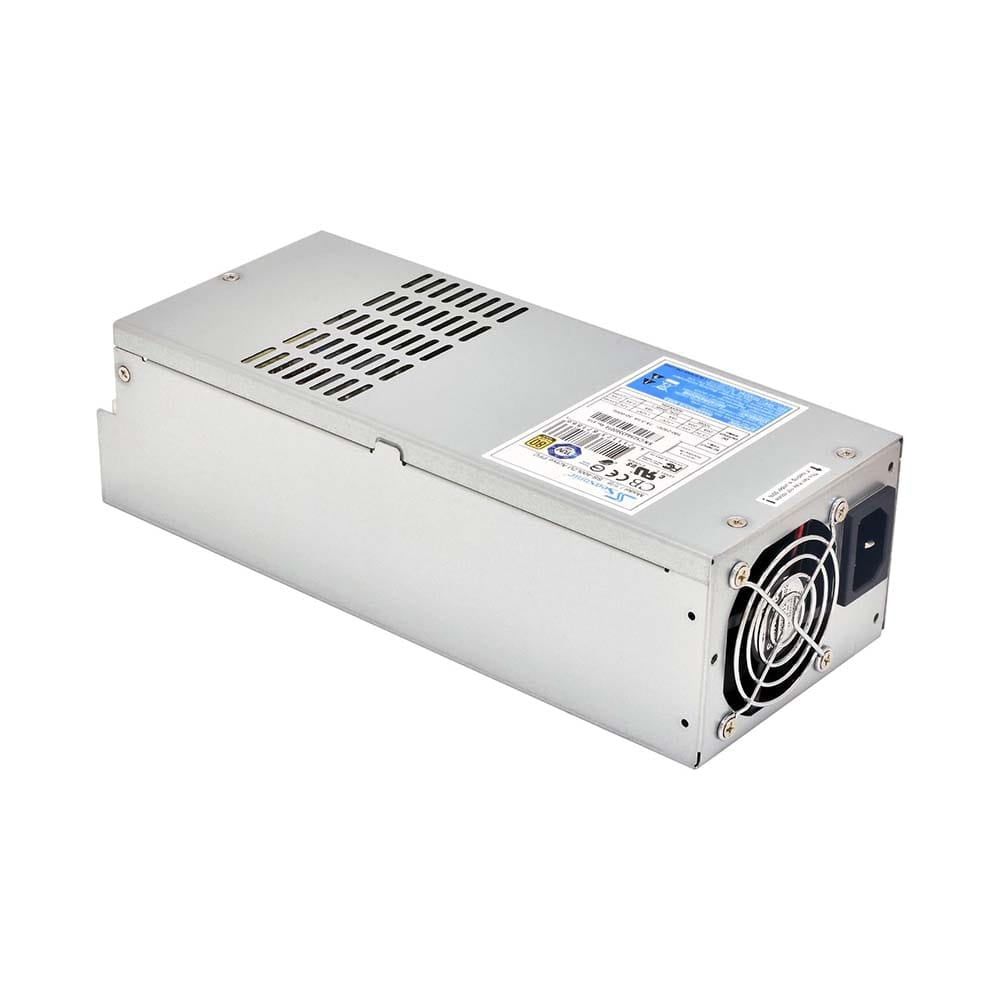

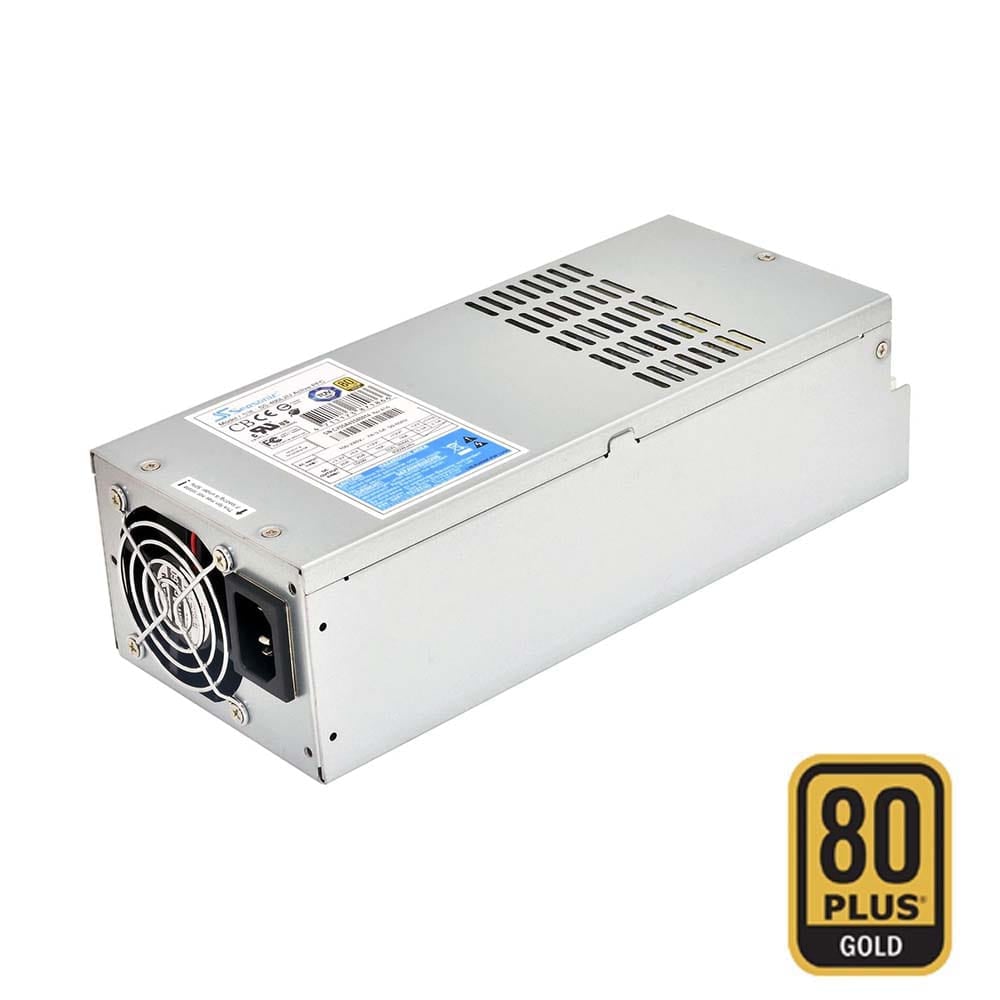

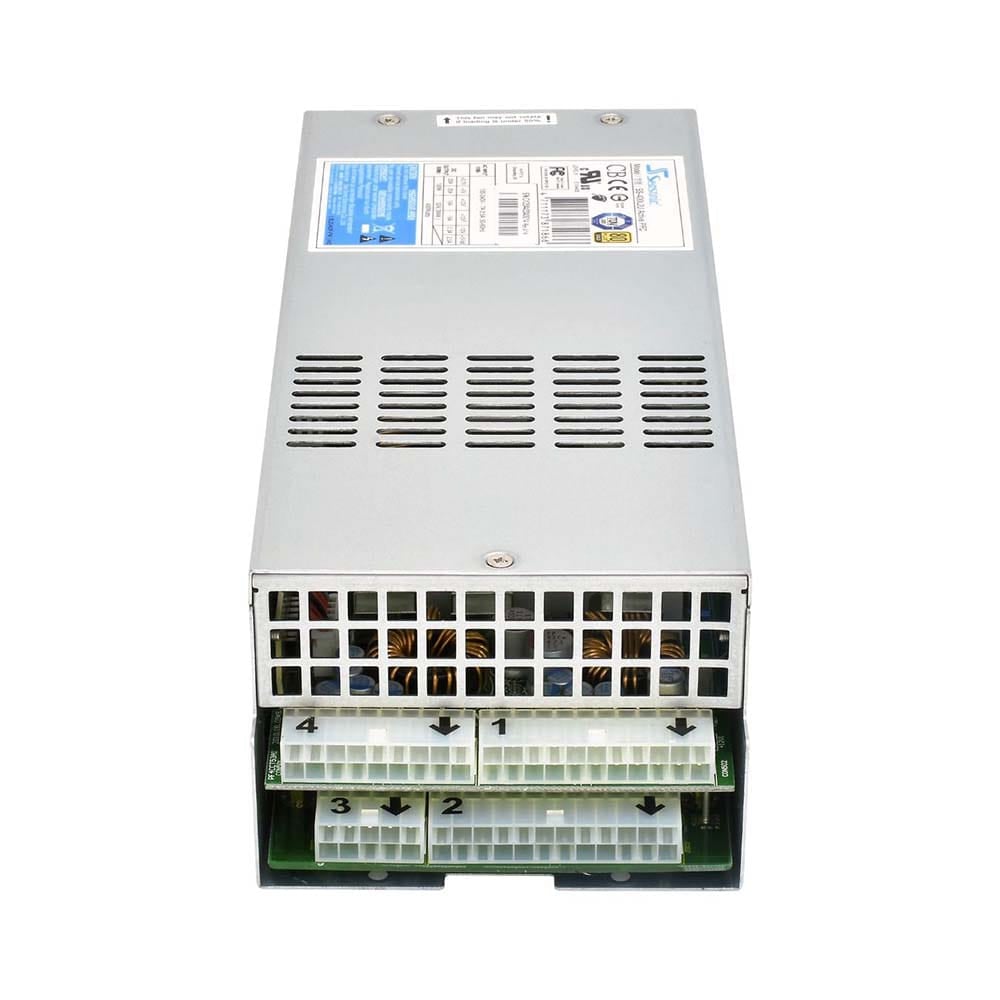

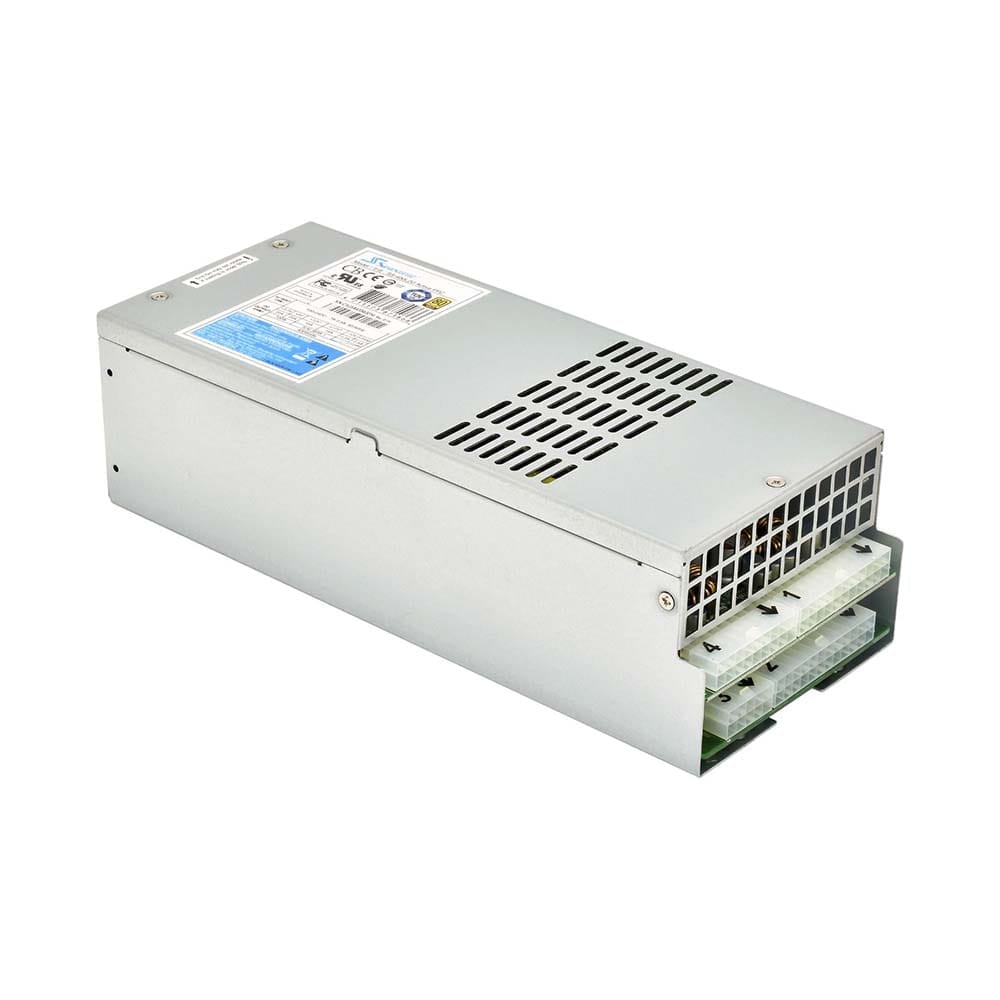

Español Seasonic SS-400L2U 400W 2U 80+ Gold OEM
Seasonic SS-400L2U 400W 2U 80+ Gold OEM
- Intel EPS 12V Compatible.
- 80 PLUS® Gold Certified (up to 90% efficient at 115VAC and 50% load).
- DC to DC converter design.
- High efficiency and reliability.
- Fully modular cables.
- 40mm double ball bearing fan.
- Seasonic S 3 FC (including Fanless mode).
- Short circuit protection on all outputs.
- overvoltage protection.
- On the protection of power.
- 100% HiPot test.
- 100% burned out, high temperature on / off cycle.
The price that appears is indicative
of guarantee
Insured
Secure pay
| Formate | |
| Wiring type | |
| Wiring type | |
| Power | |
| Certification |
SS-400L2U is a high-end 400W 2U power supply suitable for 19 "2U rack mount servers.
It features a fully modular connection that allows for custom wiring options or the use of the included wire harness.
Plus, its high-efficiency 80Plus Gold certification offers efficient performance. Achieving up to 90% efficiency at 50% load at 115V AC input.
These L2U models are protected against short circuits, surges and surges and comply with important safety, EMC and EMI standards.
Highlights...
* 80 PLUS® Gold Certified (up to 90% efficient at 115VAC and 50% load).
* DC to DC converter design.
* 40mm double ball bearing fan.
* Fully modular cables.
* Seasonic S 3 FC (including Fanless mode).
| Datos Generales | |
| Potencia | 400W |
| Eficiencia | Certificación 80+ Gold |
| Compatible con Intel EPS1U v2.1 | Si |
| Compatible con ATX 12V v2.2 | Si |
| Dimensiones | 245 mm (fo) x 100 mm (an) x 70 mm (al) |
| Cableado Modular | Si |
| Ventilación | 1x 60mm doble ball bearing |
| S3FC (Modo fanless) | Si |
| Protecciones | SCP, OVP, OPP |
| Certificaciones de seguridad | CB, cUL, TUV, CCC, BSMI |
| Certificaciones EMI/EMC | CE, FCC, RCM |
| MTBF | > 100,000 hours |
| Active Power Factor Correction | 99 % (typical) |
| Datos de Entrada de Corriente | |
| Frecuencia de entrada | 50 / 60 Hz |
| Regulación de línea | ± 1 % (typical) |
| Regulación de carga | ± 5 % (typical) |
| Regulación cruzada | ± 5 % (typical) |
| Datos de Salida de Corriente | |
| +3.3V | 20A |
| +5V | 20A |
| Combinado +3.5V / +5V | 100W |
| +12V | 32A - 384W |
| -12V | 0.3A - 3.6W |
| +5VSB | 2.5A - 12.5W |
SS-400L2U is a high-end 400W 2U power supply suitable for 19 "2U rack mount servers.
It features a fully modular connection that allows for custom wiring options or the use of the included wire harness.
Plus, its high-efficiency 80Plus Gold certification offers efficient performance. Achieving up to 90% efficiency at 50% load at 115V AC input.
These L2U models are protected against short circuits, surges and surges and comply with important safety, EMC and EMI standards.
Highlights...
* 80 PLUS® Gold Certified (up to 90% efficient at 115VAC and 50% load).
* DC to DC converter design.
* 40mm double ball bearing fan.
* Fully modular cables.
* Seasonic S 3 FC (including Fanless mode).
| Datos Generales | |
| Potencia | 400W |
| Eficiencia | Certificación 80+ Gold |
| Compatible con Intel EPS1U v2.1 | Si |
| Compatible con ATX 12V v2.2 | Si |
| Dimensiones | 245 mm (fo) x 100 mm (an) x 70 mm (al) |
| Cableado Modular | Si |
| Ventilación | 1x 60mm doble ball bearing |
| S3FC (Modo fanless) | Si |
| Protecciones | SCP, OVP, OPP |
| Certificaciones de seguridad | CB, cUL, TUV, CCC, BSMI |
| Certificaciones EMI/EMC | CE, FCC, RCM |
| MTBF | > 100,000 hours |
| Active Power Factor Correction | 99 % (typical) |
| Datos de Entrada de Corriente | |
| Frecuencia de entrada | 50 / 60 Hz |
| Regulación de línea | ± 1 % (typical) |
| Regulación de carga | ± 5 % (typical) |
| Regulación cruzada | ± 5 % (typical) |
| Datos de Salida de Corriente | |
| +3.3V | 20A |
| +5V | 20A |
| Combinado +3.5V / +5V | 100W |
| +12V | 32A - 384W |
| -12V | 0.3A - 3.6W |
| +5VSB | 2.5A - 12.5W |
