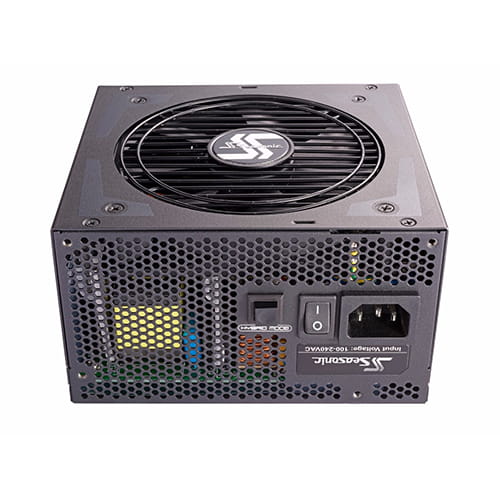

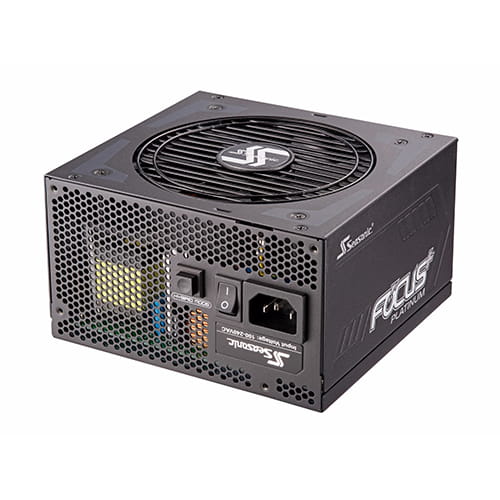

Seasonic Focus PX 750W Platinum

Seasonic Focus PX 750W Platinum

Seasonic
  • ATX 750W power supply.
  • 80+ Platinum certification.
  • Modular wiring
  • 120mm fan included. 12V single rail.

P/N: FOCUS PX 750 - EAN/UPC: 4711173874645

131,93 € Without VAT
159,64 € With VAT
In stock in secondary storage
Approximate delivery between 03 junio and 06 junio
3 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
48,00 €
Without VAT
58,08 €
With VAT
Transformador AC-DC 150W 12V 12.5A 4pin MiniDin
117,14 €
Without VAT
141,74 €
With VAT
OpenUPS2 entrada 11-24V - salida 12-24V

At this time, we do not have in our catalog any product with characteristics identical to: Seasonic FOCUS PX 750. However, we can show you very similar products, if you tell us what you are looking for:
Formate
Certification
Wiring type
Wiring type
Power

Seasonic engineers have created this new line of power supplies based on the most modern technology and their great experience creating this type of components. The result of this development is the FOCUS +, a unique power supply that shows a unique electrical performance.

This impressive power supply has a new and innovative design feature, the "Cable-free connection design", instead of cables the back panel and the PCB are connected with a copper plate which reduces errors and increases quality of the energy output.

Another aspect of the power supply is that it is very quiet, the three-phase Seasonic fan control system optimizes the balance between silence and cooling.

In addition, it has a button to control the fans manually, which will allow you to have absolute control of the power supply thanks to its FDB (Fluid Dynamic Bearing) fans, designed to maximize the lubrication of the fan shaft, increasing its useful life and operating silently.

Highlights...

* ATX 12V 750W power supply.
* Fully Modular.
* 80 PLUS Platinum certification.

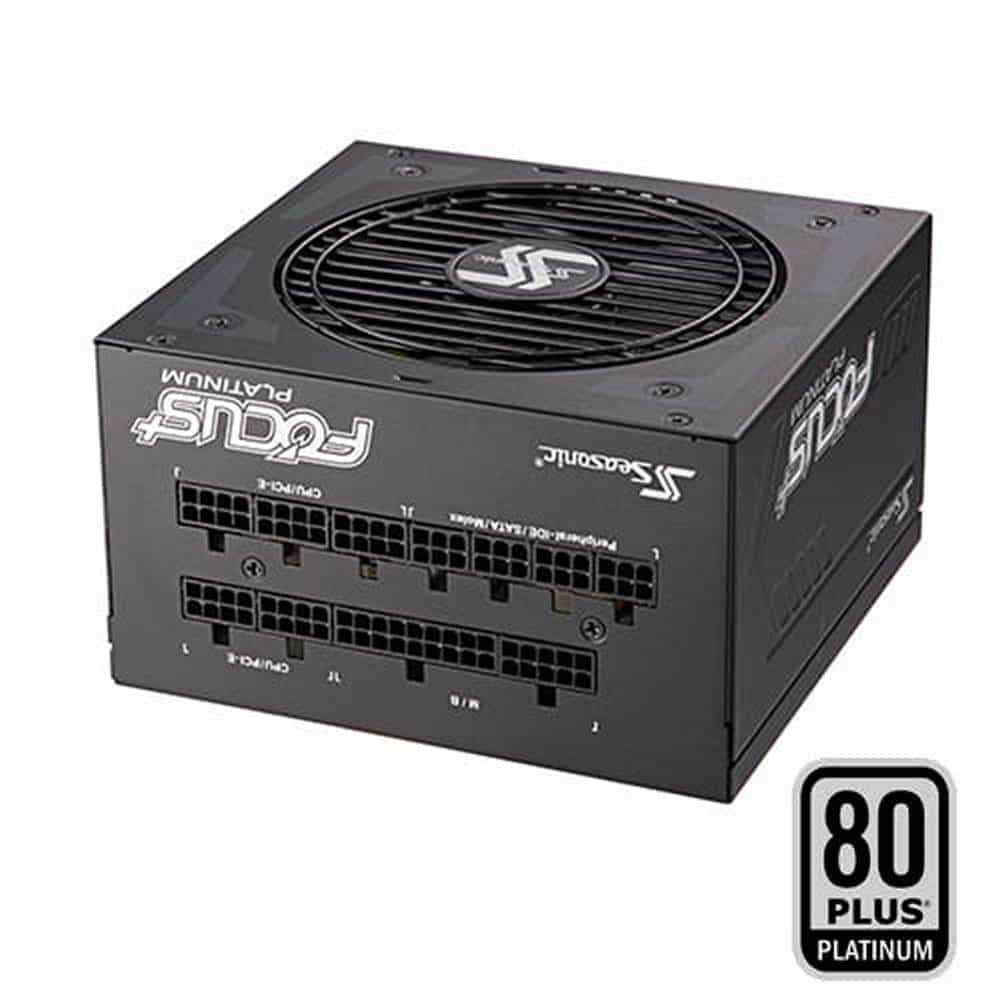

Certification 80+ Platinum
Form Factor Intel ATX 12 V
Dimensions 140 x 150 x 86 mm
Fan Information
Fan Size 120 mm
Fan Control S3FC - Fanless until 30% load
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

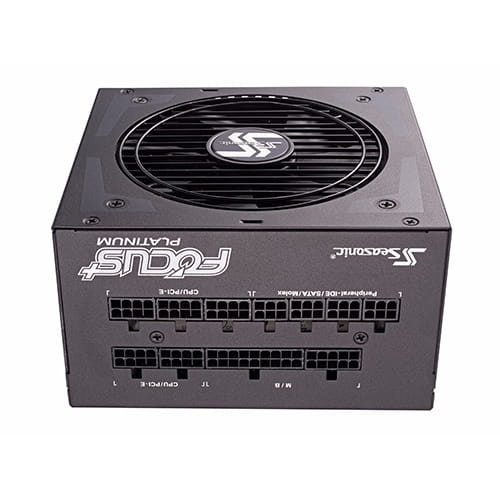

Cable Information
Modularity Fully Modular
Cable type Flat black cables
Main Power (24P/20P) Connector 1
EPS 12V / ATX 12 v (8P/4P) Connector 2
PCI-E (8P/6P) Connector 4
SATA Connector 10
Peripheral (4P) Connector 3
FDD (4P) Connector 1
Power Output
AC Input Voltage: 110 V - 240 V
Current: 10 A - 5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 62 A 0.3 A 3 A
100 W 744 W 3.6 W 15 W
Total continuous power 750 W
Electrical Features
Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100.000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Ssafety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
