ProServe ED-316
- Family of Dual AMD EPYC 7002 series processors.
- Remote Management Controller
- Maximum access speed
- 16 hot removable front bays.
- Dual Lan 10GBase-T.
- Perfect for high performance servers.
of guarantee
Insured
Secure pay
| Formate | |
| Processor | |
| No. of sockets | |
| No. of Hot-Swap bays |
Processor
Hard drives
Memories
M.2
Controllers
Power supply
Operating system
Rails

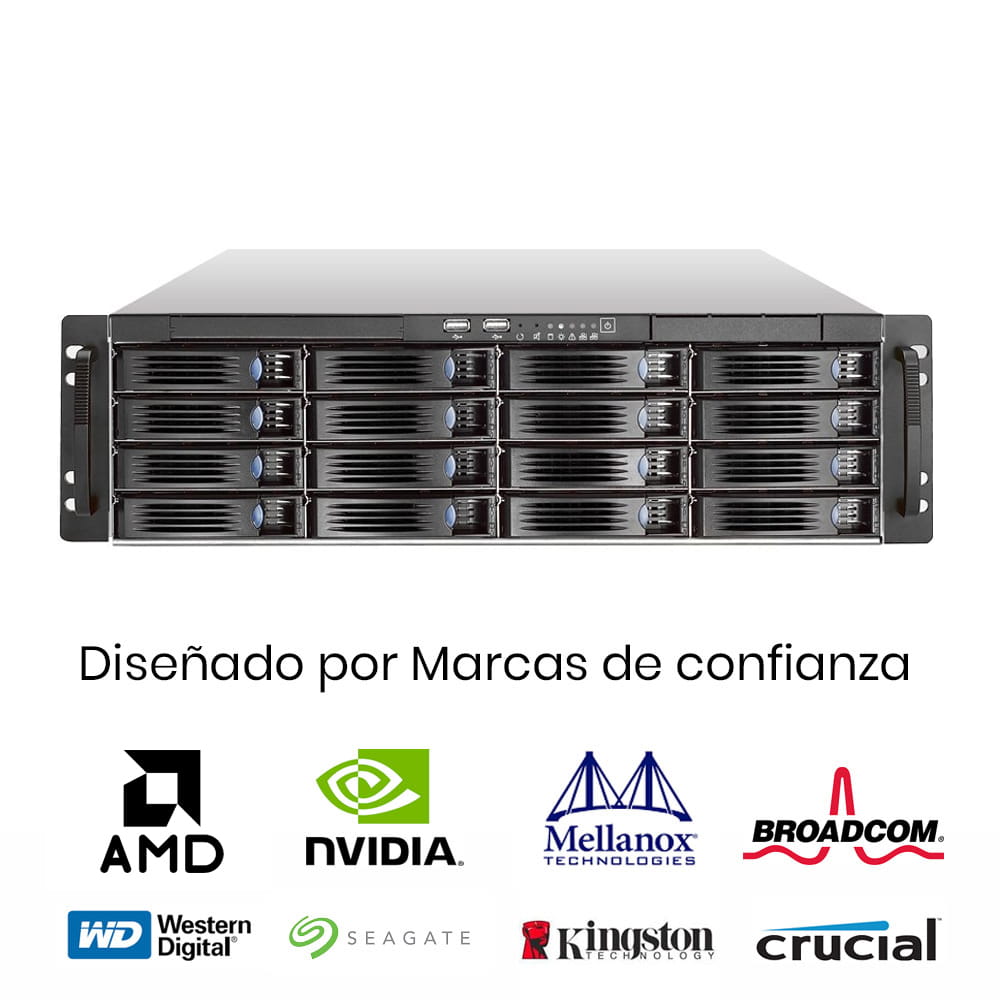

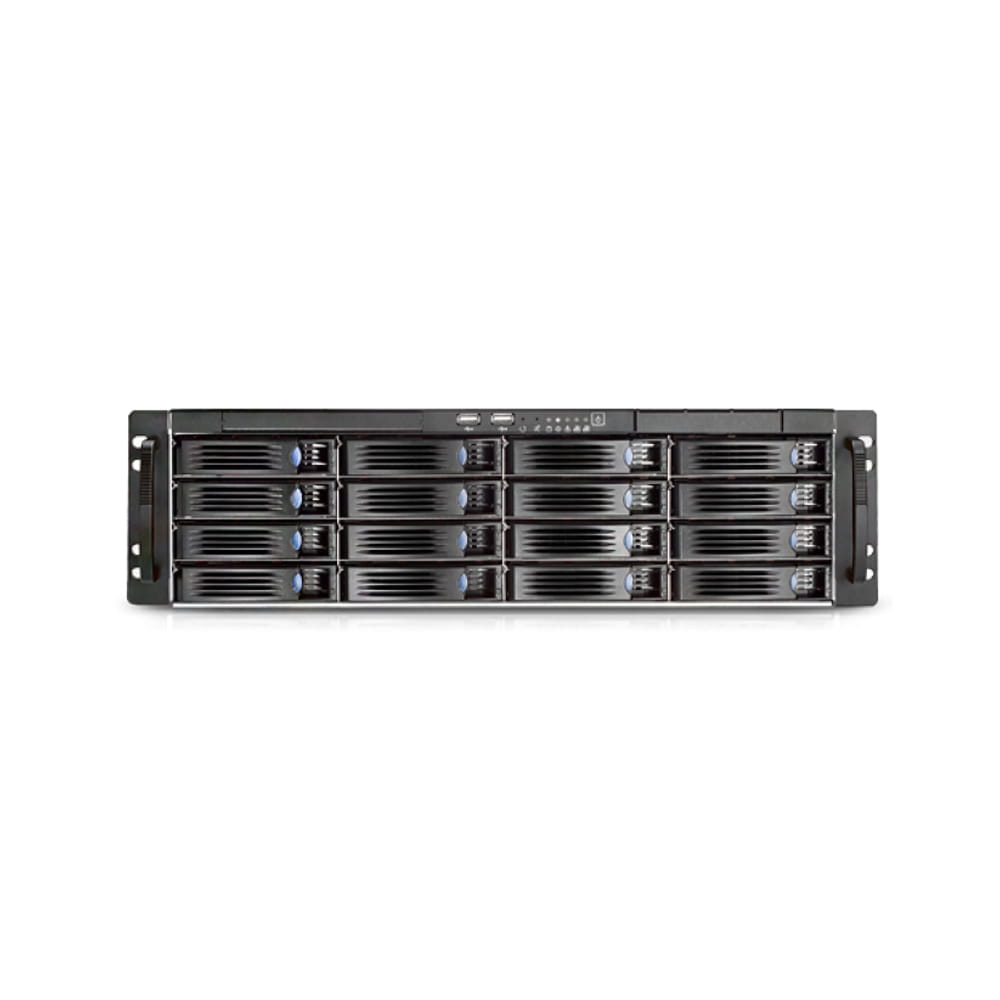

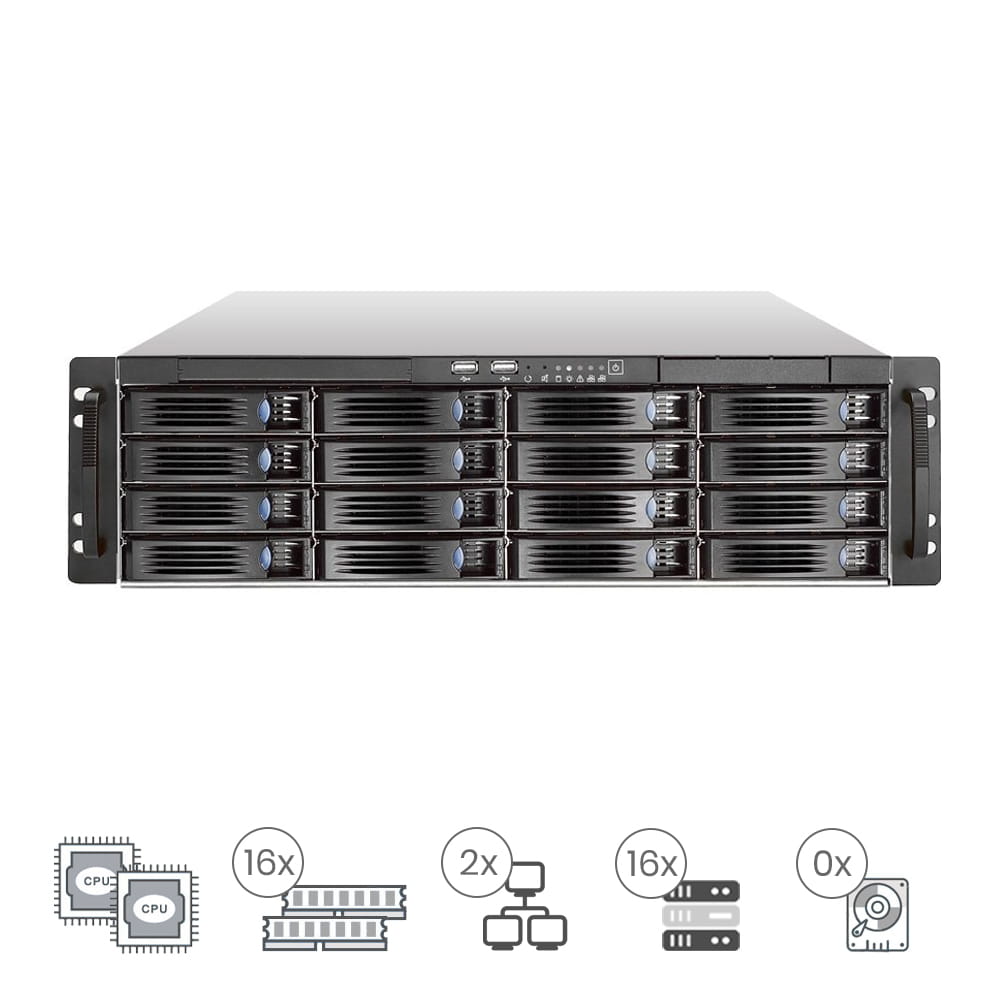

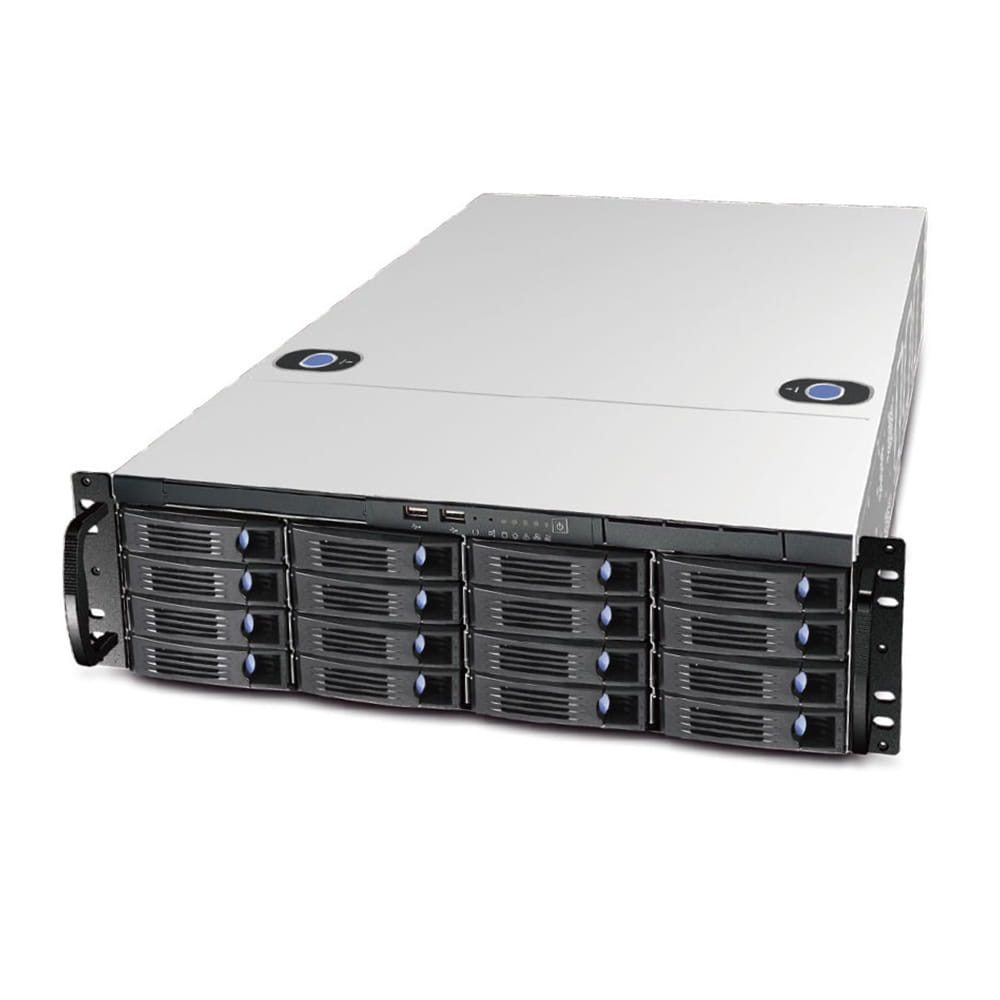

Server in 3U format with excellent AMD Epyc dual processor power. These innovative processors are based on advanced 7 nm process technology, the best that the industry has to offer. This allows denser computing capabilities with less energy consumption.
The versatility of its storage, which allows 3.5 "SATA / SAS hard drives, offers you a wide range of possibilities and capabilities that will allow you to use this equipment for complex tasks that you can entrust ...
If you configure the system with a RAID controller, you can change any of its 8 hot disks while the system runs without interruption. This will allow you to have a system running 24/7 even when a disk fails.
IMPORTANT NOTE: In case you choose to use SAS disks in storage, do not forget to include the SAS RAID controller depending on the number of disks chosen.
It has 5 PCIe slots, 1 M.2 slot and a redundant power supply and 2 10GBase-T LAN ports
Highlights....
* Up to 2Tb of Registered ECC DDR4 2666MHz memory in 16 DIMMs.
* 16 x DIMMs up to 2Tb.
* 2 LAN 1Gb / s ports (Intel® I350-AM2).
* 5 expansion slots: 2x PCI-E 3.0 x16 + 3x PCI-E 3.0 x8.
* 16 3.5 "SATA / SAS hot swappable HDD / SSD bays on the front.
* 10GBase-T dual network card.
* Ultra fast M.2 with PCIe Gen3 x2 interface.
* includes controller for 10 SATA3 disks without using additional controller.
* Redundant power supply.
| Formato | 3U |
| Dimensiones (An x Al x Fo) | 432 x 132 x 658.6 mm |
| Procesador | AMD Epyc Socket SP3 |
| Memoria | 16 ranuras hasta 4Tb |
| Bahias de discos | 16x Bahías 3.5" Hot-Swap SATA SATA3 (6Gbps) |
| LAN | 2 RJ45 10GBase-T Intel X550 1 RJ45 dedicado a IPMI LAN Realtek RTL8211E PHY IPMI 2.0 con soporte virtual media over LAN y KVM-over-LAN |
| Video | ASPEED AST2500 BMC |
| Slots | 3x PCIe 3.0 x8 2x PCIe 3.0 x16 1x M.2 slot: - M-key - PCIe Gen3 x2 |
| I/O Frontal | 1x Botón de encendido 1x Alarm Mute 1x Botón de Reset 2x USB 3.0 |

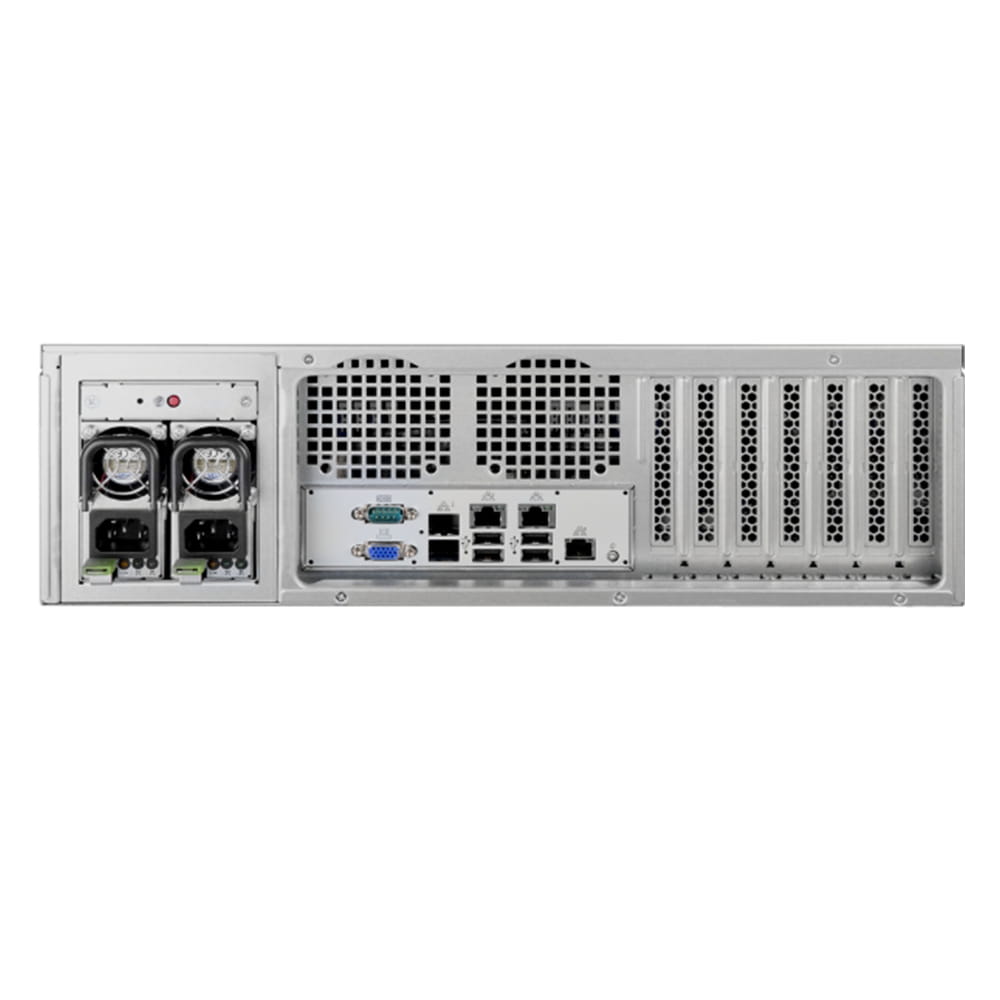

| I/O Trasero | 2x RJ45 10GBase-T 1x IPMI LAN 1x VGA 2x USB 3.0 1x COM |
| Ventiladores | 4x 8038mm PWM Hotswap Middle Fan |
| Fuente Alimentación | Redundante 80 PLUS Gold |
