Español Panel Pc Táctil 8" IP65
Panel Pc Táctil 8" IP65
- High brightness 8 "LCD with IP65 certification.
- With Intel N2807 or E3845 processors.
- From 2Gb or 4Gb of memory.
- Fanless design, without moving parts that can generate failure.
- Ultra-flat front surface.
- Great resistance to vibrations.
of guarantee
shipping
Secure pay
Barebones
Memories
SSD
Ethernet cards
Accessories Models Touch Panel Pc 8 "IP65:

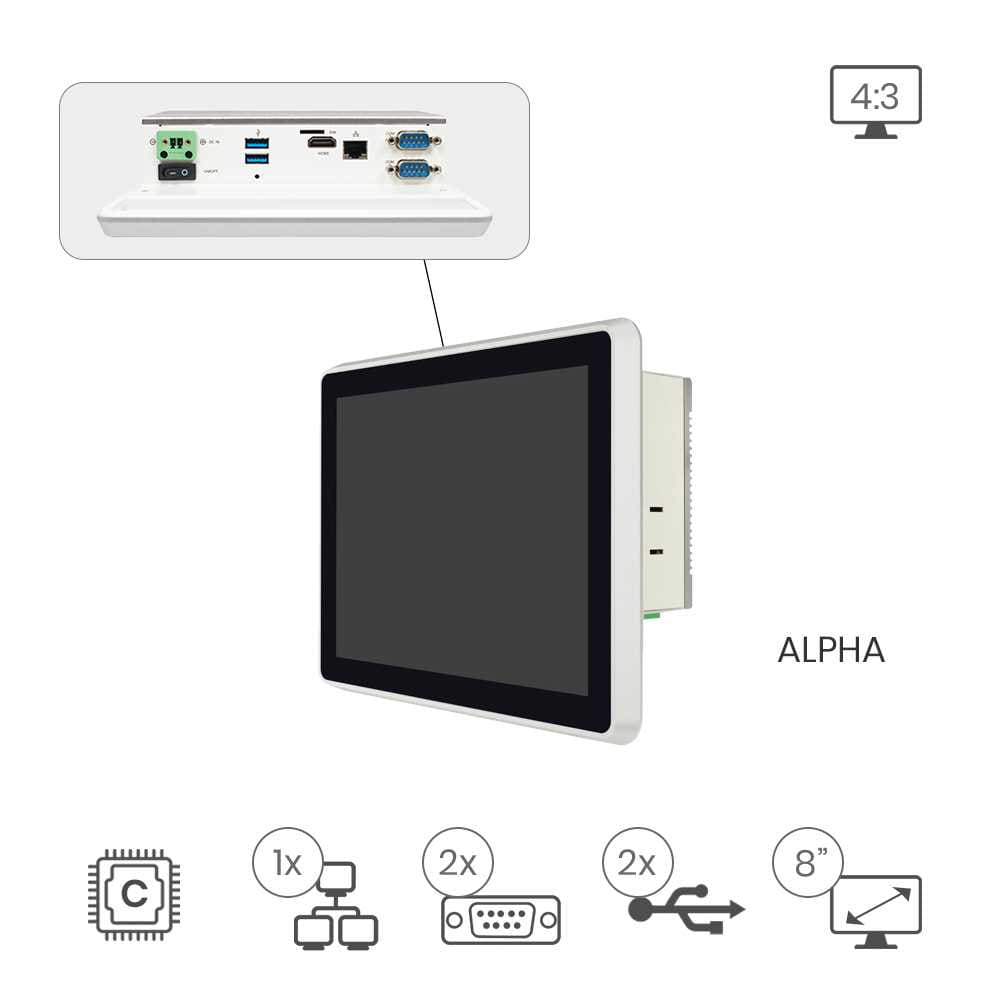

ALPHA integrates the Intel N2807 processor at 1.5Ghz, 2Gb of RAM and an mSATA drive. It has the following ports: 1 HDMI, 1 USB 3.0, 3 USB 2.0, 2 COM and 1 RJ45 gigabit. Its screen is capacitive 10 points with a brightness of 400 cd / m2.
ECO integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory, an mSATA storage unit. It has 1 VGA port, 4 USB, 4 COM ports and two gigabit network ports. It integrates 4-wire resistive screen.
| ALPHA | ECO | |
| Procesador | N2807 1.5Ghz | E3845 1.91 Ghz |
| Chipset | Intel Bay Trail-M | Intel Bay Trail-I |
| Memoria | 2Gb Integrados | 4Gb Integrados |
| Almacenamiento | mSATA | |
| Salida Video | HDMI | VGA |
| Nº USB | 1x USB 3.0 3x USb 2.0 |
4 |
| Nº COM | 2 | 4 |
| Slots Expansión | 1x Mini PCI-e for WIFI o 4G | 1x Full Size PCIe / USB / mSATA 1x Half Size USB / mSATA |
| LAN | 1x GbE | 2x Intel GbE |
| Audio | Line-out / Mic-in | |
| Pulgadas | 8" | 8.4" |
| Resolución | 1024x768 | 800x600 |
| Brillo | 400 (cd/m2) | 450 (cd/m2) |
| Contraste | 700:01 | 600:1 |
| Ángulo de Visión | 150°/145° | 80(U), 60(D), 80(R), 80(L) |
| Tipo de pantalla | Capacitiva 10 puntos | Resistiva 4 hilos |
| Montaje | VESA / Panel Mount | VESA 75 / Panel Mount |
| Protección | IP65 Front Panel | |
| Alimentación | AC input: 100-240V AC-DC 60W |
DC input: +9V ~ 36V |
| Temp. Funcionamiento | – 20 ~ +70°C | -20°C ~ 60°C |
| Hum. Funcionamiento | 5 ~ 90% @ 39ºC, sin condensación | |
| Dimensiones | 191.05 x 150.4 x 57.7 mm | 254 x 190 x 58 mm |
| Peso | 2.5Kg | |
