Panel Pc táctil 7"

Panel Pc táctil 7"

Ordenadores Ibertronica
  • 7 "high brightness LCD.
  • With Intel N2807, N4200, J1900 or E3845 processors.
  • From 2Gb to 8Gb of memory.
  • MSATA storage.
  • Fanless design, without moving parts that can generate failure.
  • Ultra-flat front surface.
  • Great resistance to vibrations.

P/N: ORDPAPC7-IP65 - EAN/UPC: 642968297407

697,33 € Without VAT
843,77 € With VAT
Canon Digital not included: 5,45 € + Taxes
Stock del equipo: 10. Unidades con la configuración elegida: 2.
Approximate delivery between 23 febrero and 28 febrero
2 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
297,65 €
Without VAT
360,16 €
With VAT
LG Thin Client 27CN650N-6A. J4105. 4Gb. SSD 128Gb.
150,00 €
Without VAT
181,50 €
With VAT
LG 27MK430H-B WLED FHD 27

At this time, we do not have in our catalog any product with characteristics identical to: Ordenadores Ibertronica ORDPAPC7-IP65. However, we can show you very similar products, if you tell us what you are looking for:
Pulgadas
Protección
Processor
Processor
Panel PC Panel PC
Memory Memory
mSATA Drives mSATA Drives
SSD SSD
Wi-Fi cards Wi-Fi cards
Transformer Transformer
Accessories Accessories
Touch Panel Touch Panel

Models Touch Panel Pc 7 "IP65:

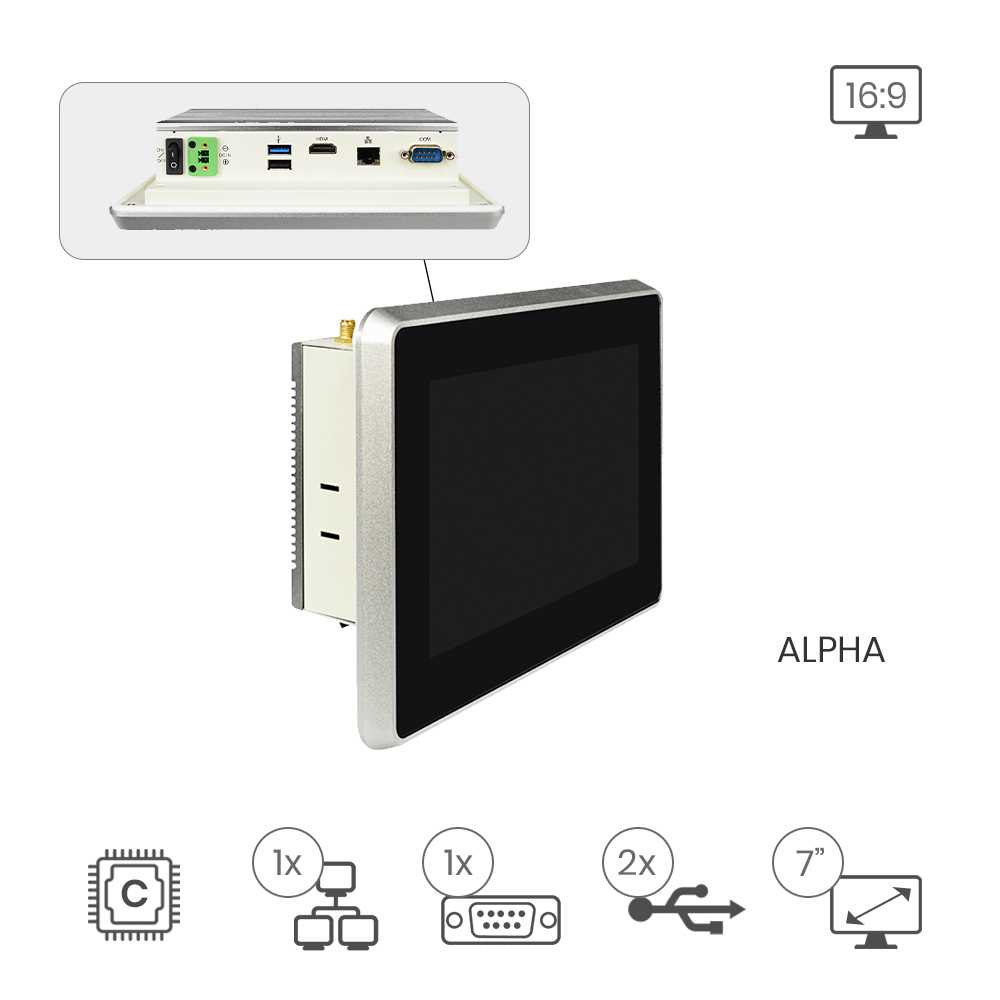

ALPHA integrates the Intel N2807 processor at 1.5Ghz, 2Gb of memory and an mSATA storage unit. It also has an HDMI port, a USB 3.0, a USB 2.0, a COM port and 1 RJ45. Its capacitive screen has 10 contact points and 320 cd / m2 of brightness.

ECO integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory, an mSATA storage unit. In addition, this Panel PC allows the installation of a 2.5 "SSD. It has 1 VGA port, 4 USB, 4 COM ports and two gigabit network ports. It integrates 4-wire resistive screen.

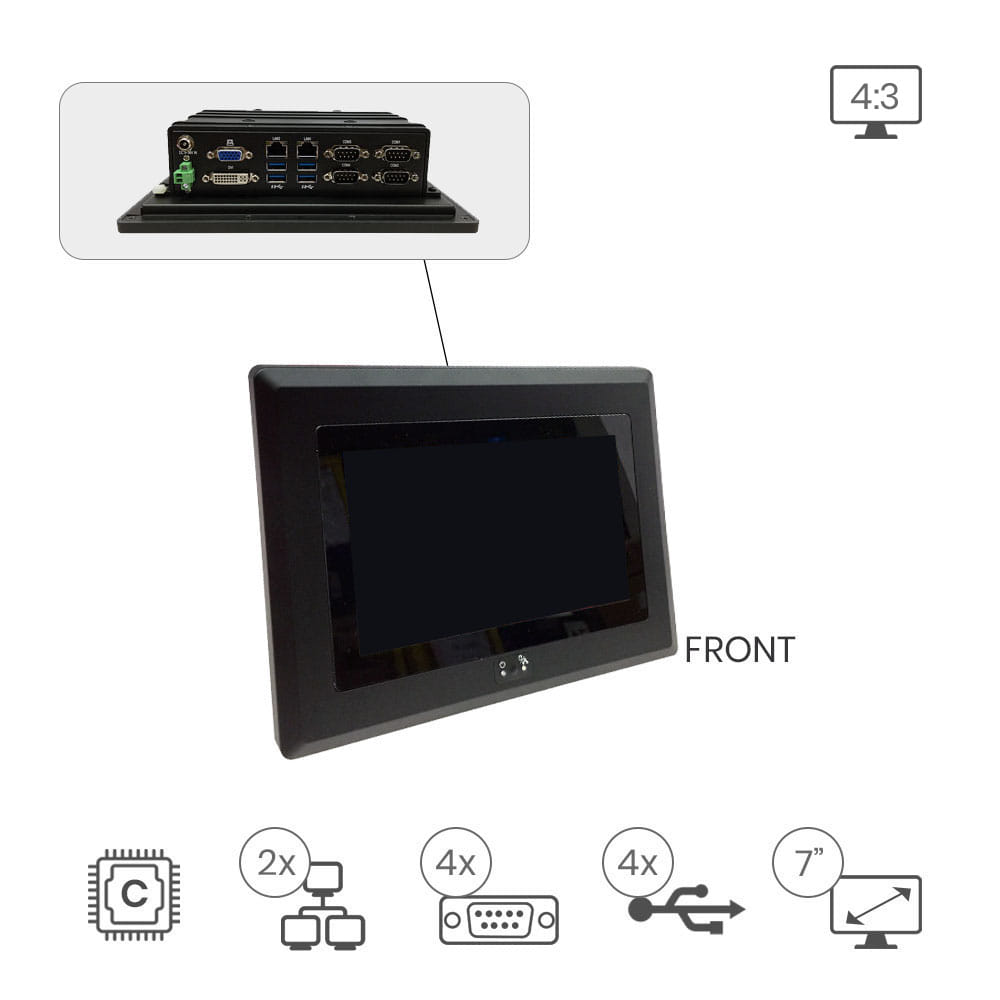

FRONT has the 2.0Ghz Intel J1900 processor, a DDR3 So-DIMM memory module expandable up to 8GB, and mSATA drive. It has a VGA port, a DVI, 4 USB, 4 COM and two gigabit network ports.

ZEBE integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory and mSATA storage. It has 1 VGA port, 2 USB 3.0, 1 COM port and two gigabit network ports.

VEGA integrates the Intel Pentium N4200 processor at 1.1Ghz, 4Gb of memory and a 128Gb SSD. It also has an HDMI port, a DisplayPort port, two USB 3.0, two USB 2.0, two COM ports and 2 RJ45 ports. Its capacitive screen is 10 points of contact and 500 cd / m2 of brightness.

  ALPHA ECO FRONT ZEBE VEGA
Procesador N2807 1.5Ghz E3845  1.91GHz J1900 2.0 GHz E3845  1.91GHz N4200 1.1 Ghz
Chipset Intel Bay Trail-M Intel Bay Trail-I Intel Bay Trail-D Intel Bay Trail-I
Memoria 2Gb Integrados 4Gb Integrados 1x So-DIMM DDR3 max 8Gb 4Gb Integrados
Almacenamiento mSATA mSATA / 2.5" HDD mSATA mSATA 128Gb
Salida Video HDMI VGA VGA, DVI VGA HDMI / DisplayPort
Nº USB 1x USB 3.0
1x USB 2.0
4 2x USB 3.0 2x USB 3.0
2x USB 2.0
Nº COM 1 4 1 2
Slots Expansión 1x Mini PCI-e for WIFI o 4G 1x Full size PCIe/USB/mSATA
1x Half size USB/mSATA
2x Mini PCIe 1x Full size PCIe/USB /mSATA
1x Half size USB/mSATA

LAN 1x GbE 2x Intel GbE 2x Realtek Gb LAN
Audio   Line-out / Mic-in     Realtek ALC3236
Pulgadas 7"
Resolución 1024x600
Brillo 320 (cd/m2) 500 (cd/m2)
Contraste 500:01 700:1
Ángulo de Visión 150°/145° 75 / 75 / 75 / 75 CR ≧ 10 (L / R / U / D) 150°/145°
Tipo de pantalla Capacitiva 10 puntos Resistiva 4 hilos Resistiva Capacitiva 10 puntos
Montaje VESA VESA 75 / Panel Mount VESA 75 / Wall mount VESA 75
Protección IP65 Front Panel
Alimentación AC input: 100-240V
AC-DC 60W
DC 12VDC
DC input: +9 ~ 36V DC input: +9 ~ 36V
AC input: 100 / 240V
Salida de CC de 12V
Temp. Funcionamiento – 20 ~+ 70°C -20°C ~ 60°C -10 °C ~ +60 °C
Hum. Funcionamiento   5 ~ 90% @ 39ºC, sin condensación 10% - 90% HR
Dimensiones 197 x 136 x 50.7 mm 189 x 128 x 58 mm 225.3 x 166.87 x 66.1 mm 184.7 x 122.5 x 40 mm 195,6 x 137,6 x 49,4 mm
Peso   1.5Kg 1.2 Kg 2Kg 1.80Kg
