Español Panel Pc táctil 17" IP65 Fanless Intel Bay Trail-D J1900 2.0Ghz Quad Core

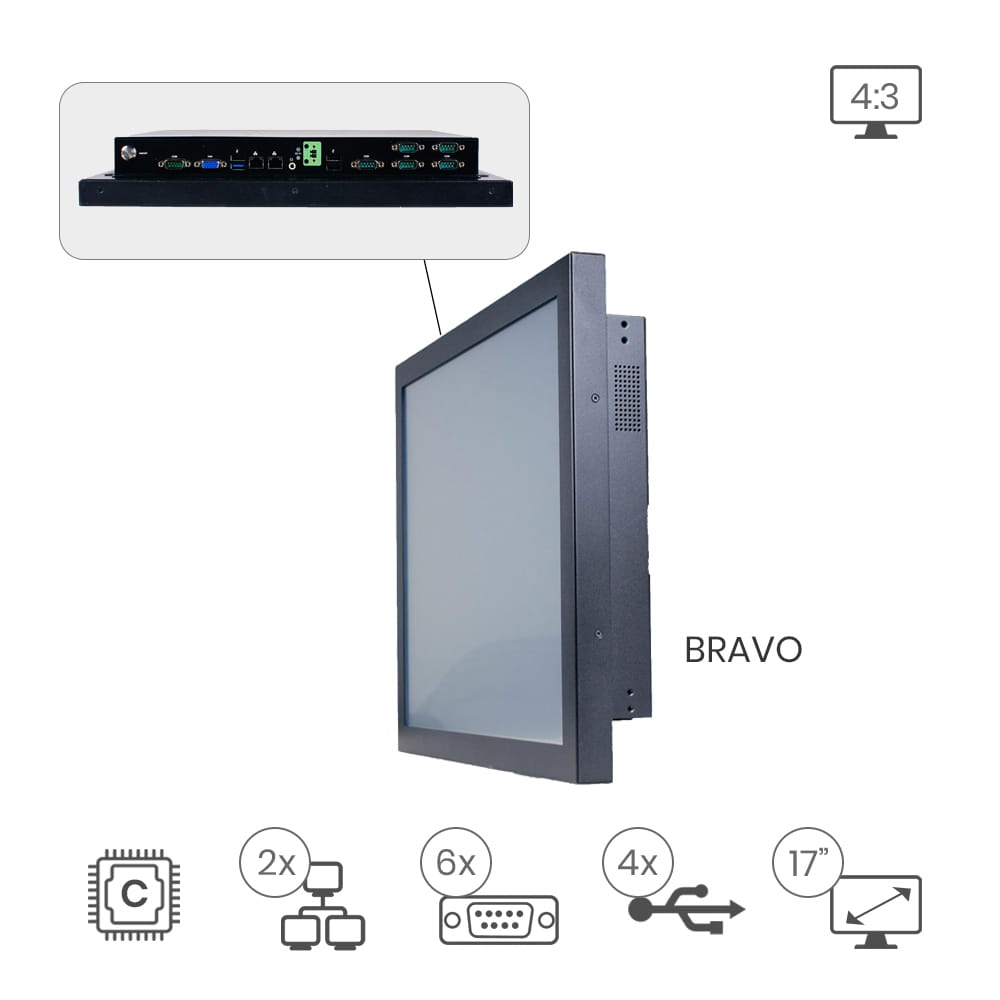

Panel Pc táctil 17" IP65 Fanless Intel Bay Trail-D J1900 2.0Ghz Quad Core
- Touch panel 17 ”with IP65 NEMA4 safety certification.
- 4: 3 format equipped with a Bay Trail-D J1900 2.0GHz processor.
- High brightness LCD 350 nits with LED backlight.
- Intel Bay Trail-D J1900 2.00Ghz Dual Core processor.
- Fanless design, without moving parts that can generate failure.
- Great resistance to vibrations.

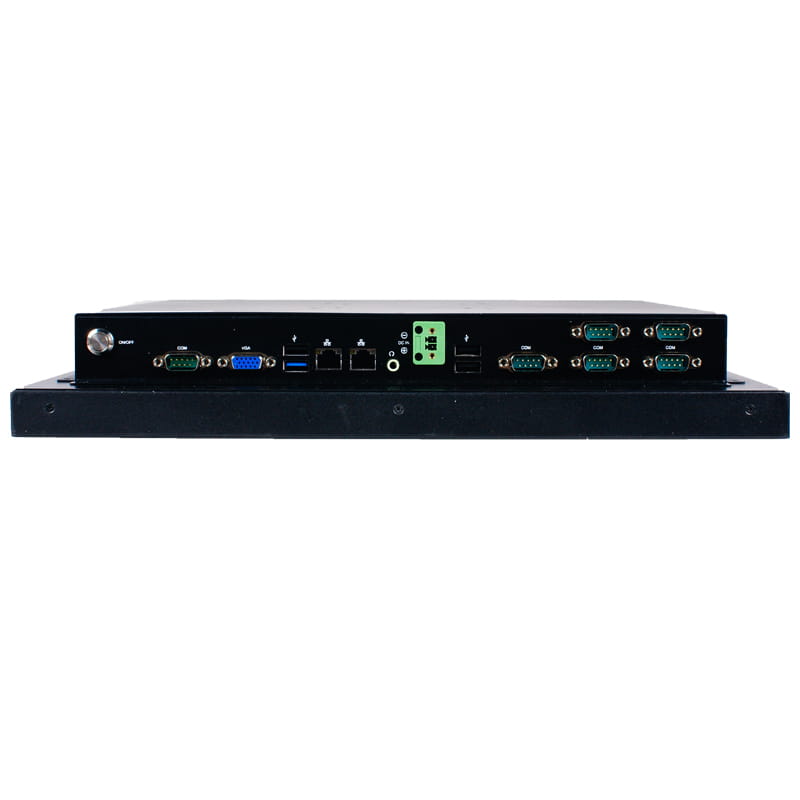

- It has a wide range of connections; Up to 6 COM ports, 4 USB, Dual Intel Gigabit LAN.
Simplified Configurator
Memories
Hard drives
of guarantee
shipping
Secure pay

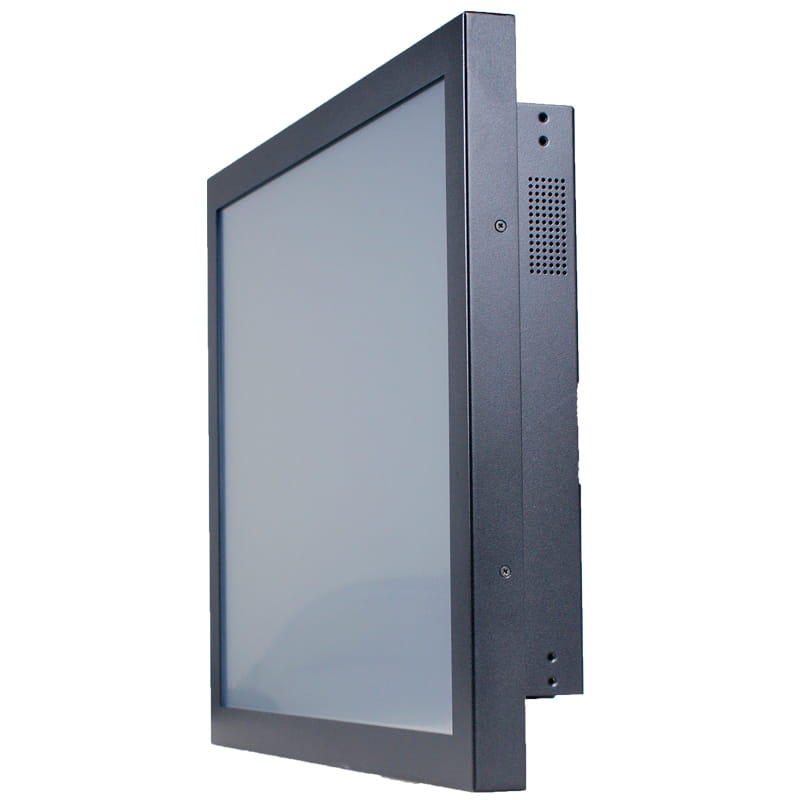

New Pc touch panel in 4: 3 format with IP65 protection system for the most aggressive work environments.
Its completely fanless design provides you with a completely silent and stable operation. It does not integrate any mobile component, which prevents failures and prolongs its useful life.
This, together with its wide range of supported operating temperatures, makes it an indispensable tool for industrial installations that require safety and performance.
Highlights...
* Touch panel 17 "IP65 / NEMA4 (certified protection against dust and water). 4: 3 format.
* Brightness 350 nits TFT LCD with LED backlight.
* Anti-reflective resistive touch protection screen.
* 6 COM ports (COM2 / COM3 supports RS422 / 485) 4USB.
* Support for 4G card.
* Integrated industrial power supply 12-24V DC, with EOS and OVP design (surge protection system).
* Low consumption.
| Frontal | IP65, NEMA 4 |
| Tipo de display | 17″ con retroiluminación LED |
| Brillo (cd/m²) | 350 nits |
| Pantalla color | 16.7M |
| Resolución | 1280 x 1024 @ 60Hz |
| Ángulo de visión (H/V) | 170°/160° |
| Tamaño de Pixel | 0.264 x 0.264 mm |
| Formato | 4:03 |
| Contraste | 1000:01:00 |
| Tiempo de respuesta | 3,5 ms |
| Pantalla táctil | |
| Tipo | Resistiva 5 hilos |
| Rango activo | 337,00 x 269,50 mm ±0.2mm |
| Transparencia | 80 ±3% |
| Dureza de superficie | ≧3H (ASTM D3363, presión 750g/45°) |
| Fuerza operativa | ≦ 80g |
| Temp. de funcionamiento | – 10 ~+ 60°C |
| Caja | |
| Material | Aluminio frontal |
| Color | Plata/Blanco |
| Sistema | |
| CPU | Intel® Bay Trail-D J1900 2.0GHz/QC |
| RAM | DDR3 SO-DIMM hasta 8Gb |
| BIOS | 64MB SPI Flash ROM |
| Almacenamiento | 1* 2.5” SATA |
| 1* M-SATA | |
| Watchdog Timer | 256 levels, 0~255 sec. |
| Sistemas operativos soportados | Windows 7 / 8.1 / 10 / Linux (Option) |
| Puertos I/0 | |
| USB 3.0 | 1 |
| USB 2.0 | 3 |
| RS232 | 4 |
| RS232/422/485 | 2 |
| CRT | 1 |
| LAN | 2 |
| LINE-OUT | 1 |
| EURO TERMINAL BLOCK 9-24V DC INPUT | 1 |
| Slots de expansión | |
| PCI-E | 1* PCI-E mini card for WIFI o 4G |
| Alimentación | |
| Alimentación | AC versión: 100-240V AC-DC transformador de corriente |
| DC Versión 9-24VDC | |
| Consumo de energía | 34.5W |
| Condiciones ambientales | |
| Temp. de funcionamiento | 0 ~ 50° C (con W.T. DRAM/HDDcon flujo de aire) |
| Golpes | 15G，11ms duration |
| Vibración | 5~500Hz/1 Grms |
| Certificaciones y normativas | |
| Certificaciones | CE, FCC, IP65(Front) |
| Normativas | |
| Dimensiones y peso | |
| Dimensiones | 383mm X 316,00mm X 60,00mm |
