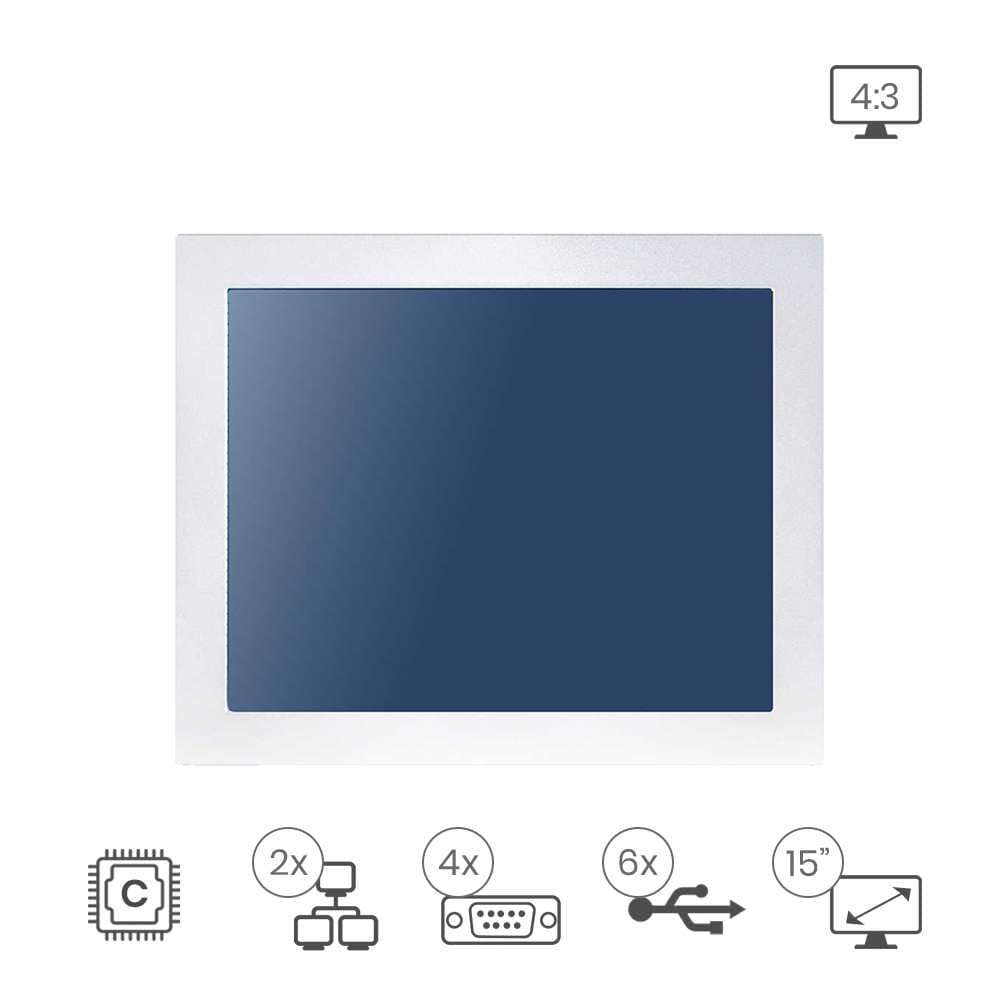

Panel Pc Táctil 15" IP65
- Touch panel 15 "with IP65 security certification.
- With Intel N2930, J1900, E3845 or i5-8265U processors.
- Supports RAM memory from 2Gb to 16Gb.
- Compatible with 2.5 "SATA and mSATA drives.

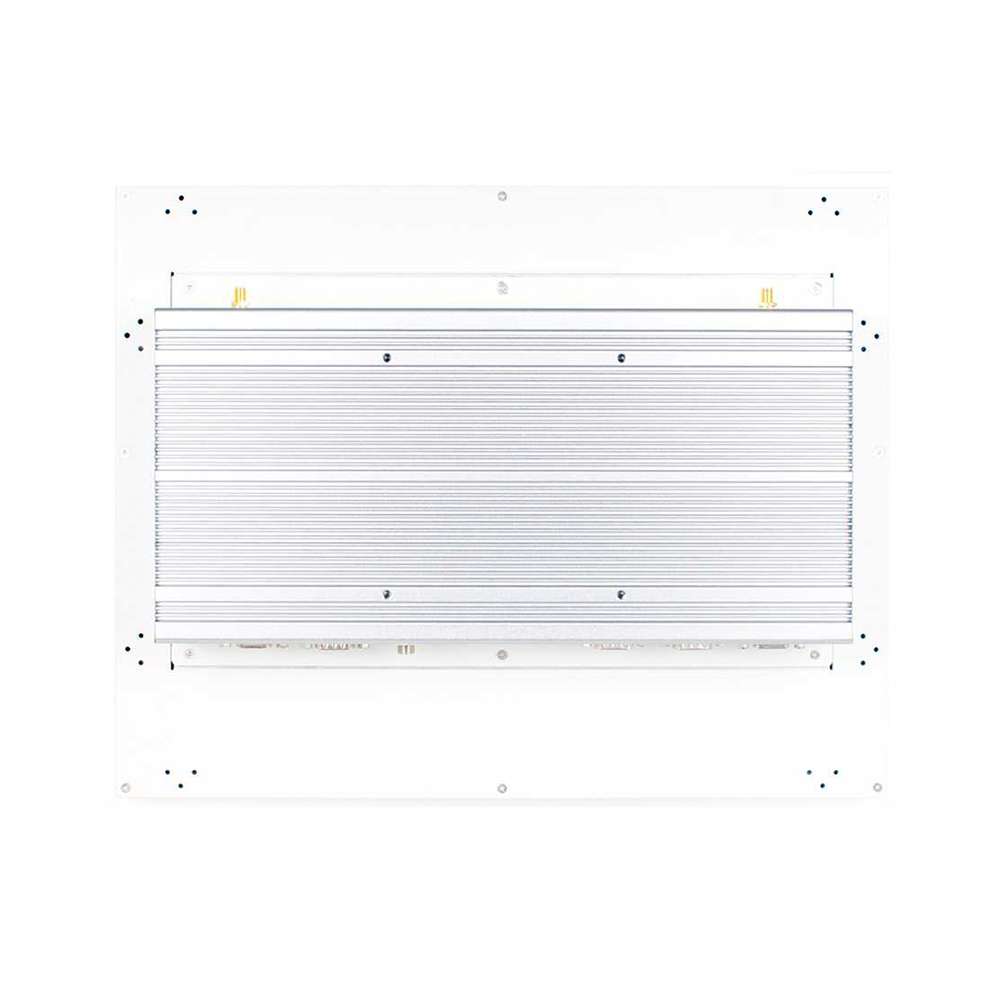

- Fanless design, without moving parts that can generate failure.
- Great resistance to vibrations.
of guarantee
Insured
Secure pay
| Processor | |
| Processor | |
| Processor | |
| Pulgadas | |
| Protección |
Panel PC
Memories
mSATA Drives
SSD
M.2
Ethernet cards
Touch Panel
Transformers
Accessories 15" IP65 Touch Panel PC Models:
ALPHA integrates the Intel N2930 processor at 1.8Ghz, 4Gb of memory and mSATA drive. Allows the installation of a 2.5 "SSD. It has a VGA port, 4 USB, 6 COM and two gigabit network ports.
BRAVO has an Intel i5-8265 1.6Ghz processor, two So-DIMM DDR4 memory modules up to a maximum of 32Gb and mSATA drive. Allows the installation of a 2.5 "SSD.
It has 1 HDMI port, 6 USB, 3 COM and two gigabit network ports.
ECO integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory, an mSATA storage unit. It has 1 VGA port, 4 USB, 4 COM ports and two gigabit network ports.
FRAMELESS allows us to choose between an Intel J1900 2.42Ghz processor and 1 So-DIMM DDR3 memory module up to 8Gb, or Intel i5-6200U 2.3Ghz processor and 1 So-DIMM DDR4 memory module up to 16Gb. It has 1 VGA port, a DVI, 4 USB, 4 COM and two gigabit network ports.
| ALPHA | BRAVO | ECO | FRAMELESS | |
| Procesador | N2930 1.8Ghz | i5-8265 1.6Ghz | E3845 1.91GHz | J1900 2.42GHz o i5-6200 2.3Ghz |
| Chipset | Intel Bay Trail-M | Intel Kaby Lake | Intel Bay Trail-I | Intel Bay Trail-I o Intel Skaylake |
| Memoria | 4Gb Integrados | 2x So-DIMM DDR4 max 32Gb | 4Gb Integrados | 1x So-DIMM DDR3 max 8Gb o 1x So-DIMM DDR4 max 16Gb |
| Almacenamiento | 1x 2.5" SATA 1x mSATA (Full Size) |
mSATA | ||
| Salida Video | VGA | HDMI | VGA | VGA, DVI |
| Nº USB | 4 | 6 | 4 | |
| Nº COM | 6 | 3 | 4 | |
| Slots Expansión | 1x Mini PCIe | 2x Mini PCIe | ||
| LAN | 2x Intel GbE | |||
| Audio | ||||
| Pulgadas | 15" 4:3 | |||
| Resolución | 1024x768 | |||
| Brillo | 350 (cd/m2) | 450 (cd/m2) | 400 (cd/m2) | 350 (cd/m2) |
| Contraste | 700:1 | 800:1 | 700:1 | 800:1 |
| Ángulo de Visión | 170º/160º | 160º/160º | 60(U), 80(D), 80(R), 80(L) | |
| Tipo de pantalla | Resistiva | Capacitiva | ||
| Montaje | VESA 75-100 / Panel Mount | VESA | ||
| Protección | IP65 | |||
| Alimentación | DC input: +9 ~ 24V | DC input: 12V | DC input: +9 ~ 36V | |
| Temp. Funcionamiento | – 0 ~+ 60°C | -10°C ~ 50°C | -20°C ~ 60°C | – 20 ~+ 50°C |
| Hum. Funcionamiento | 5~90% @ 39°C, sin condensación | 95% @ 40°C, sin condensación | ||
| Dimensiones | 376 x 300 x 54 mm | 352.0 x 279.5 x 66.5 mm | 384 x 312 x 70.5 mm | 364.03 x 290.93 x 72.8 mm |
| Peso | 4.2Kg | 4Kg | ||
15" IP65 Touch Panel PC Models:
ALPHA integrates the Intel N2930 processor at 1.8Ghz, 4Gb of memory and mSATA drive. Allows the installation of a 2.5 "SSD. It has a VGA port, 4 USB, 6 COM and two gigabit network ports.
BRAVO has an Intel i5-8265 1.6Ghz processor, two So-DIMM DDR4 memory modules up to a maximum of 32Gb and mSATA drive. Allows the installation of a 2.5 "SSD.
It has 1 HDMI port, 6 USB, 3 COM and two gigabit network ports.
ECO integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory, an mSATA storage unit. It has 1 VGA port, 4 USB, 4 COM ports and two gigabit network ports.
FRAMELESS allows us to choose between an Intel J1900 2.42Ghz processor and 1 So-DIMM DDR3 memory module up to 8Gb, or Intel i5-6200U 2.3Ghz processor and 1 So-DIMM DDR4 memory module up to 16Gb. It has 1 VGA port, a DVI, 4 USB, 4 COM and two gigabit network ports.
| ALPHA | BRAVO | ECO | FRAMELESS | |
| Procesador | N2930 1.8Ghz | i5-8265 1.6Ghz | E3845 1.91GHz | J1900 2.42GHz o i5-6200 2.3Ghz |
| Chipset | Intel Bay Trail-M | Intel Kaby Lake | Intel Bay Trail-I | Intel Bay Trail-I o Intel Skaylake |
| Memoria | 4Gb Integrados | 2x So-DIMM DDR4 max 32Gb | 4Gb Integrados | 1x So-DIMM DDR3 max 8Gb o 1x So-DIMM DDR4 max 16Gb |
| Almacenamiento | 1x 2.5" SATA 1x mSATA (Full Size) |
mSATA | ||
| Salida Video | VGA | HDMI | VGA | VGA, DVI |
| Nº USB | 4 | 6 | 4 | |
| Nº COM | 6 | 3 | 4 | |
| Slots Expansión | 1x Mini PCIe | 2x Mini PCIe | ||
| LAN | 2x Intel GbE | |||
| Audio | ||||
| Pulgadas | 15" 4:3 | |||
| Resolución | 1024x768 | |||
| Brillo | 350 (cd/m2) | 450 (cd/m2) | 400 (cd/m2) | 350 (cd/m2) |
| Contraste | 700:1 | 800:1 | 700:1 | 800:1 |
| Ángulo de Visión | 170º/160º | 160º/160º | 60(U), 80(D), 80(R), 80(L) | |
| Tipo de pantalla | Resistiva | Capacitiva | ||
| Montaje | VESA 75-100 / Panel Mount | VESA | ||
| Protección | IP65 | |||
| Alimentación | DC input: +9 ~ 24V | DC input: 12V | DC input: +9 ~ 36V | |
| Temp. Funcionamiento | – 0 ~+ 60°C | -10°C ~ 50°C | -20°C ~ 60°C | – 20 ~+ 50°C |
| Hum. Funcionamiento | 5~90% @ 39°C, sin condensación | 95% @ 40°C, sin condensación | ||
| Dimensiones | 376 x 300 x 54 mm | 352.0 x 279.5 x 66.5 mm | 384 x 312 x 70.5 mm | 364.03 x 290.93 x 72.8 mm |
| Peso | 4.2Kg | 4Kg | ||
