Español Panel Pc Táctil 10" IP67

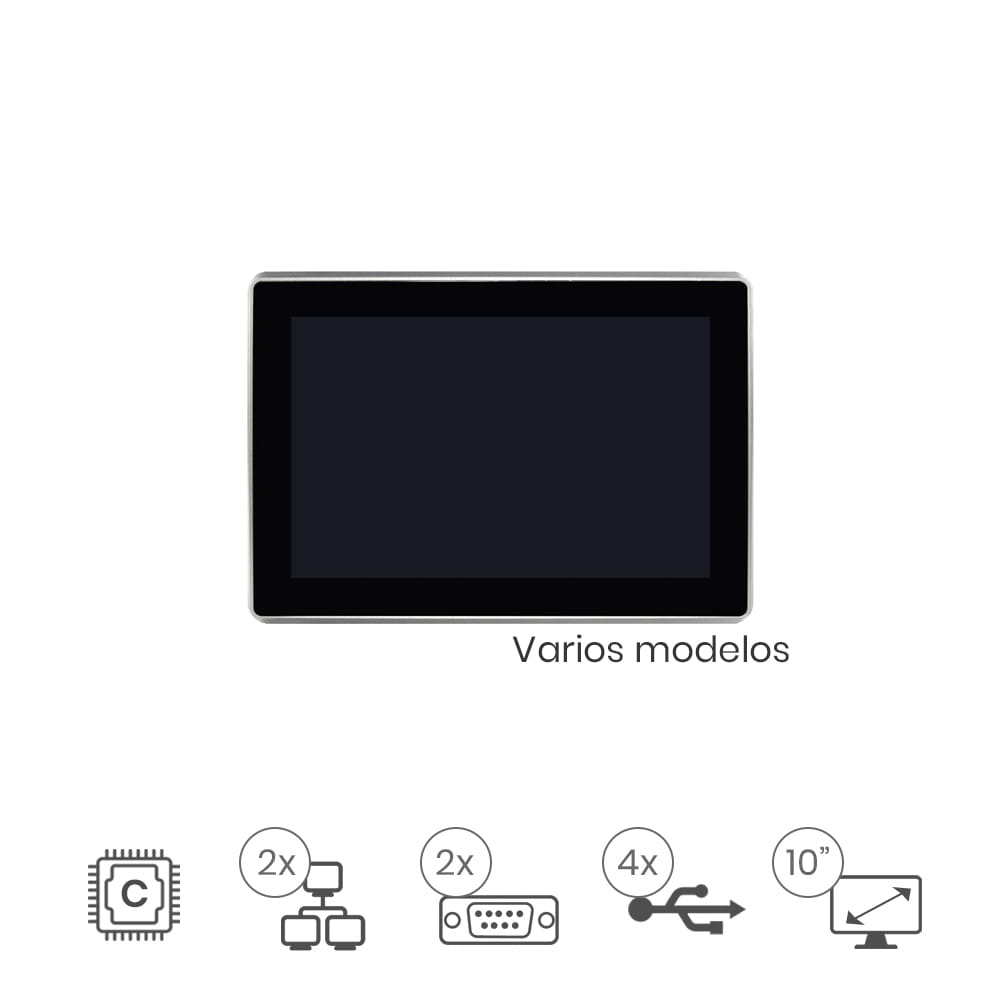

Panel Pc Táctil 10" IP67
With Intel E3845 processor.
4Gb of on-board memory.
MSATA storage.
Fanless design, without moving parts that can generate failure.
Ultra-flat front surface.
Great resistance to vibrations.
of guarantee
Insured
Secure pay
| Processor | |
| Pulgadas | |
| Protección |
Panel PC
Memories
mSATA Drives
SSD
Touch Panel
Accessories Models 10 "IP67 Touch Panel Pc:

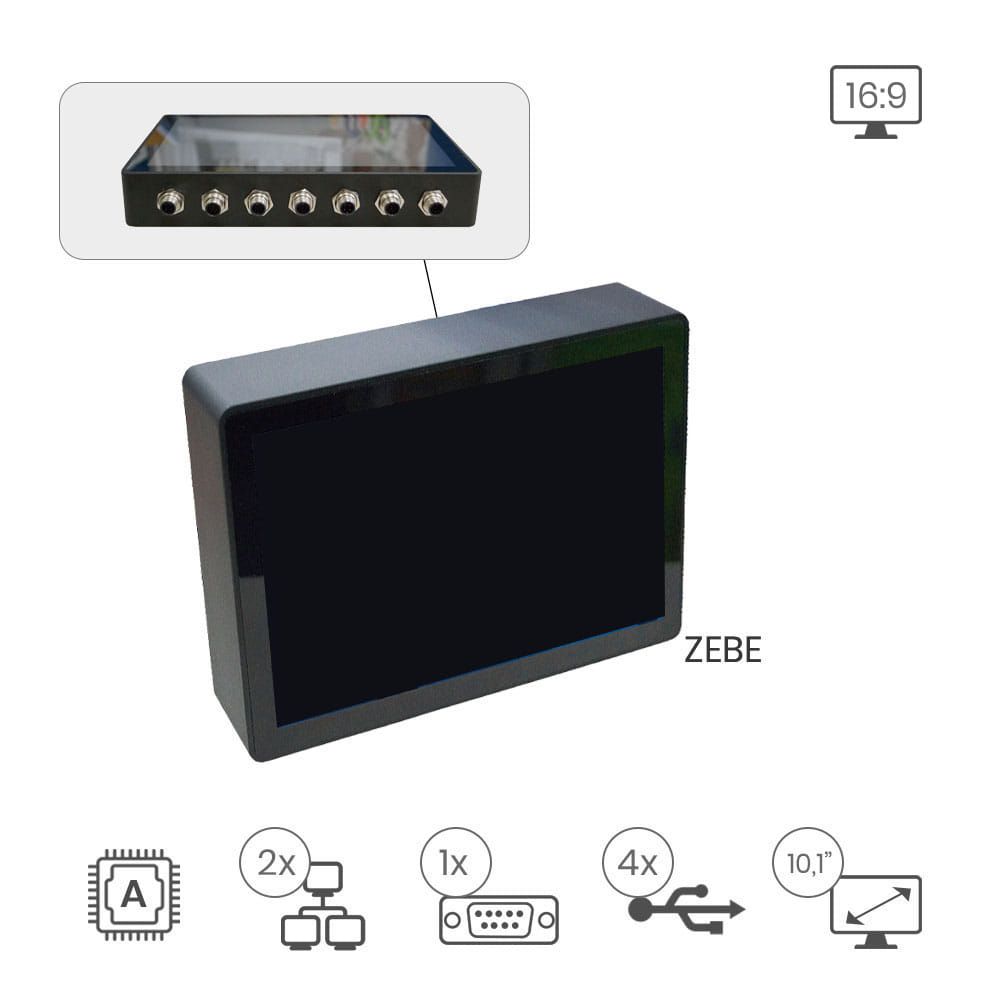

ZEBE integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory and mSATA storage. It has 1 VGA port, 4 USB, 1 COM port and two gigabit network ports. Its 10.1 "screen is resistive.
ALUM integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory, an mSATA storage unit. It has 1 VGA port, 4 USB, 4 COM ports and two gigabit network ports. Includes 10.4 "screen.

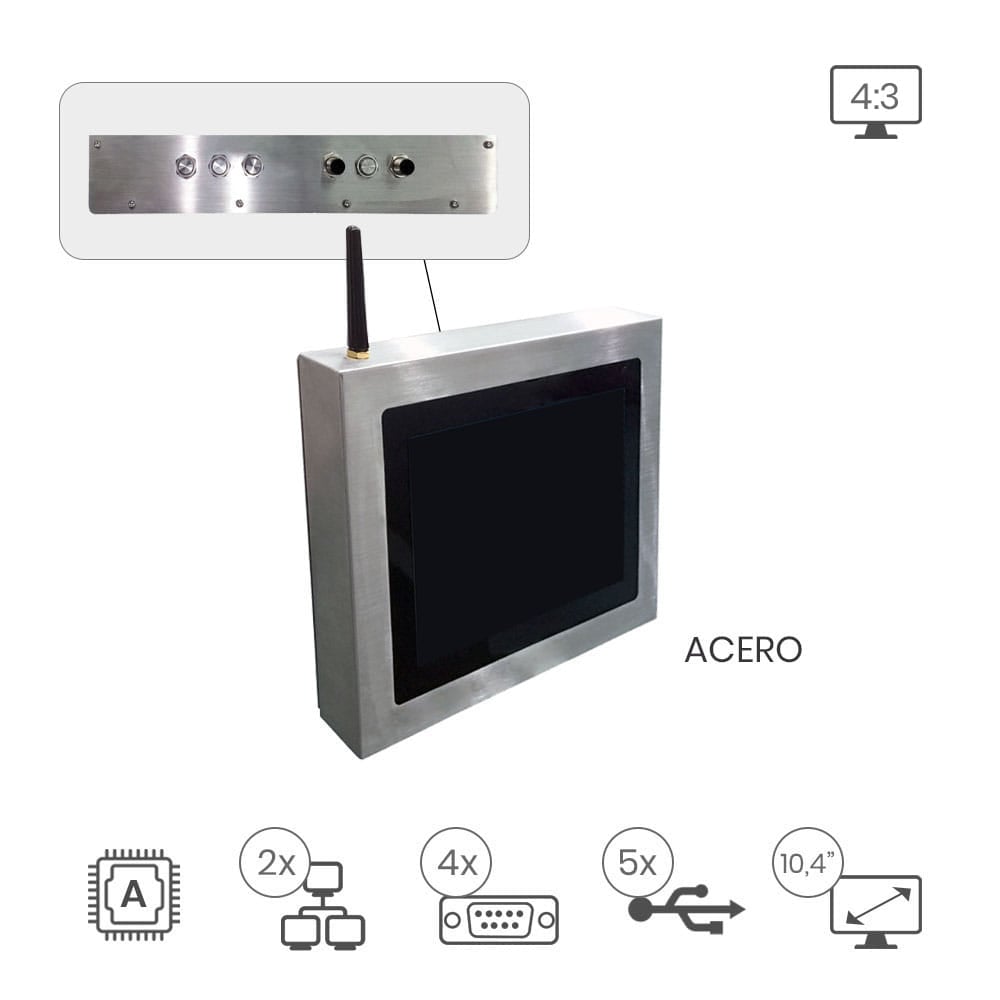

STEEL integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory, an mSATA storage unit. It has 1 VGA port, 4 USB 2.0, 1 USB 3.0, 4 COM ports and two gigabit network ports. Includes 10.4 "screen.
| ZEBE | ALUM | ACERO | |
| Procesador | E3845 1.91GHz | ||
| Chipset | Intel Bay Trail | ||
| Memoria | 4Gb Integrados | ||
| Almacenamiento | mSATA | ||
| Salida Video | VGA | ||
| Nº USB | 4 | 4x USB 2.0 1x USB 3.0 |
|
| Nº COM | 1 | 4 | |
| Slots Expansión | 1x Full size PCIe/USB /mSATA 1x Half size USB/mSATA |
||
| LAN | 2x Intel GbE | ||
| Audio | Line-out / Mic-in | ||
| Pulgadas | 10.1" | 10.4" | |
| Resolución | 1280x800 | 1024x768 | |
| Brillo | 300 (cd/m2) | 400 (cd/m2) | |
| Contraste | 1300:1 | 700:1 | |
| Ángulo de Visión | 85 / 85 / 85 / 85CR ≧ 10 (L / R / U / D) | 60 / 70 / 80 / 80CR ≧ 10 (L / R / U / D) | |
| Tipo de pantalla | Resistiva | ||
| Montaje | Wall mount | VESA Mount | |
| Protección | IP66 / IP67 | ||
| Alimentación | DC input: +9 ~ 36V | ||
| Temp. Funcionamiento | -20°C ~ 60°C | ||
| Hum. Funcionamiento | 95% @ 40°C, sin condensación | ||
| Dimensiones | 249.56 x 168.2 x 40 mm | 279.5 x 231 x 54 mm | 311 x 258 x 45 mm |
| Peso | 2.3Kg | 2.67 Kg | 3.35Kg |
Models 10 "IP67 Touch Panel Pc:
ZEBE integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory and mSATA storage. It has 1 VGA port, 4 USB, 1 COM port and two gigabit network ports. Its 10.1 "screen is resistive.
ALUM integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory, an mSATA storage unit. It has 1 VGA port, 4 USB, 4 COM ports and two gigabit network ports. Includes 10.4 "screen.
STEEL integrates the Intel E3845 processor at 1.91Ghz, 4Gb of memory, an mSATA storage unit. It has 1 VGA port, 4 USB 2.0, 1 USB 3.0, 4 COM ports and two gigabit network ports. Includes 10.4 "screen.
| ZEBE | ALUM | ACERO | |
| Procesador | E3845 1.91GHz | ||
| Chipset | Intel Bay Trail | ||
| Memoria | 4Gb Integrados | ||
| Almacenamiento | mSATA | ||
| Salida Video | VGA | ||
| Nº USB | 4 | 4x USB 2.0 1x USB 3.0 |
|
| Nº COM | 1 | 4 | |
| Slots Expansión | 1x Full size PCIe/USB /mSATA 1x Half size USB/mSATA |
||
| LAN | 2x Intel GbE | ||
| Audio | Line-out / Mic-in | ||
| Pulgadas | 10.1" | 10.4" | |
| Resolución | 1280x800 | 1024x768 | |
| Brillo | 300 (cd/m2) | 400 (cd/m2) | |
| Contraste | 1300:1 | 700:1 | |
| Ángulo de Visión | 85 / 85 / 85 / 85CR ≧ 10 (L / R / U / D) | 60 / 70 / 80 / 80CR ≧ 10 (L / R / U / D) | |
| Tipo de pantalla | Resistiva | ||
| Montaje | Wall mount | VESA Mount | |
| Protección | IP66 / IP67 | ||
| Alimentación | DC input: +9 ~ 36V | ||
| Temp. Funcionamiento | -20°C ~ 60°C | ||
| Hum. Funcionamiento | 95% @ 40°C, sin condensación | ||
| Dimensiones | 249.56 x 168.2 x 40 mm | 279.5 x 231 x 54 mm | 311 x 258 x 45 mm |
| Peso | 2.3Kg | 2.67 Kg | 3.35Kg |
